maserati 4200 spyder (2003) dashboard instruments parts diagram

130 - dashboard instruments

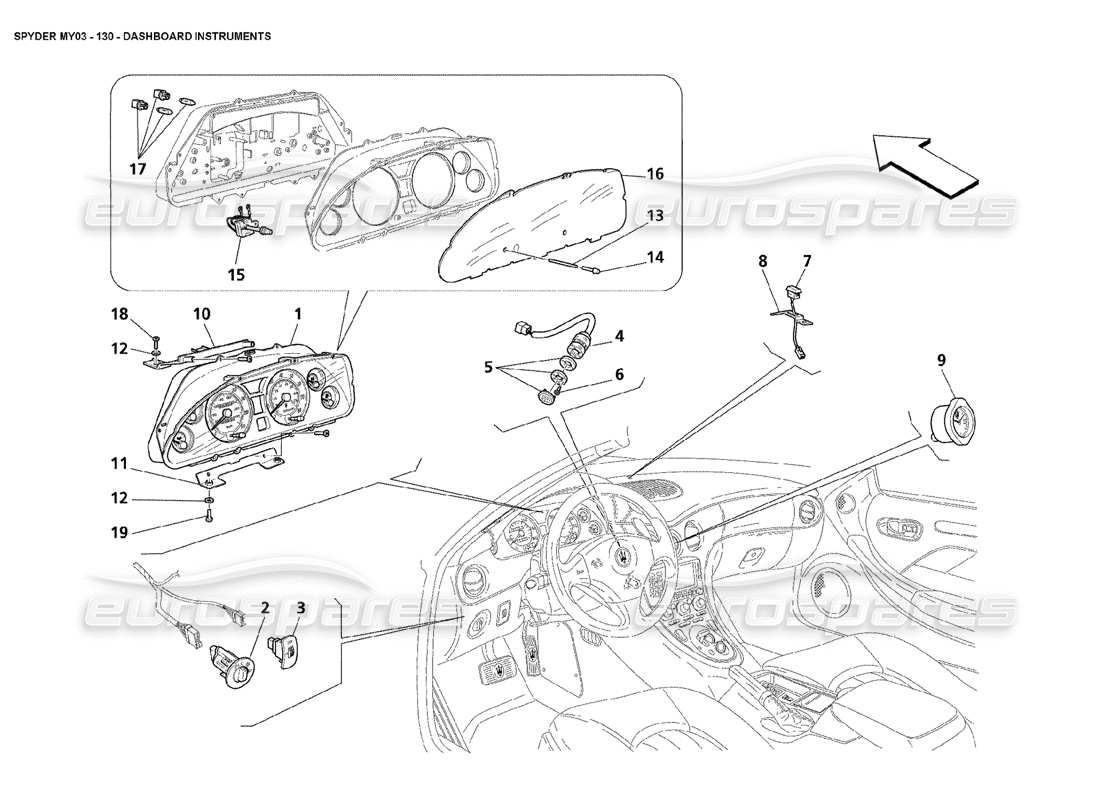

Maserati 4200 Spyder (2003) Dashboard Instruments Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                #
                                Part number
                                Description
                                Price
                                # 001
                                MPN: 195741
                                COMPLETE ODOMETER MILES INSTRUMENT
                                - Valid for USA
                                from £879.97
                                from £879.97
                                # 001
                                MPN: 195980
                                COMPLETE ODOMETER KM INSTRUMENT
                                - Not for USA and GB - Valid for cars GB opt. japan version
                                from £1,400.51
                                from £1,400.51
                                # 001
                                MPN: 196123
                                COMPLETE ODOMETER MILES INSTRUMENT
                                - Valid for GB - Not for cars GB opt. japan version
                                from £365.46
                                from £365.46
                                # 002
                                MPN: 185946
                                COMPLETE LIGHTS CHANGE OVER SWITCH PLATE
                                - Not for USA and CDN
                                from £270.05
                                from £270.05
                                # 003
                                MPN: 383100112
                                HEADLIGHT ADJUSTMENT CONTROL
                                - Not for xeno headlights - Not for USA and CDN
                                from £111.97
                                from £111.97
                                This part replaces part number 383100110 - and 1 more. Click to view details
                                # 004
                                MPN: 385500199
                                INNER TEMPERATURE SENSOR
                                from £186.44
                                from £186.44
                                This part replaces part number 82488323
                                # 005
                                MPN: 375530050
                                PLATE KIT
                                from £8.28
                                from £8.28
                                # 006
                                MPN: 12678502
                                SCREW
                                Supersession
                                Supersession
                                # 007
                                MPN: 60663086
                                SOLAR SENSOR
                                from £54.84
                                from £54.84
                                This part replaces part number 60629310 - and 1 more. Click to view details
                                # 008
                                MPN: 382300612
                                BRACKET
                                from £2.83
                                from £2.83
                                # 009
                                MPN: 383600119
                                ANALOGIC CLOCK
                                - Standard
                                from £762.72
                                from £762.72
                                This part replaces part number 383600118
                                # 009
                                MPN: 383600121
                                ANALOGIC CLOCK
                                - Optional - Chromate
                                from £366.20
                                from £366.20
                                # 010
                                MPN: 382300225
                                UPPER BRACKET
                                from £11.72
                                from £11.72
                                # 011
                                MPN: 382300114
                                LOWER BRACKET
                                from £10.42
                                from £10.42
                                # 012
                                MPN: 10519307
                                WASHER
                                from £0.53
                                from £0.53
                                # 013
                                MPN: 373600306
                                RESET PIN
                                from £1.16
                                from £1.16
                                # 014
                                MPN: 373600305
                                PUSH BUTTON
                                from £1.38
                                from £1.38
                                # 015
                                MPN: 393650210
                                RHEOSTAT
                                from £89.03
                                from £89.03
                                # 016
                                MPN: 383601300
                                INSTRUMENTS GLASS
                                from £34.71
                                from £34.71
                                # 017
                                MPN: 393650215
                                BULB HOLDER+BULB 1,2W.
                                from £1.98
                                from £1.98
                                This part replaces part number 393650217
                                # 017
                                MPN: 393650216
                                BULB HOLDER+BULB 2W.
                                from £11.72
                                from £11.72
                                # 018
                                MPN: 14304024
                                SCREW
                                from £0.53
                                from £0.53
                                # 019
                                MPN: 13274177
                                SCREW
                                from £0.53
                                from £0.53
