maserati 4200 spyder (2003) electrical system parts diagram

137 - electrical system

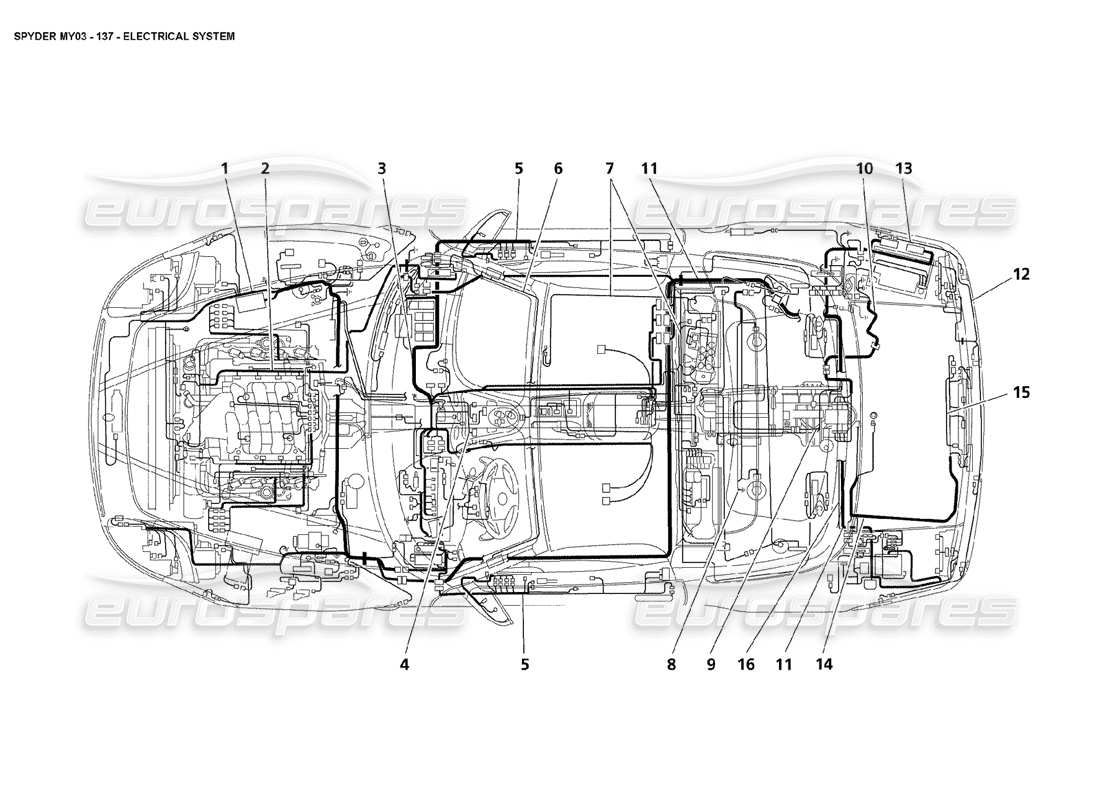

Maserati 4200 Spyder (2003) Electrical System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Key
    Price
    # 001
    MPN: 195744
    ENGINE COMPARTMENT CABLES
    - Valid for USA and CDN - Valid till stock exhaustion
    Supersession
    Supersession
    Genuine Maserati Part (no longer available to order)
    # 001
    MPN: 196110
    ENGINE COMPARTMENT CABLES
    - Not for USA, CDN and GD - Valid till stock exhaustion
    Supersession
    Supersession
    Genuine Maserati Part (no longer available to order)
    # 001
    MPN: 196113
    ENGINE COMPARTMENT CABLES
    - Valid for GD - Valid till stock exhaustion
    Supersession
    Supersession
    Genuine Maserati Part (no longer available to order)
    # 001
    MPN: 200540
    ENGINE COMPARTMENT CABLES
    - Not for USA, CDN and GD - Valid after stock exhaustion of 196110
    from £554.33
    from £554.33
    This part replaces part number 196110
    ENGINE COMPT. WIRING,SPIDER Genuine Maserati Part - New (to order)
    # 001
    MPN: 200550
    ENGINE COMPARTMENT CABLES
    - Valid for USA and CDN - Valid after stock exhaustion of 195744
    from £554.33
    from £554.33
    This part replaces part number 195744
    ENGINE COMPT. WIRING,SPIDER US Genuine Maserati Part - New (to order)
    # 001
    MPN: 200553
    ENGINE COMPARTMENT CABLES
    - Valid for GD - Valid after stock exhaustion of 196113
    from £554.33
    from £554.33
    This part replaces part number 196113
    CAVO VANO MOTORE M138ED GDX Genuine Maserati Part - New (to order)
    # 002
    MPN: 190041
    IGNITION DEVICE CABLES
    - Valid for USA and CDN - Valid till engine Nr. 73454
    from £667.72
    from £667.72
    CABLAGGIO INIEZIONE MOTORE M Genuine Maserati Part - New In stock
    # 002
    MPN: 195032
    INJECTION DEVICE CABLES
    - Not for USA, CDN and GD
    from £2,356.50
    from £2,356.50
    CABLAGGIO INIEZIONE MOTORE M Genuine Maserati Part - New In stock
    # 002
    MPN: 195034
    INJECTION DEVICE CABLES
    - Valid for GD
    from £701.09
    from £701.09
    ENGINE INJECTION WIRING M13 Genuine Maserati Part - New (to order)
    # 002
    MPN: 196332
    IGNITION DEVICE CABLES
    - Valid for USA and CDN - Valid from engine Nr. 73455
    from £1,348.67
    from £1,348.67
    IGNITION CABLE SPYDER Genuine Maserati Part - New (to order)
    # 003
    MPN: 195745
    DASHBOARD CABLE
    - Not for GD - Valid till stock exhaustion
    Supersession
    Supersession
    Genuine Maserati Part (no longer available to order)
    # 003
    MPN: 196114
    DASHBOARD CABLE
    - Valid for GD - Valid till stock exhaustion
    from £1,289.41
    from £1,289.41
    CABLE RHD Genuine Maserati Part - New In stock
    # 003
    MPN: 200539
    DASHBOARD CABLE
    - Not for GD - Valid after stock exhaustion of 195745
    from £1,274.61
    from £1,274.61
    This part replaces part number 195745
    LHD DASHBOARD WIRING,SPIDER M138 Genuine Maserati Part - New (to order)
    # 003
    MPN: 200552
    DASHBOARD CABLE
    - Valid for GD - Valid after stock exhaustion of 196114
    from £1,289.41
    from £1,289.41
    This part replaces part number 196114 which we have in stock
    CAVO PLANCIA M138ED GDX Genuine Maserati Part - New (to order)
    # 004
    MPN: 197026
    NAVIGATION SYSTEM CABLES
    - Valid till stock exhaustion
    Supersession
    Supersession
    Genuine Maserati Part (no longer available to order)
    # 004
    MPN: 200501
    NAVIGATION SYSTEM CABLES
    - Valid after stock exhaustion of 197026
    from £99.90
    from £99.90
    This part replaces part number 197026 - and 1 more. Click to view details
    NAVI TRIM PANEL CONNECTION WIRING Genuine Maserati Part - New (to order)
    NAVI TRIM PANEL CONNECTION WIRING Genuine Maserati Part - Used In stock
    # 005
    MPN: 182221
    DOOR CABLE
    - Valid for USA and CDN
    Supersession
    Supersession
    Genuine Maserati Part (no longer available to order)
    # 005
    MPN: 200490
    DOOR CABLE
    - Not for USA and CDN
    from £141.46
    from £141.46
    This part replaces part number 182221 - and 1 more. Click to view details
    DOOR WIRING Genuine Maserati Part - New (to order)
    DOOR WIRING Genuine Maserati Part - Used In stock
    # 006
    MPN: 186096
    ROOF LIGHT CABLE
    - Valid till stock exhaustion
    Supersession
    Supersession
    Genuine Maserati Part (no longer available to order)
    # 006
    MPN: 200544
    ROOF LIGHT CABLE
    - Valid after stock exhaustion of 186096
    from £29.81
    from £29.81
    This part replaces part number 186096
    SPIDER CEILING LIGHT CABLE Genuine Maserati Part - New (to order)
    # 007
    MPN: 980002018
    CAPOTE DEVICE CABLES
    from £620.32
    from £620.32
    TOP WIRING MY03 Genuine Maserati Part - New (to order)
    # 008
    MPN: 193164
    TANK CABLE
    - Not for USA and CDN - Valid till stock exhaustion
    Supersession
    Supersession
    Genuine Maserati Part (no longer available to order)
    # 008
    MPN: 193165
    TANK CABLE
    - Valid for USA and CDN
    Supersession
    Supersession
    Genuine Maserati Part (no longer available to order)
    # 008
    MPN: 200547
    TANK CABLE
    - Not for USA and CDN - Valid after stock exhaustion of 193164
    from £86.73
    from £86.73
    This part replaces part number 193164
    CABLAGGIO POMPE BENZINA SERB Genuine Maserati Part - New (to order)
    # 009
    MPN: 184916
    F1 GEAR CABLE ON GEARBOX
    - Valid for F1
    from £170.81
    from £170.81
    F1 GEARBOX WIRING ON GEARBOX Genuine Maserati Part - New (to order)
    F1 GEARBOX WIRING ON GEARBOX Genuine Maserati Part - Used In stock
    # 010
    MPN: 186099
    F1 GEAR CABLE ON BODYWORK
    - Valid for F1 - Valid till stock exhaustion
    Supersession
    Supersession
    Genuine Maserati Part (no longer available to order)
    # 010
    MPN: 200548
    F1 GEAR CABLE ON BODYWORK
    - Valid for F1 - Valid after stock exhaustion of 186099
    from £273.50
    from £273.50
    This part replaces part number 186099
    F1 GEARBOX WIRING ON BODYWOR Genuine Maserati Part - New (to order)
    # 011
    MPN: 195746
    RH LONGITUDINAL CABLE
    - Optional - HI FI system - Not for GD - Valid till stock exhaustion
    Supersession
    Supersession
    Genuine Maserati Part (no longer available to order)
    # 011
    MPN: 195747
    RH LONGITUDINAL CABLE
    - Standard - With arrangement for opt. CD charger - Not for GD - Valid till stock exhaustion
    Supersession
    Supersession
    Genuine Maserati Part (no longer available to order)
    # 011
    MPN: 196112
    RH LONGITUDINAL CABLE
    - Optional - Telephone and CD charger - Not for opt. HI FI system - Not for USA, CDN, GD and J - Valid till stock exhaustion
    Supersession
    Supersession
    Genuine Maserati Part (no longer available to order)
    # 011
    MPN: 196116
    RH LONGITUDINAL CABLE
    - Standard - With arrangement for opt. CD charger - Valid for GD - Valid till stock exhaustion
    Supersession
    Supersession
    Genuine Maserati Part (no longer available to order)
    # 011
    MPN: 196117
    RH LONGITUDINAL CABLE
    - Optional - Telephone and CD charger - Not for opt. HI FI system - Valid for GD - Valid till stock exhaustion
    Supersession
    Supersession
    Genuine Maserati Part (no longer available to order)
    # 011
    MPN: 196118
    RH LONGITUDINAL CABLE
    - Optional - HI FI system - Valid for GD - Valid till stock exhaustion
    Supersession
    Supersession
    Genuine Maserati Part (no longer available to order)
    # 011
    MPN: 200541
    RH LONGITUDINAL CABLE
    - Standard - With arrangement for opt. CD charger - Not for GD - Valid after stock exhaustion of 195747
    from £757.34
    from £757.34
    This part replaces part number 195747
    RH LONGITUDINAL CABLE. Genuine Maserati Part - New (to order)
    # 011
    MPN: 200542
    RH LONGITUDINAL CABLE
    - Optional - Telephone and CD charger - Not for opt. HI FI system - Not for USA, CDN, GD and J - Valid after stock exhaustion of 196112
    from £836.67
    from £836.67
    This part replaces part number 196112
    RH LONGITUDINAL CABLE. Genuine Maserati Part - New (to order)
    # 011
    MPN: 200543
    RH LONGITUDINAL CABLE
    - Optional - HI FI system - Not for GD - Valid after stock exhaustion of 195746
    from £882.58
    from £882.58
    This part replaces part number 195746
    CABL.LONG.DX SPIDER GSX OPT Genuine Maserati Part - New (to order)
    # 011
    MPN: 200557
    RH LONGITUDINAL CABLE
    - Standard - With arrangement for opt. CD charger - Valid for GD - Valid after stock exhaustion of 196116
    from £805.58
    from £805.58
    This part replaces part number 196116
    CAVO LONG DX M138ED GDX BASE Genuine Maserati Part - New (to order)
    # 011
    MPN: 200559
    RH LONGITUDINAL CABLE
    - Optional - Telephone and CD charger - Not for opt. HI FI system - Valid for GD - Valid after stock exhaustion of 196117
    from £851.54
    from £851.54
    This part replaces part number 196117
    RH LONGITUDINAL CABLE. Genuine Maserati Part - New (to order)
    # 011
    MPN: 200560
    RH LONGITUDINAL CABLE
    - Optional - HI FI system - Valid for GD - Valid after stock exhaustion of 196118
    from £905.53
    from £905.53
    This part replaces part number 196118
    CAVO LONG DX M138ED GDX HIFI Genuine Maserati Part - New (to order)
    # 012
    MPN: 186662
    BUMPER PARKING SENSOR CABLE
    - Optional - Parking sensor - Not for USA and CDN - Valid till stock exhaustion
    Supersession
    Supersession
    Genuine Maserati Part (no longer available to order)
    # 012
    MPN: 186663
    SIDE MARKERS AND PARKING SENSOR CABLE
    - Optional - Parking sensor - Valid for USA and CDN
    from £293.51
    from £293.51
    SIDE MARKER/PARKING SENSO Genuine Maserati Part - New In stock
    # 012
    MPN: 200505
    BUMPER PARKING SENSOR CABLE
    - Optional - Parking sensor - Not for USA and CDN - Valid after stock exhaustion of 186662
    from £115.76
    from £115.76
    This part replaces part number 186662 - and 1 more. Click to view details
    BUMPER PARK. SENSOR BRIDG. CABLE Genuine Maserati Part - New In stock
    BUMPER PARK. SENSOR BRIDG. CABLE Genuine Maserati Part - Used In stock
    # 013
    MPN: 186674
    SIDE MARKER CABLE
    - Valid for USA and CDN
    from £25.14
    from £25.14
    ELECTRICAL WIRING HARNESS Genuine Maserati Part - New (to order)
    # 014
    MPN: 186153
    TRUNK CABLE
    - Optional - Telephone - Not for USA, CDN and J - Valid till stock exhaustion
    Supersession
    Supersession
    Genuine Maserati Part (no longer available to order)
    # 014
    MPN: 190153
    TRUNK CABLE
    - Standard - Valid till stock exhaustion
    Supersession
    Supersession
    Genuine Maserati Part (no longer available to order)
    # 014
    MPN: 200545
    TRUNK CABLE
    - Standard - Valid after stock exhaustion of 190153
    from £44.25
    from £44.25
    This part replaces part number 190153
    LUGGAGE COMP. WIRING,SPIDER Genuine Maserati Part - New (to order)
    # 014
    MPN: 200546
    TRUNK CABLE
    - Optional - Telephone - Not for USA, CDN and J - Valid after stock exhaustion of 186153
    from £93.66
    from £93.66
    This part replaces part number 186153
    SPIDER LUGG.COMP. WIRING,PHONE OP Genuine Maserati Part - New (to order)
    # 015
    MPN: 190142
    STOP LAMP CABLE
    - Valid till stock exhaustion
    Supersession
    Supersession
    Genuine Maserati Part (no longer available to order)
    # 015
    MPN: 200648
    STOP LAMP CABLE
    - Valid after stock exhaustion of 190142
    from £13.36
    from £13.36
    This part replaces part number 190142
    STOP LAMP CABLE. Genuine Maserati Part - New (to order)
    # 016
    MPN: 195533
    LH LONGITUDINAL CABLE
    - Valid for GB and GS opt. Germany version
    from £131.19
    from £131.19
    EXT. LH ANTENNA LONGIT. WIRING,UK Genuine Maserati Part - New (to order)
    # 016
    MPN: 195534
    LH LONGITUDINAL CABLE
    - Valid for USA and CDN
    from £51.73
    from £51.73
    CABLE Genuine Maserati Part - New (to order)
    Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
