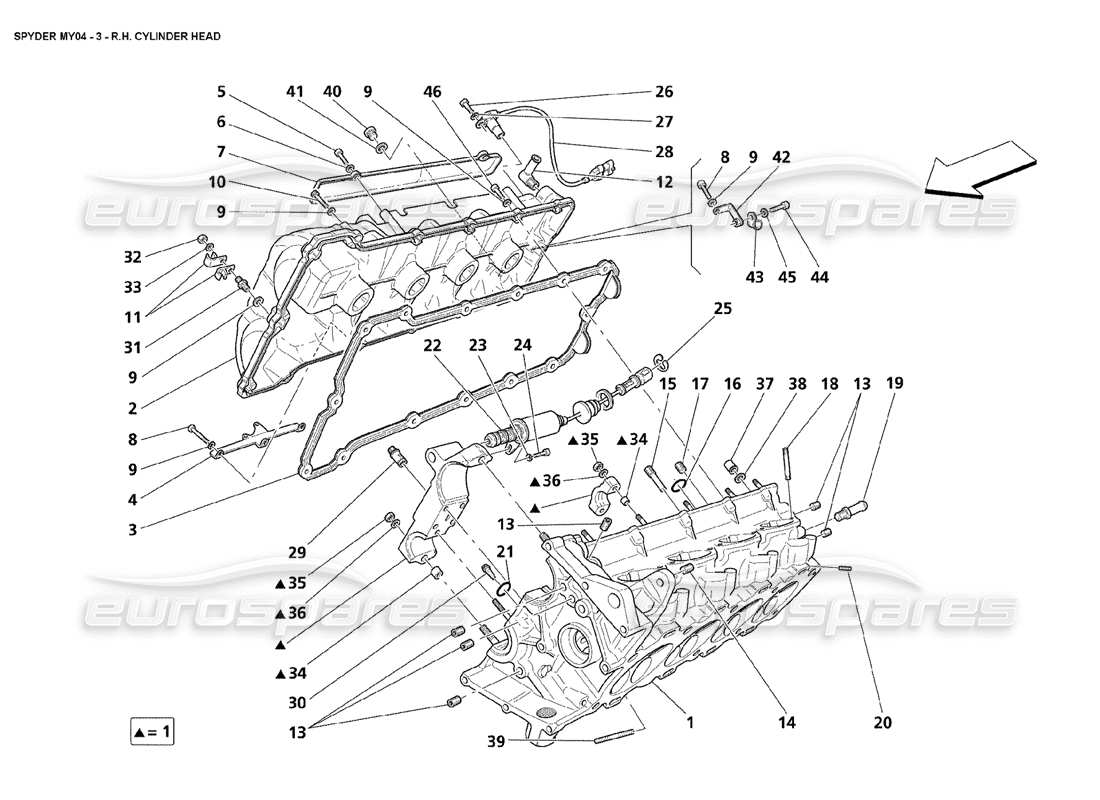

Maserati 4200 Spyder (2004) R.H. Cylinder Head Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                        #
                                                                                        Part number
                                                                                        Description
                                                                                        Price
                                                                                        # 001
                                                                                        MPN: 189359
                                                                                        COMPLETE RH HEAD
                                                                                        from £2,018.99
                                                                                        from £2,018.99
                                                                                        This part replaces part number 187998 - and 5 more. Click to view details
                                                                                        # 003
                                                                                        MPN: 198927

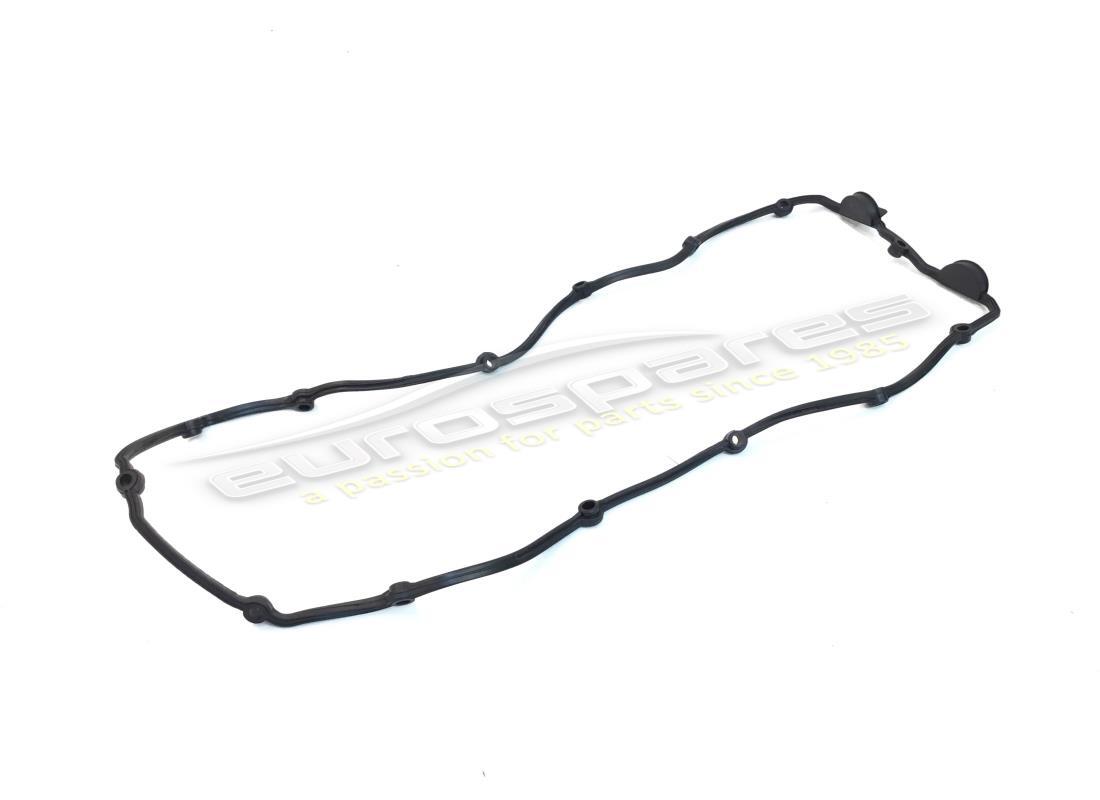

                                                                                        RH HEAD COVER GASKET
                                                                                        - Supplied also in the cover gasket - revision kit (cod. 980020000)
                                                                                        from £31.50
                                                                                        from £31.50
                                                                                        # 004
                                                                                        MPN: 192390
                                                                                        SECONDARY AIR VALVE FIX. BRACKET
                                                                                        from £43.82
                                                                                        from £43.82
                                                                                        # 005
                                                                                        MPN: 14304424
                                                                                        SCREW
                                                                                        from £0.52
                                                                                        from £0.52
                                                                                        # 006
                                                                                        MPN: 14497878
                                                                                        WASHER
                                                                                        from £0.52
                                                                                        from £0.52
                                                                                        # 007
                                                                                        MPN: 185276
                                                                                        RH HARNESS SMALL COVER
                                                                                        from £19.10
                                                                                        from £19.10
                                                                                        # 008
                                                                                        MPN: 156834
                                                                                        SCREW
                                                                                        from £1.54
                                                                                        from £1.54
                                                                                        # 009
                                                                                        MPN: 11197774
                                                                                        WASHER
                                                                                        from £0.52
                                                                                        from £0.52
                                                                                        # 010
                                                                                        MPN: 156830
                                                                                        SCREW
                                                                                        from £0.57
                                                                                        from £0.57
                                                                                        # 011
                                                                                        MPN: 187713
                                                                                        CLIP
                                                                                        from £3.14
                                                                                        from £3.14
                                                                                        This part replaces part number 98055
                                                                                        # 012
                                                                                        MPN: 124342
                                                                                        THREADED UNION
                                                                                        from £3.56
                                                                                        from £3.56
                                                                                        # 013
                                                                                        MPN: 14326050
                                                                                        THREADED PLUG
                                                                                        from £0.94
                                                                                        from £0.94
                                                                                        # 014
                                                                                        MPN: 140135

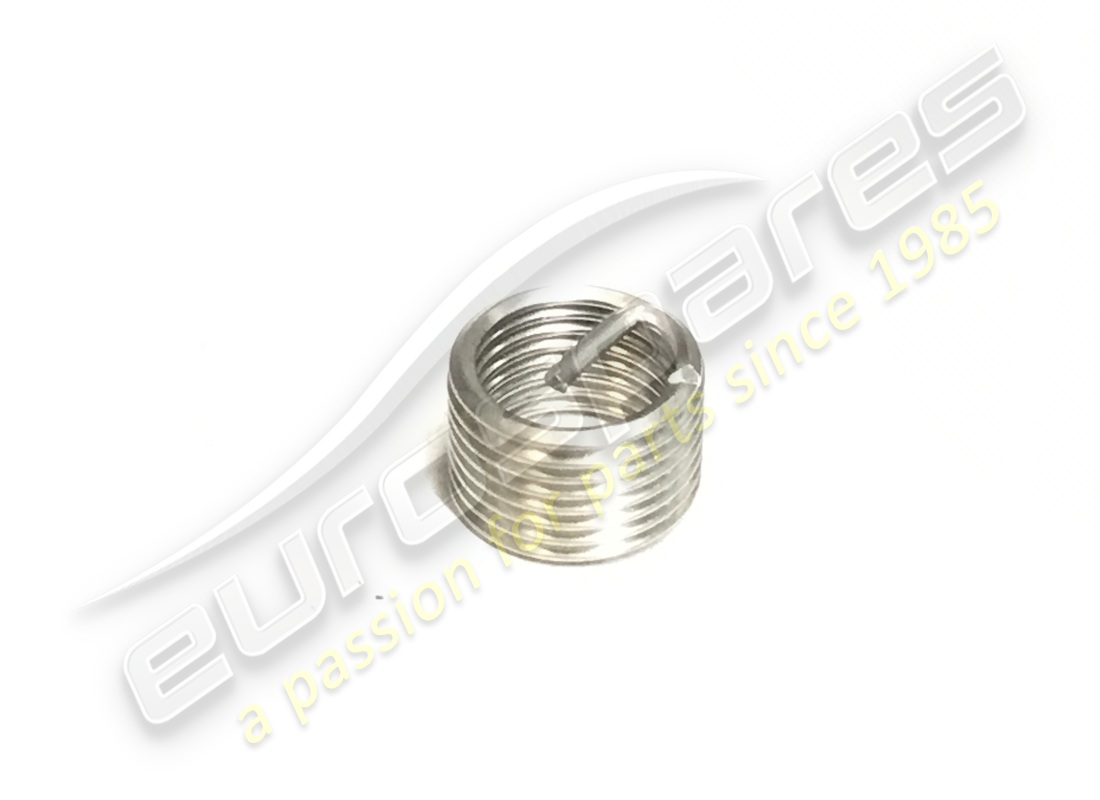

                                                                                        THREADED INSERT
                                                                                        from £1.74
                                                                                        from £1.74
                                                                                        # 015
                                                                                        MPN: 183447
                                                                                        THREADED PLUG
                                                                                        from £4.59
                                                                                        from £4.59
                                                                                        # 016
                                                                                        MPN: 187706
                                                                                        GASKET
                                                                                        from £3.21
                                                                                        from £3.21
                                                                                        # 017
                                                                                        MPN: 164400
                                                                                        THREADED PLUG
                                                                                        from £2.16
                                                                                        from £2.16
                                                                                        # 018
                                                                                        MPN: 13541224
                                                                                        STUD
                                                                                        from £34.62
                                                                                        from £34.62
                                                                                        # 019
                                                                                        MPN: 191633
                                                                                        UNION
                                                                                        from £47.78
                                                                                        from £47.78
                                                                                        This part replaces part number 188602
                                                                                        # 020
                                                                                        MPN: 141563
                                                                                        THREADED PLUG
                                                                                        from £1.00
                                                                                        from £1.00
                                                                                        # 021
                                                                                        MPN: 134233
                                                                                        GASKET
                                                                                        - Supplied also in the cover gasket - revision kit (cod. 98002000)
                                                                                        from £0.53
                                                                                        from £0.53
                                                                                        # 022
                                                                                        MPN: 212423
                                                                                        VARIATOR CONTROL SOLENOID VALVE
                                                                                        from £414.75
                                                                                        from £414.75
                                                                                        This part replaces part number 186563 - and 2 more. Click to view details
                                                                                        # 023
                                                                                        MPN: 11197774
                                                                                        WASHER
                                                                                        from £0.54
                                                                                        from £0.54
                                                                                        # 024
                                                                                        MPN: 14433124
                                                                                        SCREW
                                                                                        from £0.53
                                                                                        from £0.53
                                                                                        # 025
                                                                                        MPN: 11087376
                                                                                        FLEXIBLE RING
                                                                                        from £0.53
                                                                                        from £0.53
                                                                                        # 026
                                                                                        MPN: 14305224
                                                                                        SCREW
                                                                                        from £0.53
                                                                                        from £0.53
                                                                                        # 027
                                                                                        MPN: 11197774
                                                                                        WASHER
                                                                                        from £0.54
                                                                                        from £0.54
                                                                                        # 028
                                                                                        MPN: 177673

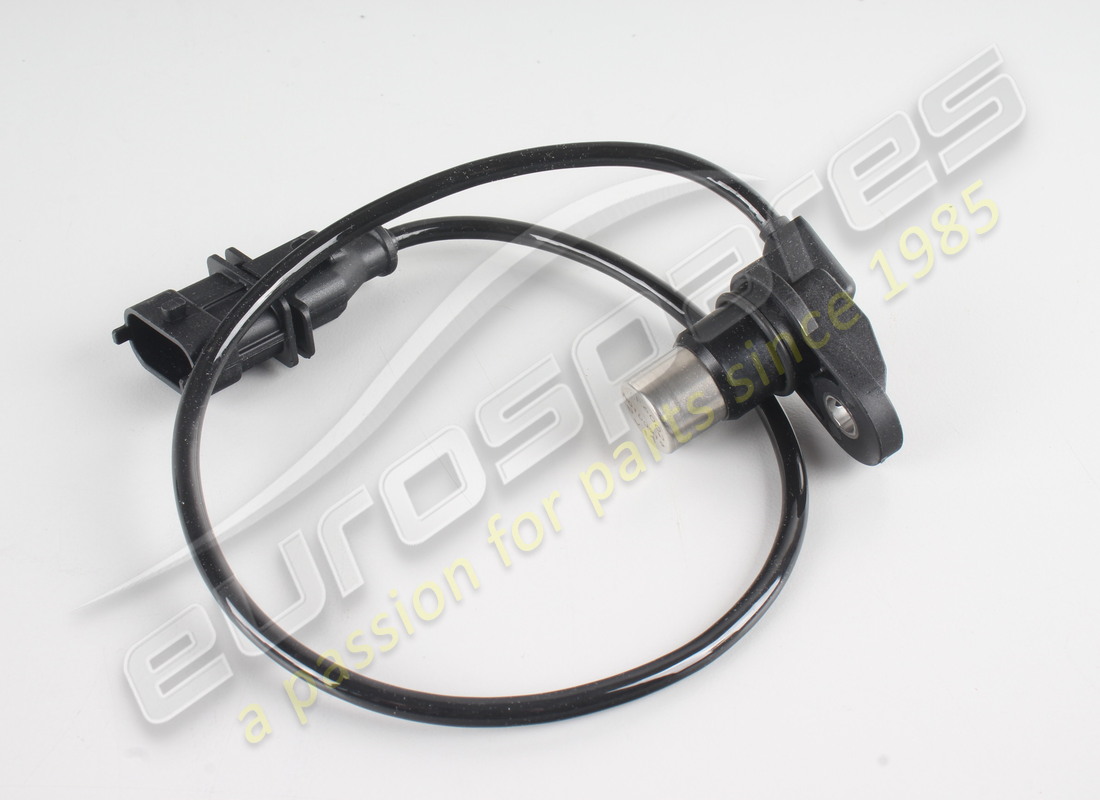

                                                                                        PHASE SENSOR
                                                                                        from £66.72
                                                                                        from £66.72
                                                                                        # 029
                                                                                        MPN: 184681
                                                                                        OIL PRESSURE CHECK VALVE
                                                                                        from £237.18
                                                                                        from £237.18
                                                                                        # 030
                                                                                        MPN: 180266
                                                                                        OIL FILTER
                                                                                        - Supplied also in the cover gasket - revision kit (cod. 98002000)
                                                                                        Supersession
                                                                                        Supersession
                                                                                        # 031
                                                                                        MPN: 187711
                                                                                        STUD
                                                                                        from £51.66
                                                                                        from £51.66
                                                                                        # 033
                                                                                        MPN: 12639724
                                                                                        WASHER
                                                                                        from £0.54
                                                                                        from £0.54
                                                                                        # 034
                                                                                        MPN: 102725
                                                                                        CENTERING DOWEL
                                                                                        from £0.60
                                                                                        from £0.60
                                                                                        # 036
                                                                                        MPN: 11197774
                                                                                        WASHER
                                                                                        from £0.51
                                                                                        from £0.51
                                                                                        # 037
                                                                                        MPN: 183524
                                                                                        NUT
                                                                                        from £1.20
                                                                                        from £1.20
                                                                                        # 038
                                                                                        MPN: 151117
                                                                                        WASHER
                                                                                        from £0.31
                                                                                        from £0.31
                                                                                        This part replaces part number 300266 - and 1 more. Click to view details
                                                                                        # 039
                                                                                        MPN: 13543424
                                                                                        STUD
                                                                                        from £1.04
                                                                                        from £1.04
                                                                                        # 040
                                                                                        MPN: 187963
                                                                                        PLUG
                                                                                        from £3.60
                                                                                        from £3.60
                                                                                        # 041
                                                                                        MPN: 10263360
                                                                                        GASKET
                                                                                        from £0.54
                                                                                        from £0.54
                                                                                        # 042
                                                                                        MPN: 185471
                                                                                        BRACKET
                                                                                        from £2.83
                                                                                        from £2.83
                                                                                        # 043
                                                                                        MPN: 10441190
                                                                                        BRACKET WITH SHEATH
                                                                                        from £0.54
                                                                                        from £0.54
                                                                                        # 044
                                                                                        MPN: 14305024
                                                                                        SCREW
                                                                                        from £0.54
                                                                                        from £0.54
                                                                                        # 045
                                                                                        MPN: 10519424
                                                                                        WASHER
                                                                                        from £0.54
                                                                                        from £0.54
                                                                                        This part replaces part number 10519421 - and 1 more. Click to view details
                                                                                        # 046
                                                                                        MPN: 157218
                                                                                        SCREW
                                                                                        from £0.52
                                                                                        from £0.52
