maserati 4200 spyder (2004) pedals and electronic accelerator control not for gd parts diagram

024 - Pedals and Electronic Accelerator Control Not for GD

Maserati 4200 Spyder (2004) Pedals and Electronic Accelerator Control Not For GD Parts Diagram

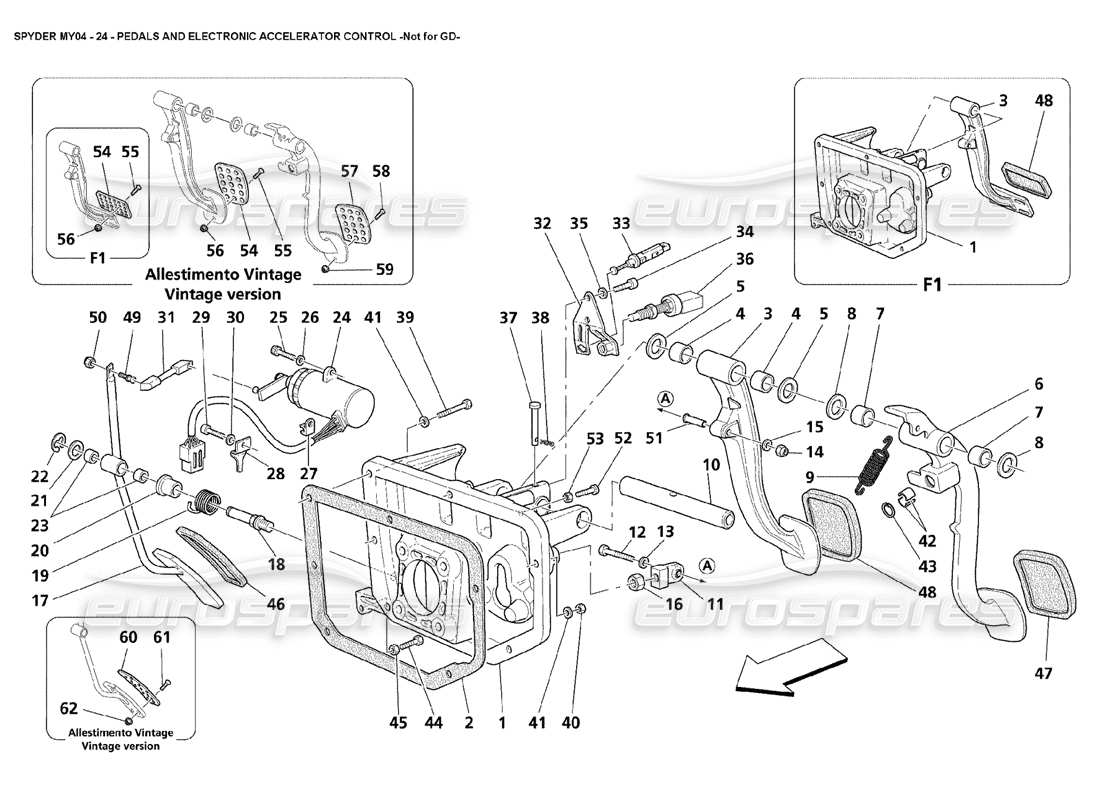

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                            #
                                                                            Part number
                                                                            Description
                                                                            Price
                                                                            # 001
                                                                            MPN: 183743
                                                                            PEDAL SUPPORT
                                                                            - Not for F1
                                                                            from £1,856.34
                                                                            from £1,856.34
                                                                            # 001
                                                                            MPN: 185180
                                                                            PEDAL SUPPORT
                                                                            - Valid for F1
                                                                            from £113.99
                                                                            from £113.99
                                                                            # 002
                                                                            MPN: 378400348
                                                                            SUPPORT GASKET
                                                                            from £9.70
                                                                            from £9.70
                                                                            # 003
                                                                            MPN: 186859
                                                                            BRAKE PEDAL
                                                                            - Not for F1 - Standard
                                                                            from £144.28
                                                                            from £144.28
                                                                            # 003
                                                                            MPN: 186861
                                                                            BRAKE PEDAL
                                                                            - Valid for F1 - Standard
                                                                            from £79.35
                                                                            from £79.35
                                                                            # 003
                                                                            MPN: 201972
                                                                            BRAKE PEDAL
                                                                            - Not for F1 - Optional - Vintage version
                                                                            from £1,301.00
                                                                            from £1,301.00
                                                                            # 003
                                                                            MPN: 201988
                                                                            BRAKE PEDAL
                                                                            - Valid for F1 - Optional - Vintage version
                                                                            from £153.39
                                                                            from £153.39
                                                                            # 004
                                                                            MPN: 318420320
                                                                            BUSHING
                                                                            from £9.70
                                                                            from £9.70
                                                                            # 005
                                                                            MPN: 368402321
                                                                            SPACER WASHER
                                                                            from £1.08
                                                                            from £1.08
                                                                            # 006
                                                                            MPN: 186862
                                                                            CLUTCH PEDAL
                                                                            - Not for F1 - Standard
                                                                            from £155.84
                                                                            from £155.84
                                                                            # 006
                                                                            MPN: 201986
                                                                            CLUTCH PEDAL
                                                                            - Not for F1 - Optional - Vintage version
                                                                            from £1,371.49
                                                                            from £1,371.49
                                                                            # 007
                                                                            MPN: 318420320
                                                                            BUSHING
                                                                            - Not for F1
                                                                            from £9.70
                                                                            from £9.70
                                                                            # 008
                                                                            MPN: 368402321
                                                                            SPACER WASHER
                                                                            - Not for F1
                                                                            from £1.08
                                                                            from £1.08
                                                                            # 009
                                                                            MPN: 101305
                                                                            RETUTN SPRING FOR PEDAL
                                                                            - Not for F1
                                                                            from £8.18
                                                                            from £8.18
                                                                            # 010
                                                                            MPN: 388400329
                                                                            PEDALS SUPPORT PIN
                                                                            from £38.24
                                                                            from £38.24
                                                                            # 011
                                                                            MPN: 184749
                                                                            SERVOBRAKE PIN
                                                                            from £50.75
                                                                            from £50.75
                                                                            # 012
                                                                            MPN: 16044421
                                                                            SCREW
                                                                            from £1.32
                                                                            from £1.32
                                                                            # 013
                                                                            MPN: 12654421
                                                                            WASHER
                                                                            from £1.08
                                                                            from £1.08
                                                                            # 016
                                                                            MPN: 16102324
                                                                            NUT
                                                                            from £1.62
                                                                            from £1.62
                                                                            This part replaces part number 16102311 which we have in stock
                                                                            # 017
                                                                            MPN: 192592
                                                                            Accelerator Pedal
                                                                            - Standard
                                                                            from £398.65
                                                                            from £398.65
                                                                            This part replaces part number 186863
                                                                            # 017
                                                                            MPN: 201977
                                                                            Accelerator Pedal
                                                                            - Optional - Vintage version
                                                                            from £128.11
                                                                            from £128.11
                                                                            # 018
                                                                            MPN: 186666
                                                                            ACCELERATOR PEDAL PIN
                                                                            from £50.82
                                                                            from £50.82
                                                                            # 019
                                                                            MPN: 388400364
                                                                            RETUTN SPRING FOR PEDAL
                                                                            from £32.73
                                                                            from £32.73
                                                                            # 020
                                                                            MPN: 388400407
                                                                            BUSHING
                                                                            from £26.20
                                                                            from £26.20
                                                                            # 021
                                                                            MPN: 388400346
                                                                            WASHER
                                                                            from £3.18
                                                                            from £3.18
                                                                            # 022
                                                                            MPN: 11088076
                                                                            FLEXIBLE RING
                                                                            from £0.47
                                                                            from £0.47
                                                                            # 023
                                                                            MPN: 318420334
                                                                            BUSHING
                                                                            from £1.55
                                                                            from £1.55
                                                                            # 024
                                                                            MPN: 183656
                                                                            ACCELERATOR PEDAL POTENTIOMETER
                                                                            from £86.80
                                                                            from £86.80
                                                                            # 025
                                                                            MPN: 14432221
                                                                            SCREW
                                                                            - Not for F1
                                                                            from £0.47
                                                                            from £0.47
                                                                            # 025
                                                                            MPN: 14433121
                                                                            SCREW
                                                                            - Valid for F1
                                                                            from £1.18
                                                                            from £1.18
                                                                            # 026
                                                                            MPN: 12601274
                                                                            WASHER
                                                                            from £0.47
                                                                            from £0.47
                                                                            This part replaces part number 12601270
                                                                            # 027
                                                                            MPN: 383000318
                                                                            Retaining Clip
                                                                            from £1.08
                                                                            from £1.08
                                                                            # 028
                                                                            MPN: 383000315
                                                                            PLATE
                                                                            from £4.58
                                                                            from £4.58
                                                                            # 030
                                                                            MPN: 12601274
                                                                            WASHER
                                                                            from £0.47
                                                                            from £0.47
                                                                            This part replaces part number 12601270
                                                                            # 031
                                                                            MPN: 82476740
                                                                            ACCELERATOR PEDALTIE ROD
                                                                            from £33.94
                                                                            from £33.94
                                                                            # 032
                                                                            MPN: 194452
                                                                            SWITCH SUPPORT BRACKET
                                                                            from £36.11
                                                                            from £36.11
                                                                            This part replaces part number 186667 - and 1 more. Click to view details
                                                                            # 033
                                                                            MPN: 334064
                                                                            BRAKE PEDAL SWITCH
                                                                            from £15.86
                                                                            from £15.86
                                                                            This part replaces part number 183433
                                                                            # 034
                                                                            MPN: 14305121
                                                                            SCREW
                                                                            from £0.47
                                                                            from £0.47
                                                                            # 035
                                                                            MPN: 127494
                                                                            WASHER
                                                                            from £0.53
                                                                            from £0.53
                                                                            # 036
                                                                            MPN: 133555
                                                                            BRAKE PEDAL SWITCH
                                                                            - Not for F1
                                                                            from £18.84
                                                                            from £18.84
                                                                            # 037
                                                                            MPN: 186665
                                                                            PEDALS FIXING PIN
                                                                            from £63.46
                                                                            from £63.46
                                                                            # 038
                                                                            MPN: 58841309
                                                                            SAFETY CLIP
                                                                            from £2.00
                                                                            from £2.00
                                                                            This part replaces part number 670000498 - and 2 more. Click to view details
                                                                            # 039
                                                                            MPN: 16044124
                                                                            SCREW
                                                                            from £0.47
                                                                            from £0.47
                                                                            # 040
                                                                            MPN: 16104421
                                                                            NUT
                                                                            from £0.81
                                                                            from £0.81
                                                                            # 041
                                                                            MPN: 14496521
                                                                            WASHER
                                                                            from £0.49
                                                                            from £0.49
                                                                            # 042
                                                                            MPN: 186664
                                                                            BUSHING FOR PIN FIXING
                                                                            - Not for F1
                                                                            from £131.23
                                                                            from £131.23
                                                                            # 043
                                                                            MPN: 11057876
                                                                            SEEGER RING
                                                                            - Not for F1
                                                                            from £0.47
                                                                            from £0.47
                                                                            # 044
                                                                            MPN: 10902224
                                                                            SCREW FOR END OF STROKE
                                                                            - Valid for F1
                                                                            from £0.53
                                                                            from £0.53
                                                                            # 044
                                                                            MPN: 10902624
                                                                            SCREW FOR END OF STROKE
                                                                            - Not for F1
                                                                            from £0.47
                                                                            from £0.47
                                                                            This part replaces part number 10902621
                                                                            # 045
                                                                            MPN: 15896221
                                                                            NUT
                                                                            from £0.71
                                                                            from £0.71
                                                                            # 046
                                                                            MPN: 318420301
                                                                            ACCELERATOR PEDAL COVER
                                                                            from £1.52
                                                                            from £1.52
                                                                            # 047
                                                                            MPN: 191496
                                                                            CLUTCH PEDAL COVER
                                                                            - Not for F1
                                                                            Supersession
                                                                            Supersession
                                                                            # 048
                                                                            MPN: 191496
                                                                            BRAKE PEDAL COVER
                                                                            - Not for F1
                                                                            Supersession
                                                                            Supersession
                                                                            # 048
                                                                            MPN: 318432300
                                                                            BRAKE PEDAL COVER
                                                                            - Valid for F1
                                                                            from £2.42
                                                                            from £2.42
                                                                            # 049
                                                                            MPN: 318420305
                                                                            BALL PIN
                                                                            Supersession
                                                                            Supersession
                                                                            # 050
                                                                            MPN: 14075611
                                                                            NUT
                                                                            from £1.32
                                                                            from £1.32
                                                                            # 051
                                                                            MPN: 189472
                                                                            BUSHING
                                                                            from £81.09
                                                                            from £81.09
                                                                            # 052
                                                                            MPN: 187014
                                                                            CLUTCH PEDAL ADJUSTEMENT PIN
                                                                            - Not for F1
                                                                            from £23.91
                                                                            from £23.91
                                                                            # 053
                                                                            MPN: 16102314
                                                                            NUT
                                                                            - Not for F1
                                                                            from £0.47
                                                                            from £0.47
                                                                            # 054
                                                                            MPN: 201103/a
                                                                            BRAKE PEDAL PLATE
                                                                            - Valid for F1 - Optional - Vintage version
                                                                            # 054
                                                                            MPN: 212187
                                                                            BRAKE PEDAL PLATE
                                                                            - Not for F1 - Optional - Vintage version
                                                                            from £173.51
                                                                            from £173.51
                                                                            # 055
                                                                            MPN: 14441324
                                                                            SCREW
                                                                            - (Quantity 4 for F1) - Optional - Vintage version
                                                                            from £0.47
                                                                            from £0.47
                                                                            # 056
                                                                            MPN: 14058411
                                                                            NUT
                                                                            - (Quantity 4 for F1) - Optional - Vintage version
                                                                            from £0.47
                                                                            from £0.47
                                                                            # 057
                                                                            MPN: 212187
                                                                            CLUTCH PEDAL PLATE
                                                                            - Not for F1 - Optional - Vintage version
                                                                            from £173.51
                                                                            from £173.51
                                                                            # 058
                                                                            MPN: 14441324
                                                                            SCREW
                                                                            - Not for F1 - Optional - Vintage version
                                                                            from £0.47
                                                                            from £0.47
                                                                            # 059
                                                                            MPN: 14058411
                                                                            NUT
                                                                            - Not for F1 - Optional - Vintage version
                                                                            from £0.47
                                                                            from £0.47
                                                                            # 060
                                                                            MPN: 205025
                                                                            ACCELERATOR PEDAL PLATE
                                                                            - Optional - Vintage version
                                                                            from £219.13
                                                                            from £219.13
                                                                            # 061
                                                                            MPN: 14440734
                                                                            SCREW
                                                                            - Optional - Vintage version
                                                                            from £1.55
                                                                            from £1.55
                                                                            # 062
                                                                            MPN: 14058311
                                                                            NUT
                                                                            - Optional - Vintage version
                                                                            from £0.47
                                                                            from £0.47
