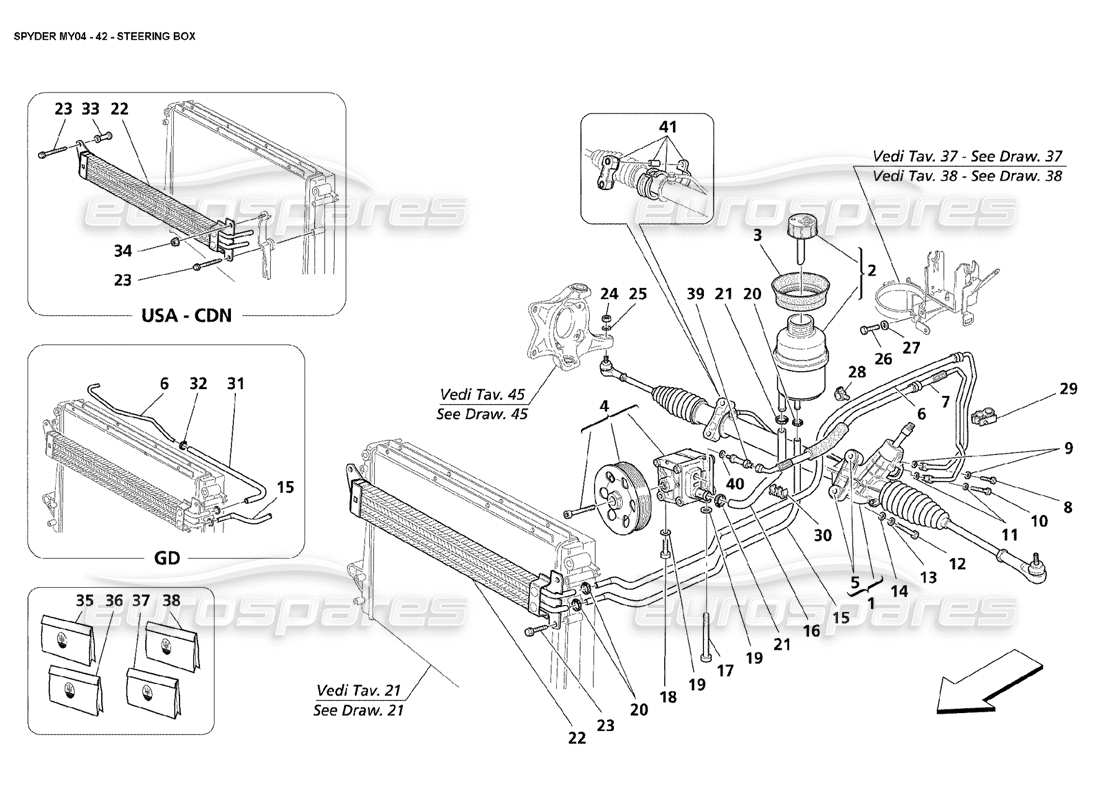

Maserati 4200 Spyder (2004) Steering Box Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                    #
                                                    Part number
                                                    Description
                                                    Price
                                                    # 001
                                                    MPN: 207275

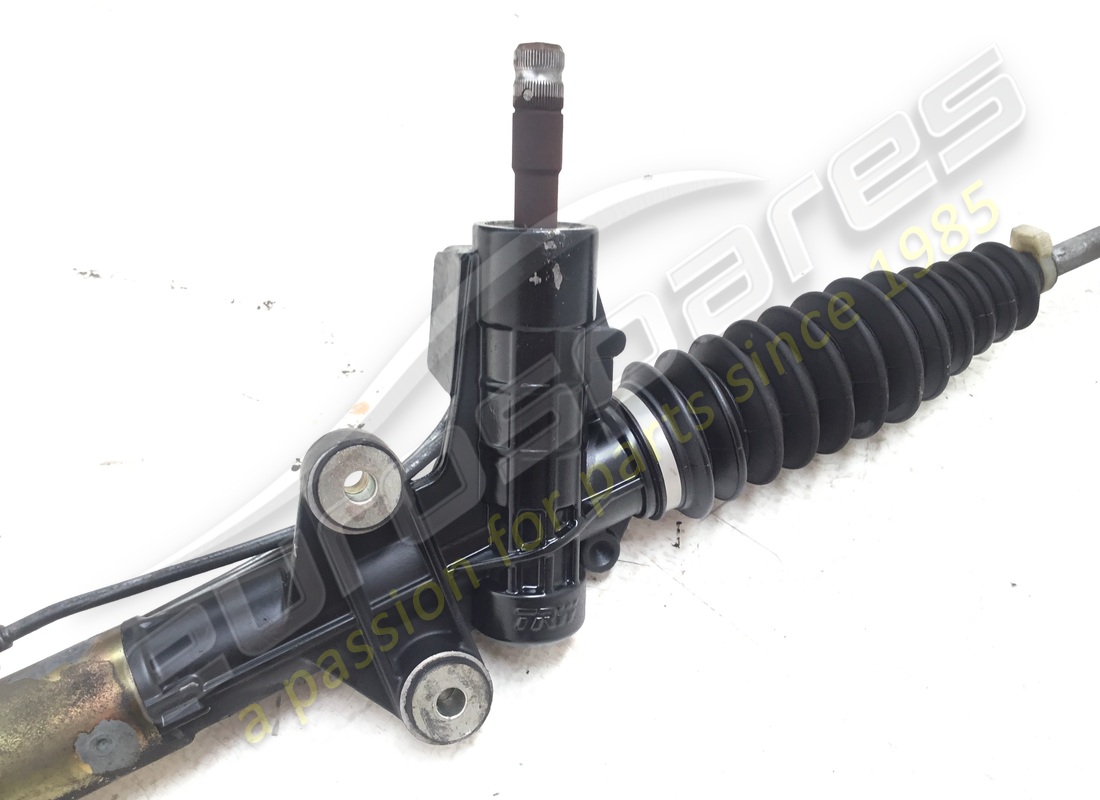

                                                    STEERING BOX WITH POWER STEERING
                                                    - Valid for GD
                                                    from £2,047.50
                                                    from £2,047.50
                                                    This part replaces part number 195593 - and 1 more. Click to view details
                                                    # 001
                                                    MPN: 207276
                                                    STEERING BOX WITH POWER STEERING
                                                    - Not for GD
                                                    from £1,224.08
                                                    from £1,224.08
                                                    This part replaces part number 195592 - and 1 more. Click to view details
                                                    # 002
                                                    MPN: 185820
                                                    COMPLETE OIL TANK FOR SERVOSTEERING
                                                    from £10.45
                                                    from £10.45
                                                    # 004
                                                    MPN: 187920

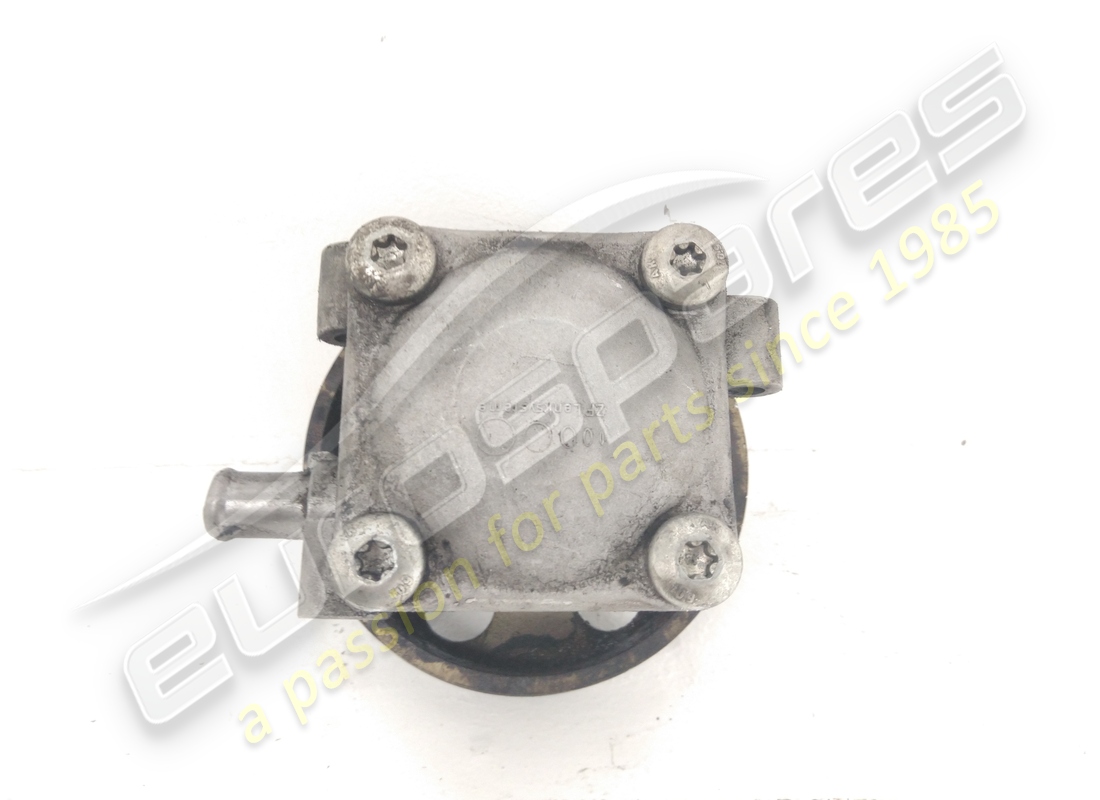

                                                    COMPLETE HYDRAULIC SERVO CONTROL PUMP
                                                    from £213.22
                                                    from £213.22
                                                    # 005
                                                    MPN: 980138228
                                                    SILENTBLOCK
                                                    from £13.41
                                                    from £13.41
                                                    # 006
                                                    MPN: 188970
                                                    PIPE FROM HYDRODRIVE TO EXCHANGER
                                                    - Not for GD
                                                    from £39.73
                                                    from £39.73
                                                    # 006
                                                    MPN: 193191
                                                    PIPE FROM HYDRODRIVE TO EXCHANGER
                                                    - Valid for GD
                                                    from £423.72
                                                    from £423.72
                                                    # 007
                                                    MPN: 191070
                                                    PIPE FROM PUMP TO DRIVING BOX
                                                    - Not for GD - Valid till car Ass. Nr. 13386
                                                    from £51.45
                                                    from £51.45
                                                    # 007
                                                    MPN: 193190
                                                    PIPE FROM PUMP TO DRIVING BOX
                                                    - Valid for GD
                                                    from £87.29
                                                    from £87.29
                                                    # 007
                                                    MPN: 212002
                                                    PIPE FROM PUMP TO DRIVING BOX
                                                    - Not for GD - Valid from car Ass. Nr. 13387
                                                    from £56.55
                                                    from £56.55
                                                    This part replaces part number 191070 which we have in stock - and 3 more. Click to view details
                                                    # 008
                                                    MPN: 193264
                                                    UNION
                                                    - Not for cars with steering box - cod. 207276 (GS) and 207275 (GD)
                                                    from £37.84
                                                    from £37.84
                                                    # 008
                                                    MPN: 207273
                                                    UNION
                                                    - Valid for cars with steering box - cod. 207276 (GS) and 207275 (GD)
                                                    from £19.77
                                                    from £19.77
                                                    # 009
                                                    MPN: 10298460
                                                    GASKET
                                                    - Not for cars with steering box - cod. 207276 (GS) and 207275 (GD)
                                                    from £0.47
                                                    from £0.47
                                                    # 010
                                                    MPN: 193018
                                                    UNION
                                                    - Valid for cars with steering box - cod. 207276 (GS) and 207275 (GD)
                                                    from £41.60
                                                    from £41.60
                                                    # 010
                                                    MPN: 207274
                                                    UNION
                                                    from £23.45
                                                    from £23.45
                                                    # 011
                                                    MPN: 10280060
                                                    GASKET
                                                    from £0.53
                                                    from £0.53
                                                    # 012
                                                    MPN: 206926
                                                    SCREW
                                                    from £5.44
                                                    from £5.44

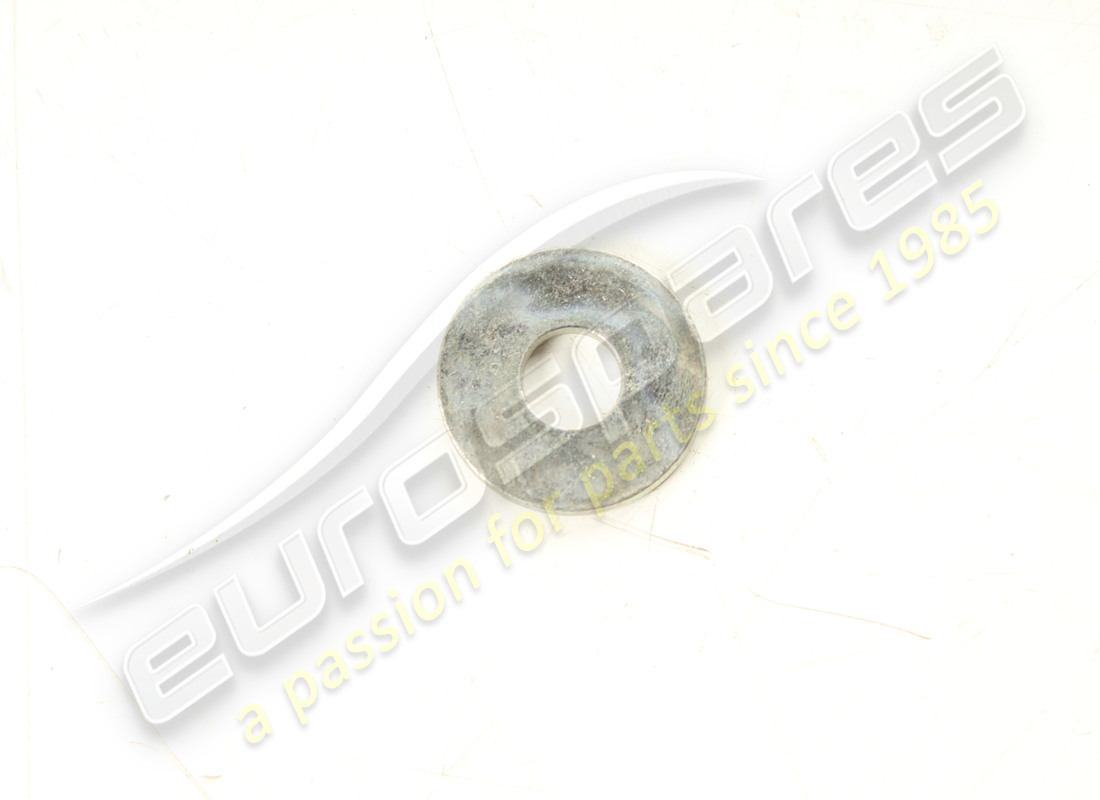

                                                    # 013
                                                    MPN: 11198374
                                                    WASHER
                                                    from £0.47
                                                    from £0.47
                                                    This part replaces part number 675000618
                                                    # 014
                                                    MPN: 12641024
                                                    WASHER
                                                    from £1.40
                                                    from £1.40
                                                    # 015
                                                    MPN: 188969
                                                    PIPE FROM EXCHANGER TO TANK
                                                    from £15.06
                                                    from £15.06
                                                    # 016
                                                    MPN: 192205
                                                    PIPE FROM TANK TO HYDRODRIVE
                                                    - Till car Ass. Nr. 13386 valid for - all versions - From car Ass. Nr. 13387 valid - only for GD
                                                    from £47.14
                                                    from £47.14
                                                    This part replaces part number 188968 - and 1 more. Click to view details
                                                    # 016
                                                    MPN: 198482
                                                    PIPE FROM TANK TO HYDRODRIVE
                                                    - Not for GD - Valid from car Ass. Nr. 13387
                                                    from £14.94
                                                    from £14.94
                                                    # 017
                                                    MPN: 160531

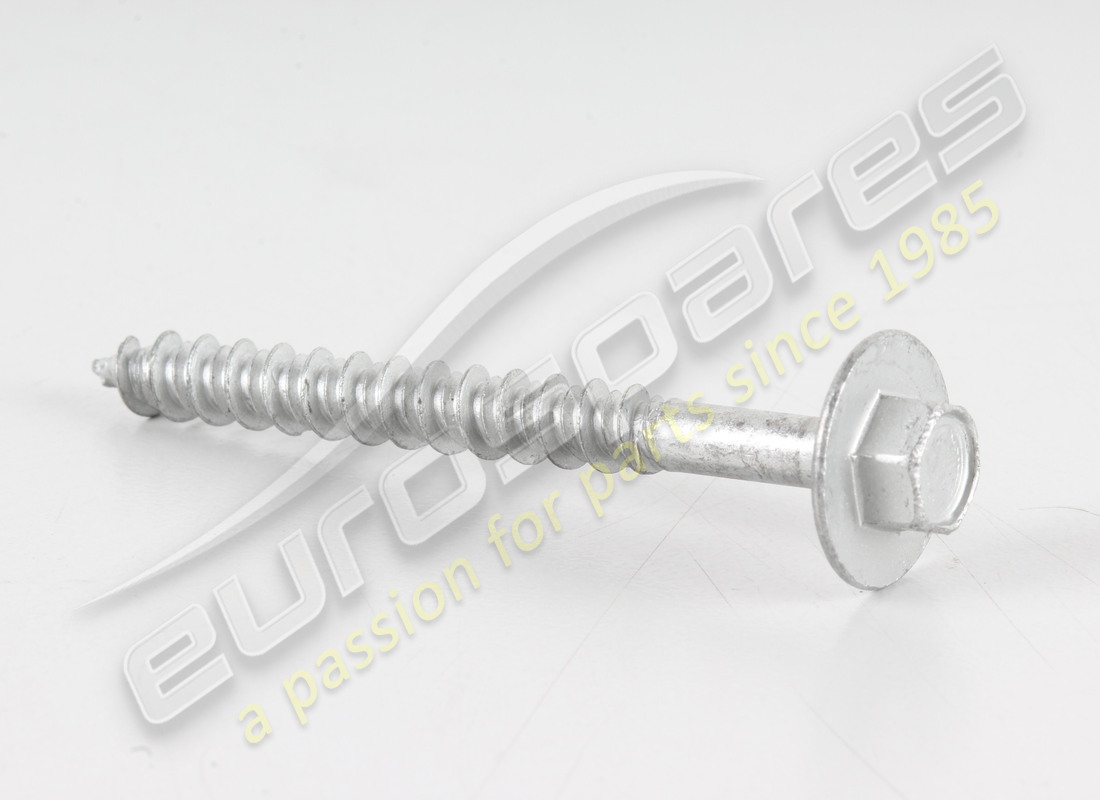

                                                    SCREW
                                                    from £5.44
                                                    from £5.44
                                                    This part replaces part number 180604
                                                    # 019
                                                    MPN: 11193874
                                                    WASHER
                                                    from £0.54
                                                    from £0.54
                                                    # 020
                                                    MPN: 13000390
                                                    SCREW COLLAR
                                                    from £0.52
                                                    from £0.52
                                                    This part replaces part number 13121170 - and 1 more. Click to view details
                                                    # 021
                                                    MPN: 13000490
                                                    SCREW COLLAR
                                                    from £0.53
                                                    from £0.53
                                                    This part replaces part number 13127870 - and 1 more. Click to view details
                                                    # 022
                                                    MPN: 231013
                                                    POWER STEERING EXCHANGER
                                                    - Not for USA and CDN
                                                    from £1,449.29
                                                    from £1,449.29
                                                    This part replaces part number 199892 - and 1 more. Click to view details
                                                    # 023
                                                    MPN: 15698504
                                                    SCREW
                                                    - Valid for USA and CDN
                                                    from £5.99
                                                    from £5.99
                                                    # 023
                                                    MPN: 15699804
                                                    SCREW
                                                    - Not for USA and CDN
                                                    from £0.54
                                                    from £0.54
                                                    This part replaces part number 15534501
                                                    # 024
                                                    MPN: 14047421
                                                    NUT
                                                    from £1.30
                                                    from £1.30
                                                    # 026
                                                    MPN: 10902621
                                                    SCREW
                                                    Supersession
                                                    Supersession
                                                    # 027
                                                    MPN: 10523401
                                                    WASHER
                                                    from £0.53
                                                    from £0.53
                                                    # 029
                                                    MPN: 177805
                                                    CLIP
                                                    from £1.28
                                                    from £1.28
                                                    This part replaces part number 377890660
                                                    # 030
                                                    MPN: 190953
                                                    CLIP
                                                    from £2.83
                                                    from £2.83
                                                    # 031
                                                    MPN: 193192
                                                    SLEEVE FROM HYDRODRIVE TO EXCHANGER
                                                    - Valid for GD
                                                    from £20.95
                                                    from £20.95
                                                    # 032
                                                    MPN: 13000390
                                                    SCREW COLLAR
                                                    - Valid for GD
                                                    from £0.53
                                                    from £0.53
                                                    This part replaces part number 13121170 - and 1 more. Click to view details
                                                    # 033
                                                    MPN: 193719
                                                    SPACER
                                                    - Valid for USA and CDN
                                                    from £5.91
                                                    from £5.91
                                                    # 034
                                                    MPN: 14040614
                                                    NUT
                                                    - Valid for USA and CDN
                                                    from £0.54
                                                    from £0.54
                                                    # 035
                                                    MPN: 980001703
                                                    PIPES REPLACEMENT KIT FOR STEERING BOX
                                                    - Not for GD
                                                    from £132.43
                                                    from £132.43
                                                    This part replaces part number 980001701
                                                    # 035
                                                    MPN: 980001704
                                                    PIPES REPLACEMENT KIT FOR STEERING BOX
                                                    - Valid for GD
                                                    from £125.66
                                                    from £125.66
                                                    This part replaces part number 980001702

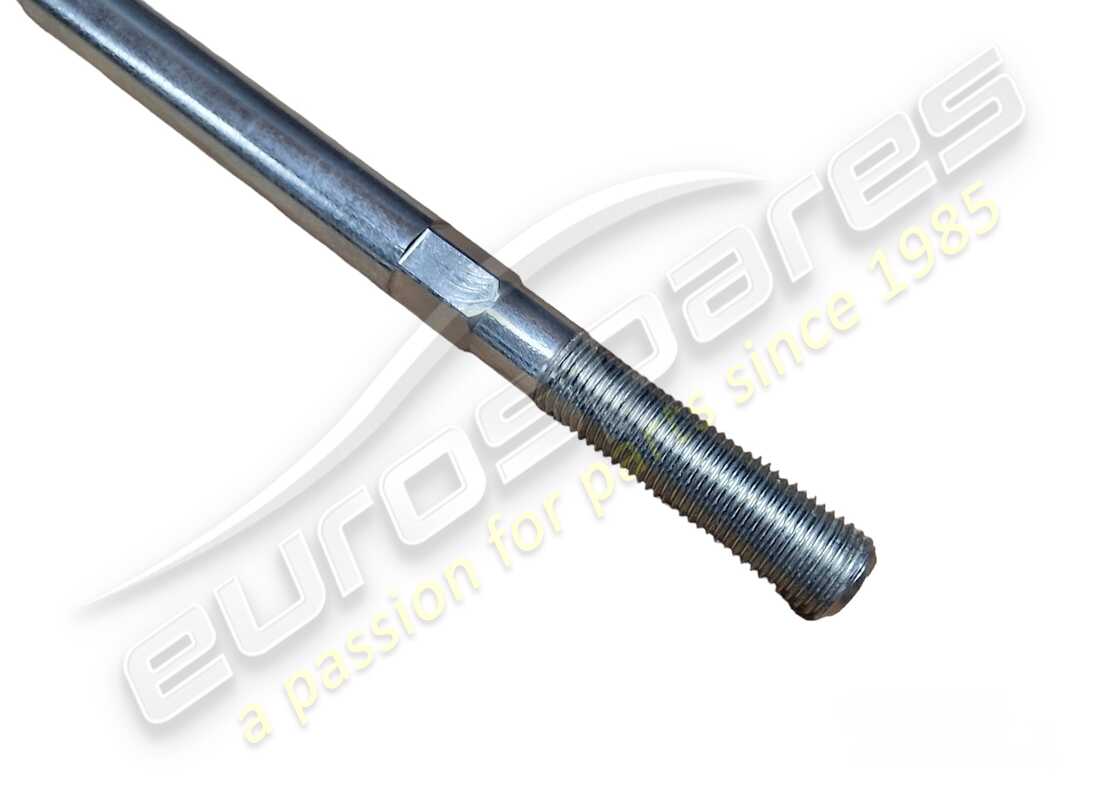

                                                    # 036
                                                    MPN: 980001705
                                                    STEERING ARM
                                                    from £203.40
                                                    from £203.40
                                                    This part replaces part number 980000967

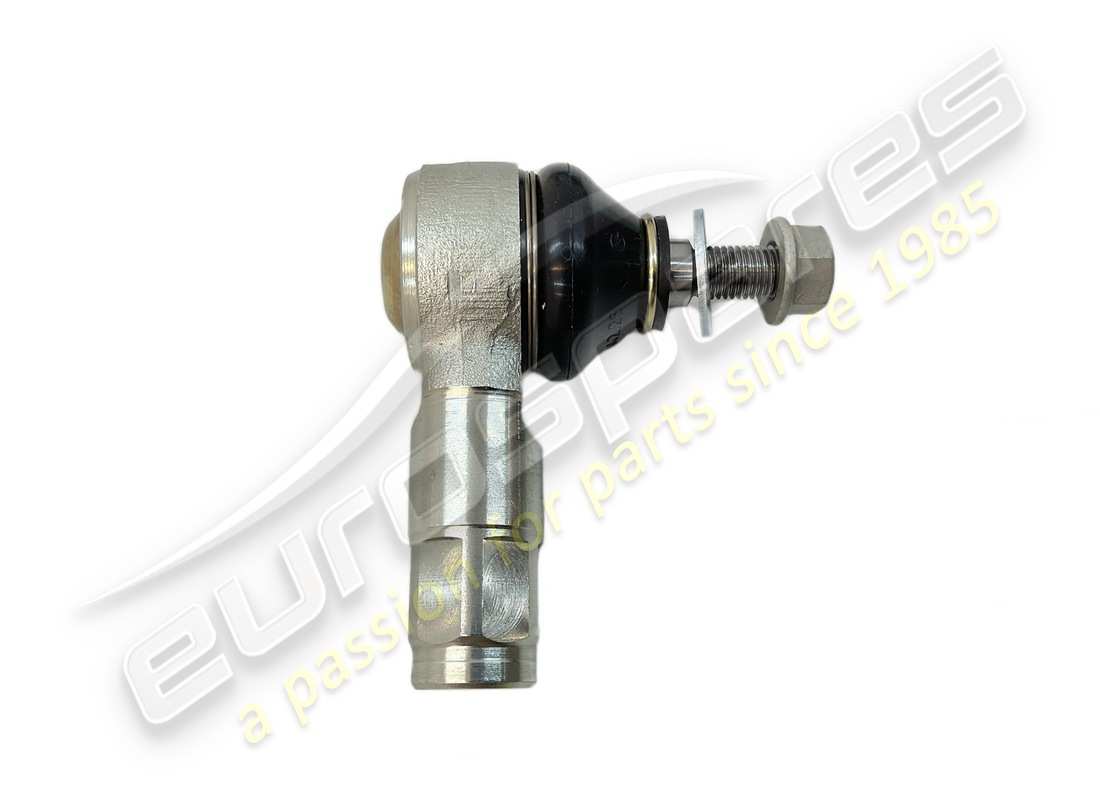

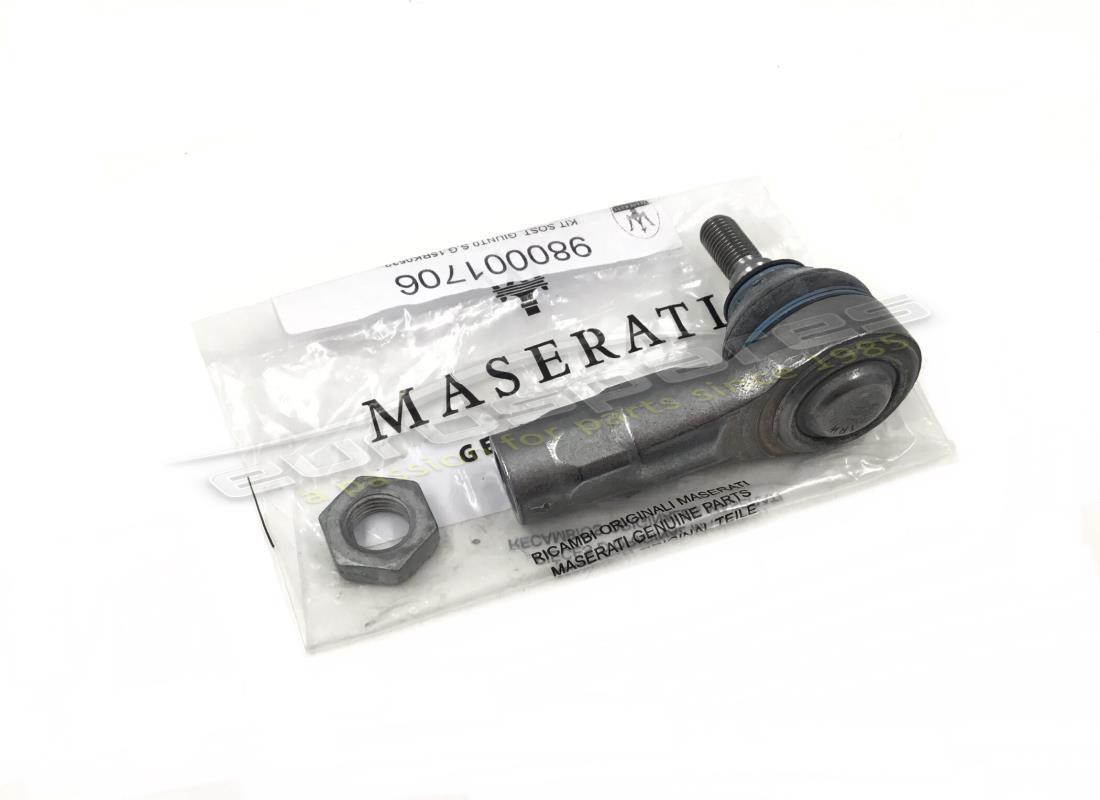

                                                    # 037
                                                    MPN: 980001706
                                                    TRACK ROD END
                                                    from £88.98
                                                    from £88.98
                                                    This part replaces part number 980000968

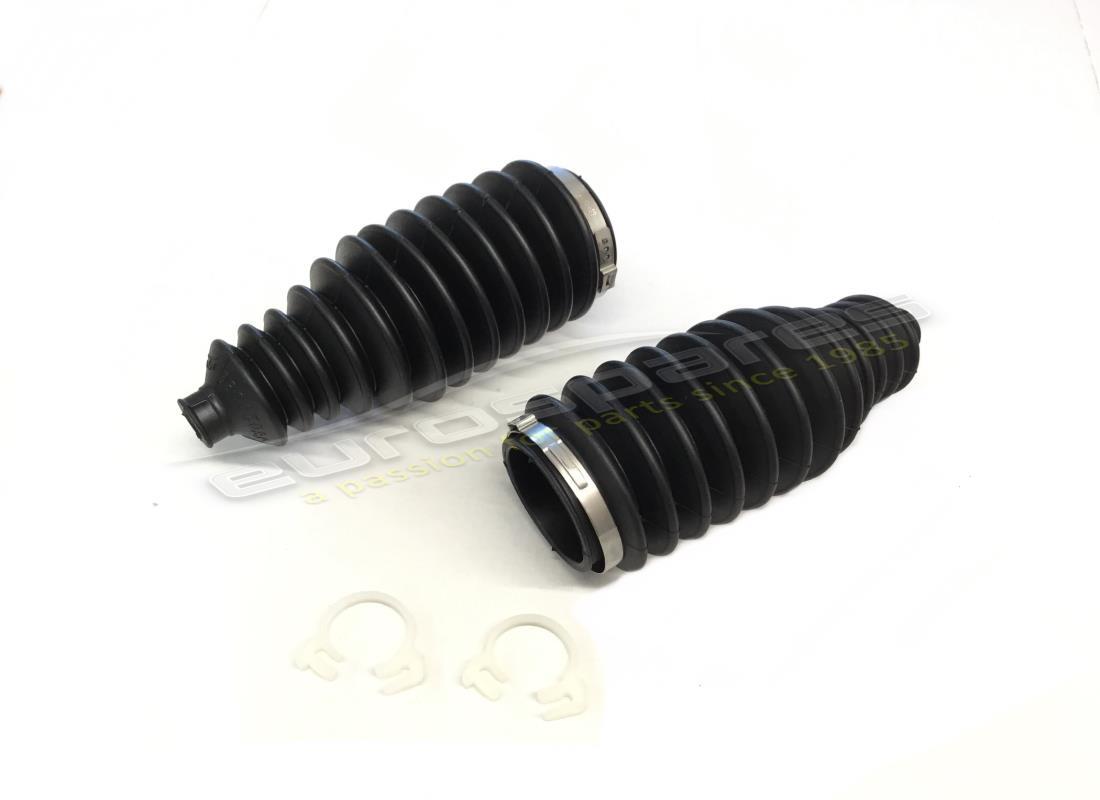

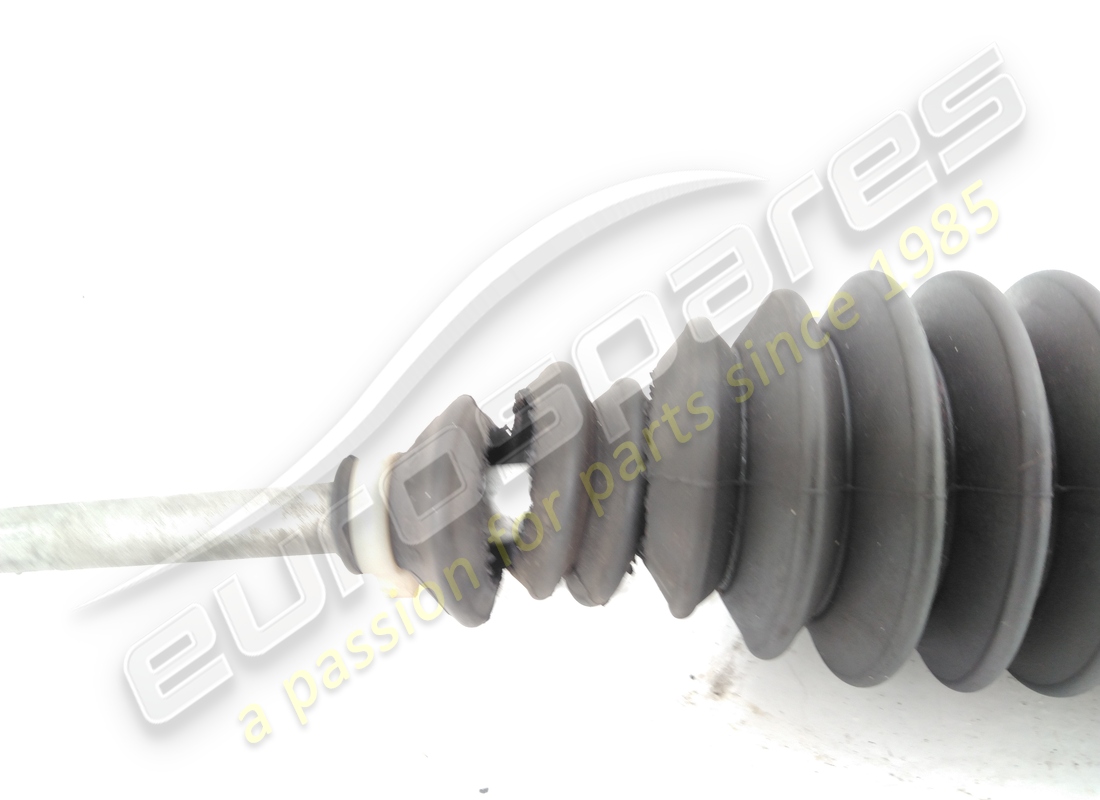

                                                    # 038
                                                    MPN: 980001707
                                                    STEERING RACK BOOTS KIT
                                                    Pair
                                                    from £89.71
                                                    from £89.71
                                                    This part replaces part number 980000969
                                                    # 039
                                                    MPN: 212083
                                                    UNION
                                                    - Not for GD - Valid from car Ass. Nr. 13387
                                                    from £23.61
                                                    from £23.61
                                                    This part replaces part number 195315

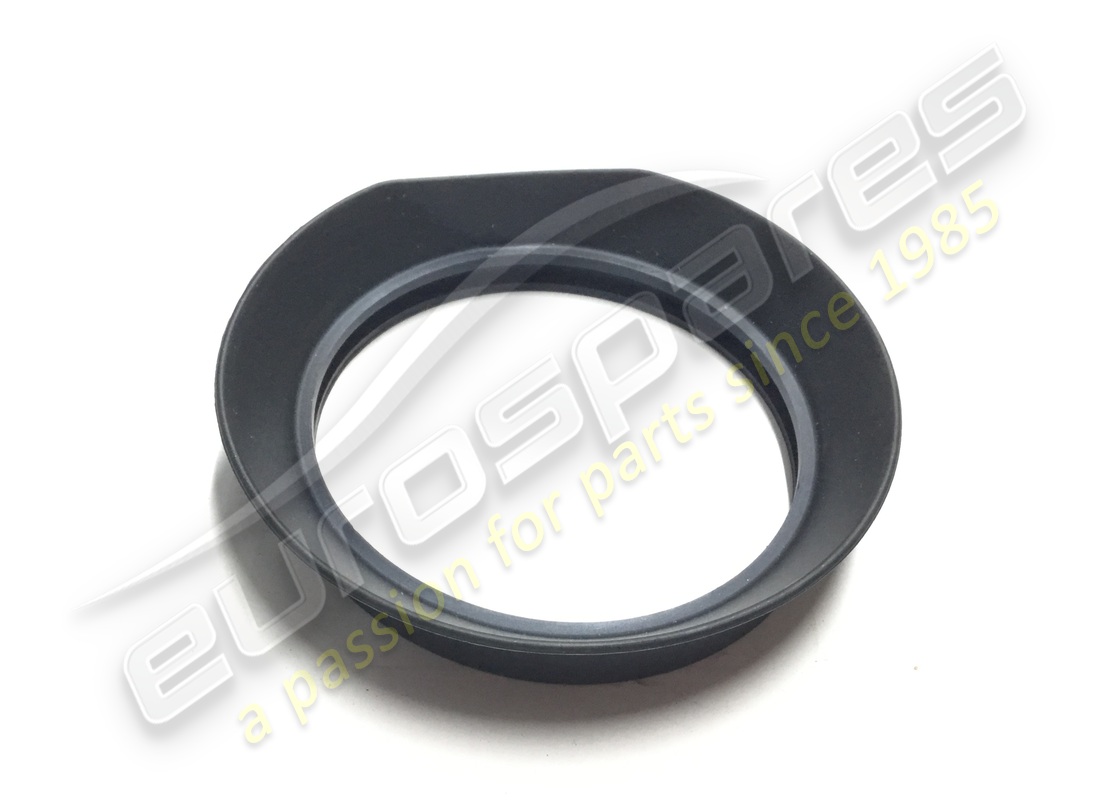

                                                    # 040
                                                    MPN: 675000691
                                                    GASKET
                                                    from £1.07
                                                    from £1.07
                                                    This part replaces part number 10257060 which we have in stock
                                                    # 041
                                                    MPN: 980138275
                                                    STEERING BOX FIXING KIT
                                                    from £116.37
                                                    from £116.37
                                                    Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
