maserati 4200 spyder (2004) rear suspension wishbones parts diagram

047 - Rear Suspension Wishbones

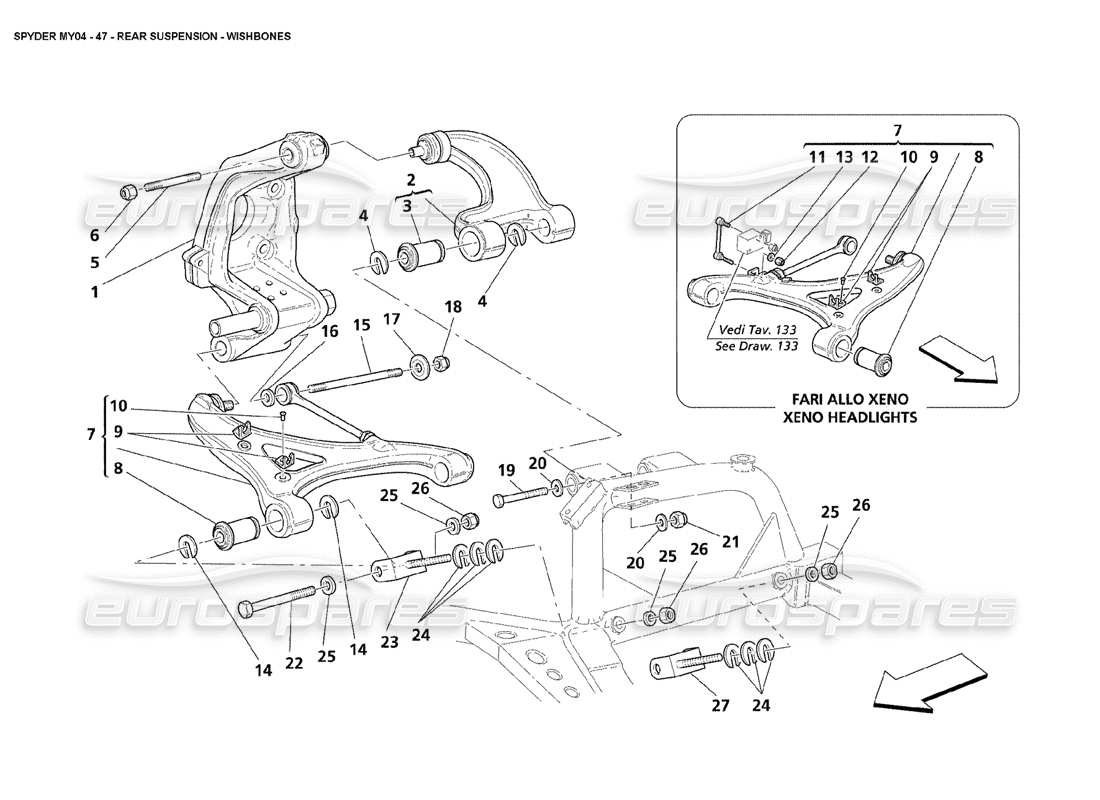

Maserati 4200 Spyder (2004) Rear Suspension Wishbones Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                  #
                                  Part number
                                  Description
                                  Price
                                  # 001
                                  MPN: 189334
                                  RH REAR HUB HOLDER
                                  from £336.00
                                  from £336.00
                                  # 001
                                  MPN: 189335
                                  LH REAR HUB HOLDER
                                  from £355.29
                                  from £355.29
                                  # 003
                                  MPN: 387000163
                                  FLANBLOC
                                  Alternative use part No: 169574
                                  from £117.96
                                  from £117.96
                                  # 004
                                  MPN: 377030378

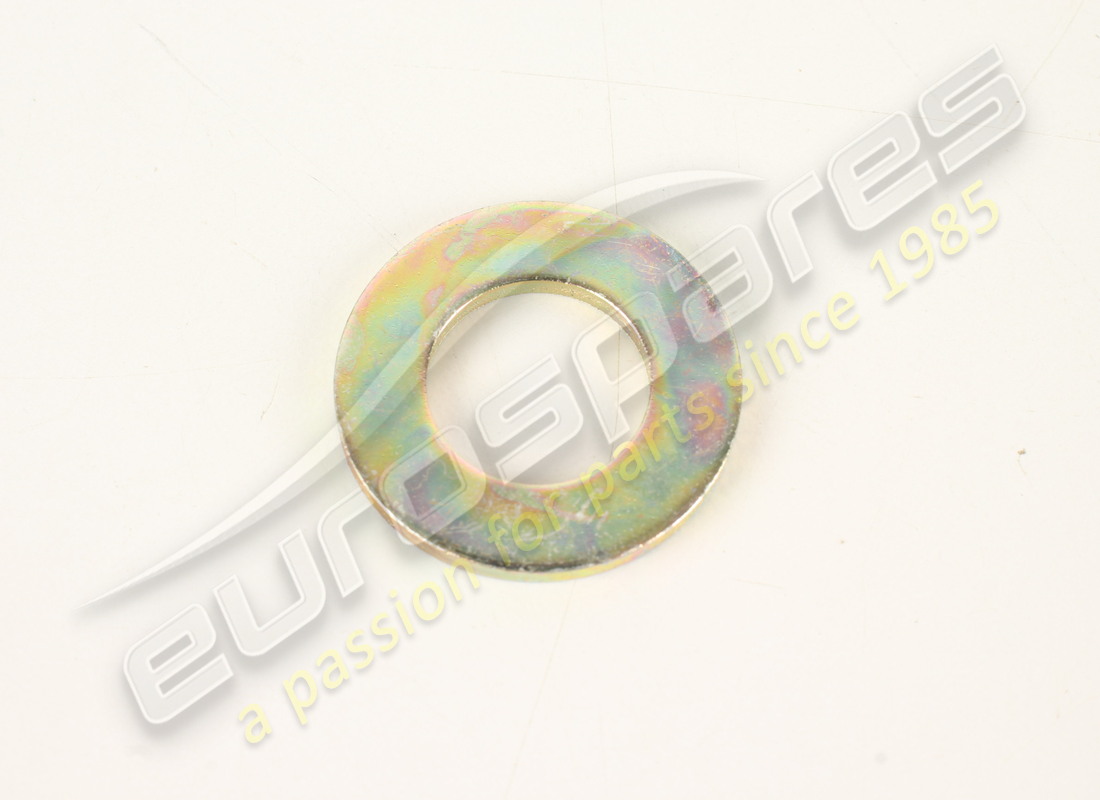

                                  WASHER
                                  - Thickness mm. 0,50
                                  from £3.17
                                  from £3.17
                                  # 004
                                  MPN: 377030379
                                  WASHER
                                  - Thickness mm. 0,75
                                  from £3.86
                                  from £3.86
                                  # 004
                                  MPN: 377030380
                                  WASHER
                                  - Thickness mm. 1,00
                                  from £17.23
                                  from £17.23
                                  # 004
                                  MPN: 377030381
                                  WASHER
                                  - Thickness mm. 1,75
                                  from £3.86
                                  from £3.86
                                  # 004
                                  MPN: 377030382
                                  WASHER
                                  - Thickness mm. 3,00
                                  from £4.56
                                  from £4.56
                                  # 005
                                  MPN: 13530624
                                  STUD
                                  from £21.56
                                  from £21.56
                                  # 006
                                  MPN: 14048825
                                  NUT
                                  from £4.56
                                  from £4.56
                                  # 007
                                  MPN: 198501

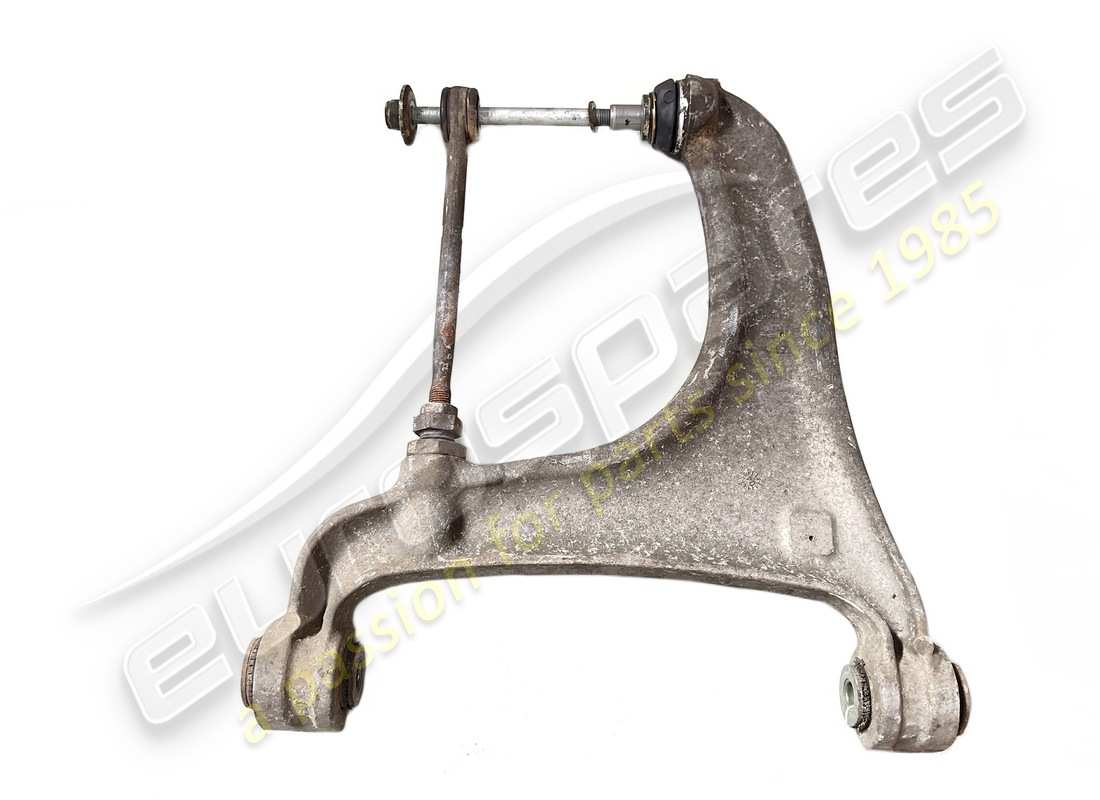

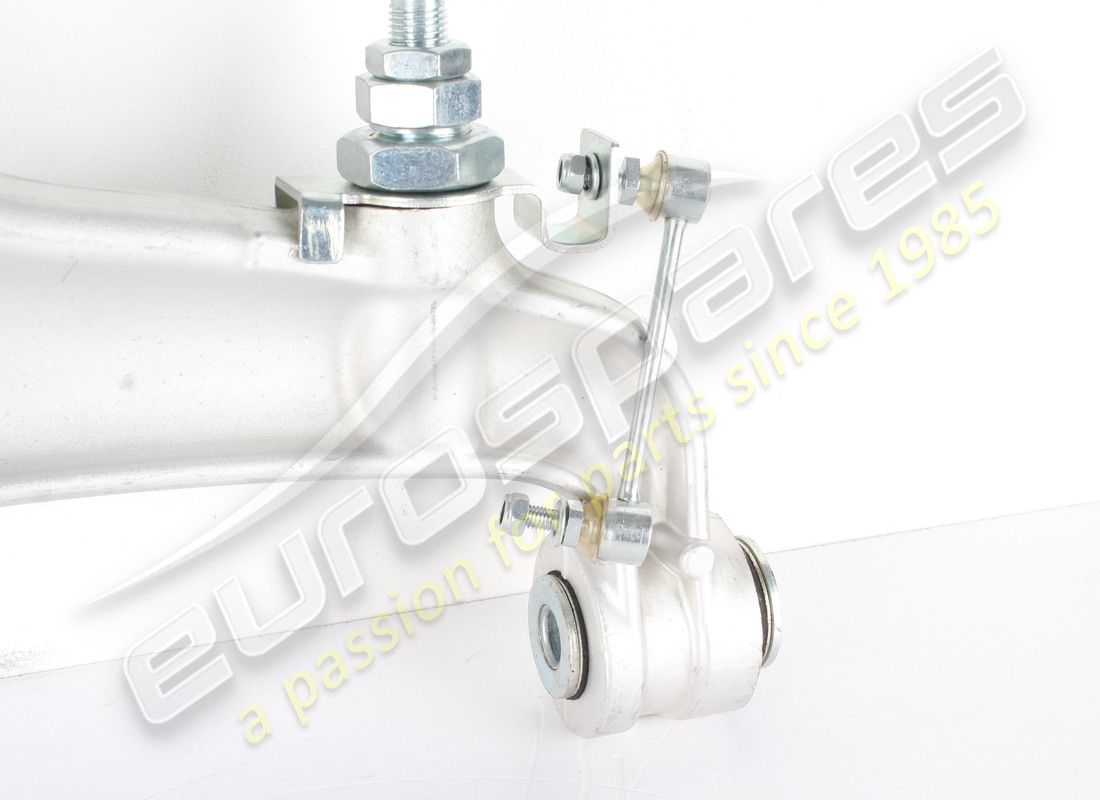

                                  LH REAR LOWER LEVER
                                  from £729.75
                                  from £729.75
                                  This part replaces part number 196039 - and 1 more. Click to view details
                                  # 007
                                  MPN: 198503

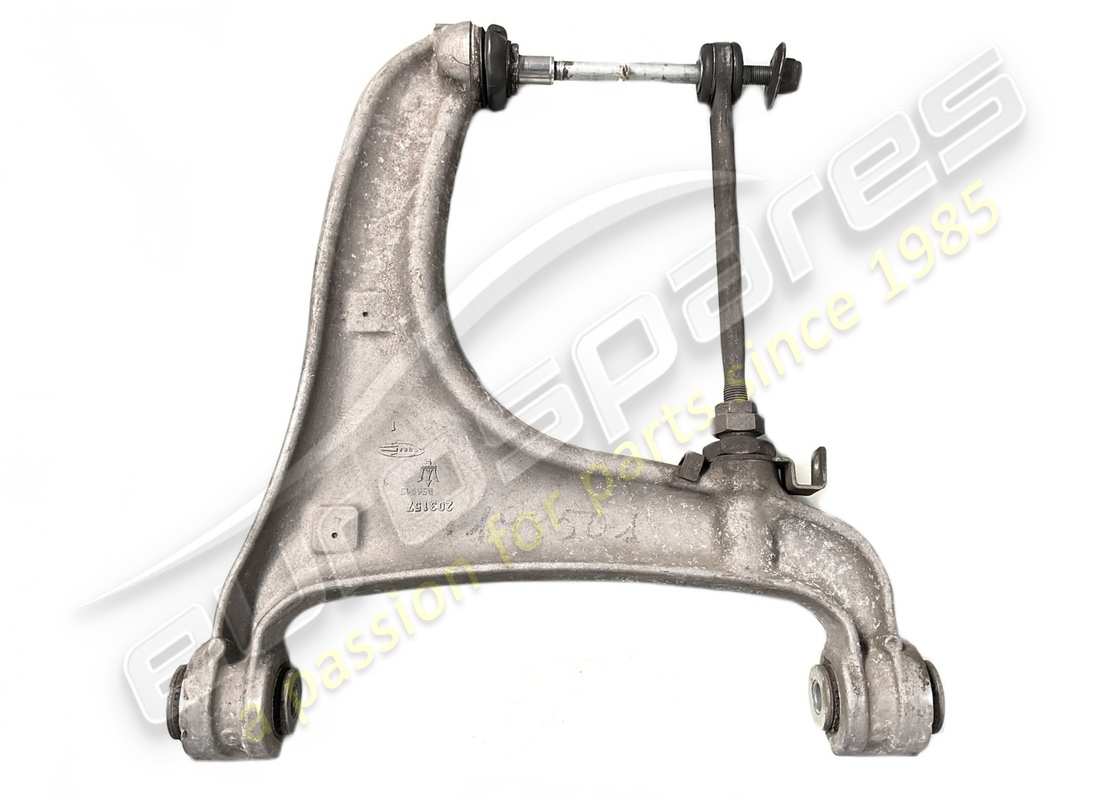

                                  RH REAR LOWER LEVER
                                  from £729.75
                                  from £729.75
                                  This part replaces part number 196034 - and 1 more. Click to view details
                                  # 007
                                  MPN: 198512

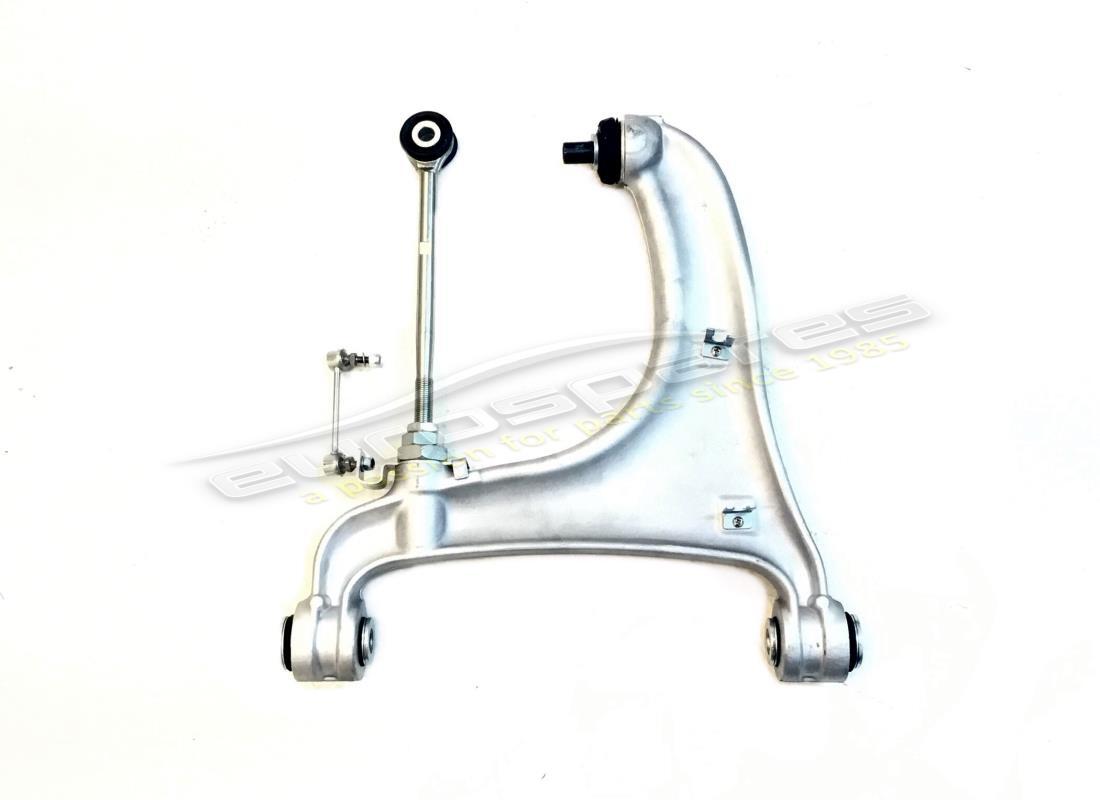

                                  COMPLETE LH LOWER LEVER
                                  - Standard
                                  from £1,569.61
                                  from £1,569.61
                                  This part replaces part number 196035
                                  # 007
                                  MPN: 198513
                                  COMPLETE LH LOWER LEVER
                                  - Optional - Xeno headlights - Not for USA and CDN
                                  from £1,698.53
                                  from £1,698.53
                                  This part replaces part number 196036
                                  # 008
                                  MPN: 386600113

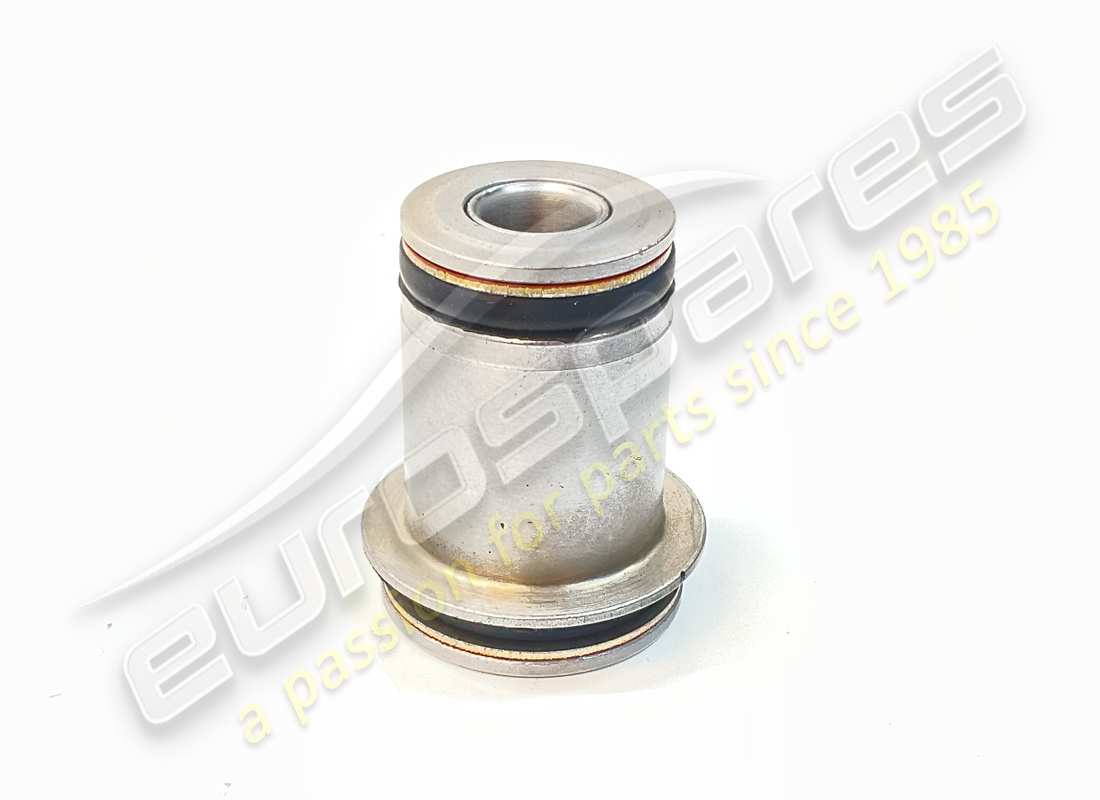

                                  FLANBLOC
                                  Alternative : 169326
                                  from £107.20
                                  from £107.20
                                  # 009
                                  MPN: 387000393
                                  ABS CABLE BRACKET
                                  from £72.32
                                  from £72.32
                                  # 010
                                  MPN: 13684370
                                  RIVET
                                  from £1.39
                                  from £1.39
                                  # 011
                                  MPN: 188632

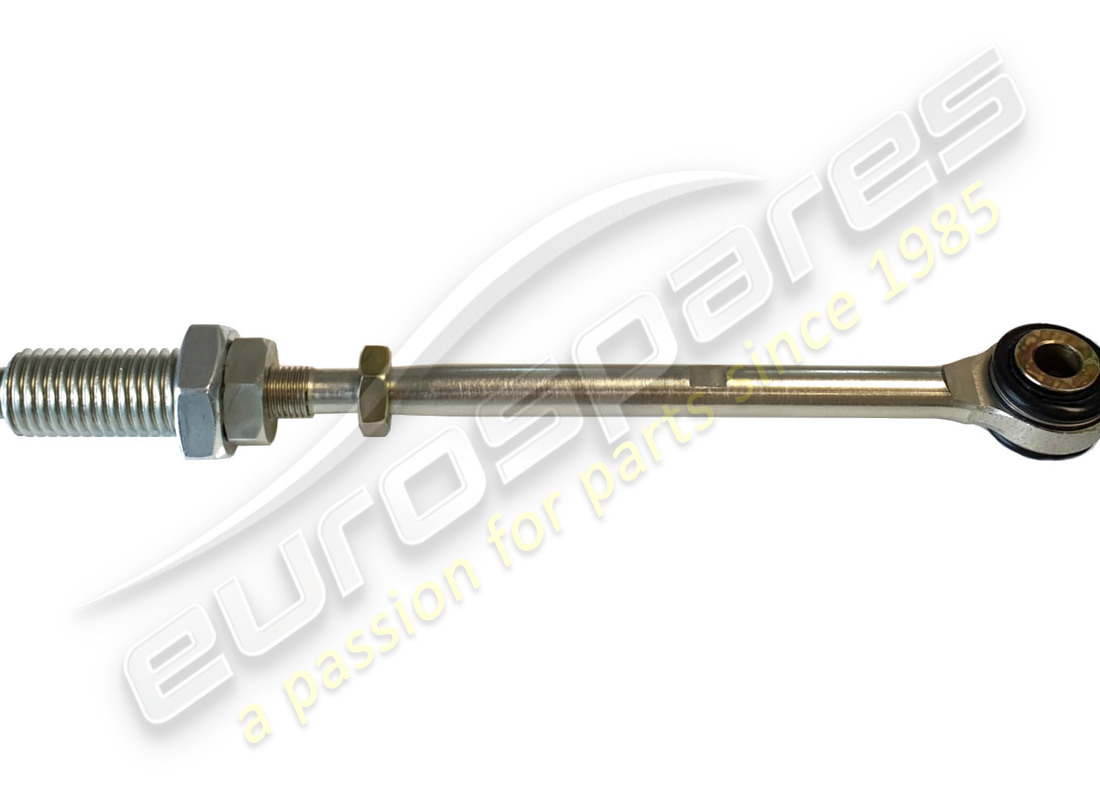

                                  TIE ROD
                                  - Valid for opt. Xeno headlights - Not for USA and CDN
                                  from £66.29
                                  from £66.29
                                  # 012
                                  MPN: 12574215
                                  NUT
                                  - Valid for opt. Xeno headlights - Not for USA and CDN
                                  from £1.23
                                  from £1.23
                                  # 013
                                  MPN: 14498805
                                  WASHER
                                  - Valid for opt. Xeno headlights - Not for USA and CDN
                                  from £0.54
                                  from £0.54
                                  # 014
                                  MPN: 377030378
                                  WASHER
                                  - Thickness mm. 0,50
                                  from £3.17
                                  from £3.17
                                  # 014
                                  MPN: 377030379
                                  WASHER
                                  - Thickness mm. 0,75
                                  from £3.86
                                  from £3.86
                                  # 014
                                  MPN: 377030380
                                  WASHER
                                  - Thickness mm. 1,00
                                  from £17.23
                                  from £17.23
                                  # 014
                                  MPN: 377030381
                                  WASHER
                                  - Thickness mm. 1,75
                                  from £3.86
                                  from £3.86
                                  # 014
                                  MPN: 377030382
                                  WASHER
                                  - Thickness mm. 3,00
                                  from £4.56
                                  from £4.56
                                  # 015
                                  MPN: 13531734
                                  STUD
                                  from £17.15
                                  from £17.15
                                  This part replaces part number 13531634
                                  # 016
                                  MPN: 13507521
                                  WASHER
                                  from £2.31
                                  from £2.31
                                  # 017
                                  MPN: 387000329
                                  CUP
                                  from £3.64
                                  from £3.64
                                  # 018
                                  MPN: 14048825
                                  NUT
                                  from £4.56
                                  from £4.56
                                  # 019
                                  MPN: 196071
                                  SCREW
                                  from £4.25
                                  from £4.25
                                  # 020
                                  MPN: 14496825
                                  WASHER
                                  from £1.11
                                  from £1.11
                                  # 021
                                  MPN: 15503915
                                  NUT
                                  from £1.63
                                  from £1.63
                                  # 022
                                  MPN: 196071
                                  SCREW
                                  from £4.25
                                  from £4.25

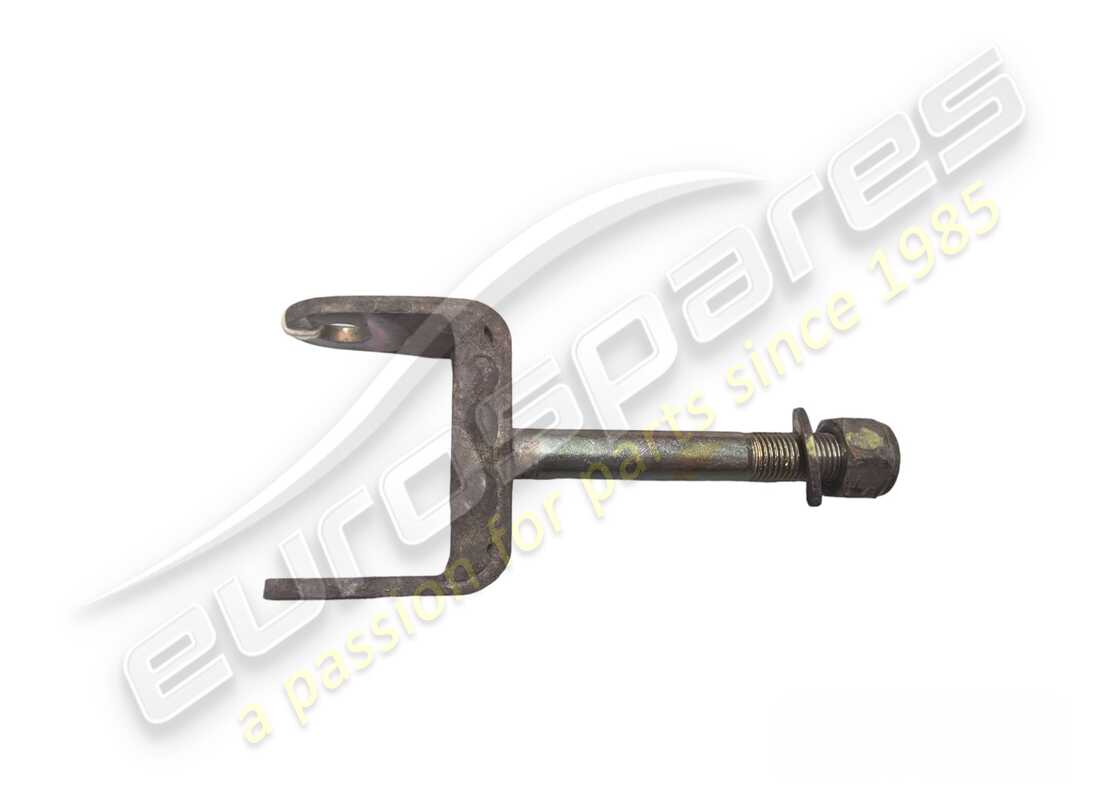

                                  # 023
                                  MPN: 196521
                                  FRONT FORK
                                  from £51.80
                                  from £51.80
                                  # 024
                                  MPN: 199644
                                  WASHER
                                  - Thickness mm. 0,20
                                  from £2.31
                                  from £2.31
                                  # 024
                                  MPN: 199645
                                  WASHER
                                  - Thickness mm. 0,30
                                  from £2.31
                                  from £2.31
                                  # 024
                                  MPN: 199646
                                  WASHER
                                  - Thickness mm. 0,40
                                  from £2.31
                                  from £2.31
                                  # 024
                                  MPN: 377030378
                                  WASHER
                                  - Thickness mm. 0,50
                                  from £3.17
                                  from £3.17
                                  # 024
                                  MPN: 377030379
                                  WASHER
                                  - Thickness mm. 0,75
                                  from £3.86
                                  from £3.86
                                  # 024
                                  MPN: 377030380
                                  WASHER
                                  - Thickness mm. 1,00
                                  from £17.23
                                  from £17.23
                                  # 024
                                  MPN: 377030381
                                  WASHER
                                  - Thickness mm. 1,75
                                  from £3.86
                                  from £3.86
                                  # 024
                                  MPN: 377030382
                                  WASHER
                                  - Thickness mm. 3,00
                                  from £4.56
                                  from £4.56
                                  # 025
                                  MPN: 14496825
                                  WASHER
                                  from £1.14
                                  from £1.14
                                  # 026
                                  MPN: 15503915
                                  NUT
                                  from £1.63
                                  from £1.63
                                  Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
