maserati 4200 spyder (2004) rear structure parts diagram

104 - rear structure

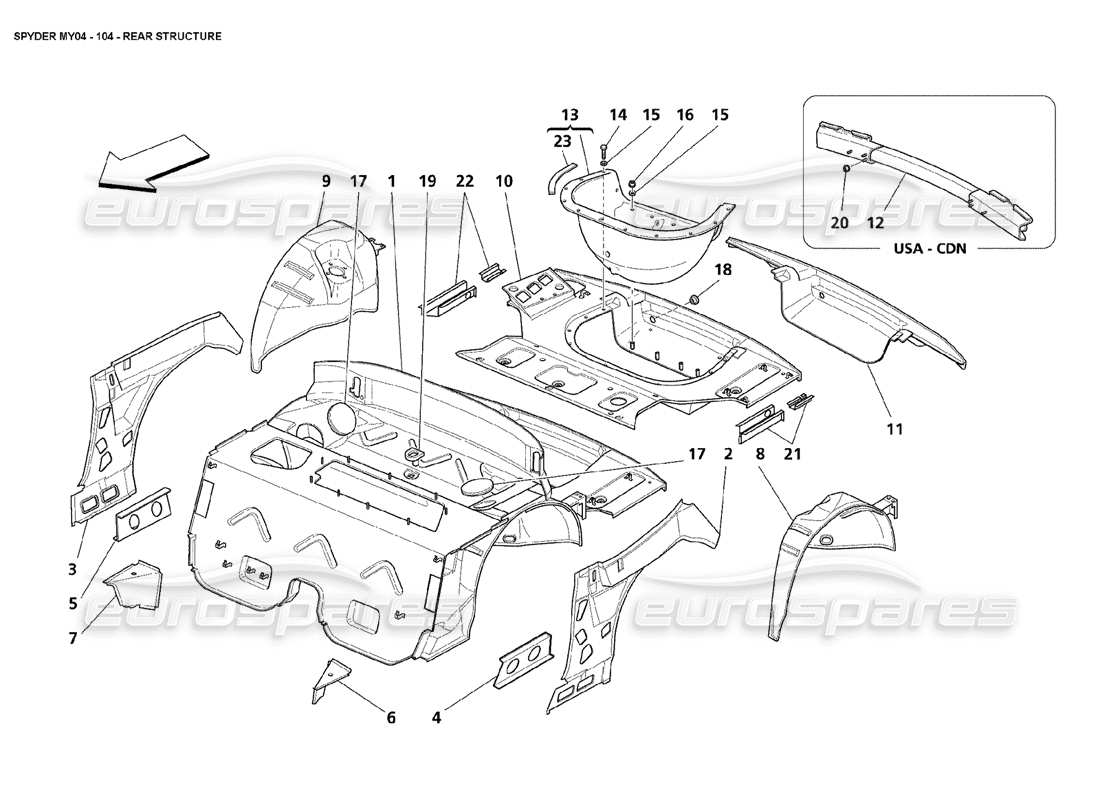

Maserati 4200 Spyder (2004) Rear Structure Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                            #
                                            Part number
                                            Description
                                            Price
                                            # 001
                                            MPN: 980001058
                                            COMPLETE REAR CENTRAL FLOOR
                                            from £4,574.03
                                            from £4,574.03
                                            # 002
                                            MPN: 980001151
                                            COMPLETE LH REAR DIAPHRAGM
                                            from £105.45
                                            from £105.45
                                            # 003
                                            MPN: 980001152
                                            COMPLETE RH REAR DIAPHRAGM
                                            from £92.77
                                            from £92.77
                                            # 004
                                            MPN: 66249200
                                            LH REAR LONGITUDINAL MEMBER REINFORCEMENT
                                            from £16.84
                                            from £16.84
                                            # 005
                                            MPN: 66249100
                                            RH REAR LONGITUDINAL MEMBER REINFORCEMENT
                                            from £16.84
                                            from £16.84
                                            # 006
                                            MPN: 65962700
                                            LH OUTER ANGULAR REINFORCEMENT
                                            from £15.86
                                            from £15.86
                                            # 007
                                            MPN: 65962600
                                            RH OUTER ANGULAR REINFORCEMENT
                                            from £15.86
                                            from £15.86
                                            # 008
                                            MPN: 980001061
                                            COMPLETE INNER LH REAR WHEEL HOUSE
                                            from £430.02
                                            from £430.02
                                            # 009
                                            MPN: 980001062
                                            COMPLETE INNER RH REAR WHEEL HOUSE
                                            from £430.02
                                            from £430.02
                                            # 010
                                            MPN: 980001059
                                            COMPLETE TRUNK FLOOR
                                            from £597.91
                                            from £597.91
                                            # 011
                                            MPN: 980001060
                                            COMPLETE REAR WALL
                                            from £132.15
                                            from £132.15
                                            # 012
                                            MPN: 66300700
                                            REAR BULL BAR
                                            - Valid for USA
                                            from £447.19
                                            from £447.19
                                            # 012
                                            MPN: 67021800
                                            REAR BULL BAR
                                            - Valid for CDN
                                            from £460.92
                                            from £460.92
                                            # 013
                                            MPN: 67245900
                                            COMPLETE WHEEL HOUSING
                                            from £276.78
                                            from £276.78
                                            This part replaces part number 66491000
                                            # 014
                                            MPN: 13274611

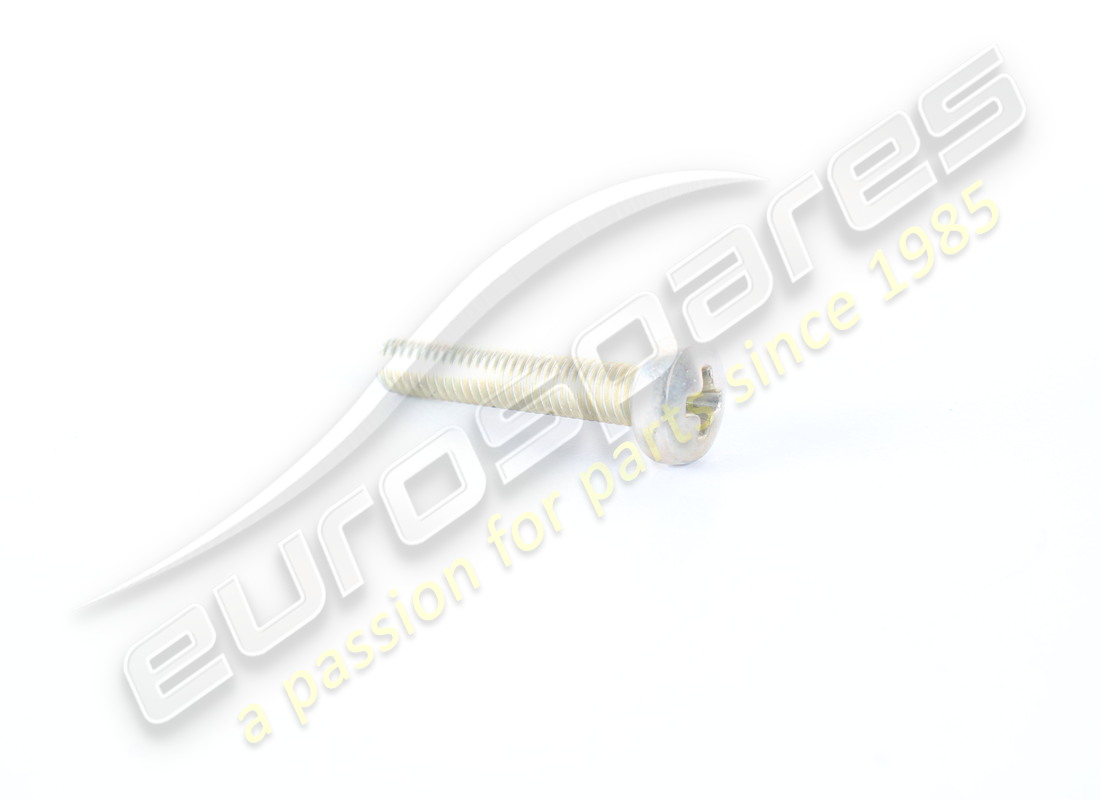

                                            SCREW
                                            from £0.71
                                            from £0.71
                                            This part replaces part number 13274517
                                            # 015
                                            MPN: 12638170
                                            WASHER
                                            from £1.08
                                            from £1.08
                                            # 016
                                            MPN: 14058311
                                            NUT
                                            from £0.47
                                            from £0.47
                                            # 017
                                            MPN: 66428200
                                            PLUG
                                            from £8.20
                                            from £8.20
                                            # 018
                                            MPN: 14506987
                                            PLUG
                                            from £1.93
                                            from £1.93
                                            # 019
                                            MPN: 385500300
                                            EXHAUST TERMINAL
                                            from £6.81
                                            from £6.81
                                            # 020
                                            MPN: 14040715
                                            NUT
                                            - Valid for USA and CDN
                                            from £1.08
                                            from £1.08
                                            # 021
                                            MPN: 980138023
                                            COMPLETE LH SIDE RAIL
                                            from £82.57
                                            from £82.57
                                            # 022
                                            MPN: 980138024
                                            COMPLETE RH SIDE RAIL
                                            from £78.97
                                            from £78.97
                                            # 023
                                            MPN: 66134100
                                            WHEEL HOUSING GASKET
                                            from £118.99
                                            from £118.99
