0009 - Fuel Tanks and Union

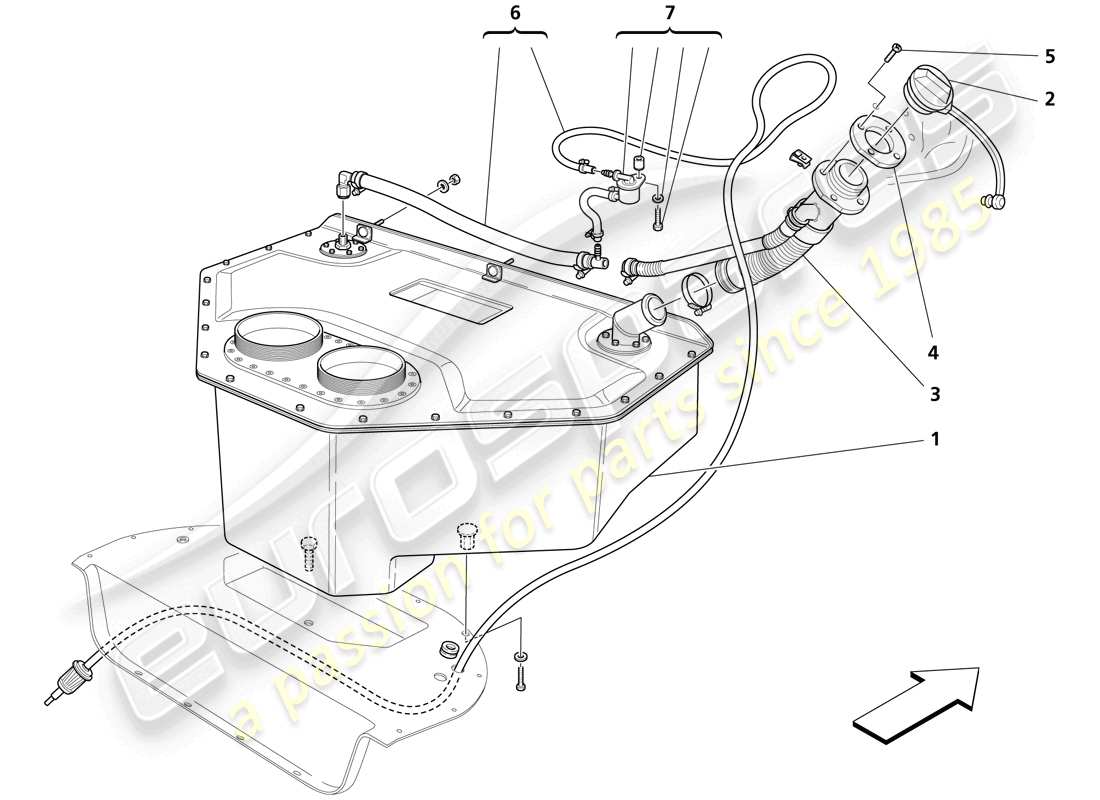

Maserati Trofeo FUEL TANKS AND UNION Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 197245
FUEL TANK
STANDARD
# 001
MPN: 216602
FUEL TANK
Tank with reduced capacity
# 002
MPN: 183432
TANK PLUG
from £31.95
from £31.95
# 003
MPN: 197247
FUEL INTAKE UNION
from £424.76
from £424.76
# 004
MPN: 389200348
GASKET
from £4.42
from £4.42
# 005
MPN: 13289277
SCREW
from £1.96
from £1.96
# 006
MPN: 197246
FUEL VENT PIPE
# 007
MPN: 200990
VALVE KIT
from £167.88
from £167.88
