0013 - Lubrication System - Tank - Heater Exchanger

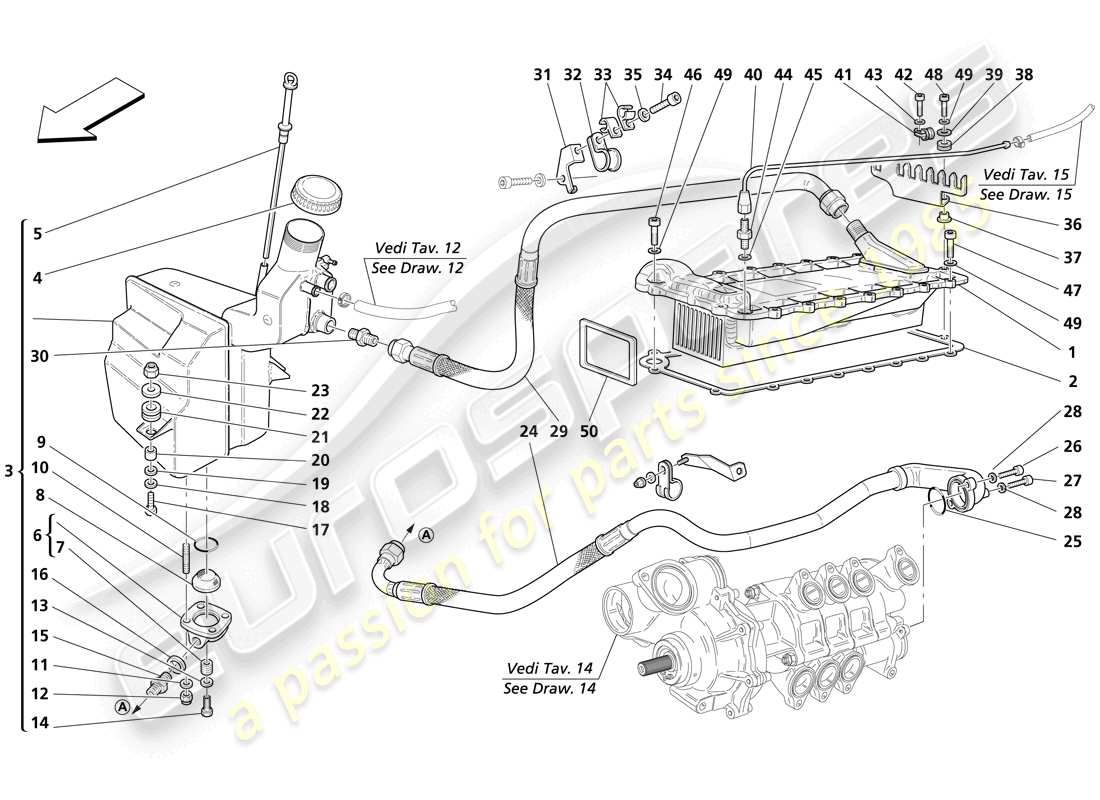

Maserati Trofeo LUBRICATION SYSTEM - TANK - HEATER EXCHANGER Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 186356
WATER AND OIL EXCHANGER
from £1,387.71
from £1,387.71
# 002
MPN: 185581
GASKET
Supplied also in the crankcase gasket revision kit (cod. 980020002)
from £26.97
from £26.97
# 003
MPN: 197262
COMPLETE OIL TANK
from £570.78
from £570.78
# 004
MPN: 189116
PLUG
from £36.22
from £36.22
This part replaces part number 113401 - and 1 more. Click to view details
# 005
MPN: 192510
OIL LEVEL ROD
from £6.03
from £6.03
This part replaces part number 188627 - and 1 more. Click to view details
# 006
MPN: 151684
OIL SUCTION FAN
from £105.05
from £105.05
# 007
MPN: 111352
THREADED INSERT
from £68.95
from £68.95
# 008
MPN: 100332
OIL SUCTION FILTER
from £9.36
from £9.36
# 009
MPN: 125521
O.R. GASKET
from £5.65
from £5.65
# 010
MPN: 11500424
STUD
from £0.47
from £0.47
# 011
MPN: 12601274
WASHER
from £0.47
from £0.47
This part replaces part number 12601270
# 012
MPN: 102948
NUT
from £0.47
from £0.47
# 013
MPN: 10257060
GASKET
from £0.47
from £0.47
# 014
MPN: 10300711
THREADED PLUG
from £0.50
from £0.50
# 015
MPN: 186746
THREADED UNION
from £43.35
from £43.35
# 016
MPN: 144485
GASKET
from £12.66
from £12.66
# 017
MPN: 16043834
SCREW
from £0.47
from £0.47
This part replaces part number 16043824 which we have in stock
# 018
MPN: 14496524
WASHER
from £0.47
from £0.47
# 019
MPN: 127496
WASHER
from £0.54
from £0.54
This part replaces part number 384600330
# 020
MPN: 107980
SPACER
from £1.60
from £1.60
# 021
MPN: 184519
PAD
from £1.58
from £1.58
# 022
MPN: 107979
CUP
from £1.11
from £1.11
# 023
MPN: 16104411
NUT
from £0.47
from £0.47
# 024
MPN: 197261
PIPE FROM TANK TO PUMP
from £589.40
from £589.40
# 025
MPN: 109649
GASKET
Supplied also in the crankcase gasket revision kit (cod. 980020002)
from £0.70
from £0.70
# 026
MPN: 14305424
SCREW
from £0.47
from £0.47
# 027
MPN: 14303824
SCREW
from £1.16
from £1.16
# 028
MPN: 11197774
WASHER
from £0.54
from £0.54
# 029
MPN: 186060
PIPE FROM HEAT EXCHANGER TO OIL TANK
from £135.91
from £135.91
# 030
MPN: 170157
UNION
from £28.54
from £28.54
# 031
MPN: 184821
BRACKET
from £9.48
from £9.48
# 032
MPN: 10441890
BRACKET WITH SHEATH
from £0.47
from £0.47
# 033
MPN: 187713
CLIP
from £3.26
from £3.26
This part replaces part number 98055
# 034
MPN: 14305724
SCREW
from £0.54
from £0.54
# 035
MPN: 11197774
WASHER
from £0.54
from £0.54
# 036
MPN: 191396
BRACKET
from £4.64
from £4.64
# 037
MPN: 149707
SPACER
from £0.65
from £0.65
# 038
MPN: 177576
CABLE GROMMET
from £1.11
from £1.11
# 039
MPN: 12643724
WASHER
from £0.47
from £0.47
# 040
MPN: 185469
COMPLETE VENT PIPE
from £130.63
from £130.63
# 041
MPN: 10440890
BRACKET WITH SHEATH
from £0.47
from £0.47
# 042
MPN: 14305024
SCREW
from £0.54
from £0.54
# 043
MPN: 11197774
WASHER
from £0.54
from £0.54
# 044
MPN: 182496
UNION
from £35.51
from £35.51
# 045
MPN: 10284460
GASKET
from £0.47
from £0.47
# 046
MPN: 14305524
SCREW
M 6X30
from £0.47
from £0.47
# 047
MPN: 14305424
SCREW
M 6X25
from £0.47
from £0.47
# 047
MPN: 14432224
SCREW
M 6X22
from £0.47
from £0.47
# 048
MPN: 14305624
SCREW
M 6X35
from £0.53
from £0.53
# 049
MPN: 11197774
WASHER
from £0.51
from £0.51
# 050
MPN: 174600
GASKET
Supplied also in the crankcase gasket revision kit (cod. 980020002)
from £4.62
from £4.62
