0016 - Cooling System Radiator

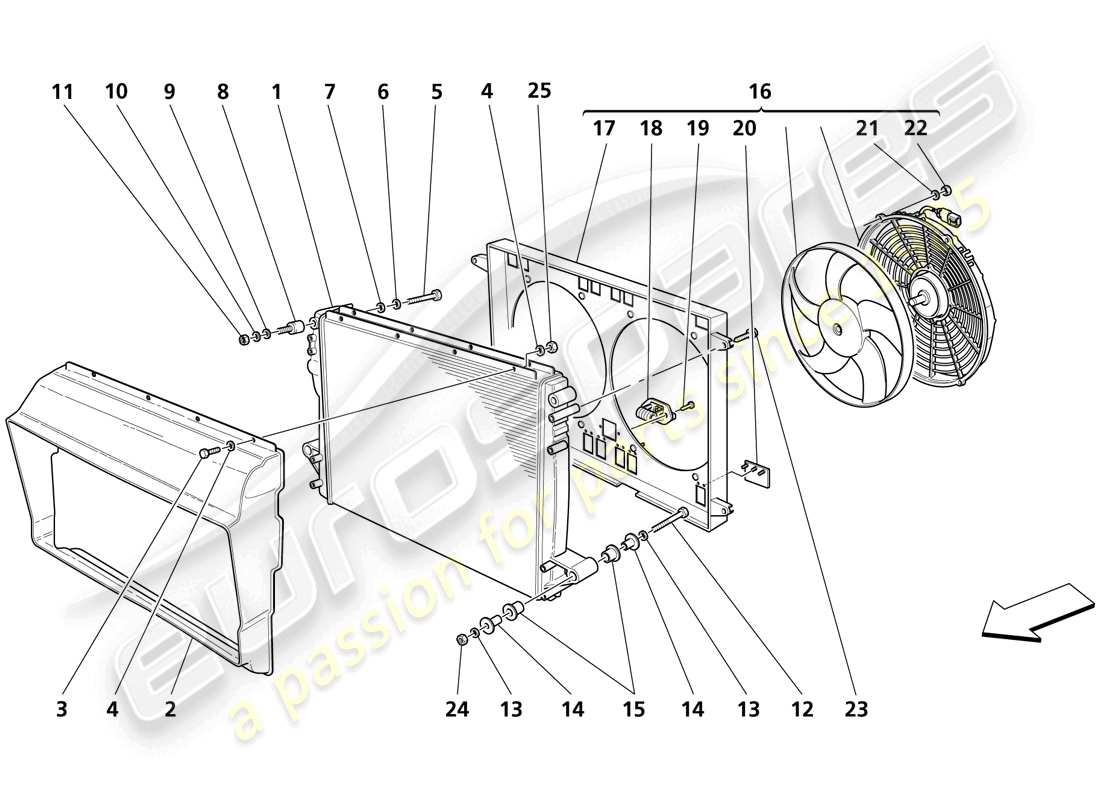

Maserati Trofeo COOLING SYSTEM RADIATOR Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 181097
WATER RADIATOR
from £368.01
from £368.01
# 002
MPN: 67532300
AIR CONVEYOR
from £110.29
from £110.29
# 003
MPN: 10977724
SCREW
from £0.47
from £0.47
# 004
MPN: 13579101
WASHER
from £0.48
from £0.48
# 005
MPN: 14308921
SCREW
from £0.54
from £0.54
# 006
MPN: 12601379
WASHER
from £0.95
from £0.95
# 007
MPN: 12646724
WASHER
from £0.47
from £0.47
# 008
MPN: 181114
PAD
from £7.97
from £7.97
# 009
MPN: 12647024
WASHER
Supersession
Supersession
# 010
MPN: 127496
WASHER
from £0.54
from £0.54
This part replaces part number 384600330
# 011
MPN: 16100814
NUT
from £0.71
from £0.71
# 012
MPN: 16044824
SCREW
from £1.43
from £1.43
# 013
MPN: 12646724
WASHER
from £0.47
from £0.47
# 014
MPN: 181111
BUSHING
from £5.73
from £5.73
# 015
MPN: 181110
RUBBER BUSHING
from £1.60
from £1.60
# 016
MPN: 181737
COMPLETE ELECTROFAN SET
Valid for MY 2003Valid for MY 2004
from £551.35
from £551.35
# 016
MPN: 223786
COMPLETE ELECTROFAN SET
Valid for MY 2005
# 017
MPN: 181393
HOOD FOR ELECTROFAN
from £446.51
from £446.51
# 018
MPN: 3833000176
RESISTOR
# 019
MPN: 15688070
SCREW
from £0.47
from £0.47
# 020
MPN: 373330320
STRAP
from £4.07
from £4.07
# 021
MPN: 10519401
WASHER
from £0.71
from £0.71
# 022
MPN: 14048115
NUT
Supersession
Supersession
# 023
MPN: 15699804
SCREW
from £0.53
from £0.53
This part replaces part number 15534501
# 024
MPN: 14058511
NUT
from £0.47
from £0.47
# 025
MPN: 14048615
NUT
from £0.47
from £0.47
