0024 - SECONDARY SHAFT GEARS

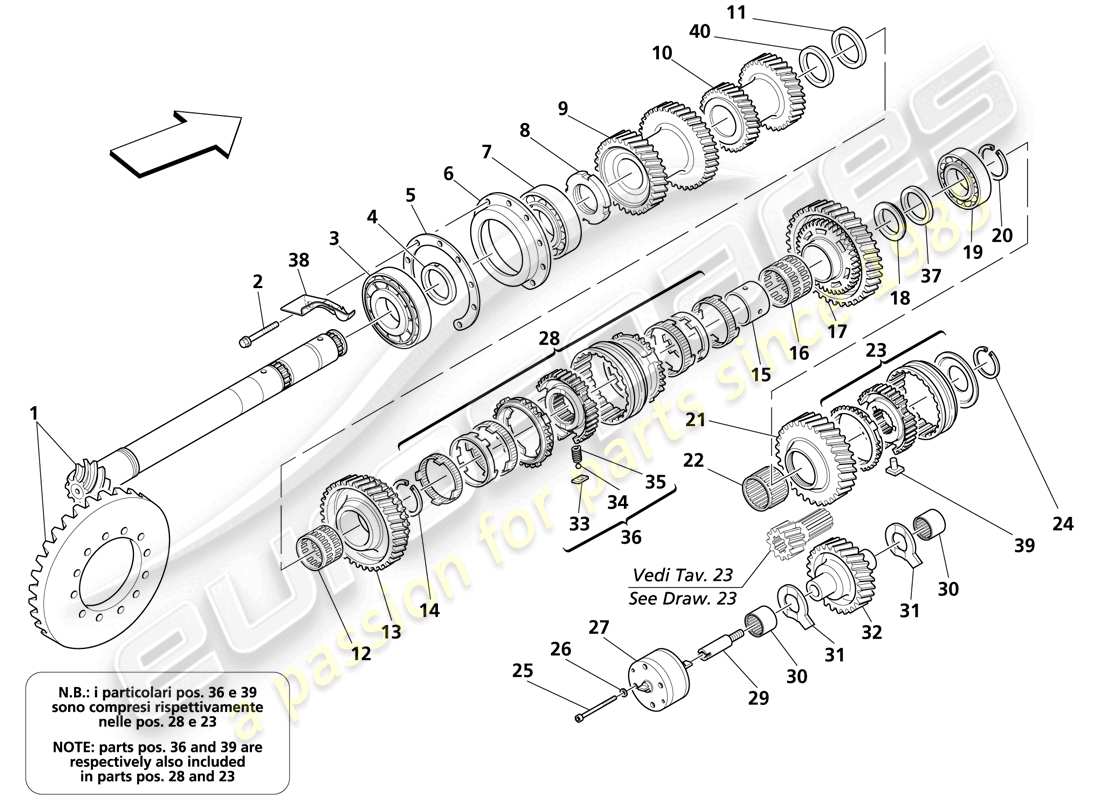

Maserati Trofeo SECONDARY SHAFT GEARS Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 980138559
COMPLETE BEVEL SET
from £3,429.68
from £3,429.68
# 002
MPN: 16287731
SCREW
from £1.11
from £1.11
# 003
MPN: 185022
ROLLER BEARING
from £87.86
from £87.86
# 004
MPN: 185045
REGISTER RING
Thickness mm. 7,10
from £17.93
from £17.93
# 004
MPN: 185046
REGISTER RING
Thickness mm. 6,85Possible fitting
from £17.93
from £17.93
# 004
MPN: 185047
REGISTER RING
Thickness mm. 6,60Possible fitting
from £17.93
from £17.93
# 005
MPN: 185042
REGISTER RING
Thickness mm. 2,8
from £5.66
from £5.66
# 005
MPN: 185043
REGISTER RING
Thickness mm. 2,5Possible fitting
from £9.79
from £9.79
# 005
MPN: 185044
REGISTER RING
Thickness mm. 2,2Possible fitting
from £15.22
from £15.22
# 006
MPN: 185020
BEARING SUPPORT
from £77.56
from £77.56
# 007
MPN: 185021
ROLLER BEARING
from £77.85
from £77.85
# 008
MPN: 185019
RING NUT
from £13.54
from £13.54
# 009
MPN: 198714
3RD AND 4TH DRIVEN GEAR
from £192.83
from £192.83
# 010
MPN: 980138557
5TH AND 6TH DRIVEN GEAR
from £241.85
from £241.85
# 011
MPN: 183974
RING
Thickness mm. 4,30
from £18.57
from £18.57
# 011
MPN: 185038
RING
Thickness mm. 3,95Possible fitting
from £17.93
from £17.93
# 011
MPN: 185039
RING
Thickness mm. 3,60Possible fitting
from £17.93
from £17.93
# 012
MPN: 184014
ROLLER CAGE
from £10.49
from £10.49
# 013
MPN: 182293
COMPLETE PINION FOR 2ND GEAR
from £151.93
from £151.93
# 014
MPN: 183976
FLEXIBLE RING
Thickness mm. 2,10
from £6.73
from £6.73
# 014
MPN: 185036
FLEXIBLE RING
Thickness mm. 1,85Possible fitting
from £19.67
from £19.67
# 014
MPN: 185037
FLEXIBLE RING
Thickness mm. 1,60Possible fitting
from £24.06
from £24.06
# 015
MPN: 183971
BUSHING
from £43.35
from £43.35
# 016
MPN: 184016
ROLLER CAGE
from £12.61
from £12.61
# 017
MPN: 182299
COMPLETE PINION FOR 1ST GEAR
from £353.41
from £353.41
# 018
MPN: 183972
RING
Thickness mm. 5,10
from £43.33
from £43.33
# 018
MPN: 185040
RING
Thickness mm. 4,85Possible fitting
from £23.32
from £23.32
# 018
MPN: 185041
RING
Thickness mm. 4,60Possible fitting
from £20.61
from £20.61
# 019
MPN: 184020
ROLLER BEARING
from £79.50
from £79.50
# 020
MPN: 184042
FLEXIBLE RING
from £6.92
from £6.92
# 021
MPN: 193438
COMPLETE PINION FOR REVERSE GEAR
from £349.46
from £349.46
# 022
MPN: 184018
ROLLER CAGE
from £15.73
from £15.73
# 023
MPN: 193439
REVERSE GEAR COMPLETE SYNCHRONIZER
from £1,220.88
from £1,220.88
# 024
MPN: 184041
FLEXIBLE RING
from £2.55
from £2.55
# 025
MPN: 14303624
SCREW
from £0.47
from £0.47
# 026
MPN: 10571379
WASHER
from £0.47
from £0.47
# 027
MPN: 196980
COMPLETE OIL PUMP
from £223.16
from £223.16
# 028
MPN: 185164
1ST AND 2ND GEAR COMPLETE SYNCHRONIZER
from £740.63
from £740.63
# 029
MPN: 182415
PIN
from £46.67
from £46.67
# 030
MPN: 184017
ROLLER CASING
from £4.88
from £4.88
# 031
MPN: 183975
RING
from £14.04
from £14.04
# 032
MPN: 183969
IDLE GEAR FOR REVERSE
from £179.16
from £179.16
# 033
-
PAD FOR SYNCHRONIZER
# 034
-
BALL
# 035
-
SPRING FOR BALL
# 036
MPN: 188320
PAD FOR SYNCHRONIZER/BALL/ SPRING REPLACEMENT KIT
from £6.75
from £6.75
# 037
MPN: 182326
SPACER
from £39.82
from £39.82
# 038
MPN: 185713
OIL CONVEYOR
from £16.19
from £16.19
# 039
MPN: 193440
PADS/SYNCHRO REVERSE GEAR KIT
from £2.32
from £2.32
This part replaces part number 193484
# 040
MPN: 188497
SPACER
from £28.59
from £28.59
