0032 - Steering box

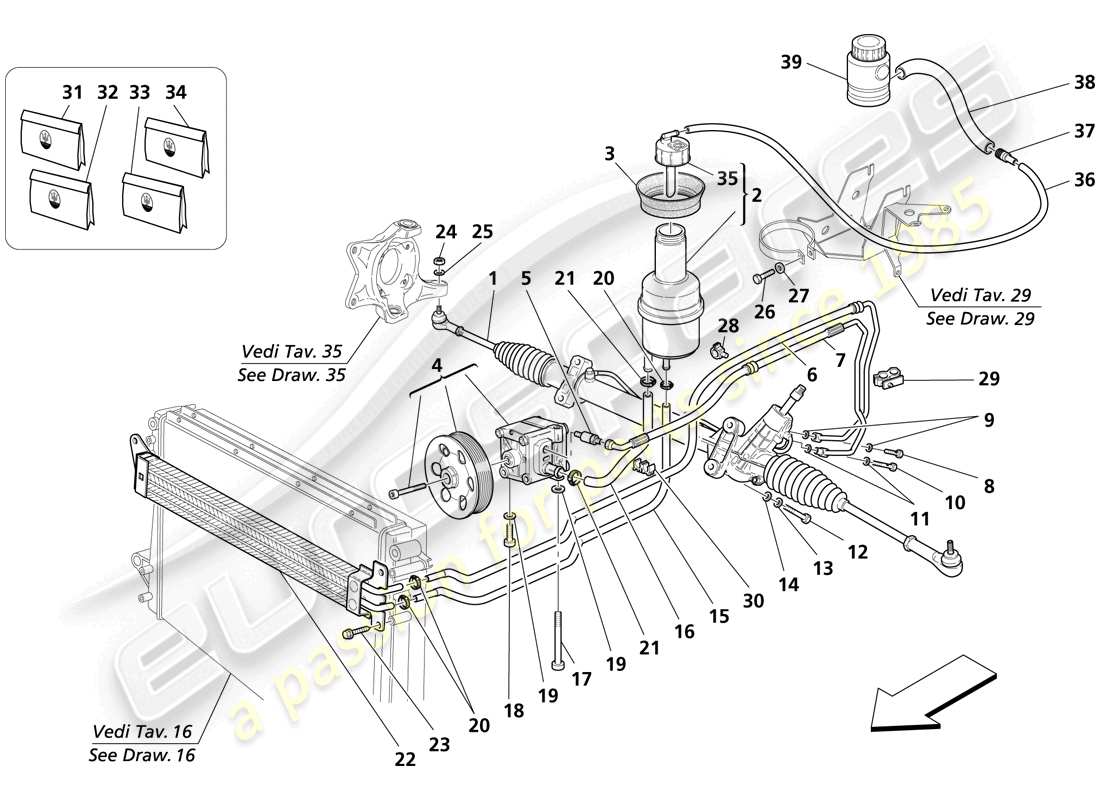

Maserati Trofeo STEERING BOX Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 197416
STEERING BOX WITH POWER STEERING
Valid for MY 2003
Supersession
Supersession
# 001
MPN: 197416
STEERING BOX WITH POWER STEERING
Valid for MY 2005
Supersession
Supersession
# 001
MPN: 209500
STEERING BOX WITH POWER STEERING
Valid for MY 2004Valid till stock exhaustion
This part replaces part number 197416
# 002
MPN: 185820
COMPLETE OIL TANK FOR SERVOSTEERING
Valid for MY 2003Valid till stock exhaustion
from £10.45
from £10.45
# 002
MPN: 209709
COMPLETE OIL TANK FOR SERVOSTEERING
Valid for MY 2004Valid till stock exhaustion
# 002
MPN: 216635
COMPLETE OIL TANK FOR SERVOSTEERING
Valid for MY 2005
# 004
MPN: 187920
COMPLETE HYDRAULIC SERVO-CONTROL PUMP
from £221.66
from £221.66
# 005
MPN: 210534
UNION
Valid for MY 2004Valid for MY 2005
# 006
MPN: 188970
PIPE FROM HYDRODRIVE TO EXCHANGER
from £41.30
from £41.30
# 007
MPN: 191070
PIPE FROM PUMP TO DRIVING BOX
Valid for MY 2003Valid till stock exhaustion
from £51.45
from £51.45
# 007
MPN: 195314
PIPE FROM PUMP TO DRIVING BOX
Valid for MY 2004Valid for MY 2005
Supersession
Supersession
# 008
MPN: 193264
UNION
from £39.34
from £39.34
# 009
MPN: 10298460
GASKET
from £0.47
from £0.47
# 010
MPN: 193018
UNION
from £43.24
from £43.24
# 011
MPN: 10280060
GASKET
from £0.47
from £0.47
# 012
MPN: 11343821
SCREW
from £0.57
from £0.57
# 013
MPN: 11190574
WASHER
from £0.47
from £0.47
# 014
MPN: 12641021
WASHER
from £1.44
from £1.44
# 015
MPN: 188969
PIPE FROM EXCHANGER TO TANK
from £15.66
from £15.66
# 016
MPN: 192205
PIPE FROM TANK TO HYDRODRIVE
Valid for MY 2003Valid till stock exhaustion
from £49.01
from £49.01
This part replaces part number 188968 - and 1 more. Click to view details
# 016
MPN: 198482
PIPE FROM TANK TO HYDRODRIVE
Valid for MY 2004Valid for MY 2005
from £15.54
from £15.54
# 017
MPN: 160531
SCREW
from £5.65
from £5.65
This part replaces part number 180604
# 018
MPN: 198519
SCREW
from £2.96
from £2.96
# 019
MPN: 11193874
WASHER
from £0.47
from £0.47
# 020
MPN: 13000390
SCREW COLLAR
from £0.47
from £0.47
This part replaces part number 13121170 - and 1 more. Click to view details
# 021
MPN: 13000490
SCREW COLLAR
from £0.53
from £0.53
This part replaces part number 13127870 - and 1 more. Click to view details
# 022
MPN: 188978
POWER STEERING EXCHANGER
Supersession
Supersession
# 023
MPN: 15699804
SCREW
from £0.54
from £0.54
This part replaces part number 15534501
# 024
MPN: 14047421
NUT
from £1.36
from £1.36
# 025
MPN: 12626221
WASHER
from £0.47
from £0.47
# 026
MPN: 10902621
SCREW
Supersession
Supersession
# 027
MPN: 10523401
WASHER
from £0.47
from £0.47
# 028
MPN: 14631387
CLIP
from £0.47
from £0.47
# 029
MPN: 177805
CLIP
from £0.94
from £0.94
This part replaces part number 377890660
# 030
MPN: 190953
CLIP
from £2.95
from £2.95
# 031
MPN: 9800001701
PIPES REPLACEMENT KIT FOR STEERING BOX
# 032
MPN: 980000967
TIE ROD REPLACEMENT KIT FOR STEERING BOX
Supersession
Supersession
# 033
MPN: 980000968
COUPLING REPLACEMENT KIT FOR STEERING BOX
Supersession
Supersession
# 034
MPN: 980000969
BOOTS REPLACEMENT KIT FOR STEERING BOX
Supersession
Supersession
# 035
MPN: 980138595
PLUG
Valid for MY 2004Valid for MY 2005
from £12.18
from £12.18
# 036
MPN: 209711
VENT PIPE
Valid for MY 2004Valid for MY 2005
# 037
MPN: 142420
UNION
Valid for MY 2004Valid for MY 2005
# 038
MPN: 209712
RUBBER HOSE
Valid for MY 2004Valid for MY 2005
# 039
MPN: 176571
OIL TANK
Valid for MY 2004Valid for MY 2005
from £137.58
from £137.58
