0037 - Rear Suspension - Wishbones

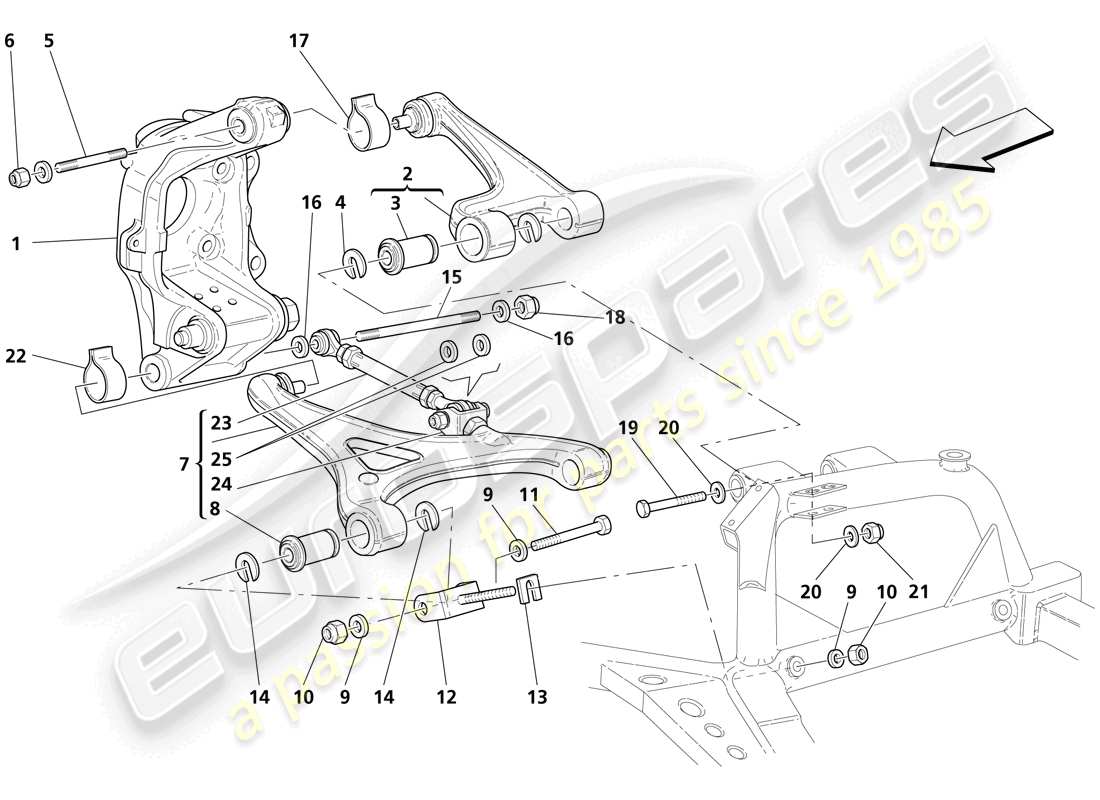

Maserati Trofeo REAR SUSPENSION - WISHBONES Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 201213
RH REAR HUB HOLDER
from £513.37
from £513.37
# 001
MPN: 201214
LH REAR HUB HOLDER
from £513.37
from £513.37
# 002
MPN: 197643
COMPLETE UPPER LEVER
from £523.76
from £523.76
This part replaces part number 197648
# 004
MPN: 377030378
WASHER
Tickness mm. 0,50
from £3.26
from £3.26
# 004
MPN: 377030379
WASHER
Tickness mm. 0,75
from £3.99
from £3.99
# 004
MPN: 377030380
WASHER
Tickness mm. 1,00
from £17.76
from £17.76
# 004
MPN: 377030381
WASHER
Tickness mm. 1,75
from £3.99
from £3.99
# 004
MPN: 377030382
WASHER
Tickness mm. 3,00
from £4.70
from £4.70
# 005
MPN: 13530624
STUD
from £22.21
from £22.21
# 006
MPN: 14048825
NUT
from £4.70
from £4.70
# 007
MPN: 197642
COMPLETE LOWER LEVER
This part replaces part number 197647
# 009
MPN: 14496825
WASHER
from £1.18
from £1.18
# 010
MPN: 15503915
NUT
from £1.68
from £1.68
# 011
MPN: 196071
SCREW
from £4.37
from £4.37
# 012
MPN: 183631
FORK
from £50.40
from £50.40
# 013
MPN: 198176
THICKNESS
mm. 1,25
# 014
MPN: 377030378
WASHER
Tickness mm. 0,50
from £3.26
from £3.26
# 014
MPN: 377030379
WASHER
Tickness mm. 0,75
from £3.99
from £3.99
# 014
MPN: 377030380
WASHER
Tickness mm. 1,00
from £17.76
from £17.76
# 014
MPN: 377030381
WASHER
Tickness mm. 1,75
from £3.99
from £3.99
# 014
MPN: 377030382
WASHER
Tickness mm. 3,00
from £4.70
from £4.70
# 015
MPN: 13531734
STUD
from £17.68
from £17.68
This part replaces part number 13531634
# 016
MPN: 13507521
WASHER
from £2.39
from £2.39
# 017
MPN: 386600416
JOINT UPPER PROTECTION
from £3.75
from £3.75
# 018
MPN: 14048825
NUT
from £4.70
from £4.70
# 019
MPN: 196071
SCREW
from £4.37
from £4.37
# 020
MPN: 14496825
WASHER
from £1.14
from £1.14
# 021
MPN: 15503915
NUT
from £1.68
from £1.68
# 022
MPN: 1600019
JOINT LOWER PROTECTION
# 023
MPN: 980138564
COMPLETE TIE ROD
# 024
MPN: 980138565
TIE ROD CONNECTION
# 025
MPN: 980138566
THICKNESS
