maserati 2.24v radiator and cooling fans parts diagram

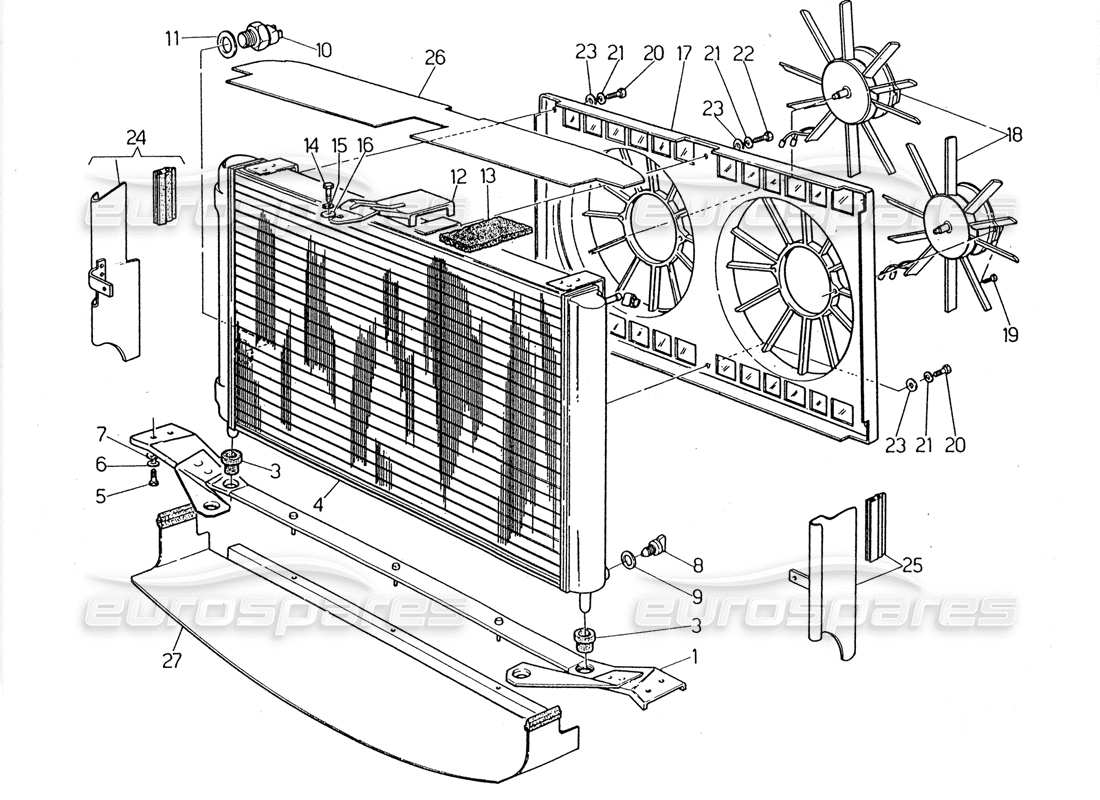

014 - radiator and cooling fans

Maserati 2.24v Radiator and Cooling Fans Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                        #
                                                        Part number
                                                        Description
                                                        Key
                                                        Price
                                                        # 001
                                                        MPN: 314053108
                                                        SUPPORT
                                                        from £33.23
                                                        from £33.23
                                                        This part replaces part number 314020103 - and 1 more. Click to view details
                                                        Maserati PART 314053108 Genuine Maserati Part - New (to order)
                                                        # 002
                                                        MPN: 313320333
                                                        SPRING CLAMP
                                                        from £0.71
                                                        from £0.71
                                                        SPRING Genuine Maserati Part - New (to order)
                                                        # 003
                                                        MPN: 53401312
                                                        BUSH
                                                        Supersession
                                                        Supersession
                                                        Genuine Maserati Part (no longer available to order)
                                                        # 004
                                                        MPN: 324050109
                                                        RADIATOR
                                                        Supersession
                                                        Supersession
                                                        Genuine Maserati Part (no longer available to order)
                                                        # 007
                                                        MPN: 163020080
                                                        WASHER
                                                        from £1.11
                                                        from £1.11
                                                        FLAT WASHER Genuine Maserati Part - New In stock
                                                        # 008
                                                        MPN: 314020326
                                                        DRAIN
                                                        Supersession
                                                        Supersession
                                                        Genuine Maserati Part (no longer available to order)
                                                        # 009
                                                        MPN: 314020327
                                                        WASHER
                                                        Supersession
                                                        Supersession
                                                        Genuine Maserati Part (no longer available to order)
                                                        # 010
                                                        MPN: 313320172
                                                        SWITCH
                                                        from £2.25
                                                        from £2.25
                                                        SWITCH Genuine Maserati Part - New (to order)
                                                        # 011
                                                        MPN: 53331300
                                                        SWITCH WASHER
                                                        from £1.11
                                                        from £1.11
                                                        WASHERS,GH.VEHICLE/337 Genuine Maserati Part - New In stock
                                                        # 012
                                                        MPN: 314020106
                                                        UPPER RETAINER
                                                        from £3.33
                                                        from £3.33
                                                        RADIATOR MOUNTING BRACKET Genuine Maserati Part - New (to order)
                                                        # 013
                                                        MPN: 314030308
                                                        BUFFER
                                                        from £1.57
                                                        from £1.57
                                                        RUBBER BUSHING Genuine Maserati Part - New (to order)
                                                        # 017
                                                        MPN: 323356105
                                                        FAN BLADE SHROUD, ASSY
                                                        Supersession
                                                        Supersession
                                                        This part replaces part number 313330105 - and 1 more. Click to view details
                                                        Genuine Maserati Part (no longer available to order)
                                                        # 018
                                                        MPN: 323332102
                                                        FAN MOTOR
                                                        from £52.73
                                                        from £52.73
                                                        FAN MOTOR UNIT Genuine Maserati Part - New (to order)
                                                        # 023

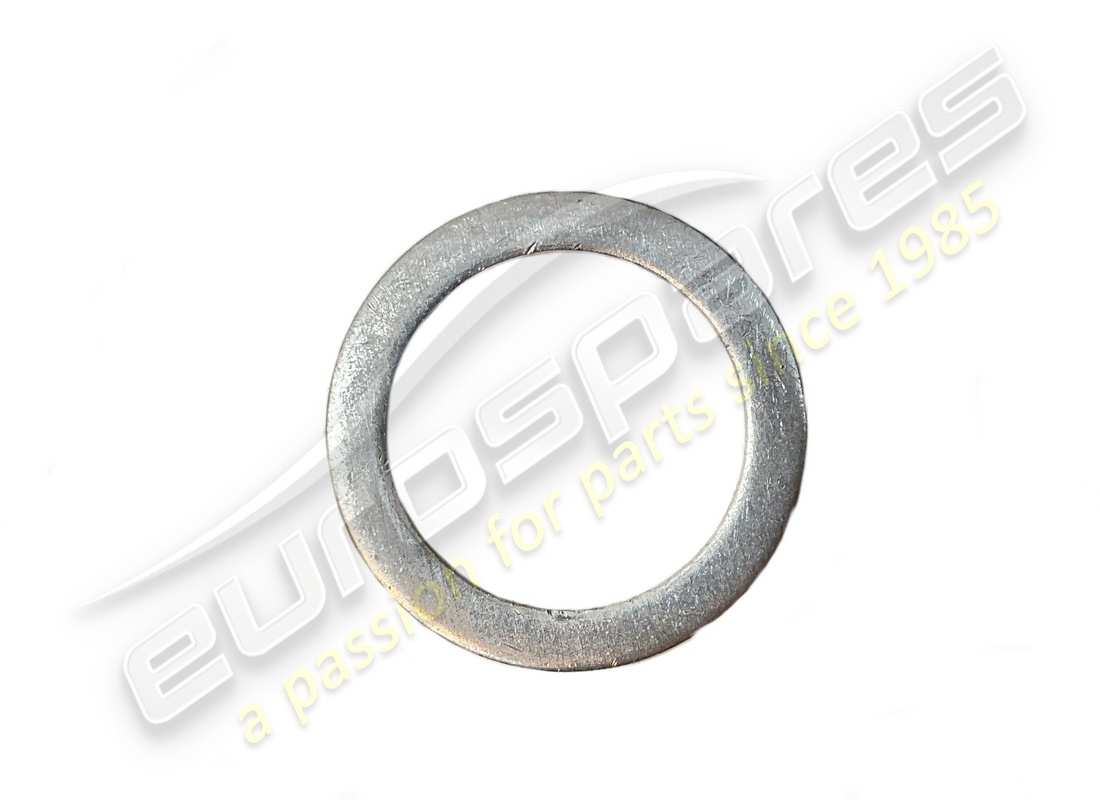

                                                        MPN: 169020406
                                                        WASHER
                                                        from £0.79
                                                        from £0.79
                                                        FLAT WASHER Genuine Maserati Part - New In stock
                                                        # 024
                                                        MPN: 324050129
                                                        RH SHIELD
                                                        from £62.01
                                                        from £62.01
                                                        RH SHIELD ASSY Genuine Maserati Part - New (to order)
                                                        # 025
                                                        MPN: 314053131
                                                        LH SHIELD
                                                        from £14.24
                                                        from £14.24
                                                        Maserati PART 314053131 Genuine Maserati Part - New (to order)
                                                        # 026
                                                        MPN: 314053018
                                                        Upper conveyor
                                                        Supersession
                                                        Supersession
                                                        Genuine Maserati Part (no longer available to order)
                                                        # 027
                                                        MPN: 314053132
                                                        LOWER CONVEYOR
                                                        LOWER CONVEYOR Genuine Maserati Part - New (to order)
