Maserati 2.24v Radiator Grill-Finishers-Fixed Glasses Parts Diagram

050 - Radiator Grill-Finishers-Fixed Glasses

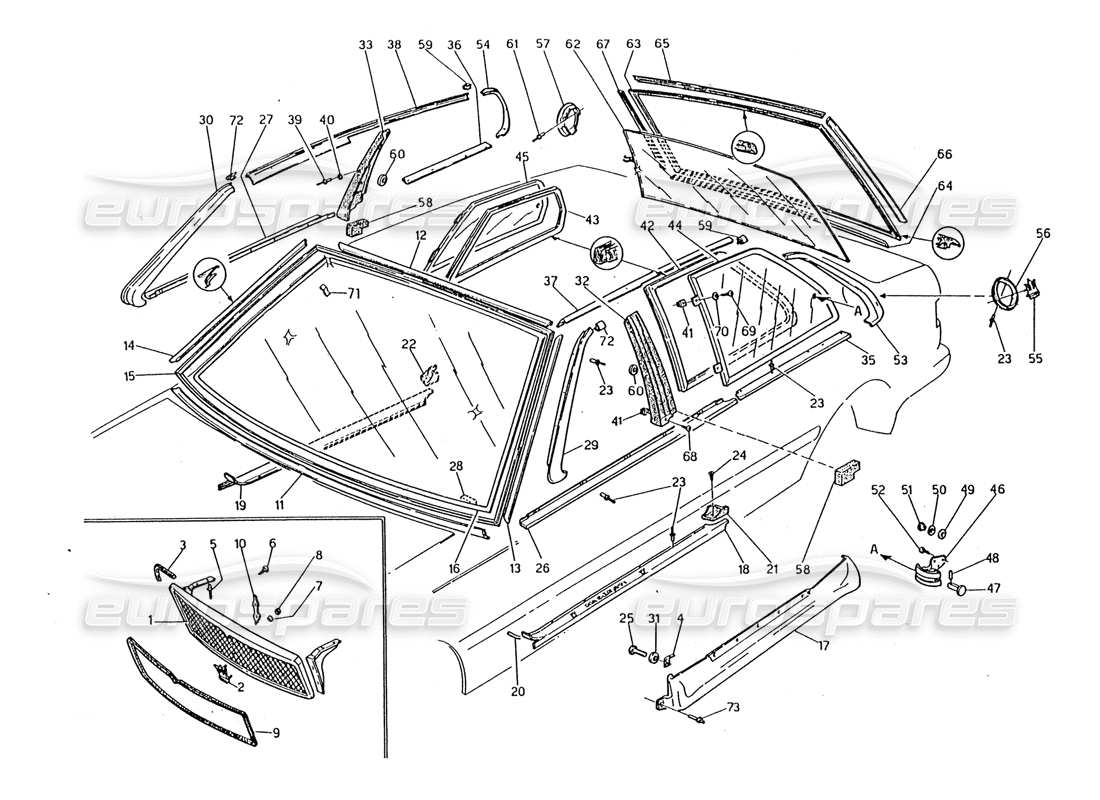

Maserati 2.24v Radiator Grill-Finishers-Fixed Glasses Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                                            #
                                                                                                                                            Part number
                                                                                                                                            Description
                                                                                                                                            Key
                                                                                                                                            Price
                                                                                                                                            # 000
                                                                                                                                            MPN: 317753016
                                                                                                                                            FINISHER FOR WINDSHIELD KIT (COMPOSED 11-12-13-14)
                                                                                                                                            Supersession
                                                                                                                                            Supersession
                                                                                                                                            This part replaces part number 317721016
                                                                                                                                            Genuine Maserati Part (no longer available to order)
                                                                                                                                            # 000
                                                                                                                                            MPN: 317753017
                                                                                                                                            FINISHER FOR WINDSHIELD KIT (COMPOSED 64-65-66-67)
                                                                                                                                            from £20.96
                                                                                                                                            from £20.96
                                                                                                                                            This part replaces part number 317721017
                                                                                                                                            REAR WINDOW MOULDING SET Genuine Maserati Part - New (to order)
                                                                                                                                            # 001
                                                                                                                                            MPN: 314153005

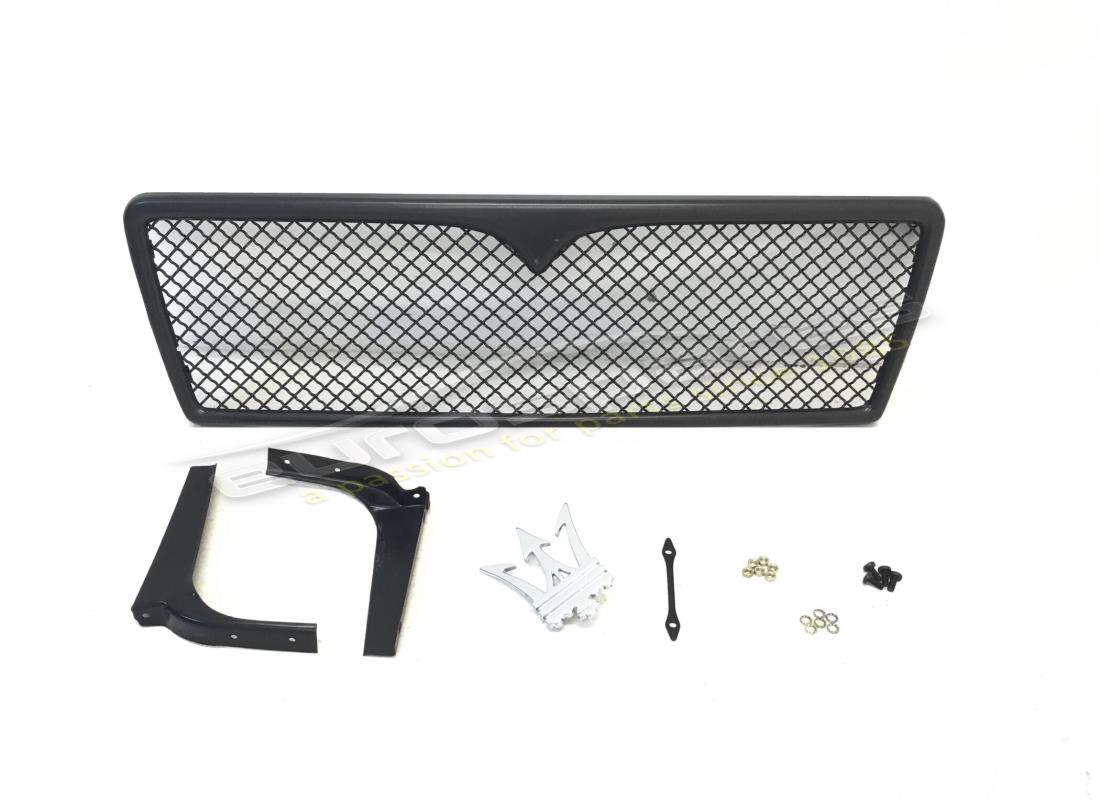

                                                                                                                                            RADIATOR GRILLE
                                                                                                                                            from £184.59
                                                                                                                                            from £184.59
                                                                                                                                            RADIATOR GRILLE Genuine Maserati Part - New In stock
                                                                                                                                            # 002
                                                                                                                                            MPN: 314120109
                                                                                                                                            Badge
                                                                                                                                            Supersession
                                                                                                                                            Supersession
                                                                                                                                            Genuine Maserati Part (no longer available to order)
                                                                                                                                            # 003
                                                                                                                                            MPN: 314120317
                                                                                                                                            SEALING
                                                                                                                                            from £3.51
                                                                                                                                            from £3.51
                                                                                                                                            GASKET Genuine Maserati Part - New (to order)
                                                                                                                                            # 004
                                                                                                                                            MPN: 318353359
                                                                                                                                            BRACKET
                                                                                                                                            from £18.72
                                                                                                                                            from £18.72
                                                                                                                                            BRACHET Genuine Maserati Part - New (to order)
                                                                                                                                            # 005
                                                                                                                                            MPN: 164354077
                                                                                                                                            RIVET
                                                                                                                                            RIVET Genuine Maserati Part - New (to order)
                                                                                                                                            # 007
                                                                                                                                            MPN: 135600050
                                                                                                                                            SPRING WASHER
                                                                                                                                            from £0.80
                                                                                                                                            from £0.80
                                                                                                                                            RONDELLA ELASTICA DENTELLATA Genuine Maserati Part - New (to order)
                                                                                                                                            # 008
                                                                                                                                            MPN: 125100050
                                                                                                                                            NUT
                                                                                                                                            from £0.69
                                                                                                                                            from £0.69
                                                                                                                                            DADO Genuine Maserati Part - New (to order)
                                                                                                                                            # 009
                                                                                                                                            MPN: 324156108
                                                                                                                                            FINISHER PROFILE
                                                                                                                                            from £46.88
                                                                                                                                            from £46.88
                                                                                                                                            MOULDING Genuine Maserati Part - New (to order)
                                                                                                                                            # 010
                                                                                                                                            MPN: 314121303
                                                                                                                                            BRACKET TO FIX MARK
                                                                                                                                            from £1.13
                                                                                                                                            from £1.13
                                                                                                                                            PLATE Genuine Maserati Part - New (to order)
                                                                                                                                            # 011
                                                                                                                                            MPN: 317753301
                                                                                                                                            FINISHER, LOWER
                                                                                                                                            Supersession
                                                                                                                                            Supersession
                                                                                                                                            This part replaces part number 317721301
                                                                                                                                            Genuine Maserati Part (no longer available to order)
                                                                                                                                            # 012
                                                                                                                                            MPN: 317753302
                                                                                                                                            FINISHER, UPPER
                                                                                                                                            Supersession
                                                                                                                                            Supersession
                                                                                                                                            This part replaces part number 317721302
                                                                                                                                            Genuine Maserati Part (no longer available to order)
                                                                                                                                            # 013
                                                                                                                                            MPN: 317753303
                                                                                                                                            LH SIDE FINISHER
                                                                                                                                            Supersession
                                                                                                                                            Supersession
                                                                                                                                            This part replaces part number 317721303
                                                                                                                                            Genuine Maserati Part (no longer available to order)
                                                                                                                                            # 014
                                                                                                                                            MPN: 317753304
                                                                                                                                            RH SIDE FINISHER
                                                                                                                                            Supersession
                                                                                                                                            Supersession
                                                                                                                                            This part replaces part number 317721304
                                                                                                                                            Genuine Maserati Part (no longer available to order)
                                                                                                                                            # 015
                                                                                                                                            MPN: 317720013
                                                                                                                                            WINDSHIELD WEATHERSTRIP SET
                                                                                                                                            from £1,003.50
                                                                                                                                            from £1,003.50
                                                                                                                                            WINDSCREEN Genuine Maserati Part - New (to order)
                                                                                                                                            # 016
                                                                                                                                            MPN: 317720120
                                                                                                                                            WINDSHIELD GREEN TINTED
                                                                                                                                            from £900.00
                                                                                                                                            from £900.00
                                                                                                                                            This part replaces part number 317747120
                                                                                                                                            WINDSCREEN (317720120) Eurospares Approved Part - New (to order)
                                                                                                                                            CRISTALLO PARABREZZA Genuine Maserati Part - New (to order)
                                                                                                                                            # 017
                                                                                                                                            MPN: 318353243
                                                                                                                                            LH RAIL COVER ASSY
                                                                                                                                            from £50.31
                                                                                                                                            from £50.31
                                                                                                                                            This part replaces part number 318354255
                                                                                                                                            COPRILONGHERONE SX. Genuine Maserati Part - New (to order)
                                                                                                                                            # 017
                                                                                                                                            MPN: 318353244
                                                                                                                                            RH RAIL COVER ASSY
                                                                                                                                            from £260.72
                                                                                                                                            from £260.72
                                                                                                                                            This part replaces part number 318354256
                                                                                                                                            RH RAIL COVER ASSY Genuine Maserati Part - New (to order)
                                                                                                                                            # 018
                                                                                                                                            MPN: 318353309
                                                                                                                                            LH FINISHER
                                                                                                                                            Supersession
                                                                                                                                            Supersession
                                                                                                                                            Genuine Maserati Part (no longer available to order)
                                                                                                                                            # 019
                                                                                                                                            MPN: 318353310
                                                                                                                                            RH FINISHER
                                                                                                                                            Supersession
                                                                                                                                            Supersession
                                                                                                                                            Genuine Maserati Part (no longer available to order)
                                                                                                                                            # 020
                                                                                                                                            MPN: 318320307
                                                                                                                                            LH FRONT WEATHERSTRIP
                                                                                                                                            from £1.13
                                                                                                                                            from £1.13
                                                                                                                                            GASKET Genuine Maserati Part - New (to order)
                                                                                                                                            # 020
                                                                                                                                            MPN: 318320308
                                                                                                                                            RH FRONT WEATHERSTRIP
                                                                                                                                            from £0.72
                                                                                                                                            from £0.72
                                                                                                                                            GASKET Genuine Maserati Part - New (to order)
                                                                                                                                            # 021
                                                                                                                                            MPN: 318320313
                                                                                                                                            END PIECE FOR LH FINISHER
                                                                                                                                            from £39.43
                                                                                                                                            from £39.43
                                                                                                                                            TAILPIPE Genuine Maserati Part - New (to order)
                                                                                                                                            # 022
                                                                                                                                            MPN: 318320314
                                                                                                                                            END PIECE FOR RH FINISHER
                                                                                                                                            from £39.43
                                                                                                                                            from £39.43
                                                                                                                                            TAILPIPE Genuine Maserati Part - New (to order)
                                                                                                                                            # 025
                                                                                                                                            MPN: 119142160
                                                                                                                                            SCREW
                                                                                                                                            from £0.88
                                                                                                                                            from £0.88
                                                                                                                                            SCREW Genuine Maserati Part - New (to order)
                                                                                                                                            # 026
                                                                                                                                            MPN: 317753315
                                                                                                                                            LH FINISHER
                                                                                                                                            from £8.38
                                                                                                                                            from £8.38
                                                                                                                                            This part replaces part number 317721315 - and 2 more. Click to view details
                                                                                                                                            Finisher Genuine Maserati Part - New (to order)
                                                                                                                                            # 027
                                                                                                                                            MPN: 317753316
                                                                                                                                            RH FINISHER
                                                                                                                                            from £8.38
                                                                                                                                            from £8.38
                                                                                                                                            This part replaces part number 317721316 - and 2 more. Click to view details
                                                                                                                                            Finisher Genuine Maserati Part - New (to order)
                                                                                                                                            # 029
                                                                                                                                            MPN: 318353329
                                                                                                                                            LH FINISHER
                                                                                                                                            from £12.79
                                                                                                                                            from £12.79
                                                                                                                                            Finisher Genuine Maserati Part - New (to order)
                                                                                                                                            # 030
                                                                                                                                            MPN: 318353330
                                                                                                                                            RH FINISHER
                                                                                                                                            from £36.96
                                                                                                                                            from £36.96
                                                                                                                                            This part replaces part number 318321330
                                                                                                                                            Finisher Genuine Maserati Part - New (to order)
                                                                                                                                            # 031
                                                                                                                                            MPN: 135000043
                                                                                                                                            WASHER
                                                                                                                                            from £1.13
                                                                                                                                            from £1.13
                                                                                                                                            WASHER Genuine Maserati Part - New In stock
                                                                                                                                            # 032
                                                                                                                                            MPN: 318320345
                                                                                                                                            LH FINISHER
                                                                                                                                            from £17.61
                                                                                                                                            from £17.61
                                                                                                                                            This part replaces part number 318320339 - and 1 more. Click to view details
                                                                                                                                            LH FINISHING Genuine Maserati Part - New (to order)
                                                                                                                                            # 033
                                                                                                                                            MPN: 318320346
                                                                                                                                            RH FINISHER
                                                                                                                                            from £21.88
                                                                                                                                            from £21.88
                                                                                                                                            This part replaces part number 318320340 - and 1 more. Click to view details
                                                                                                                                            RH FINISHING Genuine Maserati Part - New (to order)
                                                                                                                                            # 035
                                                                                                                                            MPN: 317753371
                                                                                                                                            LH FINISHER
                                                                                                                                            from £14.88
                                                                                                                                            from £14.88
                                                                                                                                            This part replaces part number 317721371
                                                                                                                                            Finisher Genuine Maserati Part - New (to order)
                                                                                                                                            # 036
                                                                                                                                            MPN: 317753372
                                                                                                                                            RH FINISHER
                                                                                                                                            from £14.88
                                                                                                                                            from £14.88
                                                                                                                                            This part replaces part number 317721372
                                                                                                                                            RH MOULDING Genuine Maserati Part - New (to order)
                                                                                                                                            # 037
                                                                                                                                            MPN: 318353331
                                                                                                                                            LH FINISHER
                                                                                                                                            from £21.01
                                                                                                                                            from £21.01
                                                                                                                                            This part replaces part number 318321331 - and 1 more. Click to view details
                                                                                                                                            Finisher Genuine Maserati Part - New (to order)
                                                                                                                                            # 038
                                                                                                                                            MPN: 318353332
                                                                                                                                            RH FINISHER
                                                                                                                                            from £31.52
                                                                                                                                            from £31.52
                                                                                                                                            This part replaces part number 318320332 - and 1 more. Click to view details
                                                                                                                                            Finisher Genuine Maserati Part - New (to order)
                                                                                                                                            # 040
                                                                                                                                            MPN: 135000043
                                                                                                                                            WASHER
                                                                                                                                            from £1.13
                                                                                                                                            from £1.13
                                                                                                                                            WASHER Genuine Maserati Part - New In stock
                                                                                                                                            # 041
                                                                                                                                            MPN: 318320341
                                                                                                                                            NUT
                                                                                                                                            from £0.72
                                                                                                                                            from £0.72
                                                                                                                                            This part replaces part number 14229280
                                                                                                                                            NUT SCREW Genuine Maserati Part - New (to order)
                                                                                                                                            # 042
                                                                                                                                            MPN: 317751153
                                                                                                                                            WEATHERSTRIP LH (GREY 4226 COLOR)
                                                                                                                                            from £133.50
                                                                                                                                            from £133.50
                                                                                                                                            This part replaces part number 319320045
                                                                                                                                            WEATHERSTRIP Genuine Maserati Part - New (to order)
                                                                                                                                            # 043
                                                                                                                                            MPN: 317751154
                                                                                                                                            WEATHERSTRIP RH (GREY 4226 COLOR)
                                                                                                                                            from £133.50
                                                                                                                                            from £133.50
                                                                                                                                            This part replaces part number 319320046
                                                                                                                                            WEATHERSTRIP Genuine Maserati Part - New (to order)
                                                                                                                                            # 044
                                                                                                                                            MPN: 317720131
                                                                                                                                            LH REAR SIDE GLASS, ASSY (GREEN)
                                                                                                                                            from £64.95
                                                                                                                                            from £64.95
                                                                                                                                            This part replaces part number 317721135
                                                                                                                                            LH REAR SIDE GLASS, Genuine Maserati Part - New (to order)
                                                                                                                                            # 045
                                                                                                                                            MPN: 317720132
                                                                                                                                            RH REAR SIDE GLASS, ASSY (GREEN)
                                                                                                                                            from £64.95
                                                                                                                                            from £64.95
                                                                                                                                            This part replaces part number 317721136
                                                                                                                                            RH REAR SIDE GLASS. Genuine Maserati Part - New (to order)
                                                                                                                                            # 046
                                                                                                                                            MPN: 317720145
                                                                                                                                            LH GLASS FASTENER
                                                                                                                                            from £5.53
                                                                                                                                            from £5.53
                                                                                                                                            LH SIDE WINDOW OPENING DEVICE Genuine Maserati Part - New (to order)
                                                                                                                                            # 046
                                                                                                                                            MPN: 317720146
                                                                                                                                            RH GLASS FASTENER
                                                                                                                                            from £5.53
                                                                                                                                            from £5.53
                                                                                                                                            RH SIDE WINDOW OPENING DEVIC Genuine Maserati Part - New (to order)
                                                                                                                                            # 047
                                                                                                                                            MPN: 317720398
                                                                                                                                            PIN TO FIX GLASS
                                                                                                                                            from £1.44
                                                                                                                                            from £1.44
                                                                                                                                            PIN Genuine Maserati Part - New (to order)
                                                                                                                                            # 048
                                                                                                                                            MPN: 144203530
                                                                                                                                            PIN
                                                                                                                                            from £0.72
                                                                                                                                            from £0.72
                                                                                                                                            SEAL Genuine Maserati Part - New (to order)
                                                                                                                                            # 049
                                                                                                                                            MPN: 317720399
                                                                                                                                            SEAL
                                                                                                                                            from £0.72
                                                                                                                                            from £0.72
                                                                                                                                            GASKET Genuine Maserati Part - New (to order)
                                                                                                                                            # 050
                                                                                                                                            MPN: 317720400
                                                                                                                                            SEAL
                                                                                                                                            from £0.72
                                                                                                                                            from £0.72
                                                                                                                                            GASKET Genuine Maserati Part - New (to order)
                                                                                                                                            # 051
                                                                                                                                            MPN: 317720401
                                                                                                                                            RING
                                                                                                                                            from £0.72
                                                                                                                                            from £0.72
                                                                                                                                            RING NUT Genuine Maserati Part - New (to order)
                                                                                                                                            # 052
                                                                                                                                            MPN: 113305016
                                                                                                                                            SCREW
                                                                                                                                            SCREW Genuine Maserati Part - New (to order)
                                                                                                                                            # 053
                                                                                                                                            MPN: 318353333
                                                                                                                                            LH FINISHER
                                                                                                                                            Supplied two pieces
                                                                                                                                            from £58.52
                                                                                                                                            from £58.52
                                                                                                                                            This part replaces part number 318320333 - and 1 more. Click to view details
                                                                                                                                            Finisher Genuine Maserati Part - New (to order)
                                                                                                                                            # 054
                                                                                                                                            MPN: 318353334
                                                                                                                                            RH FINISHER
                                                                                                                                            Supplied two pieces
                                                                                                                                            from £56.87
                                                                                                                                            from £56.87
                                                                                                                                            Finisher Genuine Maserati Part - New (to order)
                                                                                                                                            # 055
                                                                                                                                            MPN: 318353350

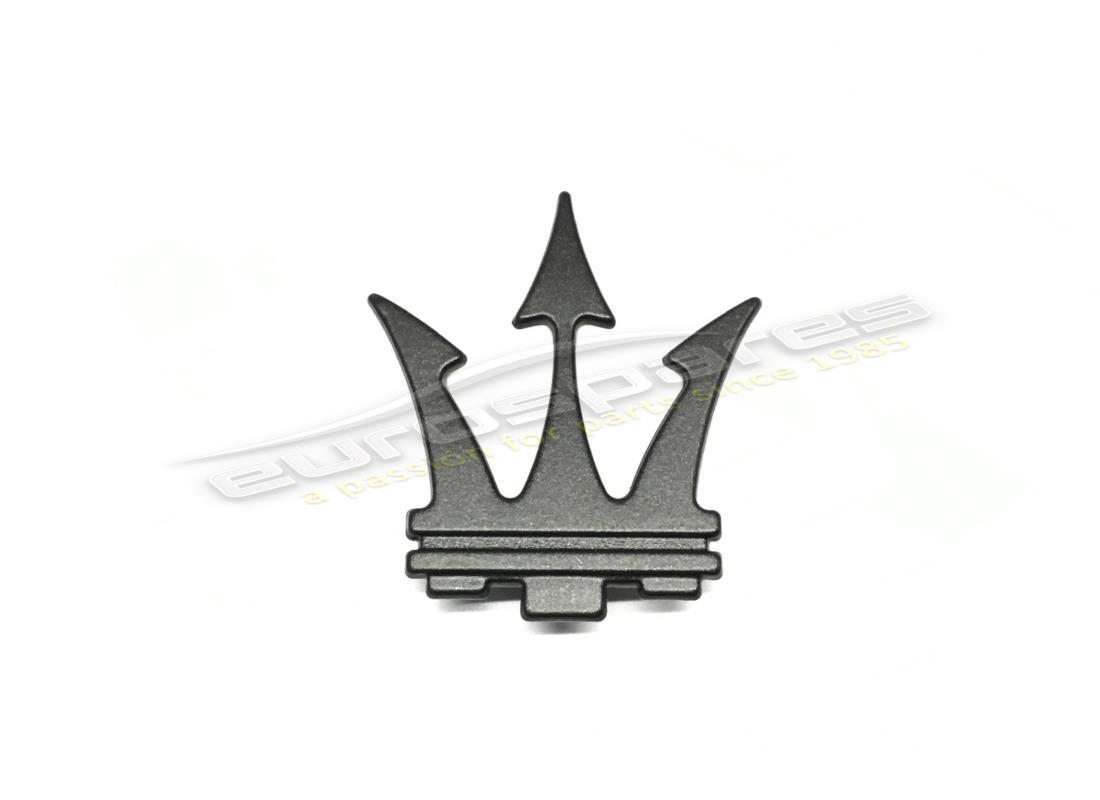

                                                                                                                                            Maserati BADGE
                                                                                                                                            from £42.53
                                                                                                                                            from £42.53
                                                                                                                                            SMALL TRIDENT EMBLEM Genuine Maserati Part - New In stock
                                                                                                                                            # 056
                                                                                                                                            MPN: 318353347
                                                                                                                                            bezel
                                                                                                                                            from £7.03
                                                                                                                                            from £7.03
                                                                                                                                            This part replaces part number 318321347 - and 1 more. Click to view details
                                                                                                                                            bezel Genuine Maserati Part - New (to order)
                                                                                                                                            # 057
                                                                                                                                            MPN: 318353348
                                                                                                                                            FLAP BEZEL FOR FUEL FILLER
                                                                                                                                            from £6.16
                                                                                                                                            from £6.16
                                                                                                                                            This part replaces part number 318321348 - and 1 more. Click to view details
                                                                                                                                            bezel Genuine Maserati Part - New (to order)
                                                                                                                                            # 058
                                                                                                                                            MPN: 318320343
                                                                                                                                            GASKET
                                                                                                                                            from £0.72
                                                                                                                                            from £0.72
                                                                                                                                            GASKET Genuine Maserati Part - New (to order)
                                                                                                                                            # 058
                                                                                                                                            MPN: 318320344
                                                                                                                                            GASKET
                                                                                                                                            from £0.72
                                                                                                                                            from £0.72
                                                                                                                                            GASKET Genuine Maserati Part - New (to order)
                                                                                                                                            # 059
                                                                                                                                            MPN: 318353336
                                                                                                                                            REAR UNION
                                                                                                                                            from £2.00
                                                                                                                                            from £2.00
                                                                                                                                            This part replaces part number 318321336
                                                                                                                                            REAR JOINT COVER Genuine Maserati Part - New (to order)
                                                                                                                                            # 060
                                                                                                                                            MPN: 318320342
                                                                                                                                            GASKET
                                                                                                                                            from £0.72
                                                                                                                                            from £0.72
                                                                                                                                            GASKET Genuine Maserati Part - New (to order)
                                                                                                                                            # 062
                                                                                                                                            MPN: 317720156

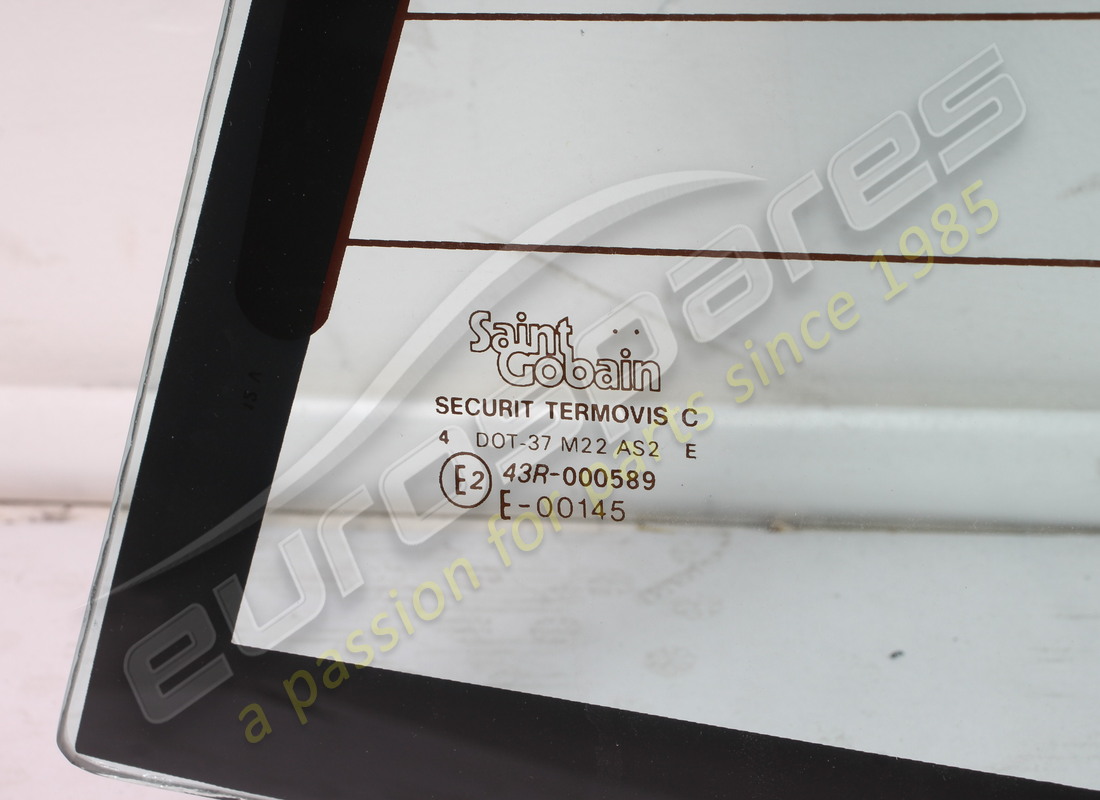

                                                                                                                                            TINTED, HEATED REAR WINDOW (GREEN)
                                                                                                                                            from £628.95
                                                                                                                                            from £628.95
                                                                                                                                            HEATED REAR WINDOW,GREEN Genuine Maserati Part - New In stock
                                                                                                                                            # 062
                                                                                                                                            MPN: 317720159
                                                                                                                                            TINTED, HEATED BACKLIGHT (GREEN)
                                                                                                                                            With invisible filiments at your request
                                                                                                                                            TINTED, HEATED BACKLIGHT (GREEN) Genuine Maserati Part - New (to order)
                                                                                                                                            # 063
                                                                                                                                            MPN: 317720014
                                                                                                                                            WEATHERSTRIP SET
                                                                                                                                            from £13.60
                                                                                                                                            from £13.60
                                                                                                                                            WEATHERSTRIP SET Genuine Maserati Part - New (to order)
                                                                                                                                            # 064
                                                                                                                                            MPN: 317753421
                                                                                                                                            LOWER FINISHER
                                                                                                                                            from £6.88
                                                                                                                                            from £6.88
                                                                                                                                            This part replaces part number 317721421
                                                                                                                                            REAR WINDOW LOWER MOULDING Genuine Maserati Part - New (to order)
                                                                                                                                            # 065
                                                                                                                                            MPN: 317753422
                                                                                                                                            UPPER FINISHER
                                                                                                                                            from £5.74
                                                                                                                                            from £5.74
                                                                                                                                            This part replaces part number 317721422
                                                                                                                                            REAR WINDOW UPPER MOULDING Genuine Maserati Part - New (to order)
                                                                                                                                            # 066
                                                                                                                                            MPN: 317753423
                                                                                                                                            LH SIDE FINISHER
                                                                                                                                            from £3.05
                                                                                                                                            from £3.05
                                                                                                                                            This part replaces part number 317721423
                                                                                                                                            REAR WINDOW LH SIDE MOULDING Genuine Maserati Part - New (to order)
                                                                                                                                            # 067
                                                                                                                                            MPN: 317753424
                                                                                                                                            RH SIDE FINISHER
                                                                                                                                            from £3.12
                                                                                                                                            from £3.12
                                                                                                                                            This part replaces part number 317721424
                                                                                                                                            REAR WINDOW RH SIDE MOULDING Genuine Maserati Part - New (to order)
                                                                                                                                            # 068
                                                                                                                                            MPN: 119142160
                                                                                                                                            SCREW
                                                                                                                                            from £0.88
                                                                                                                                            from £0.88
                                                                                                                                            SCREW Genuine Maserati Part - New (to order)
                                                                                                                                            # 070
                                                                                                                                            MPN: 169020005
                                                                                                                                            WASHER
                                                                                                                                            from £1.13
                                                                                                                                            from £1.13
                                                                                                                                            WASHER Genuine Maserati Part - New (to order)
                                                                                                                                            # 071
                                                                                                                                            MPN: 317720311
                                                                                                                                            PLATE
                                                                                                                                            from £3.20
                                                                                                                                            from £3.20
                                                                                                                                            PLATE Genuine Maserati Part - New (to order)
                                                                                                                                            # 072
                                                                                                                                            MPN: 318353335
                                                                                                                                            FRONT JOINT COVER
                                                                                                                                            from £2.00
                                                                                                                                            from £2.00
                                                                                                                                            FRONT JOINT COVER Genuine Maserati Part - New (to order)
                                                                                                                                            # 073
                                                                                                                                            MPN: 338320349
                                                                                                                                            PLUG
                                                                                                                                            from £0.88
                                                                                                                                            from £0.88
                                                                                                                                            RIVET Genuine Maserati Part - New (to order)
                                                                                                                                            Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
