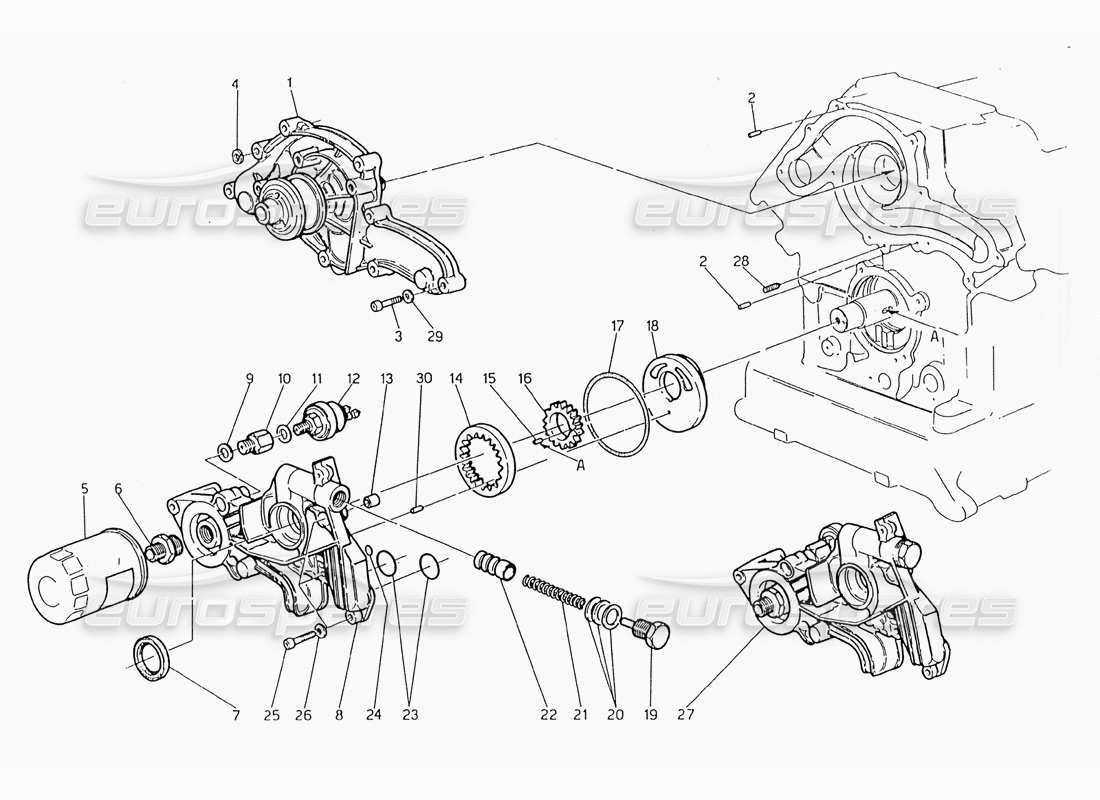

Maserati 228 Water Pump - Oil Pump Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                        #
                                                        Part number
                                                        Description
                                                        Key
                                                        Price
                                                        # 001
                                                        MPN: 470045900
                                                        WATER PUMP + GASKET
                                                        from £309.75
                                                        from £309.75
                                                        This part replaces part number 314020012
                                                        WATER PUMP ASSY (470045900) Eurospares Approved Part - New In stock
                                                        COMPLETE WATER PUMP Genuine Maserati Part - New (to order)
                                                        # 002
                                                        MPN: 314020329
                                                        ROLLER
                                                        from £1.98
                                                        from £1.98
                                                        ROLLER D.4X8 Genuine Maserati Part - New (to order)
                                                        # 005
                                                        MPN: 470040900
                                                        OIL FILTER
                                                        from £42.50
                                                        from £42.50
                                                        OIL FILTER Genuine Maserati Part - New In stock
                                                        # 007
                                                        MPN: 311020368
                                                        OIL SEAL
                                                        from £8.25
                                                        from £8.25
                                                        This part replaces part number 190400351
                                                        SEALING RING D.35X50X7 (311020368) Eurospares Approved Part - New In stock
                                                        SEALING RING D.35X50X7 Genuine Maserati Part - New (to order)
                                                        # 008
                                                        MPN: 311820326
                                                        HOUSING
                                                        Supersession
                                                        Supersession
                                                        Genuine Maserati Part (no longer available to order)
                                                        # 009
                                                        MPN: 311820302
                                                        SEAL
                                                        pre modif.
                                                        from £2.35
                                                        from £2.35
                                                        TRANSMITTER GASKET,D.16.2X21 Genuine Maserati Part - New (to order)
                                                        # 010
                                                        MPN: 311820303
                                                        ADAPTER
                                                        from £23.18
                                                        from £23.18
                                                        ADAPTER Genuine Maserati Part - New (to order)
                                                        # 011
                                                        MPN: 311820304
                                                        SEAL
                                                        pre modif.
                                                        from £1.60
                                                        from £1.60
                                                        TRANSMITTER GASKET Genuine Maserati Part - New In stock
                                                        # 012
                                                        MPN: 313620105
                                                        OIL PRESSURE SWITCH
                                                        (pre modification) Use 470043300
                                                        Maserati PART 313620105 Genuine Maserati Part - New (to order)
                                                        # 012
                                                        MPN: 313650105
                                                        OIL PRESSURE SWITCH
                                                        (After modification) - Use 313620105
                                                        Oil pressure switch after modif. Genuine Maserati Part - New (to order)
                                                        # 012
                                                        MPN: 452043301
                                                        OIL PRESSURE SWICH
                                                        from £31.62
                                                        from £31.62
                                                        This part replaces part number 470043300
                                                        OIL PRESSURE SENSOR Genuine Maserati Part - New (to order)
                                                        # 012
                                                        MPN: 470043300
                                                        OIL PRESSURE SWITCH
                                                        USE 452043301
                                                        Supersession
                                                        Supersession
                                                        Genuine Maserati Part (no longer available to order)
                                                        # 013
                                                        MPN: 311820309
                                                        BUSH
                                                        from £17.20
                                                        from £17.20
                                                        DOWEL D.12X12 Genuine Maserati Part - New (to order)
                                                        # 014
                                                        MPN: 311820324
                                                        DRIVEN GEAR
                                                        from £4.63
                                                        from £4.63
                                                        DRIVEN GEAR Genuine Maserati Part - New (to order)
                                                        # 015
                                                        MPN: 311820311
                                                        ROLLER
                                                        from £1.07
                                                        from £1.07
                                                        ROLLER Genuine Maserati Part - New (to order)
                                                        # 016
                                                        MPN: 311820323
                                                        DRIVING GEAR
                                                        from £6.19
                                                        from £6.19
                                                        PUMP DRIVING GEAR Genuine Maserati Part - New (to order)
                                                        # 017
                                                        MPN: 14465881
                                                        RUBBER RING
                                                        from £4.78
                                                        from £4.78
                                                        RUBBER WASHER D.94.84X101.90X3.53 Genuine Maserati Part - New In stock
                                                        # 018
                                                        MPN: 311820321
                                                        OIL PUMP COVER
                                                        Supersession
                                                        Supersession
                                                        Genuine Maserati Part (no longer available to order)
                                                        # 020
                                                        MPN: 311820317
                                                        SEAL
                                                        from £0.71
                                                        from £0.71
                                                        GASKET D.22.5X30X1 Genuine Maserati Part - New (to order)
                                                        # 022
                                                        MPN: 311820319
                                                        VALVE
                                                        from £12.56
                                                        from £12.56
                                                        PRESSURE ADJUSTMENT VALVE Genuine Maserati Part - New (to order)
                                                        # 023
                                                        MPN: 14454181
                                                        RUBBER RING
                                                        from £1.19
                                                        from £1.19
                                                        RUBBER WASHER 28.3X31.86X1.7 Genuine Maserati Part - New (to order)
                                                        # 024
                                                        MPN: 14452981
                                                        RUBBER RING
                                                        from £0.81
                                                        from £0.81
                                                        O.R.GASKET. (14452981) Genuine Ferrari Part - New In stock
                                                        O-RING D. 9.25X1 Genuine Maserati Part - New In stock
                                                        # 026
                                                        MPN: 138410080
                                                        SPRING WASHER (NOT SUPPLIED)
                                                        Maserati PART 138410080 Genuine Maserati Part - New (to order)
                                                        # 027
                                                        MPN: 311820006
                                                        OIL PUMP, ASSY (INCLUDES PARTS N. 6-8-9-10-11-12-13-14-19-20-21-22)
                                                        from £338.38
                                                        from £338.38
                                                        DARE 311820326 POMPA NUDA Genuine Maserati Part - New (to order)
                                                        # 030
                                                        MPN: 311820315
                                                        ROLLER
                                                        from £1.19
                                                        from £1.19
                                                        CENTR.ROLLER FOR OIL PUMP L=10MM Genuine Maserati Part - New (to order)
