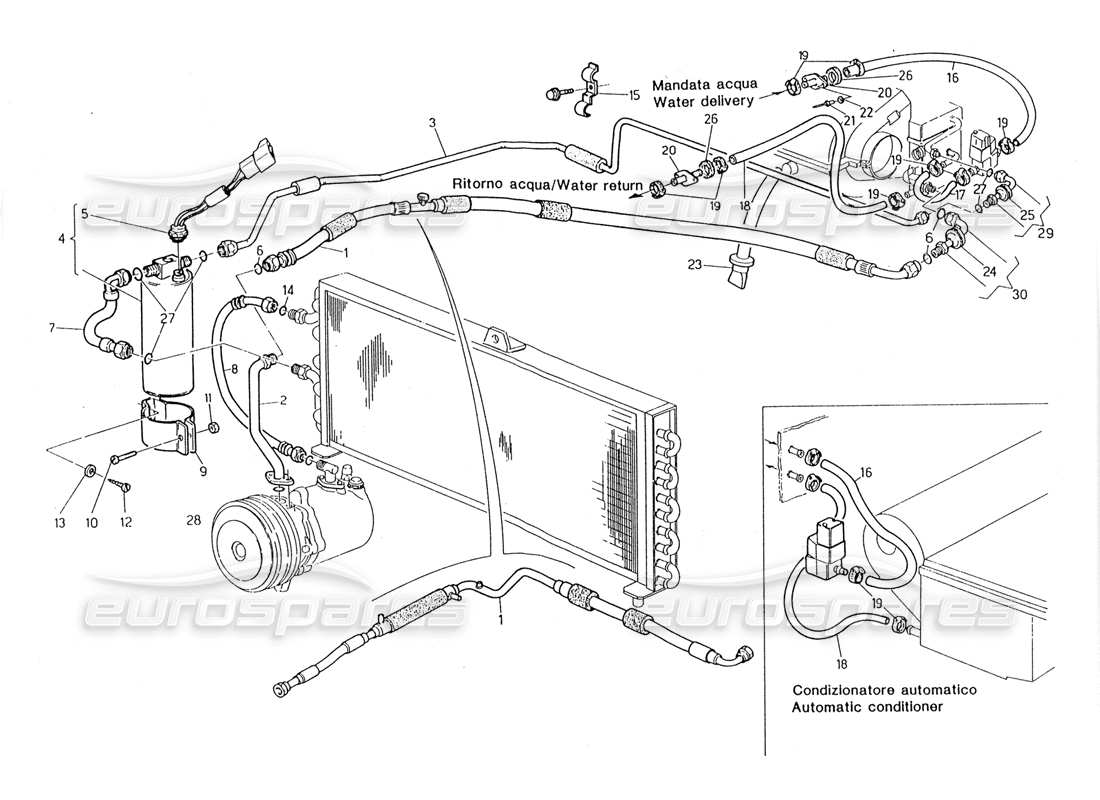

Maserati 228 Air Conditioning System (R.H. Steering) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 315547106
UPPER FREON RETUR
Valid for GB (manual), GB (automatic), Australia (manual), Australia (automatic)
Supersession
Supersession
# 001
MPN: 315570111
FREON PIPE WITH FUEL COOLING
from £73.02
from £73.02
This part replaces part number 315527106 - and 1 more. Click to view details
# 002
MPN: 325570250
FREON RETURN LINE
Valid for GB (manual), GB (automatic), Australia (manual), Australia (automatic)
from £59.36
from £59.36
This part replaces part number 345500185
# 003
MPN: 315547105
FREON DELIVERY LINE
Valid for GB (manual), GB (automatic), Australia (manual), Australia (automatic)
from £103.17
from £103.17
# 004
MPN: 365502174
FREON FILTER
from £106.71
from £106.71
This part replaces part number 315520174
# 005
MPN: 315520175
MAX. AND MIN. CAPACITY PRESSURE SWITCH
Supersession
Supersession
# 006
MPN: 315520445
O-RING 1/2 FREON LINE
from £0.71
from £0.71
# 007
MPN: 315521181
FREON DELIVERY LINE
Supersession
Supersession
# 008
MPN: 315553179
FREON DELIVERY LINE
from £43.53
from £43.53
# 009
MPN: 315520301
CLAMP
from £17.60
from £17.60
# 010
MPN: 101206025
SCREW
# 011
MPN: 128300060
NUT
Supersession
Supersession
# 012
MPN: 119148160
SCREW
# 013
MPN: 169020005
SCREW
from £1.11
from £1.11
# 014
MPN: 315521180
FREON DELIVERY LINE
from £7.74
from £7.74
# 015
MPN: 315527302
BRACKET
Valid for GB (manual), GB (automatic), Australia (manual), Australia (automatic)
# 016
MPN: 315527367
WATER LINE
Valid for GB (manual), GB (automatic), Australia (manual), Australia (automatic)
# 016
MPN: 315570359
WATER DELIVERY LINE
from £5.21
from £5.21
# 017
MPN: 315520480
WATER LINE
from £2.10
from £2.10
# 018
MPN: 315527363
WATER LINE
Valid for GB (manual), GB (automatic), Australia (manual), Australia (automatic)
# 018
MPN: 315570358
WATER RETURN LINE
from £4.05
from £4.05
# 019
MPN: 186402028
CLAMP
from £1.59
from £1.59
# 020
MPN: 315520370
CONNECTION
from £0.72
from £0.72
# 021
MPN: 164323413
POP RIVET
# 022
MPN: 169020005
WASHER
from £1.11
from £1.11
# 023
MPN: 315520017
EXHAUST LINE
from £1.81
from £1.81
# 024
MPN: 31331303
GROMMET
from £1.08
from £1.08
# 025
MPN: 315520371
GROMMET
from £0.65
from £0.65
# 026
MPN: 315520372
GASKET
from £0.71
from £0.71
# 027
MPN: 315520443
O-RING 3/8 FREON LINE
from £1.07
from £1.07
# 028
MPN: 315520444
O-RING 5/8 FREON LINE
from £0.71
from £0.71
# 029
MPN: 315527112
DELIVERY CONNECTOR ASSY
Valid for GB (manual), GB (automatic), Australia (manual), Australia (automatic)
from £16.05
from £16.05
# 030
MPN: 315527111
RETURN CONNECTOR ASSY
Valid for GB (manual), GB (automatic), Australia (manual), Australia (automatic)
from £12.73
from £12.73
