059 - TAIL LIGHT

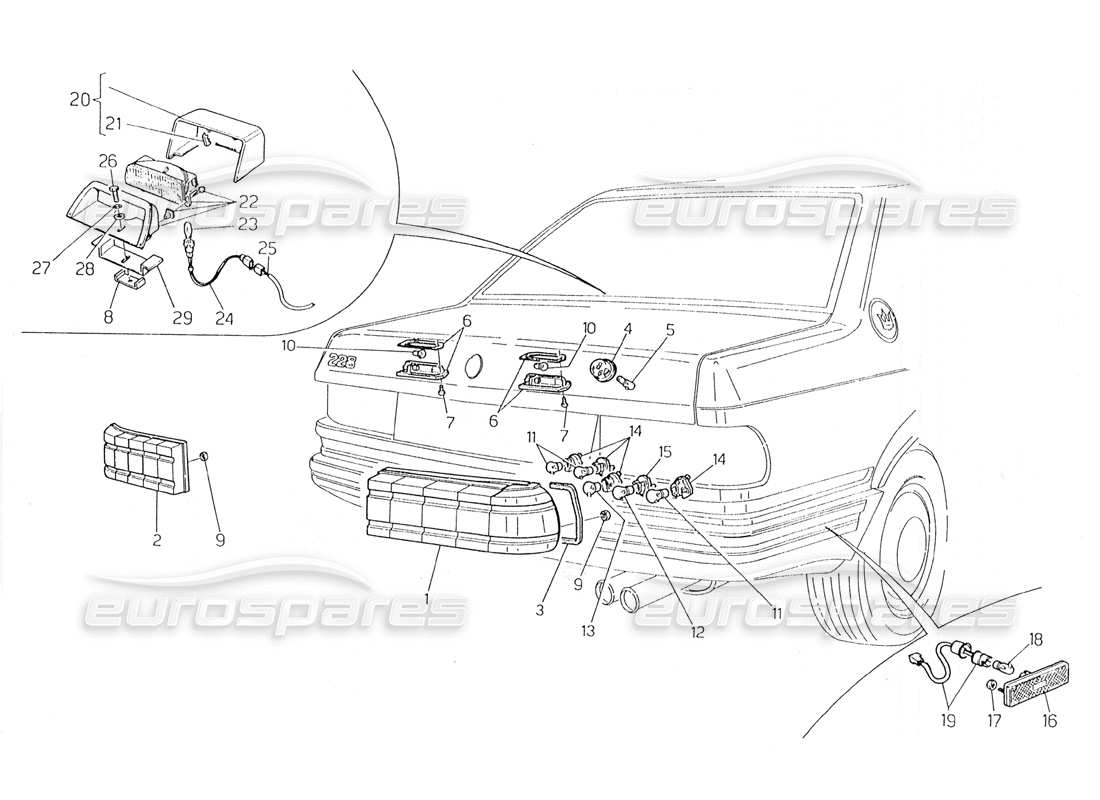

Maserati 228 Tail Light Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 343100137
RH REAR LAMP
Valid for Italy (manual), Switzerland (manual), Switzerland (automatic), GB (manual), GB (automatic), Australia (manual), Australia (automatic)
from £33.50
from £33.50
# 001
MPN: 343110107
RH REAR LAM
Valid for USA (manual), USA (automatic)
from £32.00
from £32.00
# 002
MPN: 343100138
LH REAR LAMP
Valid for Italy (manual), Switzerland (manual), Switzerland (automatic), GB (manual), GB (automatic), Australia (manual), Australia (automatic)
from £32.24
from £32.24
# 002
MPN: 343110108
LH REAR LAMP
Valid for USA (manual), USA (automatic)
from £32.00
from £32.00
# 003
MPN: 313120407
GASKET
minimum order quantity = 4
from £1.60
from £1.60
# 004
MPN: 313120118
LUGGAGE ROOM LIGHT
from £1.42
from £1.42
This part replaces part number 323156116
# 005
MPN: 87760005
BULB12V5W
from £0.66
from £0.66
# 006
MPN: 343100111
NUMBER - PLATE LAM
from £0.66
from £0.66
# 007
MPN: 167590414
SCREW
from £1.60
from £1.60
# 008
MPN: 343110103
BRACKET
Valid for USA (manual), USA (automatic), Austalia (manual), Australia (automatic)
# 009
MPN: 122600060
NUT
# 010
MPN: 87540500
BULB12V5W
from £0.55
from £0.55
# 011
MPN: 87720021
BULB 12V 21 W
from £1.03
from £1.03
# 012
MPN: 87720521
BULB 12V 5/21 W
from £3.16
from £3.16
# 013
MPN: 87541000
BULB 12V 10 W
# 014
MPN: 313120404
BULB HOLDER
from £4.14
from £4.14
# 015
MPN: 313120405
BULB HOLDER
from £0.87
from £0.87
# 016
MPN: 30311122
SIDE MARKER REAR, RED
Valid for USA (manual), USA (automatic)
from £13.43
from £13.43
# 017
MPN: 122600050
NUT
Valid for USA (manual), USA (automatic)
# 018
MPN: 87760003
BULB 12V 3W
Valid for USA (manual), USA (automatic)
from £0.47
from £0.47
# 019
MPN: 30311128
BULB HOLDER WITH CABLES
Valid for USA (manual), USA (automatic)
from £3.91
from £3.91
# 020
MPN: 323132106
COVER (BEIGE)
Valid for USA (manual), USA (automatic), Austalia (manual), Australia (automatic)
from £3.31
from £3.31
This part replaces part number 323160334
# 020
MPN: 323160334
COVER (GREY)
Valid for USA (manual), USA (automatic), Austalia (manual), Australia (automatic)
Supersession
Supersession
# 021
MPN: 323132324
CLIP
Valid for USA (manual), USA (automatic), Austalia (manual), Australia (automatic)
from £0.71
from £0.71
# 022
MPN: 323132105
REAR LAMP WITH SUPPORT
Valid for USA (manual), USA (automatic), Austalia (manual), Australia (automatic)
from £16.19
from £16.19
# 023
MPN: 323132325
BULB
Valid for USA (manual), USA (automatic), Austalia (manual), Australia (automatic)
from £0.47
from £0.47
# 024
MPN: 323132104
BULB HOLDER WITH CABLES
Valid for USA (manual), USA (automatic), Austalia (manual), Australia (automatic)
from £3.75
from £3.75
# 025
MPN: 323132102
CABLE SET
Valid for USA (manual), USA (automatic), Austalia (manual), Australia (automatic)
from £5.73
from £5.73
# 026
MPN: 101206016
SCREW
Valid for USA (manual), USA (automatic), Austalia (manual), Australia (automatic)
# 027
MPN: 135600060
SPRING WASHER
Valid for USA (manual), USA (automatic), Austalia (manual), Australia (automatic)
from £0.79
from £0.79
# 028
MPN: 163030060
WASHER
Valid for USA (manual), USA (automatic), Austalia (manual), Australia (automatic)
from £1.11
from £1.11
# 029
MPN: 343110103
BRACKET
Valid for USA (manual), USA (automatic), Austalia (manual), Australia (automatic)
