010.1 - Gearbox, 2F-External Controls

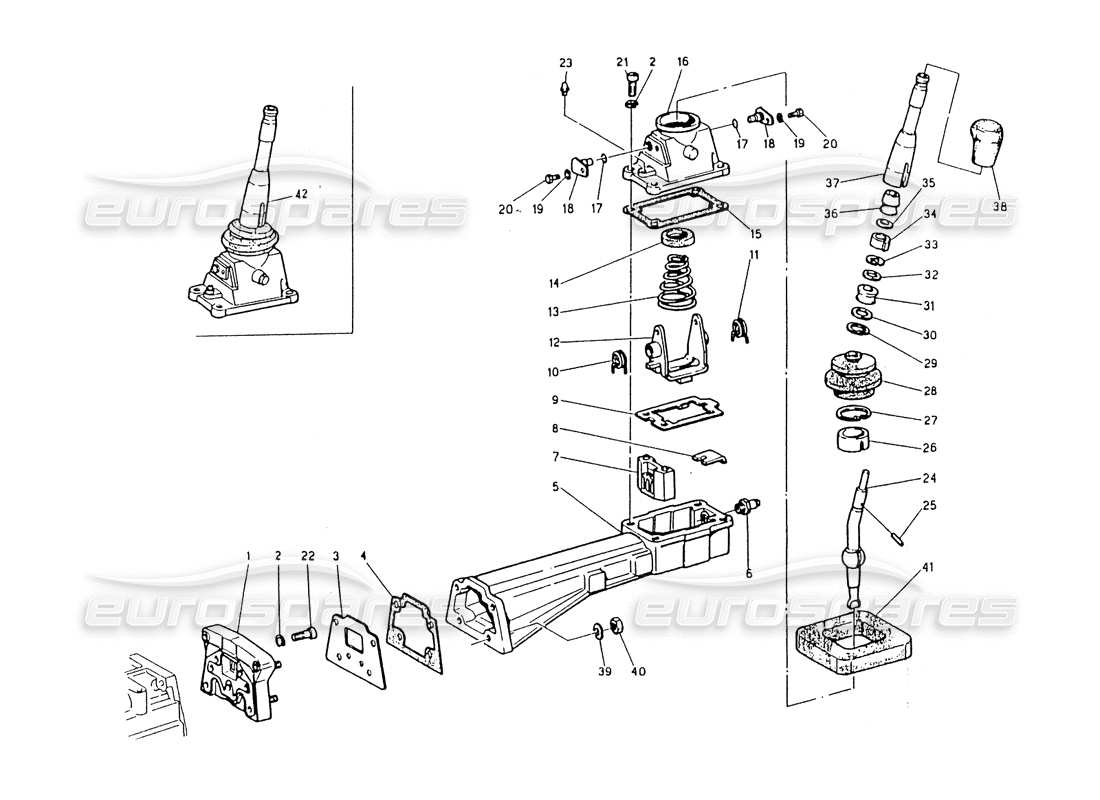

Maserati 418 / 4.24v / 430 Gearbox, 2F-External Controls Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 315220104
DAMPER
Valid for 51
from £190.55
from £190.55
# 002
MPN: 315220376
SPRING UASHER
Valid for 51
# 003
MPN: 315220317
SPACER
Valid for 51
from £2.80
from £2.80
# 004
MPN: 315220318
GASKET
Valid for 51
from £2.46
from £2.46
# 005
MPN: 315220316
CANTILEVER
Valid for 51
from £99.62
from £99.62
# 006
MPN: 313320131
SWITCH
Valid for 51
from £89.23
from £89.23
# 007
MPN: 315220319
GUIDE
Valid for 51
from £6.32
from £6.32
# 008
MPN: 315220320
PLATE
Valid for 51
from £2.46
from £2.46
# 009
MPN: 315220322
PLATE
Valid for 51
from £20.15
from £20.15
# 010
MPN: 315220324
SPRING
Valid for 51
from £5.33
from £5.33
# 011
MPN: 315220323
SPRING
Valid for 51
from £4.52
from £4.52
# 012
MPN: 315220375
SUPPORT
Valid for 51
# 013
MPN: 315220326
SPRING
Valid for 51
from £1.04
from £1.04
# 014
MPN: 315220327
RING
Valid for 51
from £4.42
from £4.42
# 015
MPN: 315220328
GASKET
Valid for 51
from £0.74
from £0.74
# 016
MPN: 315220016
CONTROL TURRET
Valid for 51
from £176.38
from £176.38
# 017
MPN: 315220332
GASKET
Valid for 51
from £0.74
from £0.74
# 018
MPN: 315220335
GUIDE PIN
Valid for 51
from £37.61
from £37.61
# 019
MPN: 315220330
SPRING WASHER
Valid for 51
from £1.39
from £1.39
# 020
MPN: 315220374
SCREW
Valid for 51
from £2.63
from £2.63
# 021
MPN: 315220377
SCREW
Valid for 51
from £2.63
from £2.63
# 022
MPN: 314820367
SCREW
Valid for 51
from £6.40
from £6.40
# 023
MPN: 315220333
BREATHER
Valid for 51
from £2.05
from £2.05
# 024
MPN: 315220338
CONTROL LEVER
Valid for 51
from £195.79
from £195.79
# 025
MPN: 315220339
PIN
Valid for 51
from £0.74
from £0.74
# 026
MPN: 315220343
BUSH
Valid for 51
from £3.03
from £3.03
# 027
MPN: 315220344
RING
Valid for 51
from £1.64
from £1.64
# 028
MPN: 315220345
RUBBER CASING
Valid for 51
from £25.81
from £25.81
# 029
MPN: 315220383
RETAINING WASHER
Valid for 51
from £1.73
from £1.73
# 030
MPN: 315220382
SPACER
Valid for 51
from £4.34
from £4.34
# 031
MPN: 315220348
RUBBER
Valid for 51
from £7.62
from £7.62
# 032
MPN: 315220349
WASHER
Valid for 51
from £10.65
from £10.65
# 033
MPN: 315220378
RETAINING RING
Valid for 51
from £0.74
from £0.74
# 034
MPN: 315220351
COUPLING
Valid for 51
from £1.14
from £1.14
# 035
MPN: 315220380
SPACER
Valid for 51
from £6.06
from £6.06
# 036
MPN: 315220353
RUBBER
Valid for 51
from £18.77
from £18.77
# 037
MPN: 315220354
LEVER EXTENSIONE
Valid for 51
from £63.90
from £63.90
# 038
MPN: 315222102
KNOB
Valid for 51
from £60.44
from £60.44
# 039
MPN: 314820371
SPRING WASHER
Valid for 51
# 040
MPN: 314820370
NUT
Valid for 51
# 041
MPN: 315220302
GASKET BETWEEN GEARBOX AND BODY SHELL
Valid for 51
from £2.05
from £2.05
# 042
MPN: 315220003
GEARBOX LEVER UNIT
Valid for 51
from £881.83
from £881.83
