014 - Steering Column and Steering Wheel

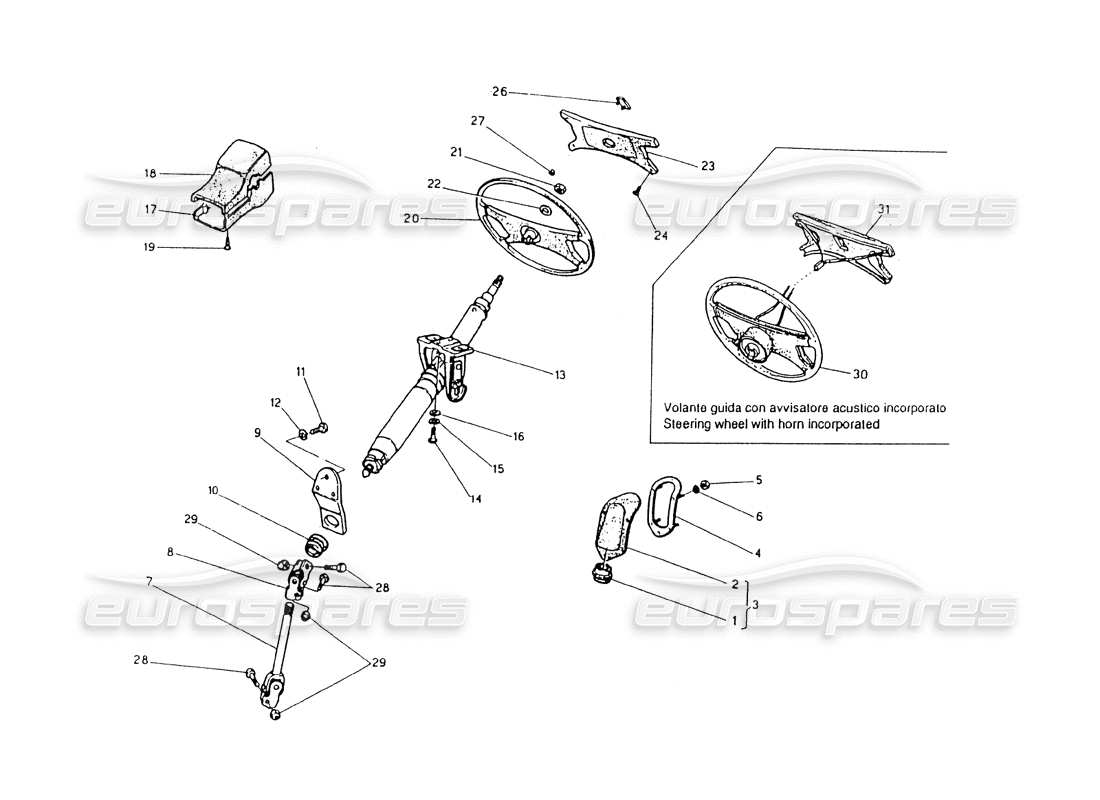

Maserati 418 / 4.24v / 430 Steering Column and Steering Wheel Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 317820337
BUSHING
from £0.71
from £0.71
# 002
MPN: 317820336
BELLOWS
VALID FOR 51 / 53 / 58 / 59 / 62
from £4.78
from £4.78
# 002
MPN: 317827336
BELLOWS
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £6.14
from £6.14
# 003
MPN: 317820116
PLASTIC BELLOWS WITH BUSHING
VALID FOR 51 / 53 / 58 / 59 / 62
from £11.96
from £11.96
# 003
MPN: 317827116
PLASTIC BELLOWS WITH BUSHING
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £19.59
from £19.59
# 004
MPN: 317820107
PLATE
VALID FOR 51 / 53 / 58 / 59 / 62
from £4.70
from £4.70
# 004
MPN: 317827107
PLATE
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £4.06
from £4.06
# 005
MPN: 125100050
NUT
from £0.69
from £0.69
# 006
MPN: 135900053
FLAT WASHER
# 007
MPN: 327870117
INTERMEDIATE SHAFT
VALID FOR 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £214.25
from £214.25
# 007
MPN: 367801117
INTERMEDIATE SHAFT
VALID FOR 51 / 53 / 58 / 59 / 62
from £175.84
from £175.84
# 008
MPN: 317820117
CARDAN JOINT
from £324.69
from £324.69
# 009
MPN: 327856320
SUPPORT
VALID FOR 51 / 53 / 58 / 59 / 62
from £19.67
from £19.67
This part replaces part number 9562
# 009
MPN: 327870320
SUPPORT
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £2.25
from £2.25
This part replaces part number 9564
# 010
MPN: 367800321
BUSHING
from £28.38
from £28.38
This part replaces part number 317820321
# 011
MPN: 101206012
SCREW
# 012
MPN: 138410060
SPRING WASHER
# 013
MPN: 317820114
STEERING COLUMN COMPLETE ASSY
VALID FOR 51 / 53 / 58 / 59 / 62
from £417.10
from £417.10
# 013
MPN: 317827114
STEERING COLUMN COMPLETE ASSY
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £124.87
from £124.87
# 014
MPN: 167131030
SCREW
from £1.91
from £1.91
# 015
MPN: 135300105
SPRING WASHER
# 016
MPN: 14496601
FLAT WASHER
Supersession
Supersession
# 017
MPN: 317851110
LOWER HALF BOX
VALID FOR 51 / 53 / 58 / 59 / 62 / 65 3V / 65 4V / 66 / 67 / 68 / 69
from £7.18
from £7.18
# 017
MPN: 317851110
LOWER HALF BOX
VALID FOR 77 / 78 ONLY AUSTRALIA
from £7.18
from £7.18
# 017
MPN: 317853110
LOWER HALF BOX
Valid for 79
# 017
MPN: 317853110
LOWER HALF BOX
VALID FOR 77 / 78 ONLY AUSTRALIA
# 018
MPN: 317851109
UPPER HALF BOX
VALID FOR 51 / 53 / 58 / 59 / 62 / 65 3V / 65 4V / 66 / 67 / 68 / 69
from £7.18
from £7.18
This part replaces part number 317853109 - and 1 more. Click to view details
# 018
MPN: 317851109
UPPER HALF BOX
VALID FOR 77 / 78 AUSTRALIA EXCEPTED
from £7.18
from £7.18
This part replaces part number 317853109 - and 1 more. Click to view details
# 018
MPN: 317853109
UPPER HALF BOX
Valid for 77 / 78
Supersession
Supersession
# 018
MPN: 317853109
UPPER HALF BOX
VALID FOR 77 / 78 ONLY AUSTRALIA
Supersession
Supersession
# 019
MPN: 119142220
SCREW
Valid for 79
# 020
MPN: 317861104
STEERING WHEEL (black leather)
Valid for 77 / 78
from £127.55
from £127.55
# 020
MPN: 317861104
STEERING WHEEL (black leather)
ONLY AUSTRALIA
from £127.55
from £127.55
# 021
MPN: 125400140
NUT
# 022
MPN: 135600140
SPRING WASHER
from £1.11
from £1.11
# 023
MPN: 317861105
HUB COVER (BLACK LEATHER)
Valid for 79
from £15.25
from £15.25
# 023
MPN: 317861105
HUB COVER (BLACK LEATHER)
VALID FOR 77 / 78 ONLY AUSTRALIA
from £15.25
from £15.25
# 024
MPN: 119142220
SCREW
# 026
MPN: 317820300
ESCUTCHEON
from £5.73
from £5.73
# 027
MPN: 163510030
MARQUE SPRING
# 028
MPN: 317820382
SCREW
from £1.36
from £1.36
# 029
MPN: 128350080
SELF LOCKING NUT
Supersession
Supersession
# 030
MPN: 317851104
STEERING WHEEL (RADICA AND BLACK LEATHER)
VALID FOR 51 / 53 / 58 / 59 / 62 / 65 3V / 65 4V / 66 / 67 / 68 / 69
from £292.22
from £292.22
# 030
MPN: 317851104
STEERING UHEEL (RADICA AND BLACK LEATHER)
VALID FOR 77 / 78 ONLY AUSTRALIA
from £292.22
from £292.22
# 031
MPN: 317851105
HUB COVER WITH HORN (BLACK LEATHER)
VALID FOR 51 / 53 / 58 / 59 / 62 / 65 3V / 65 4V / 66 / 67 / 68 / 69
Supersession
Supersession
