015 - Front Chassis

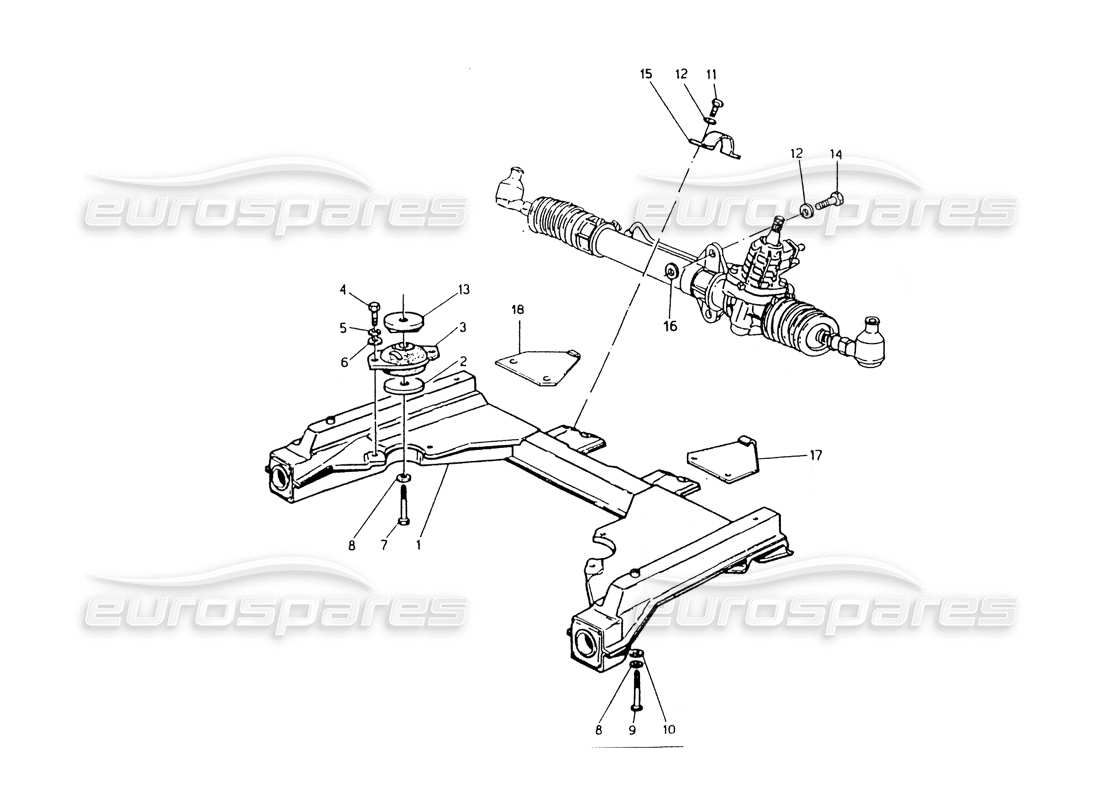

Maserati 418 / 4.24v / 430 Front Chassis Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 362704102
Front Chassis
from £6,550.06
from £6,550.06
This part replaces part number 312753102
# 002
MPN: 314220312
WASHER
from £2.23
from £2.23
# 003
MPN: 314220100
ENGINE SILENTBLOCK
from £50.43
from £50.43
# 004
MPN: 101210025
SCREW
# 005
MPN: 138200100
SPRING WASHER
# 006
MPN: 314220314
WASHER
from £1.11
from £1.11
# 007
MPN: 100712075
SCREW
# 008
MPN: 138200120
SPRING WASHER
from £0.79
from £0.79
# 009
MPN: 100712065
SCREW
# 010
MPN: 135900130
FLAT WASHER
# 011
MPN: 101210025
SCREW
# 012
MPN: 135300084
SPRING WASHER
# 013
MPN: 316220312
WASHER
from £1.11
from £1.11
# 014
MPN: 100710035
SCREW
# 015
MPN: 327856344
BRACKET
from £1.98
from £1.98
# 016
MPN: 163020100
FLAT WASHER
from £1.11
from £1.11
# 017
MPN: 322753601
STEERING BOX STEEL SHEET GUARD
VALID FOR 51 / 53 / 58 / 59 / 62
from £5.73
from £5.73
# 018
MPN: 392770601
RH POWER STEERING UNIT STEEL SHEET GUARD
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
