027 - Bodywork-Externals Panels

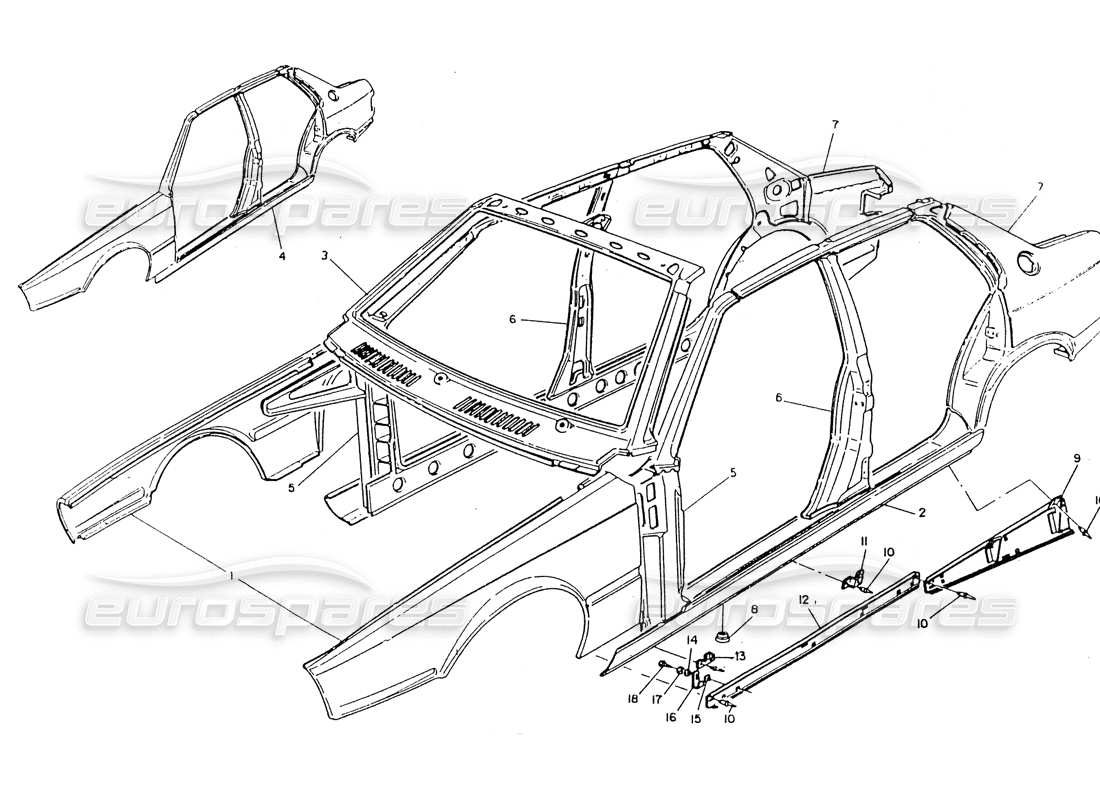

Maserati 418 / 4.24v / 430 Bodywork-Externals Panels Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 312550301
OUTSIDE BODY PANEL FOR LH FRONT FENDER
from £91.50
from £91.50
# 001
MPN: 312550302
OUTSIDE BODY PANEL FOR RH FRONT FENDER
from £91.50
from £91.50
# 002
MPN: 322520329
OUTSIDE BODY PANEL FOR LH SIDE MEMBER
from £28.78
from £28.78
# 002
MPN: 322520330
OUTSIDE BODY PANEL FOR RH SIDE MEMBER
from £26.87
from £26.87
# 003
MPN: 322553148
OUTSIDE BODY PANEL FOR WINDSCREEN ASSY
VALID FOR 51 / 53 / 58 / 59 / 62
from £151.81
from £151.81
# 003
MPN: 322567148
OUTSIDE BODY PANEL FOR WINDSCREEN ASSY
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 78 / 79
from £151.81
from £151.81
# 004
MPN: 322520101
LH BODY SIDE ASSY
from £241.69
from £241.69
# 004
MPN: 322520102
RH BODY SIDE ASSY
from £241.69
from £241.69
# 005
MPN: 322520105
LH FRONT HINGE PILLAR, ASSY
from £88.30
from £88.30
# 005
MPN: 322520106
RH FRONT HINGE PILLAR, ASSY
from £85.83
from £85.83
# 006
MPN: 322520113
LH DOOR CENTRAL PILLAR, ASSY
from £58.52
from £58.52
# 006
MPN: 322520114
RH DOOR CENTRAL PILLAR, ASSY
from £58.52
from £58.52
# 007
MPN: 322520377
OUTSIDE BODY PANEL FOR LH REAR FENDER
from £268.85
from £268.85
# 007
MPN: 322520378
OUTSIDE BODY PANEL FOR RH REAR FENDER
from £275.78
from £275.78
# 008
MPN: 312120305
PLUG FOR ELECTROPHORESIS HOLES
from £1.11
from £1.11
# 009
MPN: 328353255
LH REAR BRACKET
from £160.40
from £160.40
# 009
MPN: 328353256
RH REAR BRACKET
from £7.40
from £7.40
# 010
MPN: 164323410
RIVET
# 011
MPN: 328353489
CENTRAL PLATE
from £3.34
from £3.34
# 012
MPN: 328353481
FRONT BRACKET
from £6.61
from £6.61
# 013
MPN: 328353492
PLATE
from £0.60
from £0.60
# 014
MPN: 163030050
FLAT WASHER
# 015
MPN: 319220324
NUT SCREW
from £0.65
from £0.65
This part replaces part number 82457087
# 016
MPN: 328353491
SUPPORT PLATE
from £3.82
from £3.82
# 017
MPN: 135600053
SPRING WASHER
# 018
MPN: 119148130
SCREW
from £0.87
from £0.87
