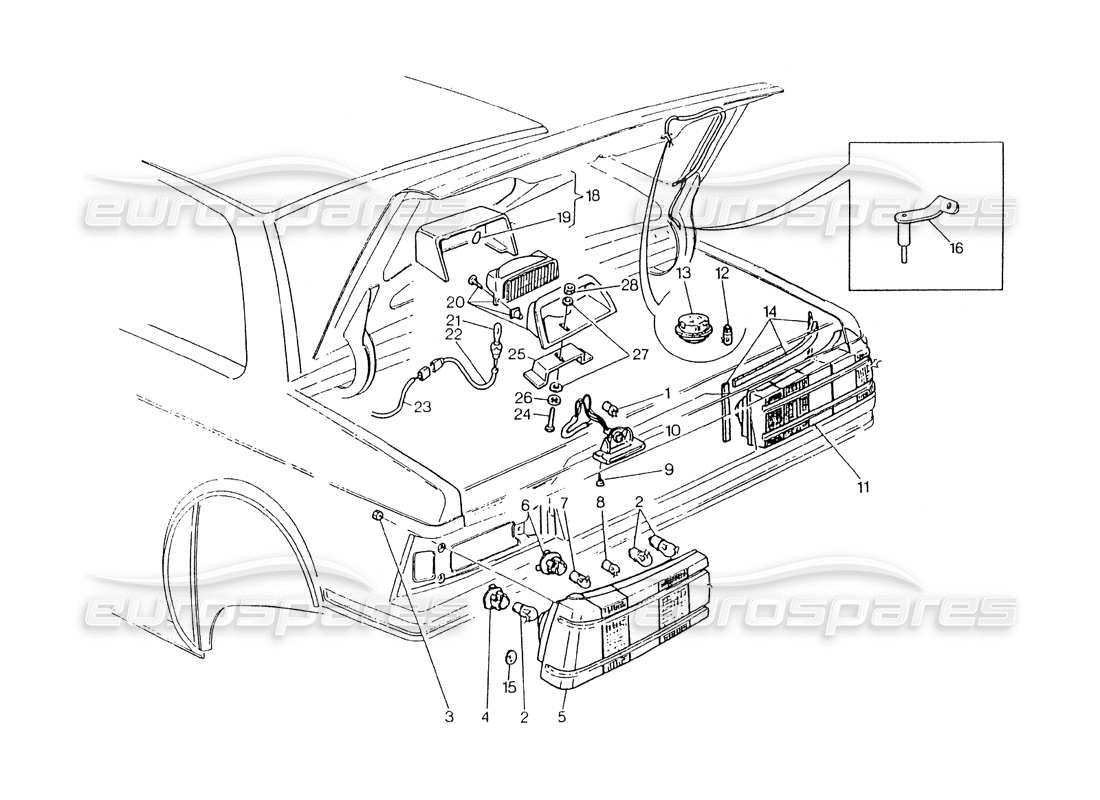

Maserati 418 / 4.24v / 430 Tail Lights Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 87540500
12V 5U BULB
from £0.55
from £0.55
# 002
MPN: 87720021
12V 21U BULB
from £1.03
from £1.03
# 003
MPN: 122600060
NUT
# 004
MPN: 313120404
SINGLE LIGHT BULB HOLDER
from £4.14
from £4.14
# 005
MPN: 313151153
LH REAR LAMP
from £296.28
from £296.28
This part replaces part number 313120138
# 006
MPN: 313120405
DOUBLE LIGHT BULB HOLDER
from £0.87
from £0.87
# 007
MPN: 87720521
12V 5/21W BULB
from £3.16
from £3.16
# 008
MPN: 87541000
BULB
# 009
MPN: 119142190
SCREW
# 010
MPN: 30311111
LICENSE - PLATE LAMP
# 011
MPN: 313151152
RH REAR LAMP
from £296.28
from £296.28
This part replaces part number 313120137
# 012
MPN: 87760005
12V 5W BULB
from £0.66
from £0.66
# 013
MPN: 313153118
CEILING LAMP
from £10.30
from £10.30
# 014
MPN: 313120407
GASKET
minimum order quantity = 4
from £1.60
from £1.60
# 015
MPN: 313120305
SELFADHESIVE PAD
from £2.36
from £2.36
# 016
MPN: 30331111
TRUNK LID SWITHC
# 017
-
STOP LIGHT
# 018
MPN: 323132323
COVER WITH SPRING (BEIGE)
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
# 018
MPN: 323132323
COVER WITH SPRING (BEIGE)
VALID FOR 58 / 59 / 62 ONLY SWEDEN
# 018
MPN: 323160334
COVER WITH SPRING (GREY)
VALID FOR 58 / 59 / 62 ONLY SWEDEN
Supersession
Supersession
# 018
MPN: 323160334
COVER WITH SPRING (GREY)
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
Supersession
Supersession
# 019
MPN: 323132324
SPRING
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £0.71
from £0.71
# 020
MPN: 323132105
STOP LAMP WITH SUPPORT
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £16.19
from £16.19
# 020
MPN: 323132105
STOP LAMP WITH SUPPORT
VALID FOR 58 / 59 / 62 ONLY SWEDEN
from £16.19
from £16.19
# 021
MPN: 323132325
BULB
from £0.47
from £0.47
# 022
MPN: 323132104
LAMP HOLDER WITH CABLES
from £3.75
from £3.75
# 023
MPN: 323132102
STOP CABLE KIT
from £5.73
from £5.73
# 024
MPN: 101206016
SCREW
# 025
MPN: 313137103
BRACKET
from £4.78
from £4.78
# 026
MPN: 135600060
SPRING WASHER
from £0.79
from £0.79
# 027
MPN: 163030060
FLAT WASHER
from £1.11
from £1.11
# 028
MPN: 125100060
NUT
