050 - Doors and Internal Trimming

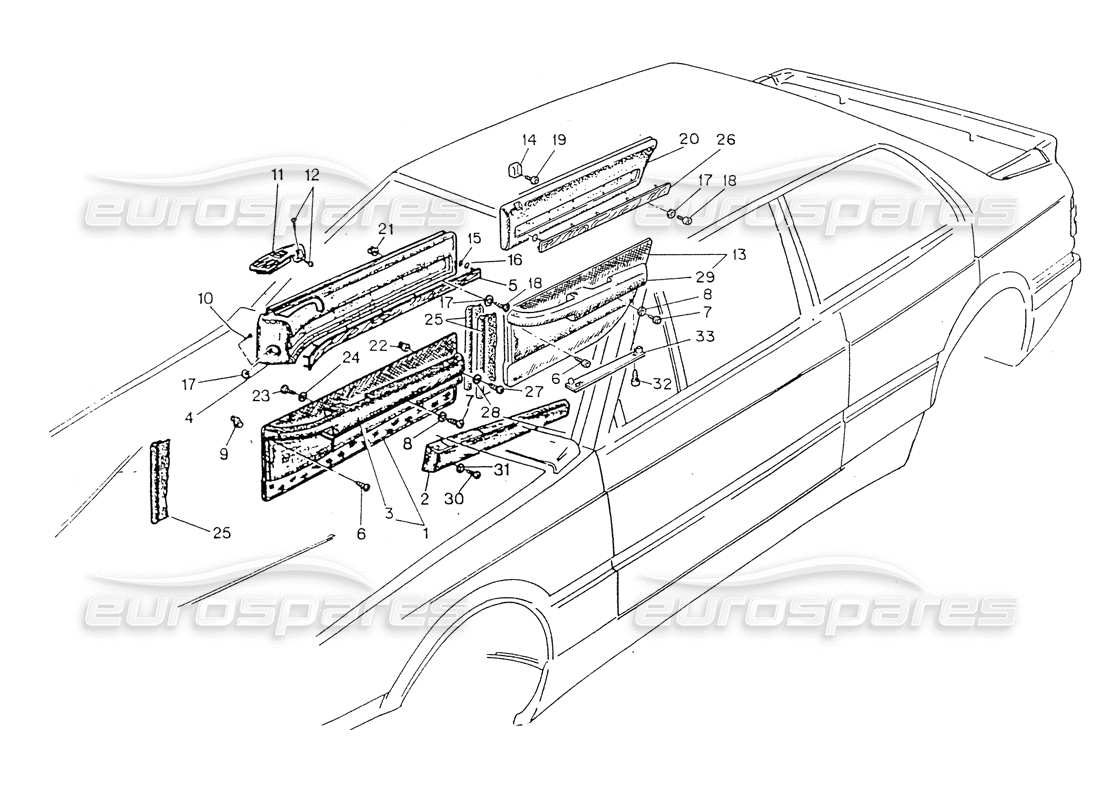

Maserati 418 / 4.24v / 430 Doors and Internal Trimming Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 328950141
LH LINER (IVORY LEATHER AND ALCANTARA)
VALID FOR 51 / 53 / 58 / 59 / 62
from £332.72
from £332.72
# 001
MPN: 328950142
RH LINER (IVORY LEATHER AND ALCANTARA)
VALID FOR 51 / 53 / 58 / 59 / 62
from £332.72
from £332.72
# 001
MPN: 328971141
LH LINER (IVORY LEATHER AND ALCANTARA)
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
# 001
MPN: 328971142
RH LINER (IVORY LEATHER AND ALCANTARA)
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
# 001
MPN: 329956321
LH LINER (LIGHT GREY LEATHER AND ALCANTARA)
VALID FOR 51 / 53 / 58 / 59 / 62
from £100.03
from £100.03
# 001
MPN: 329956322
RH LINER (LIGHT GREY LEATHER AND ALCANTARA)
VALID FOR 51 / 53 / 58 / 59 / 62
from £90.45
from £90.45
# 001
MPN: 329956351
LH LINER (BLACK LEATHER AND ALCANT. DARK GRET)
VALID FOR 51 / 53 / 58 / 59 / 62
from £332.72
from £332.72
# 001
MPN: 329956352
RH LINER (BLACK LEATHER AND ALCANT. DARK GREY)
VALID FOR 51 / 53 / 58 / 59 / 62
from £332.72
from £332.72
# 001
MPN: 329971321
LH LINER (L1GTH GREY LEATHER AND ALCANTARA)
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £90.45
from £90.45
# 001
MPN: 329971322
RH LINER (LIGHT GREY LEATHER AND ALCANTARA)
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £90.45
from £90.45
# 001
MPN: 329971351
LH LINER (BLACK LEATHER AND ALCANT. DARK GREY)
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
# 001
MPN: 329971352
RH LINER (BLACK LEATHER AND ALCANT. DARK GREY)
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
# 002
MPN: 328912159
LH UNDER-ARMREST PANEL (IVORY LEATHER)
from £236.23
from £236.23
# 002
MPN: 328912160
RH UNDER-ARMREST PANEL (IVORY LEATHER)
from £52.46
from £52.46
# 002
MPN: 329956159
LH UNDER-ARMREST PANEL (LIGHT GREY LEATHER)
from £110.49
from £110.49
# 002
MPN: 329956160
RH UNDER-ARMREST PANEL (LIGHT GREY LEATHER)
from £42.15
from £42.15
# 002
MPN: 329956223
LH UNDER-ARMREST PANEL (BLACK LEATHER)
from £14.23
from £14.23
# 002
MPN: 329956224
RH UNDER-ARMREST PANEL (BLACK LEATHER)
from £14.63
from £14.63
# 003
-
SUPPLIED WITH POS. 1
# 004
MPN: 328950249
LH FRONT UPPER PANEL DOOR (IVORY LEATHER)
# 004
MPN: 328950250
RH FRONT UPPER PANEL DOOR (IVORY LEATHER)
from £193.06
from £193.06
# 004
MPN: 329956327
LH FRONT UPPER PANEL DOOR (LIGHT GREY LEATHER)
from £193.06
from £193.06
# 004
MPN: 329956328
RH FRONT UPPER PANEL DOOR (LIGHT GREY LEATHER)
from £193.06
from £193.06
# 004
MPN: 329956357
LH FRONT UPPER PANEL DOOR (BLACK LEATHER)
from £193.06
from £193.06
# 004
MPN: 329956358
RH FRONT UPPER PANEL DOOR (BLACK LEATHER)
from £193.06
from £193.06
# 005
MPN: 328312115
LH FRONT BRIAR TRIM PANEL DOOR
from £8.10
from £8.10
# 005
MPN: 328312116
RH FRONT BRIAR TRIM PANEL DOOR
from £8.10
from £8.10
# 006
MPN: 119148220
SCREW
from £1.11
from £1.11
# 007
MPN: 119148250
SCREW
# 008
MPN: 136110055
FLAT WASHER
from £0.79
from £0.79
# 009
MPN: 53833471
SPRING CLIP
from £0.71
from £0.71
# 010
MPN: 119142220
SCREW
# 011
MPN: 328350371
LH FINISHER (COL. ANTRACITE)
from £1.10
from £1.10
# 011
MPN: 328350372
RH FINISHER (COL. ANTRACITE)
from £1.10
from £1.10
# 012
MPN: 119529130
SCREW
from £1.11
from £1.11
# 013
MPN: 328950153
LH REAR PANEL (IVORY LEATHER AND ALCANT
from £197.30
from £197.30
# 013
MPN: 328950154
RH REAR PANEL (IVORY LEATHER AND ALCANT.)
from £230.33
from £230.33
# 013
MPN: 329956333
LH REAR PAN. (LIGHT GREY LEATHER AND ALCANT.)
from £208.31
from £208.31
# 013
MPN: 329956334
RH REAR PAN. (LIGHT GREY LEATH. AND ALCANT.)
# 013
MPN: 329956363
LH REAR PANEL(BLACK LEATH. AND ALCANT. DARK GREY
from £230.33
from £230.33
# 013
MPN: 329956364
RH REAR PANEL(BLACK LEATH. AND ALCANT. DARK GREY
from £230.33
from £230.33
# 014
MPN: 328350389
SEAT
from £1.11
from £1.11
# 015
MPN: 128300050
NUT
Supersession
Supersession
This part replaces part number 10718011
# 016
MPN: 136110055
FLAT WASHER
from £0.79
from £0.79
# 017
MPN: 135000043
WASHER
from £1.11
from £1.11
# 018
MPN: 161600510
SCREW
from £5.02
from £5.02
# 019
MPN: 119529130
SCREW
from £1.11
from £1.11
# 020
MPN: 328950257
LH REAR UPPER DOOR PANEL (IVORY LEATHER)
# 020
MPN: 328950258
RH REAR UPPER DOOR PANEL (IVORY LEATHER)
# 020
MPN: 329956347
LH REAR UPPER DOOR PANEL (LIGHT GREY LEATHER)
from £183.78
from £183.78
# 020
MPN: 329956348
RH REAR UPPER DOOR PANEL (LIGHT GREY LEATHER)
from £33.34
from £33.34
# 020
MPN: 329956377
LH REAR UPPER DOOR PANEL (BLACK LEATHER)
# 020
MPN: 329956378
RH REAR UPPER DOOR PANEL (BLACK LEATHER)
# 021
MPN: 318320341
NUT SCREW
from £0.71
from £0.71
This part replaces part number 14229280
# 022
MPN: 53831380
NUT SCREW
from £0.71
from £0.71
# 023
MPN: 119148190
SCREW
# 024
MPN: 163020060
FLAT WASHER
from £2.63
from £2.63
# 025
MPN: 328912238
TRIM (IVORY LEATHER)
from £5.25
from £5.25
# 025
MPN: 329956186
TRIM (LIGHT GREY LEATHER)
from £1.98
from £1.98
# 025
MPN: 329956238
TRIM (IVORY LEATHER)
from £3.34
from £3.34
# 026
MPN: 328312215
LH DOOR PANEL BRIAR TRIM
from £8.10
from £8.10
# 026
MPN: 328312216
RH DOOR PANEL BRIAR TRIM
from £8.10
from £8.10
# 027
MPN: 161600510
SCREW
from £5.02
from £5.02
# 028
MPN: 30831442
FLAT WASHER
# 029
-
SUPPLIED WITH POS. 13
# 030
MPN: 119935190
SCREW
from £1.11
from £1.11
# 031
MPN: 30831442
FLAT WASHER
# 032
MPN: 119935130
SCREW
from £1.11
from £1.11
# 033
MPN: 328912179
LH REAR PANEL UNDER-ARMREST
from £15.53
from £15.53
# 033
MPN: 328912180
RH REAR PANEL UNDER-ARMREST
from £15.53
from £15.53
# 033
MPN: 329956179
LH REAR PAN. UNDER -ARMR. TRIM
from £19.73
from £19.73
# 033
MPN: 329956180
RH REAR PAN. UNDER-ARMR. TRIM
from £19.73
from £19.73
# 033
MPN: 329956235
LH REAR PAN. UNDER -ARMR. TRIM (BLACK LEATHER)
from £19.73
from £19.73
# 033
MPN: 329956236
RH REAR PANEL UNDER-ARHREST TRIM (BLACK LEATH.)
from £19.73
from £19.73
