022 - Carburetor Components

Maserati Biturbo 2.5 (1984) Carburetor Components Parts Diagram

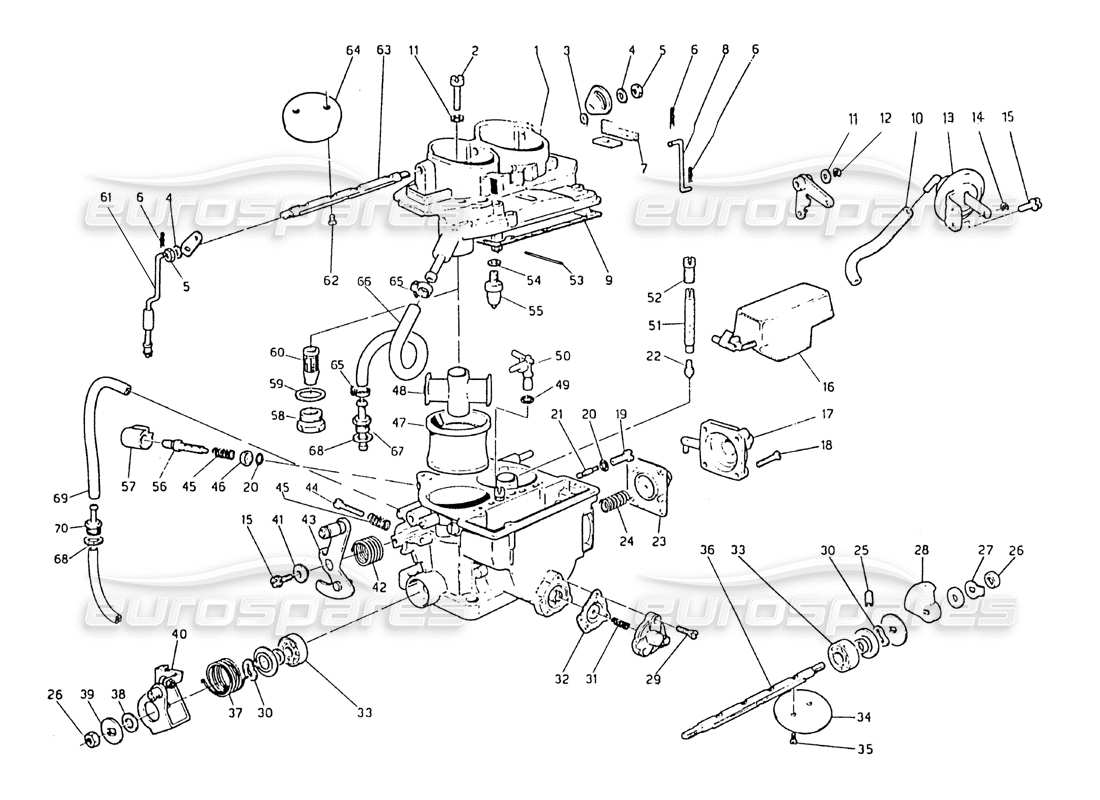

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                                          #
                                                                                                                                          Part number
                                                                                                                                          Description
                                                                                                                                          Price
                                                                                                                                          # 001
                                                                                                                                          MPN: 312220102
                                                                                                                                          CARBURETOR COVER
                                                                                                                                          # 002
                                                                                                                                          MPN: 312220320
                                                                                                                                          SCREW
                                                                                                                                          from £1.07
                                                                                                                                          from £1.07
                                                                                                                                          # 003
                                                                                                                                          MPN: 312220313
                                                                                                                                          WASHER
                                                                                                                                          # 004
                                                                                                                                          MPN: 312220310
                                                                                                                                          WASHER
                                                                                                                                          # 005
                                                                                                                                          MPN: 312220311
                                                                                                                                          NUT
                                                                                                                                          # 006
                                                                                                                                          MPN: 312220312
                                                                                                                                          SPRING
                                                                                                                                          from £0.68
                                                                                                                                          from £0.68
                                                                                                                                          # 007
                                                                                                                                          MPN: 312220318
                                                                                                                                          PLUG
                                                                                                                                          # 008
                                                                                                                                          MPN: 312220315
                                                                                                                                          TIE ROD
                                                                                                                                          # 009
                                                                                                                                          MPN: 312225016
                                                                                                                                          GASKET
                                                                                                                                          from £5.40
                                                                                                                                          from £5.40
                                                                                                                                          This part replaces part number 312230016 - and 1 more. Click to view details
                                                                                                                                          # 010
                                                                                                                                          MPN: 312220360
                                                                                                                                          PIPE
                                                                                                                                          from £1.88
                                                                                                                                          from £1.88
                                                                                                                                          # 011
                                                                                                                                          MPN: 312220321
                                                                                                                                          WASHER
                                                                                                                                          # 012
                                                                                                                                          MPN: 312220359
                                                                                                                                          SPRING RING
                                                                                                                                          # 013
                                                                                                                                          MPN: 312220111
                                                                                                                                          BOX
                                                                                                                                          from £25.52
                                                                                                                                          from £25.52
                                                                                                                                          # 014
                                                                                                                                          MPN: 312220362
                                                                                                                                          SPRING RING
                                                                                                                                          # 015
                                                                                                                                          MPN: 312220350
                                                                                                                                          SCREW
                                                                                                                                          # 016
                                                                                                                                          MPN: 312220324
                                                                                                                                          Float (FROM n° 1665 engine)
                                                                                                                                          # 017
                                                                                                                                          MPN: 312220114
                                                                                                                                          PUMP COVER
                                                                                                                                          from £9.01
                                                                                                                                          from £9.01
                                                                                                                                          # 018
                                                                                                                                          MPN: 312220366
                                                                                                                                          SCREW
                                                                                                                                          # 019
                                                                                                                                          MPN: 312220340
                                                                                                                                          JET HOLDER
                                                                                                                                          from £2.83
                                                                                                                                          from £2.83
                                                                                                                                          # 020
                                                                                                                                          MPN: 312220341
                                                                                                                                          GASKET
                                                                                                                                          from £1.02
                                                                                                                                          from £1.02
                                                                                                                                          # 021
                                                                                                                                          MPN: 312220342
                                                                                                                                          PILOT JET
                                                                                                                                          from £4.82
                                                                                                                                          from £4.82
                                                                                                                                          # 022
                                                                                                                                          MPN: 312220332
                                                                                                                                          MAIN JET
                                                                                                                                          from £3.45
                                                                                                                                          from £3.45
                                                                                                                                          # 023
                                                                                                                                          MPN: 312220115
                                                                                                                                          Pump diaphragm
                                                                                                                                          Pre-modif.
                                                                                                                                          from £5.05
                                                                                                                                          from £5.05
                                                                                                                                          # 023
                                                                                                                                          MPN: 312220116
                                                                                                                                          Pump diaphragm
                                                                                                                                          After-modif.
                                                                                                                                          # 024
                                                                                                                                          MPN: 312220367
                                                                                                                                          SPRING
                                                                                                                                          from £1.47
                                                                                                                                          from £1.47
                                                                                                                                          # 025
                                                                                                                                          MPN: 312220363
                                                                                                                                          SCREW
                                                                                                                                          # 026
                                                                                                                                          MPN: 312220370
                                                                                                                                          NUT
                                                                                                                                          # 027
                                                                                                                                          MPN: 312220386
                                                                                                                                          WASHER
                                                                                                                                          # 028
                                                                                                                                          MPN: 312220384
                                                                                                                                          PUMP CONTROL CAM
                                                                                                                                          from £2.83
                                                                                                                                          from £2.83
                                                                                                                                          # 029
                                                                                                                                          MPN: 312220393
                                                                                                                                          SCREW
                                                                                                                                          # 030
                                                                                                                                          MPN: 312220376
                                                                                                                                          WASHER
                                                                                                                                          # 031
                                                                                                                                          MPN: 312220391
                                                                                                                                          «POWER» SPRING (FROM N° 1665 ENGINE)
                                                                                                                                          from £1.47
                                                                                                                                          from £1.47
                                                                                                                                          # 032
                                                                                                                                          MPN: 312220390
                                                                                                                                          DIAPHRAGM
                                                                                                                                          from £2.83
                                                                                                                                          from £2.83
                                                                                                                                          # 033
                                                                                                                                          MPN: 312220379
                                                                                                                                          BEARING
                                                                                                                                          # 034
                                                                                                                                          MPN: 312220381
                                                                                                                                          THROTTLE VALVE
                                                                                                                                          # 035
                                                                                                                                          MPN: 312220382
                                                                                                                                          SCREW
                                                                                                                                          # 036
                                                                                                                                          MPN: 312220380
                                                                                                                                          Main Shaft
                                                                                                                                          # 037
                                                                                                                                          MPN: 312220375
                                                                                                                                          SPRING
                                                                                                                                          # 038
                                                                                                                                          MPN: 312220372
                                                                                                                                          WASHER
                                                                                                                                          # 039
                                                                                                                                          MPN: 312220371
                                                                                                                                          WASHER
                                                                                                                                          # 040
                                                                                                                                          MPN: 312220109
                                                                                                                                          Throttle control lever
                                                                                                                                          # 041
                                                                                                                                          MPN: 312220351
                                                                                                                                          BUSH
                                                                                                                                          # 042
                                                                                                                                          MPN: 312220352
                                                                                                                                          SPRING
                                                                                                                                          # 043
                                                                                                                                          MPN: 312220107
                                                                                                                                          CHOKE CONTROL LEVER
                                                                                                                                          from £7.13
                                                                                                                                          from £7.13
                                                                                                                                          # 044
                                                                                                                                          MPN: 312220353
                                                                                                                                          THROTTLE SCREW
                                                                                                                                          # 045
                                                                                                                                          MPN: 312220344
                                                                                                                                          SPRING
                                                                                                                                          # 046
                                                                                                                                          MPN: 312220345
                                                                                                                                          RETAINER
                                                                                                                                          # 047
                                                                                                                                          MPN: 312220339
                                                                                                                                          DIFFUSER
                                                                                                                                          # 048
                                                                                                                                          MPN: 312220355
                                                                                                                                          CENTERING GUIDE
                                                                                                                                          from £3.60
                                                                                                                                          from £3.60
                                                                                                                                          # 049
                                                                                                                                          MPN: 312220329
                                                                                                                                          GASKET
                                                                                                                                          from £0.68
                                                                                                                                          from £0.68
                                                                                                                                          # 050
                                                                                                                                          MPN: 312220328
                                                                                                                                          PUMP JET (FROM N° 1665 ENGINE)
                                                                                                                                          from £5.52
                                                                                                                                          from £5.52
                                                                                                                                          # 051
                                                                                                                                          MPN: 312220331
                                                                                                                                          EMULSION PIPE
                                                                                                                                          from £7.13
                                                                                                                                          from £7.13
                                                                                                                                          # 052
                                                                                                                                          MPN: 312220333
                                                                                                                                          JET (FROM N° 1665 ENGINE)
                                                                                                                                          from £1.61
                                                                                                                                          from £1.61
                                                                                                                                          # 053
                                                                                                                                          MPN: 312220325
                                                                                                                                          PIN
                                                                                                                                          # 054
                                                                                                                                          MPN: 312220327
                                                                                                                                          GASKET
                                                                                                                                          from £0.68
                                                                                                                                          from £0.68
                                                                                                                                          # 055
                                                                                                                                          MPN: 312220117
                                                                                                                                          NEEDLE VALVE
                                                                                                                                          Supersession
                                                                                                                                          Supersession
                                                                                                                                          # 056
                                                                                                                                          MPN: 312220343

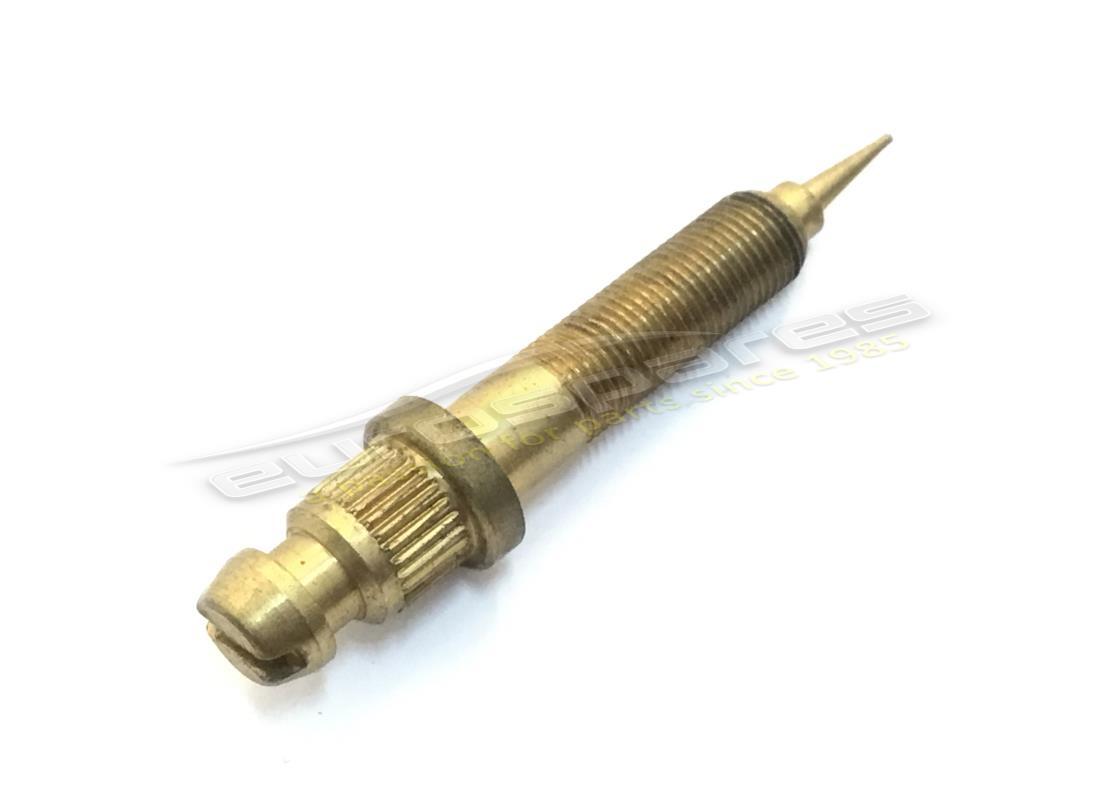

                                                                                                                                          ADJUSTING SCREW
                                                                                                                                          from £4.21
                                                                                                                                          from £4.21
                                                                                                                                          # 057
                                                                                                                                          MPN: 312220348
                                                                                                                                          CAP
                                                                                                                                          from £1.54
                                                                                                                                          from £1.54
                                                                                                                                          # 058
                                                                                                                                          MPN: 312220337
                                                                                                                                          PLUG
                                                                                                                                          from £2.30
                                                                                                                                          from £2.30
                                                                                                                                          # 059
                                                                                                                                          MPN: 312220336
                                                                                                                                          GASKET
                                                                                                                                          # 060
                                                                                                                                          MPN: 312220335
                                                                                                                                          FILTER
                                                                                                                                          # 061
                                                                                                                                          MPN: 312220105
                                                                                                                                          CHOKE CONTROL ROD
                                                                                                                                          # 062
                                                                                                                                          MPN: 312220308
                                                                                                                                          SCREW
                                                                                                                                          # 063
                                                                                                                                          MPN: 312220306
                                                                                                                                          CHOKE SHAFT
                                                                                                                                          # 064
                                                                                                                                          MPN: 312220307
                                                                                                                                          CHOKE VALVE
                                                                                                                                          # 065
                                                                                                                                          MPN: 312220118
                                                                                                                                          Clamp to fix. sleeve conn, carburetor
                                                                                                                                          Alternatives
                                                                                                                                          # 065
                                                                                                                                          MPN: 312220440
                                                                                                                                          Clamp to fix. sleeve conn, carburetor
                                                                                                                                          Alternatives
                                                                                                                                          # 066
                                                                                                                                          MPN: 312220434
                                                                                                                                          SLEEVE
                                                                                                                                          # 067
                                                                                                                                          MPN: 312020363
                                                                                                                                          CONNECTION
                                                                                                                                          from £12.15
                                                                                                                                          from £12.15
                                                                                                                                          # 068
                                                                                                                                          MPN: 312220419
                                                                                                                                          GASKET
                                                                                                                                          from £1.54
                                                                                                                                          from £1.54
                                                                                                                                          # 069
                                                                                                                                          MPN: 312220413
                                                                                                                                          SLEEVE
                                                                                                                                          # 070
                                                                                                                                          MPN: 312220414
                                                                                                                                          CONNECTION
                                                                                                                                          from £1.47
                                                                                                                                          from £1.47
                                                                                                                                          # 070
                                                                                                                                          MPN: 312220432
                                                                                                                                          PIPE CONNECTION ON INTAKE MANIFOLD
