maserati biturbo 2.5 (1984) fuel tank parts diagram

025 - FUEL TANK

Maserati Biturbo 2.5 (1984) Fuel Tank Parts Diagram

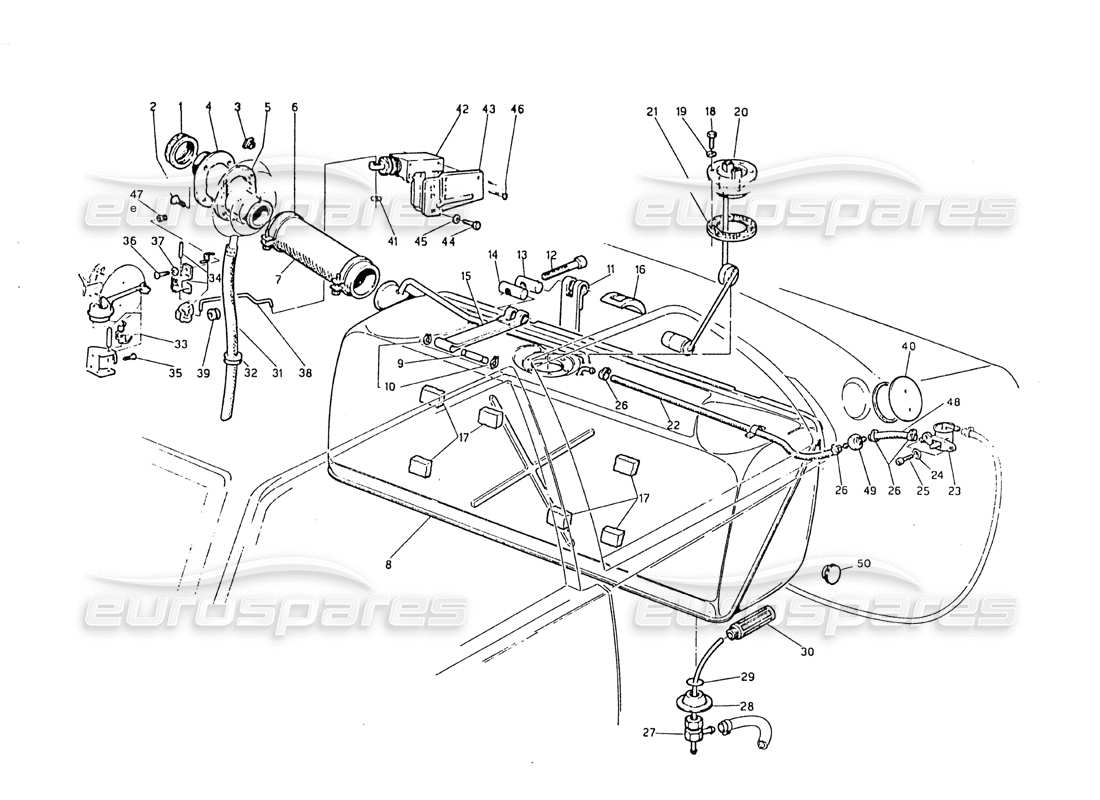

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                      #
                                                                                                      Part number
                                                                                                      Description
                                                                                                      Price
                                                                                                      # 001
                                                                                                      MPN: 319220354

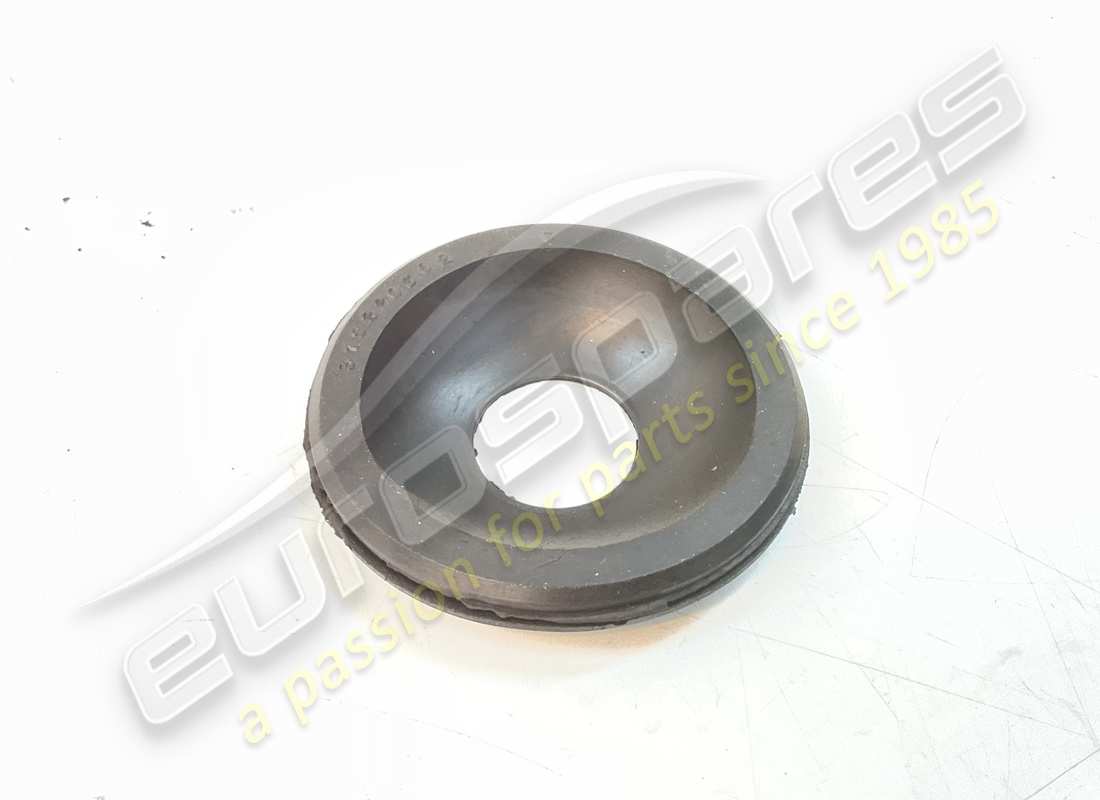

                                                                                                      TANK PLUG
                                                                                                      from £9.63
                                                                                                      from £9.63
                                                                                                      This part replaces part number 319220007
                                                                                                      # 002
                                                                                                      MPN: 119948160
                                                                                                      SCREW
                                                                                                      from £0.85
                                                                                                      from £0.85
                                                                                                      # 003
                                                                                                      MPN: 319220324
                                                                                                      BLOCK TO FIX UNION PIPE
                                                                                                      from £0.63
                                                                                                      from £0.63
                                                                                                      This part replaces part number 82457087
                                                                                                      # 004
                                                                                                      MPN: 319220115
                                                                                                      UNION PIPE
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 005
                                                                                                      MPN: 319220322
                                                                                                      GASKET
                                                                                                      from £1.55
                                                                                                      from £1.55
                                                                                                      # 006
                                                                                                      MPN: 186404087
                                                                                                      CLAMP
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 007
                                                                                                      MPN: 319220382
                                                                                                      SLEEVE FOR FUEL INLET
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 008
                                                                                                      MPN: 319220103
                                                                                                      FUEL LANK
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 009
                                                                                                      MPN: 30921336
                                                                                                      PIN
                                                                                                      from £3.63
                                                                                                      from £3.63
                                                                                                      # 010
                                                                                                      MPN: 150800050
                                                                                                      SEEGER RING
                                                                                                      # 011
                                                                                                      MPN: 319220106
                                                                                                      LOWER STRIP TO FIX. TANK
                                                                                                      from £7.73
                                                                                                      from £7.73
                                                                                                      # 012
                                                                                                      MPN: 53921333
                                                                                                      SCREW
                                                                                                      from £1.85
                                                                                                      from £1.85
                                                                                                      # 013
                                                                                                      MPN: 53921331
                                                                                                      PIN FOR STRIP
                                                                                                      from £1.55
                                                                                                      from £1.55
                                                                                                      # 014
                                                                                                      MPN: 53921332
                                                                                                      PIN FOR STRIP
                                                                                                      from £2.32
                                                                                                      from £2.32
                                                                                                      # 015
                                                                                                      MPN: 319220385
                                                                                                      UPPER STRIP TO FIX. TANK
                                                                                                      from £6.81
                                                                                                      from £6.81
                                                                                                      # 016
                                                                                                      MPN: 319220337
                                                                                                      BLOCK
                                                                                                      from £1.93
                                                                                                      from £1.93
                                                                                                      # 017
                                                                                                      MPN: 319220392
                                                                                                      GASKET
                                                                                                      # 018
                                                                                                      MPN: 53361308
                                                                                                      SCREW
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 019
                                                                                                      MPN: 136220043
                                                                                                      WASHER
                                                                                                      # 020
                                                                                                      MPN: 313620111
                                                                                                      FUEL FLOAT GANGE
                                                                                                      from £53.22
                                                                                                      from £53.22
                                                                                                      # 021
                                                                                                      MPN: 33331300
                                                                                                      GASKET
                                                                                                      from £1.93
                                                                                                      from £1.93
                                                                                                      # 022
                                                                                                      MPN: 31920389
                                                                                                      PIPE TO CONN, LANK TO RELIEF VALVE
                                                                                                      # 023
                                                                                                      MPN: 319220102
                                                                                                      TIP CONTROL VALVE
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 024
                                                                                                      MPN: 63031050
                                                                                                      WASHER
                                                                                                      # 025
                                                                                                      MPN: 21608051
                                                                                                      SCREW
                                                                                                      # 026
                                                                                                      MPN: 30921110
                                                                                                      CLAMP
                                                                                                      # 027
                                                                                                      MPN: 319220017
                                                                                                      EXHAUST FUEL CONNECTOR
                                                                                                      from £7.89
                                                                                                      from £7.89
                                                                                                      # 028
                                                                                                      MPN: 319220362
                                                                                                      GASKET
                                                                                                      from £1.08
                                                                                                      from £1.08
                                                                                                      # 029
                                                                                                      MPN: 319220315
                                                                                                      GASKET
                                                                                                      from £0.69
                                                                                                      from £0.69
                                                                                                      # 030
                                                                                                      MPN: 319220107
                                                                                                      CONN, FILTER
                                                                                                      from £1.14
                                                                                                      from £1.14
                                                                                                      # 031
                                                                                                      MPN: 319220360
                                                                                                      DRAIN PIPE
                                                                                                      # 032
                                                                                                      MPN: 319220361
                                                                                                      WIRE INLET
                                                                                                      from £2.32
                                                                                                      from £2.32
                                                                                                      # 033
                                                                                                      MPN: 312520143
                                                                                                      FUEL FILTER FLOP
                                                                                                      # 034
                                                                                                      MPN: 312520144
                                                                                                      OPERING DEVICE
                                                                                                      from £5.57
                                                                                                      from £5.57
                                                                                                      # 035
                                                                                                      MPN: 167570512
                                                                                                      SCREW
                                                                                                      from £1.55
                                                                                                      from £1.55
                                                                                                      # 036
                                                                                                      MPN: 119142160
                                                                                                      SCREW
                                                                                                      from £0.85
                                                                                                      from £0.85
                                                                                                      # 037
                                                                                                      MPN: 135900043
                                                                                                      WASHER
                                                                                                      from £1.08
                                                                                                      from £1.08
                                                                                                      This part replaces part number 14496207
                                                                                                      # 038
                                                                                                      MPN: 312520520
                                                                                                      CONTROL TIE ROD.
                                                                                                      from £1.06
                                                                                                      from £1.06
                                                                                                      # 039
                                                                                                      MPN: 30211310
                                                                                                      WIRE INLET
                                                                                                      from £1.06
                                                                                                      from £1.06
                                                                                                      # 040
                                                                                                      MPN: 312520515
                                                                                                      MARQUE SCALING
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 041
                                                                                                      MPN: 53451389
                                                                                                      SPRING
                                                                                                      from £1.08
                                                                                                      from £1.08
                                                                                                      # 042
                                                                                                      MPN: 313320195
                                                                                                      ACTUATOR
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 043
                                                                                                      MPN: 313320196
                                                                                                      ACTUATOR BRACKET
                                                                                                      from £1.55
                                                                                                      from £1.55
                                                                                                      # 044
                                                                                                      MPN: 3105101
                                                                                                      SCREW
                                                                                                      # 045
                                                                                                      MPN: 135700050
                                                                                                      WASHER
                                                                                                      from £1.08
                                                                                                      from £1.08
                                                                                                      # 046
                                                                                                      MPN: 61810516
                                                                                                      SCREW
                                                                                                      # 047
                                                                                                      MPN: 312520499
                                                                                                      BLOCK TO BIX OPERING DEVICE
                                                                                                      from £0.69
                                                                                                      from £0.69
                                                                                                      # 048
                                                                                                      MPN: 319220390
                                                                                                      Sleeve to conn, relief valve to lip control valve
                                                                                                      # 049
                                                                                                      MPN: 319220104
                                                                                                      PRESSURE RELIEF VALVE
                                                                                                      # 050
                                                                                                      MPN: 65000320
                                                                                                      CAP
