059 - Wiring Harnes and Electrical Components

Maserati Biturbo 2.5 (1984) Wiring Harnes and Electrical Components Parts Diagram

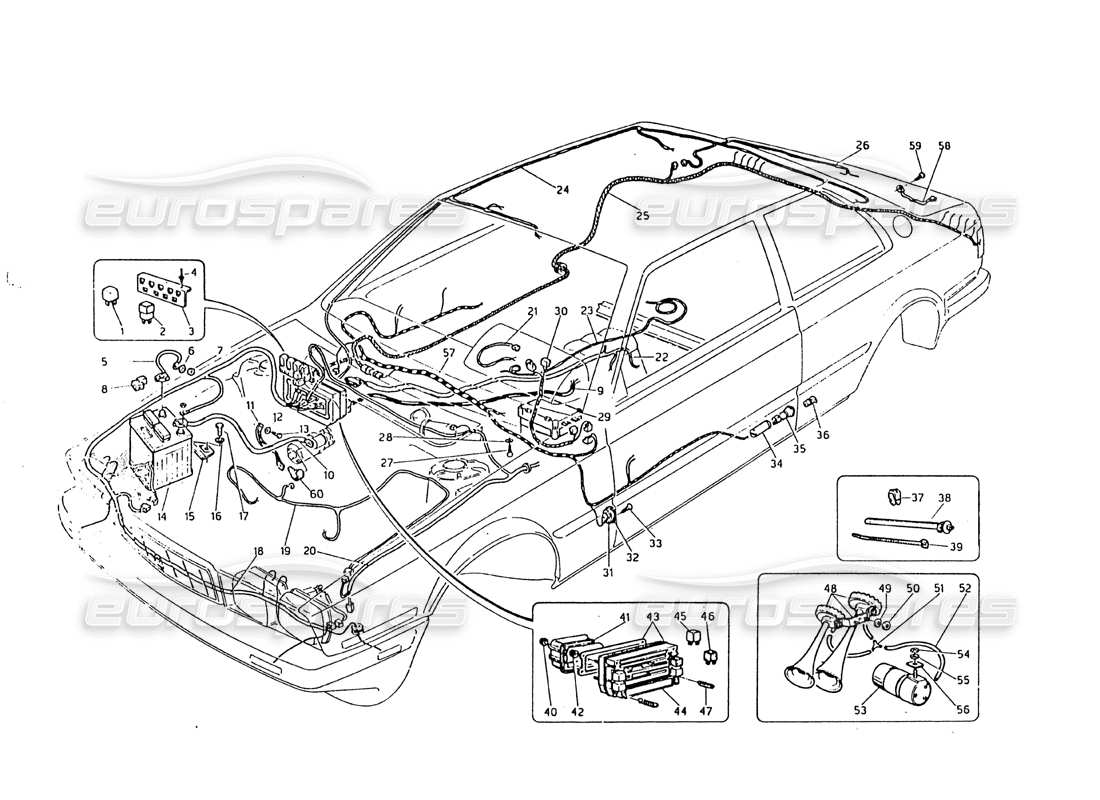

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                            #
                                                                                                                            Part number
                                                                                                                            Description
                                                                                                                            Key
                                                                                                                            Price
                                                                                                                            # 000
                                                                                                                            MPN: 313320333
                                                                                                                            SPRING
                                                                                                                            from £0.74
                                                                                                                            from £0.74
                                                                                                                            SPRING Genuine Maserati Part - New (to order)
                                                                                                                            # 001
                                                                                                                            MPN: 313320134
                                                                                                                            START RELAY
                                                                                                                            from £19.39
                                                                                                                            from £19.39
                                                                                                                            This part replaces part number 184101
                                                                                                                            BOSCH RELE' 30 AMP.X 9468 332 Genuine Maserati Part - New In stock
                                                                                                                            # 002
                                                                                                                            MPN: 313353106
                                                                                                                            RELAY WITH FUSE
                                                                                                                            from £9.08
                                                                                                                            from £9.08
                                                                                                                            This part replaces part number 313320106
                                                                                                                            RELAY WITH FUSE Genuine Maserati Part - New (to order)
                                                                                                                            # 003
                                                                                                                            MPN: 313020304
                                                                                                                            SUPPORT
                                                                                                                            from £1.46
                                                                                                                            from £1.46
                                                                                                                            SUPPORTO CONN.RELE' Genuine Maserati Part - New (to order)
                                                                                                                            # 004
                                                                                                                            MPN: 164353075
                                                                                                                            RIVET
                                                                                                                            RIVET Genuine Maserati Part - New (to order)
                                                                                                                            # 005
                                                                                                                            MPN: 313020122
                                                                                                                            NEGATIVE BATTERY CABLE FOR ENGINE FRAME
                                                                                                                            Supersession
                                                                                                                            Supersession
                                                                                                                            Genuine Maserati Part (no longer available to order)
                                                                                                                            # 005
                                                                                                                            MPN: 38302115
                                                                                                                            NEGATIVE BATTERY CABLE
                                                                                                                            NEGATIVE BATTERY CABLE Genuine Maserati Part - New (to order)
                                                                                                                            # 006
                                                                                                                            MPN: 16108001
                                                                                                                            SPRING WASHER
                                                                                                                            SPRING WASHER Genuine Maserati Part - New (to order)
                                                                                                                            # 007
                                                                                                                            MPN: 11108041
                                                                                                                            NUT
                                                                                                                            NUT Genuine Maserati Part - New (to order)
                                                                                                                            # 008
                                                                                                                            MPN: 313020300
                                                                                                                            CAP
                                                                                                                            from £1.29
                                                                                                                            from £1.29
                                                                                                                            PART Genuine Maserati Part - New (to order)
                                                                                                                            # 009
                                                                                                                            MPN: 313020107
                                                                                                                            INSTRUMENT PANEL WIRING HARNESS
                                                                                                                            from £137.92
                                                                                                                            from £137.92
                                                                                                                            WIRING HARNESS Genuine Maserati Part - New (to order)
                                                                                                                            # 010
                                                                                                                            MPN: 313020117
                                                                                                                            POSITIVE BATTERY CABLE
                                                                                                                            Supersession
                                                                                                                            Supersession
                                                                                                                            Genuine Maserati Part (no longer available to order)
                                                                                                                            # 011
                                                                                                                            MPN: 313020116
                                                                                                                            EARTH LEAD
                                                                                                                            EARTH LEAD Genuine Maserati Part - New (to order)
                                                                                                                            # 012
                                                                                                                            MPN: 16108001
                                                                                                                            SPRING WASHER
                                                                                                                            SPRING WASHER Genuine Maserati Part - New (to order)
                                                                                                                            # 013
                                                                                                                            MPN: 3108161
                                                                                                                            SCREW
                                                                                                                            SCREW Genuine Maserati Part - New (to order)
                                                                                                                            # 014
                                                                                                                            MPN: 313020101
                                                                                                                            BATTERY (NOT SUPPLIED)
                                                                                                                            BATTERY (NOT SUPPLIED) Genuine Maserati Part - New (to order)
                                                                                                                            # 015
                                                                                                                            MPN: 313020314
                                                                                                                            PLATE
                                                                                                                            from £1.83
                                                                                                                            from £1.83
                                                                                                                            BATTERY FASTENING PLATE Genuine Maserati Part - New (to order)
                                                                                                                            # 018
                                                                                                                            MPN: 313020109
                                                                                                                            RH ENGINE COMPART, WIRING HARNESS
                                                                                                                            from £137.12
                                                                                                                            from £137.12
                                                                                                                            WIRING HARNESS Genuine Maserati Part - New (to order)
                                                                                                                            # 019
                                                                                                                            MPN: 313020125
                                                                                                                            ENGINE WIRING HARNESS
                                                                                                                            Supersession
                                                                                                                            Supersession
                                                                                                                            Genuine Maserati Part (no longer available to order)
                                                                                                                            # 020
                                                                                                                            MPN: 313020106
                                                                                                                            LH ENGINE COMPART, WIRING HARNESS
                                                                                                                            from £102.83
                                                                                                                            from £102.83
                                                                                                                            WIRING HARNESS Genuine Maserati Part - New (to order)
                                                                                                                            # 021
                                                                                                                            MPN: 313020121
                                                                                                                            INSULATED WIRE
                                                                                                                            from £10.19
                                                                                                                            from £10.19
                                                                                                                            PART Genuine Maserati Part - New (to order)
                                                                                                                            # 022
                                                                                                                            MPN: 313020110
                                                                                                                            CONSOLE WIRING HARNESS
                                                                                                                            CONSOLE WIRING HARNESS Genuine Maserati Part - New (to order)
                                                                                                                            # 023
                                                                                                                            MPN: 313020118
                                                                                                                            LOUDSPEAKER WIRING HARNESS
                                                                                                                            from £11.06
                                                                                                                            from £11.06
                                                                                                                            LOUDSPEAKER WIRING HARNESS Genuine Maserati Part - New (to order)
                                                                                                                            # 024
                                                                                                                            MPN: 313020112
                                                                                                                            ROOF LIGHT WIRING HARNESS
                                                                                                                            from £30.65
                                                                                                                            from £30.65
                                                                                                                            ROOF LIGHT WIRING HARNESS Genuine Maserati Part - New (to order)
                                                                                                                            # 025
                                                                                                                            MPN: 313020108
                                                                                                                            REAR WIRING HARNESS
                                                                                                                            from £62.54
                                                                                                                            from £62.54
                                                                                                                            REAR WIRING HARNESS Genuine Maserati Part - New (to order)
                                                                                                                            # 026
                                                                                                                            MPN: 313020111
                                                                                                                            LUGGAGE ROOM WIRING HARNESS
                                                                                                                            LUGGAGE ROOM WIRING HARNESS Genuine Maserati Part - New (to order)
                                                                                                                            # 027
                                                                                                                            MPN: 119142380
                                                                                                                            SCREW
                                                                                                                            SCREW Genuine Maserati Part - New (to order)
                                                                                                                            # 028
                                                                                                                            MPN: 16104001
                                                                                                                            WASHER
                                                                                                                            WASHER Genuine Maserati Part - New (to order)
                                                                                                                            # 029
                                                                                                                            MPN: 313620107
                                                                                                                            CHECK CONTROL
                                                                                                                            from £258.69
                                                                                                                            from £258.69
                                                                                                                            CHECK CONTROL Genuine Maserati Part - New (to order)
                                                                                                                            # 030
                                                                                                                            MPN: 313020113
                                                                                                                            CHECK/INSTRUMENT WIRING HARNESS
                                                                                                                            from £17.85
                                                                                                                            from £17.85
                                                                                                                            CHECK/INSTRUMENT WIRING HARNES Genuine Maserati Part - New (to order)
                                                                                                                            # 032
                                                                                                                            MPN: 53211305
                                                                                                                            SEAL
                                                                                                                            from £0.74
                                                                                                                            from £0.74
                                                                                                                            DOOR LIGHTS GASKET Genuine Maserati Part - New (to order)
                                                                                                                            # 033
                                                                                                                            MPN: 119535130
                                                                                                                            SCREW
                                                                                                                            SCREW Genuine Maserati Part - New (to order)
                                                                                                                            # 034
                                                                                                                            MPN: 53311300
                                                                                                                            CAP
                                                                                                                            from £0.74
                                                                                                                            from £0.74
                                                                                                                            DOOR LIGHT CAP Genuine Maserati Part - New In stock
                                                                                                                            # 035
                                                                                                                            MPN: 30311113
                                                                                                                            DOOR LIGHT
                                                                                                                            from £53.92
                                                                                                                            from £53.92
                                                                                                                            DOOR INDICATOR LIGHT Genuine Maserati Part - New (to order)
                                                                                                                            # 036
                                                                                                                            MPN: 87720004
                                                                                                                            BULB
                                                                                                                            from £3.48
                                                                                                                            from £3.48
                                                                                                                            BULB Genuine Maserati Part - New (to order)
                                                                                                                            # 037
                                                                                                                            MPN: 53471340
                                                                                                                            WIRE CLIP
                                                                                                                            from £1.22
                                                                                                                            from £1.22
                                                                                                                            CONTROL GABLE SPRING Genuine Maserati Part - New In stock
                                                                                                                            # 038
                                                                                                                            MPN: 313020307
                                                                                                                            STRAP
                                                                                                                            Supersession
                                                                                                                            Supersession
                                                                                                                            Genuine Maserati Part (no longer available to order)
                                                                                                                            # 039
                                                                                                                            MPN: 313020308
                                                                                                                            STRAP
                                                                                                                            from £0.74
                                                                                                                            from £0.74
                                                                                                                            CLAMP-200.7711101 Genuine Maserati Part - New (to order)
                                                                                                                            # 041
                                                                                                                            MPN: 313020331
                                                                                                                            FUSE BOX GUARD
                                                                                                                            from £2.08
                                                                                                                            from £2.08
                                                                                                                            Maserati PART 313020331 Genuine Maserati Part - New (to order)
                                                                                                                            # 043
                                                                                                                            MPN: 313020104
                                                                                                                            FUSE BOX, ASSY IF
                                                                                                                            from £269.48
                                                                                                                            from £269.48
                                                                                                                            FUSE BOX Genuine Maserati Part - New (to order)
                                                                                                                            # 044
                                                                                                                            MPN: 313020339
                                                                                                                            FUSE BOX CAP
                                                                                                                            from £0.72
                                                                                                                            from £0.72
                                                                                                                            FUSE BOX COVER Genuine Maserati Part - New (to order)
                                                                                                                            # 045
                                                                                                                            MPN: 30331137
                                                                                                                            RELAY
                                                                                                                            Supersession
                                                                                                                            Supersession
                                                                                                                            Genuine Maserati Part (no longer available to order)
                                                                                                                            # 046
                                                                                                                            MPN: 313320136
                                                                                                                            DIODES BRIDGE
                                                                                                                            from £10.34
                                                                                                                            from £10.34
                                                                                                                            DIODES BRIDGE Genuine Maserati Part - New (to order)
                                                                                                                            # 047
                                                                                                                            MPN: 87200005
                                                                                                                            FUSE
                                                                                                                            FUSE Genuine Maserati Part - New (to order)
                                                                                                                            # 047
                                                                                                                            MPN: 87200008
                                                                                                                            FUSE
                                                                                                                            FUSE Genuine Maserati Part - New (to order)
                                                                                                                            # 047
                                                                                                                            MPN: 87200016
                                                                                                                            FUSE
                                                                                                                            FUSE Genuine Maserati Part - New (to order)
                                                                                                                            # 048
                                                                                                                            MPN: 313320145
                                                                                                                            HORN SET
                                                                                                                            HORN SET Genuine Maserati Part - New (to order)
                                                                                                                            # 051
                                                                                                                            MPN: 313320324
                                                                                                                            THREE WAY» UNION
                                                                                                                            from £7.68
                                                                                                                            from £7.68
                                                                                                                            THREE WAY UNION Genuine Maserati Part - New (to order)
                                                                                                                            # 052
                                                                                                                            MPN: 314020316
                                                                                                                            PIPE
                                                                                                                            from £1.94
                                                                                                                            from £1.94
                                                                                                                            This part replaces part number 313320325
                                                                                                                            BREATHER PIPE Genuine Maserati Part - New (to order)
                                                                                                                            # 053
                                                                                                                            MPN: 313320146
                                                                                                                            AIR COMPRESSOR
                                                                                                                            from £60.50
                                                                                                                            from £60.50
                                                                                                                            HORN COMPRESSOR Genuine Maserati Part - New (to order)
                                                                                                                            # 054
                                                                                                                            MPN: 125100080
                                                                                                                            NUT
                                                                                                                            from £0.86
                                                                                                                            from £0.86
                                                                                                                            DADO Genuine Maserati Part - New (to order)
                                                                                                                            # 057
                                                                                                                            MPN: 313020119
                                                                                                                            WIRING HARNESS
                                                                                                                            from £99.54
                                                                                                                            from £99.54
                                                                                                                            WIRING HARNESS Genuine Maserati Part - New (to order)
                                                                                                                            # 058
                                                                                                                            MPN: 53301127
                                                                                                                            EARTH CABLE
                                                                                                                            from £0.95
                                                                                                                            from £0.95
                                                                                                                            EARTH CABLE Genuine Maserati Part - New (to order)
                                                                                                                            # 059
                                                                                                                            MPN: 61810306
                                                                                                                            SCREW
                                                                                                                            SCREW Genuine Maserati Part - New (to order)
                                                                                                                            # 060
                                                                                                                            MPN: 313020303
                                                                                                                            CAP
                                                                                                                            CAP Genuine Maserati Part - New (to order)
