059 - Wiring Harness and Electrical Components (RH Steering)

Maserati Biturbo Spider Wiring Harness and Electrical Components (R.H. Steering) Parts Diagram

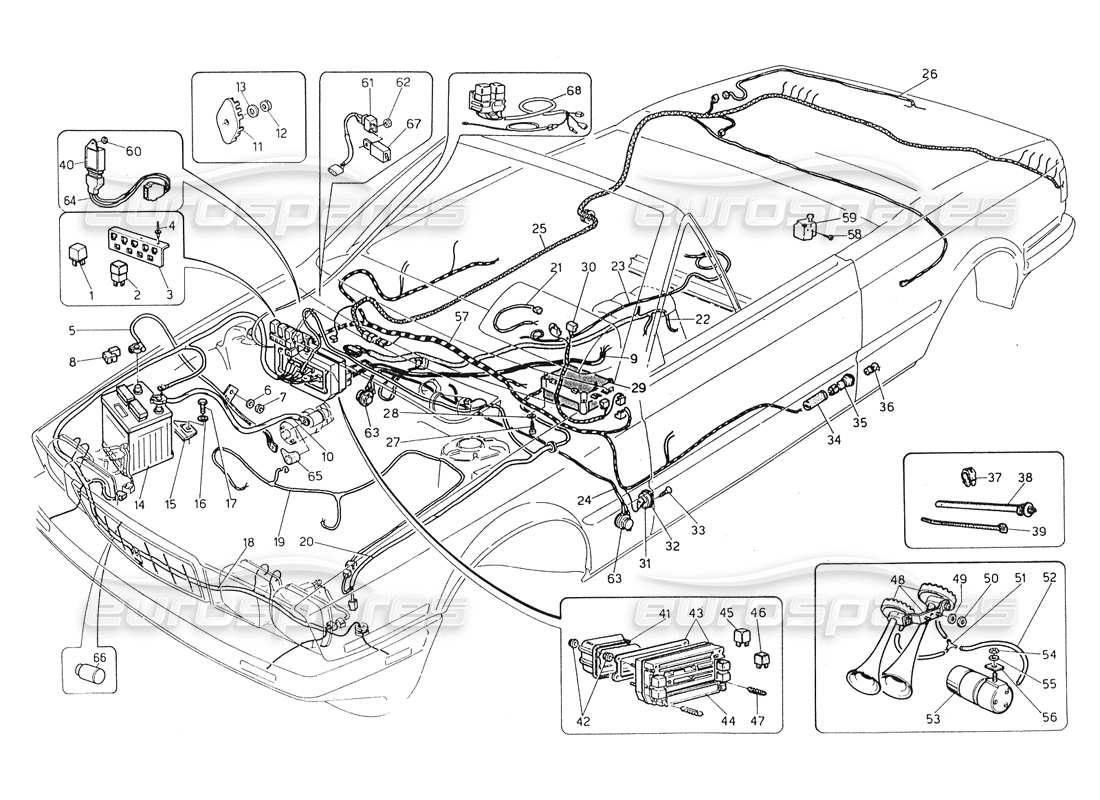

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 001
MPN: 313320134
START RELAY
Valid for 00, 02, 03, 10, 11
from £18.79
from £18.79
This part replaces part number 184101
BOSCH RELE' 30 AMP.X 9468 332 Genuine Maserati Part - New In stock
# 002
MPN: 313353106
RELAY WITH FUSE
Valid for 00, 02, 03, 10, 11
from £8.79
from £8.79
This part replaces part number 313320106
RELAY WITH FUSE Genuine Maserati Part - New (to order)
# 003
MPN: 313720102
SUPPORT
Valid for 00, 02, 03, 10, 11
from £7.01
from £7.01
SOLENOID MOUNT Genuine Maserati Part - New (to order)
# 004
MPN: 164353075
RIVET
Valid for 00, 02, 03, 10, 11
RIVET Genuine Maserati Part - New (to order)
# 005
MPN: 313750106
NEGATIVE BATTERY CABLE FOR ENGINE FRAME
Valid for 00, 02, 03, 10, 11
from £9.67
from £9.67
This part replaces part number 313020122
BATTERY NEGATIVE CABLE Genuine Maserati Part - New (to order)
# 006
MPN: 135600084
SPRING WASHER
Valid for 00, 02, 03, 10, 11
SPRING WASHER Genuine Maserati Part - New (to order)
# 007
MPN: 125100080
NUT
Valid for 00, 02, 03, 10, 11
from £0.86
from £0.86
DADO Genuine Maserati Part - New (to order)
# 008
MPN: 313020300
CAP
Valid for 00, 02, 03, 10, 11
from £1.11
from £1.11
PART Genuine Maserati Part - New (to order)
# 009
MPN: 313020144
INSTRUMENT PANEL WIRING HARNESS
Valid for 00, 02, 03
from £148.97
from £148.97
DASHBOARD WIRING HARNESS Genuine Maserati Part - New (to order)
# 009
MPN: 313037144
INSTRUMENT PANEL WIRING HARNESS
Valid for 10, 11
from £120.73
from £120.73
DASHBOARD WIRING HARNESS Genuine Maserati Part - New (to order)
# 010
MPN: 313020117
POSITIVE BATTERY CABLE
Valid for 00, 02, 03, 10, 11
Supersession
Supersession
Genuine Maserati Part (no longer available to order)
# 011
MPN: 313027326
EARTH LEAD
Valid for 00, 02, 03, 10, 11
from £1.11
from £1.11
GROUND PLATE Genuine Maserati Part - New (to order)
# 012
MPN: 122600060
NUT
Valid for 00, 02, 03, 10, 11
Maserati PART 122600060 Genuine Maserati Part - New (to order)
# 013
MPN: 135700060
WASHER
Valid for 00, 02, 03, 10, 11
WASHER Genuine Maserati Part - New (to order)
# 014
-
BATTERY (NOT SUPPLIED)
# 015
MPN: 313020314
PLATE
Valid for 00, 02, 03, 10, 11
from £1.60
from £1.60
BATTERY FASTENING PLATE Genuine Maserati Part - New In stock
# 016
MPN: 138200080
SPRING WASHER
Valid for 00, 02, 03, 10, 11
Maserati PART 138200080 Genuine Maserati Part - New (to order)
# 017
MPN: 101208020
SCREW
Valid for 00, 02, 03, 10, 11
Maserati PART 101208020 Genuine Maserati Part - New (to order)
# 018
MPN: 313037143
RH ENGINE COMPART, WIRING HARNESS
Valid for 10, 11
from £179.48
from £179.48
RH ENGINE WIRING HARNESS Genuine Maserati Part - New (to order)
# 018
MPN: 323020143
RH ENGINE COMPART, WIRING HARNESS
Valid for 00, 02, 03
RH ENGINE COMPART, WIRING HARNESS Genuine Maserati Part - New (to order)
# 019
MPN: 313020125
ENGINE WIRING HARNESS
Valid for 00, 02, 03, 10, 11
Supersession
Supersession
Genuine Maserati Part (no longer available to order)
# 020
MPN: 313037142
LH ENGINE COMPART, WIRING HARNESS
Valid for 10,11
from £77.80
from £77.80
LH ENGINE WIRING HARNESS Genuine Maserati Part - New (to order)
# 020
MPN: 323020142
LH ENGINE COMPART, WIRING HARNESS
Valid for 00, 02, 03
from £106.82
from £106.82
WIRING HARNESS Genuine Maserati Part - New (to order)
# 021
MPN: 313020121
INSULATED WIRE (ONLY FOR MECHANICAL TRANSMISSION.)
Valid for 00, 02, 10
from £9.88
from £9.88
PART Genuine Maserati Part - New (to order)
# 021
MPN: 313032121
INSULATED WIRE (ONLY FOR 3HP AUTOMATIC TRANSMISSION.)
Valid for 03, 11
from £28.18
from £28.18
GENERATOR WIRING HARNESS Genuine Maserati Part - New (to order)
# 021
MPN: 313055121
INSULATED WIRE (ONLY FOR 4HP AUTOMATIC TRANSMISSION.)
Valid for 03, 11
from £4.16
from £4.16
Maserati PART 313055121 Genuine Maserati Part - New (to order)
# 021
MPN: 313320333
SPRING
Valid for 00, 02, 03, 10, 11
from £0.71
from £0.71
SPRING Genuine Maserati Part - New (to order)
# 022
MPN: 313050110
CONSOLE WIRING HARNESS
Valid for 00, 02, 03, 10, 11
CONSOLE WIRING HARNESS Genuine Maserati Part - New (to order)
# 023
MPN: 313030118
LOUDSPEAKER WIRING HARNESS
Valid for 00, 02, 03, 10, 11
from £24.36
from £24.36
GRUPPO CAVI ALTOPARL. C/FAST Genuine Maserati Part - New (to order)
# 024
MPN: 333020112
ROOF LIGHT WIRING HARNESS
Valid for 00, 02, 03, 10, 11
from £14.96
from £14.96
WIRING Genuine Maserati Part - New (to order)
# 025
MPN: 313050108
REAR WIRING HARNESS
Valid for 00, 02, 03
REAR WIRING HARNESS Genuine Maserati Part - New (to order)
# 025
MPN: 313060108
REAR WIRING HARNESS
Valid for 10, 11
from £105.20
from £105.20
Maserati PART 313060108 Genuine Maserati Part - New (to order)
# 026
MPN: 323056111
LUGGAGE ROOM WIRING HARNESS
Valid for 00, 02, 03, 10, 11
from £10.02
from £10.02
LUGG.COMPARTMENT WIRING HARN Genuine Maserati Part - New (to order)
# 027
MPN: 119142380
SCREW
Valid for 00, 02, 03, 10, 11
SCREW Genuine Maserati Part - New (to order)
# 028
MPN: 135300043
WASHER
Valid for 00, 02, 03, 10, 11
Maserati PART 135300043 Genuine Maserati Part - New (to order)
# 029
MPN: 313620107
CHECK CONTROL
Valid for 00, 02, 03, 10, 11
from £165.51
from £165.51
Maserati PART 313620107 Genuine Maserati Part - New (to order)
# 030
MPN: 313020113
CHECK/INSTRUMENT WIRING HARNESS
Valid for 10, 11
from £17.30
from £17.30
CHECK/INSTRUMENT WIRING HARNES Genuine Maserati Part - New (to order)
# 030
MPN: 313030113
CHECK/INSTRUMENT WIRING HARNESS
Valid for 00, 02, 03
from £29.37
from £29.37
CHECK SYST. WIRING HARNESS Genuine Maserati Part - New (to order)
# 031
MPN: 34331114
DOOR SWITCH
Valid for 00, 02, 03, 10, 11
Maserati PART 34331114 Genuine Maserati Part - New (to order)
# 032
MPN: 53211305
GASKET
Valid for 00, 02, 03, 10, 11
from £0.71
from £0.71
GUARNIZIONE LUCE SULLE PORTE Genuine Maserati Part - New (to order)
# 033
MPN: 119535130
SCREW
Valid for 00, 02, 03, 10, 11
SCREW Genuine Maserati Part - New (to order)
# 034
MPN: 53311300
CAP
Valid for 00, 02, 03, 10, 11
from £0.71
from £0.71
DOOR LIGHT CAP Genuine Maserati Part - New In stock
# 035
MPN: 30311113
OPEN DOOR LIGHT
Valid for 00, 02, 03, 10, 11
from £4.23
from £4.23
DOOR INDICATOR LIGHT Genuine Maserati Part - New (to order)
# 036
MPN: 87720004
BULB
Valid for 00, 02, 03, 10, 11
from £0.47
from £0.47
BULB Genuine Maserati Part - New (to order)
# 037
MPN: 53471340
WIRE CLIP
Valid for 00, 02, 03, 10, 11
from £1.16
from £1.16
CONTROL GABLE SPRING Genuine Maserati Part - New (to order)
# 038
MPN: 313020307
STRAP
Valid for 00, 02, 03, 10, 11
Supersession
Supersession
Genuine Maserati Part (no longer available to order)
# 039
MPN: 313020308
STRAP
Valid for 00, 02, 03, 10, 11
from £0.71
from £0.71
CLAMP-200.7711101 Genuine Maserati Part - New (to order)
# 040
MPN: 313330113
SEAT BELTS FUSE BOX
Valid for 10, 11
from £55.27
from £55.27
BELT GEARCASE Genuine Maserati Part - New (to order)
# 041
MPN: 313020331
FUSE BOX GUARD
Valid for 00, 02, 03, 10, 11
from £1.98
from £1.98
Maserati PART 313020331 Genuine Maserati Part - New (to order)
# 042
MPN: 122600060
NUT
Valid for 00, 02, 03, 10, 11
Maserati PART 122600060 Genuine Maserati Part - New (to order)
# 043
MPN: 313020104
FUSE BOX, ASSY
Valid for 00, 02, 03, 10, 11
from £173.22
from £173.22
FUSE BOX Genuine Maserati Part - New (to order)
# 044
MPN: 313020339
FUSE BOX CAP
Valid for 00, 02, 03, 10, 11
from £0.71
from £0.71
FUSE BOX COVER Genuine Maserati Part - New (to order)
# 045
MPN: 30331137
RELAY
Valid for 00, 02, 03, 10, 11
Supersession
Supersession
Genuine Maserati Part (no longer available to order)
# 046
MPN: 313320136
DIODES BRIDGE
Valid for 00, 02, 03, 10, 11
from £6.61
from £6.61
DIODES BRIDGE Genuine Maserati Part - New (to order)
# 047
MPN: 87200005
FUSE
Valid for 00, 02, 03, 10, 11
FUSE Genuine Maserati Part - New (to order)
# 047
MPN: 87200008
FUSE
Valid for 00, 02, 03, 10, 11
FUSE Genuine Maserati Part - New (to order)
# 047
MPN: 87200016
FUSE
Valid for 00, 02, 03, 10, 11
FUSE Genuine Maserati Part - New (to order)
# 048
MPN: 313320006
HORN SET
Valid for 00, 02, 03, 10, 11
from £19.59
from £19.59
HORNS Genuine Maserati Part - New (to order)
# 049
MPN: 138200060
WASHER
Valid for 00, 02, 03, 10, 11
Maserati PART 138200060 Genuine Maserati Part - New (to order)
# 050
MPN: 125100060
NUT
Valid for 00, 02, 03, 10, 11
Maserati PART 125100060 Genuine Maserati Part - New (to order)
# 051
MPN: 313320324
THREE WAY UNION
Valid for 00, 02, 03, 10, 11
from £7.40
from £7.40
THREE WAY UNION Genuine Maserati Part - New (to order)

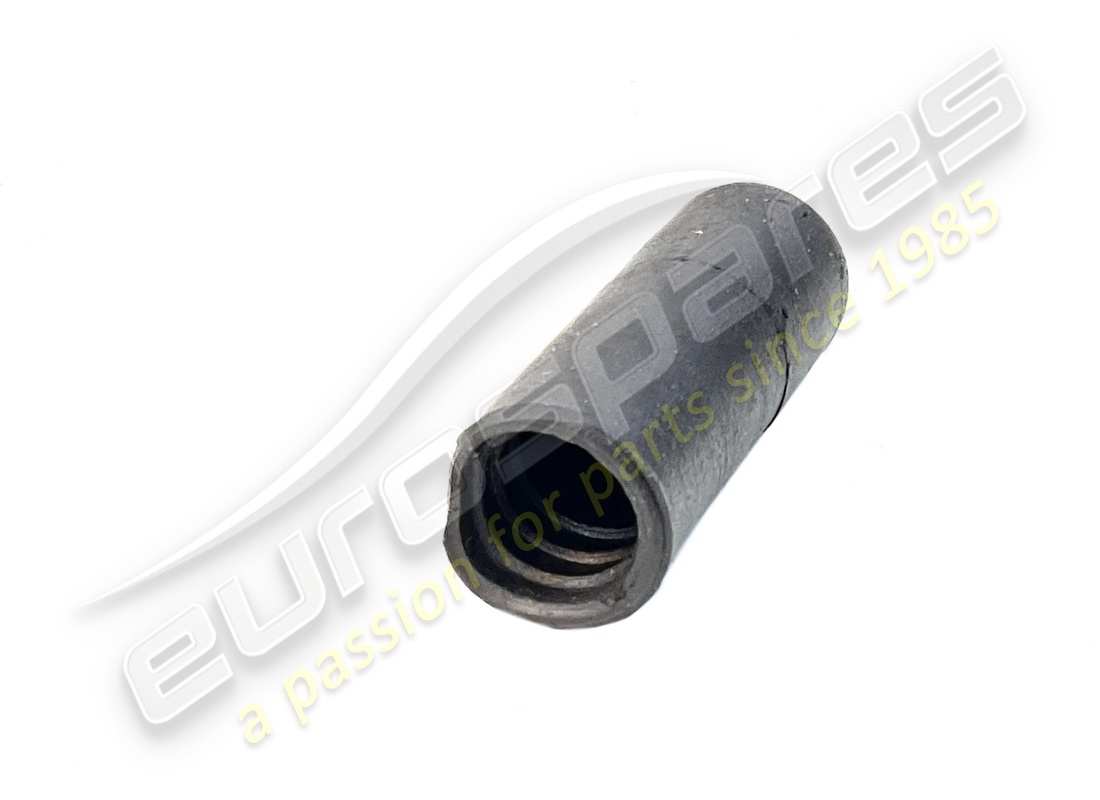

# 052
MPN: 314020316
PIPE
Valid for 00, 02, 03, 10, 11
from £1.85
from £1.85
This part replaces part number 313320325
TUBAZIONE Genuine Maserati Part - New (to order)
# 053
MPN: 313320146
AIR COMPRESSOR
Valid for 00, 02, 03, 10, 11
from £58.06
from £58.06
HORN COMPRESSOR Genuine Maserati Part - New (to order)
# 054
MPN: 125100080
NUT
Valid for 00, 02, 03, 10, 11
from £0.86
from £0.86
DADO Genuine Maserati Part - New (to order)
# 055
MPN: 138200080
WASHER
Valid for 00, 02, 03, 10, 11
Maserati PART 138200080 Genuine Maserati Part - New (to order)
# 056
MPN: 30631365
PLATE
Valid for 00, 02, 03, 10, 11
Maserati PART 30631365 Genuine Maserati Part - New (to order)
# 057
MPN: 313050119
WIRING HARNESS
Valid for 00, 02, 03, 10, 11
from £285.66
from £285.66
WIRING HARNESS Genuine Maserati Part - New (to order)
# 058
MPN: 119129095
SCREW
Valid for 00, 02, 03, 10, 11
Maserati PART 119129095 Genuine Maserati Part - New (to order)
# 059
MPN: 313330135
CIRCUIT BREAKER
Valid for 00, 02, 03, 10, 11
from £15.60
from £15.60
INERTIA SWITCH Genuine Maserati Part - New (to order)
# 060
MPN: 122600050
NUT
Valid for 10, 11
Maserati PART 122600050 Genuine Maserati Part - New (to order)
# 061
MPN: 30301124
THERMIC SWITCH
Valid for 00, 02, 03, 10, 11
from £12.67
from £12.67
THERMIC SWITCH Genuine Maserati Part - New (to order)
# 062
MPN: 122600060
NUT
Valid for 00, 02, 03, 10, 11
Maserati PART 122600060 Genuine Maserati Part - New (to order)
# 063
MPN: 313120118
ROOF LAMP BROWN COLOR
Valid for 00, 02, 03, 10, 11
from £1.42
from £1.42
This part replaces part number 323156116
DOME LIGHT WITH SWITCH Genuine Maserati Part - New (to order)
# 064
MPN: 313030123
WIRING HARNESS
Valid for 10, 11
from £9.04
from £9.04
BELT WIRING HARNESS Genuine Maserati Part - New (to order)
# 065
MPN: 313020301
CAP
Valid for 00, 02, 03, 10, 11
from £14.41
from £14.41
Maserati PART 313020301 Genuine Maserati Part - New (to order)
# 066
MPN: 323020302
CAP
Valid for 00, 02, 03, 10, 11
CAP Genuine Maserati Part - New (to order)
# 067
MPN: 323320193
FUSE BOX
Valid for 00, 02, 03, 10, 11
from £23.73
from £23.73
DOOR ACTUATOR ECU Genuine Maserati Part - New (to order)
# 068
MPN: 313050103
WIRING HARNESS
Valid for 00, 02, 03, 10, 11
WIRING HARNESS Genuine Maserati Part - New (to order)
Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
