maserati karif 2.8 ignition system - distributor parts diagram

015 - Ignition System - Distributor

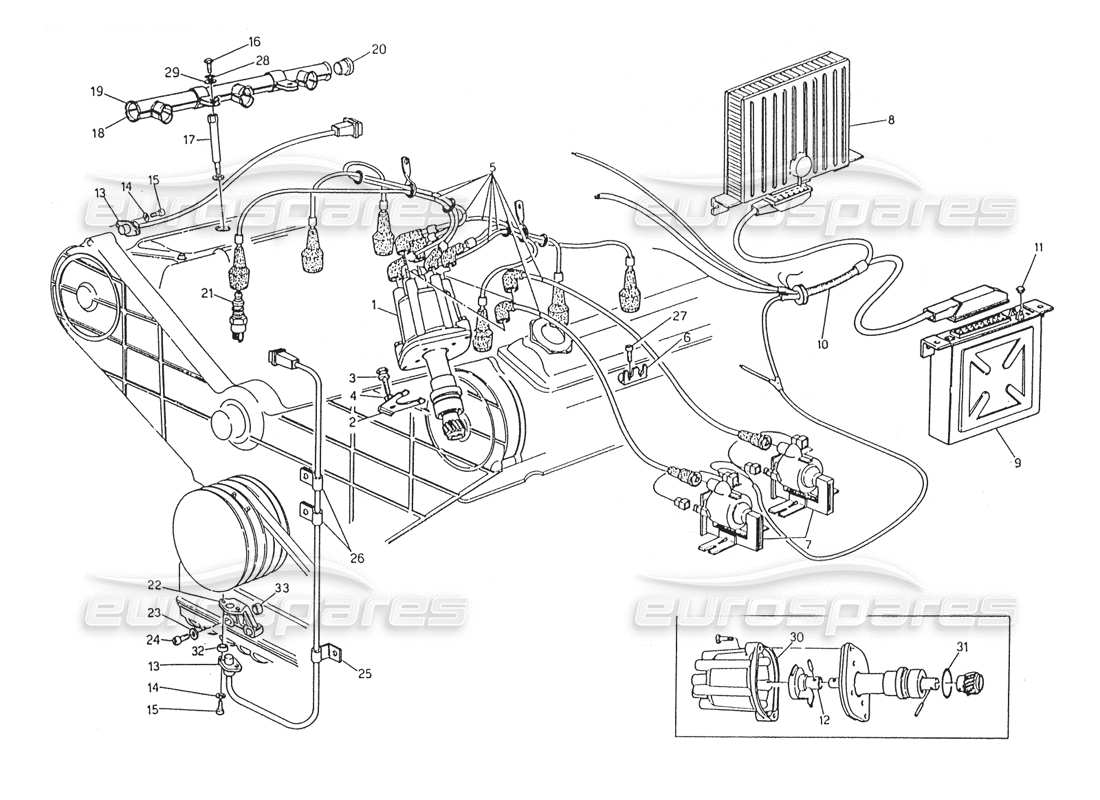

Maserati Karif 2.8 Ignition System - Distributor Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                    #
                                                    Part number
                                                    Description
                                                    Key
                                                    Price
                                                    # 001
                                                    MPN: 313220219/a
                                                    DISTRIBUTOR ASSY
                                                    Complete unit
                                                    DISTRIBUTOR ASSY Genuine Maserati Part - New (to order)
                                                    # 002
                                                    MPN: 313220406
                                                    DISTRIBUTOR BRACKET
                                                    Maserati PART 313220406 Genuine Maserati Part - New (to order)
                                                    # 005
                                                    MPN: 313250220
                                                    SPARK PLUGS CABLE SET
                                                    use part number: MHT005
                                                    from £327.58
                                                    from £327.58
                                                    CABLE ASSY Genuine Maserati Part - New (to order)
                                                    # 005
                                                    MPN: MHT005
                                                    COMPLETE HT LEADS SET
                                                    valid for 2.8 twin coil
                                                    from £181.05
                                                    from £181.05
                                                    COMPLETE HT LEADS SET (MHT005) Eurospares Approved Part - New In stock
                                                    COMPLETE HT LEADS SET Genuine Maserati Part - New (to order)
                                                    # 007
                                                    MPN: 313220110/A
                                                    IGNITION COIL
                                                    Supersession
                                                    Supersession
                                                    Genuine Maserati Part (no longer available to order)
                                                    # 008
                                                    MPN: 323260107
                                                    MARELLI IGNITION BOX
                                                    Valid for Version 02 and 24
                                                    from £923.77
                                                    from £923.77
                                                    CONTROL UNIT Genuine Maserati Part - New (to order)
                                                    # 008
                                                    MPN: 343200107
                                                    ELECTRONIC CONTROL UNIT
                                                    (MED 602 E) Microplex - Magneti Marelli
                                                    from £818.93
                                                    from £818.93
                                                    MARELLI IGNITION BOX Genuine Maserati Part - New (to order)
                                                    MARELLI IGNITION BOX Genuine Maserati Part - Used In stock
                                                    (MED 602 E) Microplex - Magneti Marelli
                                                    # 009
                                                    MPN: 323760100
                                                    WEBER IGNITION BOX
                                                    Valid for Version 02 and 24
                                                    Supersession
                                                    Supersession
                                                    Genuine Maserati Part (no longer available to order)
                                                    # 009
                                                    MPN: 343700100
                                                    WEBER IGNITION BOX
                                                    Valid for Version 00 and 20
                                                    Supersession
                                                    Supersession
                                                    Genuine Maserati Part (no longer available to order)
                                                    # 010
                                                    MPN: 313747101
                                                    IGNITION WIRING HARNESS
                                                    Valid for Version 20 and 24
                                                    from £395.44
                                                    from £395.44
                                                    WIRING Genuine Maserati Part - New (to order)
                                                    # 010
                                                    MPN: 323760101
                                                    IGNITION WIRING HARNESS
                                                    Valid for Version 00 and 02
                                                    Supersession
                                                    Supersession
                                                    This part replaces part number 313720101
                                                    Genuine Maserati Part (no longer available to order)
                                                    # 011
                                                    MPN: 313720326
                                                    PLUG
                                                    Valid for Version 00 and 20
                                                    PLUG Genuine Maserati Part - New (to order)
                                                    # 011
                                                    MPN: 323760326
                                                    PLUG
                                                    Valid for Version 02 and 24
                                                    from £1.11
                                                    from £1.11
                                                    CAP Genuine Maserati Part - New (to order)
                                                    # 012
                                                    MPN: 313220222
                                                    ROTOR ARM
                                                    from £77.60
                                                    from £77.60
                                                    ROTOR ARM Genuine Maserati Part - New (to order)
                                                    ROTOR ARM (313220222) Original Equipment - New In stock
                                                    # 016
                                                    MPN: 108006020
                                                    SCREW Ø 6 X 1 X 20
                                                    Maserati PART 108006020 Genuine Maserati Part - New (to order)
                                                    # 018
                                                    MPN: 313720318
                                                    LOWER PART CABLE
                                                    from £0.71
                                                    from £0.71
                                                    Maserati PART 313720318 Genuine Maserati Part - New (to order)
                                                    # 019
                                                    MPN: 313720319
                                                    UPPER PART CABLE
                                                    from £6.11
                                                    from £6.11
                                                    NON FORNITO VEDI 313720318 Genuine Maserati Part - New (to order)
                                                    # 021
                                                    MPN: 313220224
                                                    SPARK PLUG
                                                    Use part number 100604/A
                                                    from £3.22
                                                    from £3.22
                                                    This part replaces part number 313220210
                                                    NGK BP 8 ES SPARK PLUG Genuine Maserati Part - New (to order)
                                                    NGK BP 8 ES SPARK PLUG (313220224) Original Equipment - New In stock
                                                    # 022
                                                    MPN: 313720317
                                                    ELECTROMAGNETIC SENSOR SUPPORT
                                                    Supersession
                                                    Supersession
                                                    Genuine Maserati Part (no longer available to order)
                                                    # 022
                                                    MPN: 470061201
                                                    ELECTROMAGNETIC SENSOR SUPPORT
                                                    See also 313720317
                                                    from £16.70
                                                    from £16.70
                                                    This part replaces part number 313720317
                                                    SUPPORT Genuine Maserati Part - New In stock
                                                    # 024
                                                    MPN: 313720322
                                                    SCREW
                                                    from £1.35
                                                    from £1.35
                                                    SCREW Genuine Maserati Part - New (to order)
                                                    # 026
                                                    MPN: 313720316
                                                    CLAMP
                                                    CLAMP Genuine Maserati Part - New (to order)
                                                    # 027
                                                    MPN: 108006025
                                                    SCREW Ø 6 X 1 X 25
                                                    Maserati PART 108006025 Genuine Maserati Part - New (to order)
                                                    # 029
                                                    MPN: 312220411
                                                    WASHER
                                                    from £0.47
                                                    from £0.47
                                                    ROSETTA Genuine Maserati Part - New (to order)
                                                    # 030
                                                    MPN: 313220221
                                                    DISTRIBUTOR CAP
                                                    from £227.12
                                                    from £227.12
                                                    CAP Genuine Maserati Part - New (to order)
                                                    DISTRIBUTOR CAP (313220221) Original Equipment - New (to order)
                                                    # 031
                                                    MPN: 192415330
                                                    SEAL RING
                                                    from £0.71
                                                    from £0.71
                                                    RING Genuine Maserati Part - New (to order)
                                                    # 032
                                                    MPN: 470061801
                                                    SPACER
                                                    from £0.69
                                                    from £0.69
                                                    This part replaces part number 313720327
                                                    SPACER FOR ELECTRIC SENSOR Genuine Maserati Part - New In stock
                                                    # 033
                                                    MPN: 310850350
                                                    BUSHING
                                                    from £1.11
                                                    from £1.11
                                                    GRANO 10X11,5 Genuine Maserati Part - New (to order)
