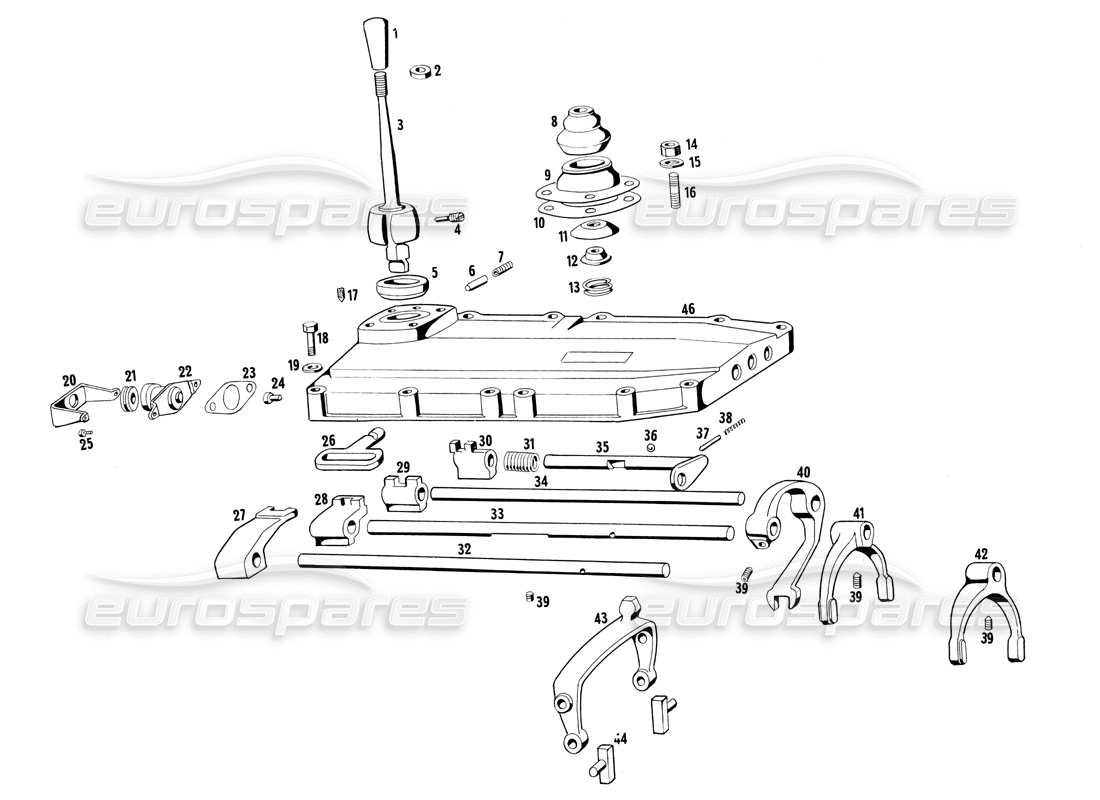

Maserati Ghibli 4.7 / 4.9 Transmission Control Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
-
You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
001
MPN:
101 /7 TC 54380
Pomello per leva comando cambio
from
£467.54
from
£467.54
#
001
MPN:
115 TC 66451
KNOB FOR GEAR LEVER ONLY FOR LEVER 66450
#
002
MPN:
107 TC 67867
CONTRODADO PER POMELLO
#
003
MPN:
115 TC 66449
LEVER
#
003
MPN:
115 TC 66450
LEVER
#
004
MPN:
107 TC 58020
PIN
#
005
MPN:
107 TC 58838
LOWER HEMISPHERE
#
006
MPN:
107TC58839
GRANO PER NOTTOLINO TENUTA LEVA IN 'TOILE
#
007
MPN:
107TC58840
SPRING
#
008
MPN:
107 TC 58841
PARAPOLVERE PER LEVA COMANDO
#
009
MPN:
107TC58842
FLANGIA TENUTA PARAPOLVERE
#
010
MPN:
107 TC 58843
GASKET OR SEAL
#
011
MPN:
107 TC 58844
CONTROL LEVER SPRING SEAL CAP
#
012
MPN:
107 TC 58845
DISC FOR CONTROL LEVER SPRING
#
013
MPN:
107 TC 58846
SPRING
#
014
MPN:
DNT. 47031
NUT
#
015
MPN:
RNT45680
WASHER
#
016
MPN:
PN46469
STUD
#
017
MPN:
107TC58847
LOCK PIN ON THE LEVER
#
018
MPN:
BNT/47014
BOLT
#
019
MPN:
RNT45680
WASHER
#
020
MPN:
101/7TC54522
LAMIERINO TENUTA PASSAFILO INTERRUTTORE RETROMARCIA
#
021
MPN:
PFN45003
GROMMET
#
022
MPN:
8828 49536
INTERRUTTORE RETROMARCIA
#
023
MPN:
107 TC 58848
GASKET OR SEAL
#
024
MPN:
107 TC 56542
EXTENSION FOR SWITCH CONTROL
#
025
MPN:
VNT48934
SCREW
#
026
MPN:
107TC58849
PAWL FOR GEARBOX CONTROL LEVER
#
027
MPN:
107 TC 58850
Nottolino per 5ª velocity
#
028
MPN:
107 TC 58851
Nottolino per 3ª - 4ª velocity
#
029
MPN:
107 TC 58852
NOTOLINO PER 1ª - 2ª VELOCITA
#
030
MPN:
107TC58853
PAWL FOR REVERSE GEAR
#
031
MPN:
107 TC 58854
SPRING
#
032
MPN:
107 TC 58855
Asta corn. retromarcia
#
033
MPN:
107 TC 58856
Asta comando 1ª - 2ª velocity
#
034
MPN:
107 TC 58857
Asta comando 3ª - 4ª velocity
#
035
MPN:
107TC58858
ASTA COMANDO 5ª VELOCITY
#
036
MPN:
SFN 44745
Sphere on the rods
#
037
MPN:
107 TC 58859
GRAIN ROD STOP
#
038
MPN:
107 TC 58860
SPRING
#
039
MPN:
107 TC 58861
Grub for gear control pawls
#
040
MPN:
107TC58862
SELECTOR FORK REVERSE
#
041
MPN:
107TC58863
SELECTOR FORK 1ª - 2ª SPEED
#
042
MPN:
107TC58864
SELECTOR FORK 3ª - 4ª SPEED
#
043
MPN:
107TC58865
SELECTOR FORK 5ª SPEED
#
044
MPN:
107 TC 58866
TASSELLI SULLA FORCELLA 5ª
#
046
MPN:
107 TC 58867
COVER
