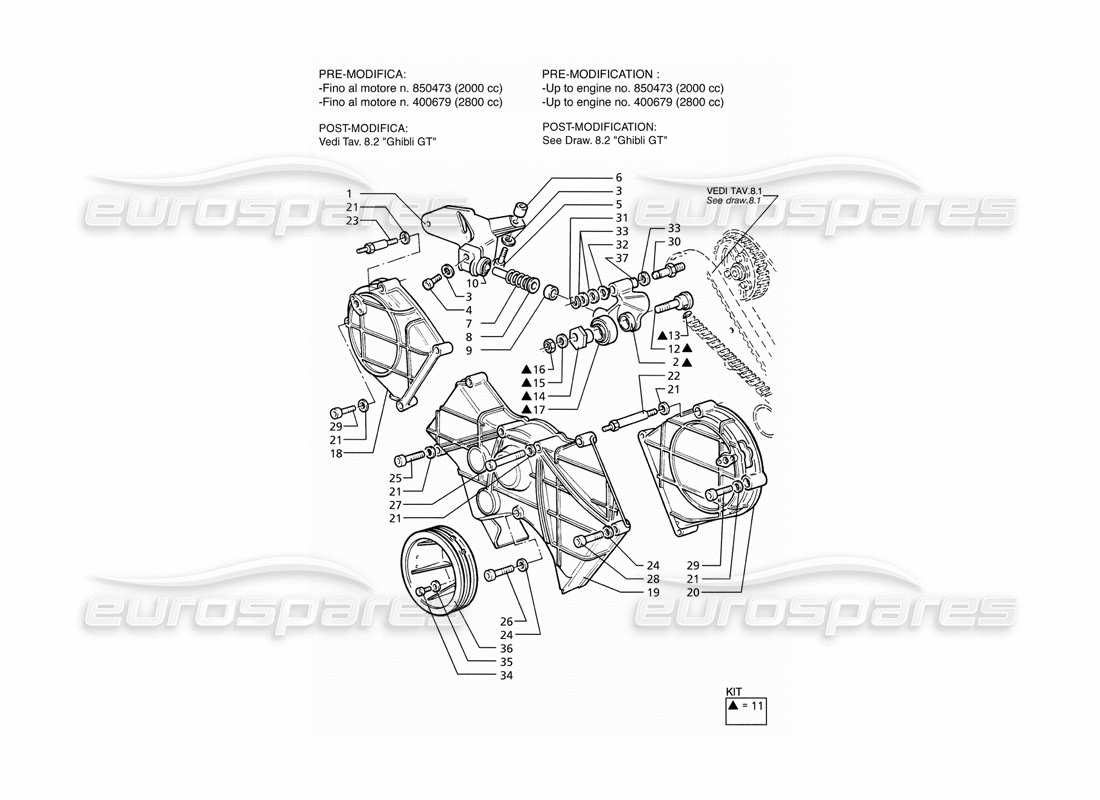

Maserati Ghibli 2.8 (ABS) Timing Control Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                            #
                                                                            Part number
                                                                            Description
                                                                            Price
                                                                            # 001
                                                                            MPN: 317832369
                                                                            TENSIONER SUPPORT
                                                                            # 002
                                                                            MPN: 475038102
                                                                            TIGHTENING PULLEY + BUSHING
                                                                            from £82.74
                                                                            from £82.74
                                                                            This part replaces part number 475037502
                                                                            # 003
                                                                            MPN: 138410080
                                                                            RETAINING WASHER
                                                                            # 004
                                                                            MPN: 14306424
                                                                            SCREW
                                                                            from £0.52
                                                                            from £0.52
                                                                            This part replaces part number 14306421
                                                                            # 008
                                                                            MPN: 475031500
                                                                            PUSH ROD
                                                                            from £1.54
                                                                            from £1.54
                                                                            # 009
                                                                            MPN: 475031101
                                                                            SPACER
                                                                            from £14.60
                                                                            from £14.60
                                                                            # 010
                                                                            MPN: 475031401
                                                                            SPRING PLATE
                                                                            from £1.54
                                                                            from £1.54
                                                                            # 011
                                                                            MPN: 475949602
                                                                            TIGHTENING PULLEY ASSY
                                                                            from £183.95
                                                                            from £183.95
                                                                            # 012
                                                                            MPN: 311053353
                                                                            TIGHTENING PULLEY PIN
                                                                            # 013
                                                                            MPN: 311053460
                                                                            TAB
                                                                            from £0.68
                                                                            from £0.68
                                                                            # 014
                                                                            MPN: 475033200
                                                                            ECCENTRIC
                                                                            from £6.75
                                                                            from £6.75
                                                                            # 015
                                                                            MPN: 452008901
                                                                            WASHER
                                                                            from £2.14
                                                                            from £2.14
                                                                            # 016
                                                                            MPN: 326656321
                                                                            SELF LOCKING NUT
                                                                            from £3.52
                                                                            from £3.52
                                                                            # 017
                                                                            MPN: 311020107
                                                                            TIMING BEARING
                                                                            from £99.75
                                                                            from £99.75
                                                                            # 018
                                                                            MPN: 571002600
                                                                            RH COVER TOOTHED BELT
                                                                            from £18.67
                                                                            from £18.67
                                                                            # 019
                                                                            MPN: 571038700
                                                                            CENTRE COVER TOOTHED BELT
                                                                            from £329.81
                                                                            from £329.81
                                                                            # 020
                                                                            MPN: 571007300
                                                                            LH TOOTHED BELT
                                                                            from £34.19
                                                                            from £34.19
                                                                            # 021
                                                                            MPN: 95564
                                                                            WASHER
                                                                            from £1.30
                                                                            from £1.30
                                                                            # 022
                                                                            MPN: 571003200
                                                                            STUD BOLT
                                                                            from £6.36
                                                                            from £6.36
                                                                            # 023
                                                                            MPN: 571003300
                                                                            STUD BOLT
                                                                            from £4.59
                                                                            from £4.59
                                                                            # 025
                                                                            MPN: 108006040
                                                                            SCREW L= 40MM
                                                                            # 026
                                                                            MPN: 95988
                                                                            SCREW L= 50MM
                                                                            # 028
                                                                            MPN: 14304821
                                                                            SCREW L= 55MM
                                                                            from £0.53
                                                                            from £0.53
                                                                            # 030
                                                                            MPN: 470037600
                                                                            TIGHTENING PULLEY PIN
                                                                            from £41.28
                                                                            from £41.28
                                                                            This part replaces part number 311020343
                                                                            # 032
                                                                            MPN: 96789
                                                                            WASHER (2 MM THICK)
                                                                            from £1.62
                                                                            from £1.62
                                                                            This part replaces part number 135200120
                                                                            # 033
                                                                            MPN: 311020352
                                                                            WASHER (0.30 MM THICK)
                                                                            from £1.07
                                                                            from £1.07
                                                                            # 035
                                                                            MPN: 312220411
                                                                            WASHER
                                                                            from £0.47
                                                                            from £0.47
                                                                            # 036
                                                                            MPN: 571023801
                                                                            PULLEY
                                                                            from £1,253.45
                                                                            from £1,253.45
                                                                            # 037
                                                                            MPN: 470037700
                                                                            BUSH
                                                                            from £9.16
                                                                            from £9.16
                                                                            This part replaces part number 311020336
