Maserati Ghibli 2.8 (ABS) Oil Pump and Water Pump Parts Diagram

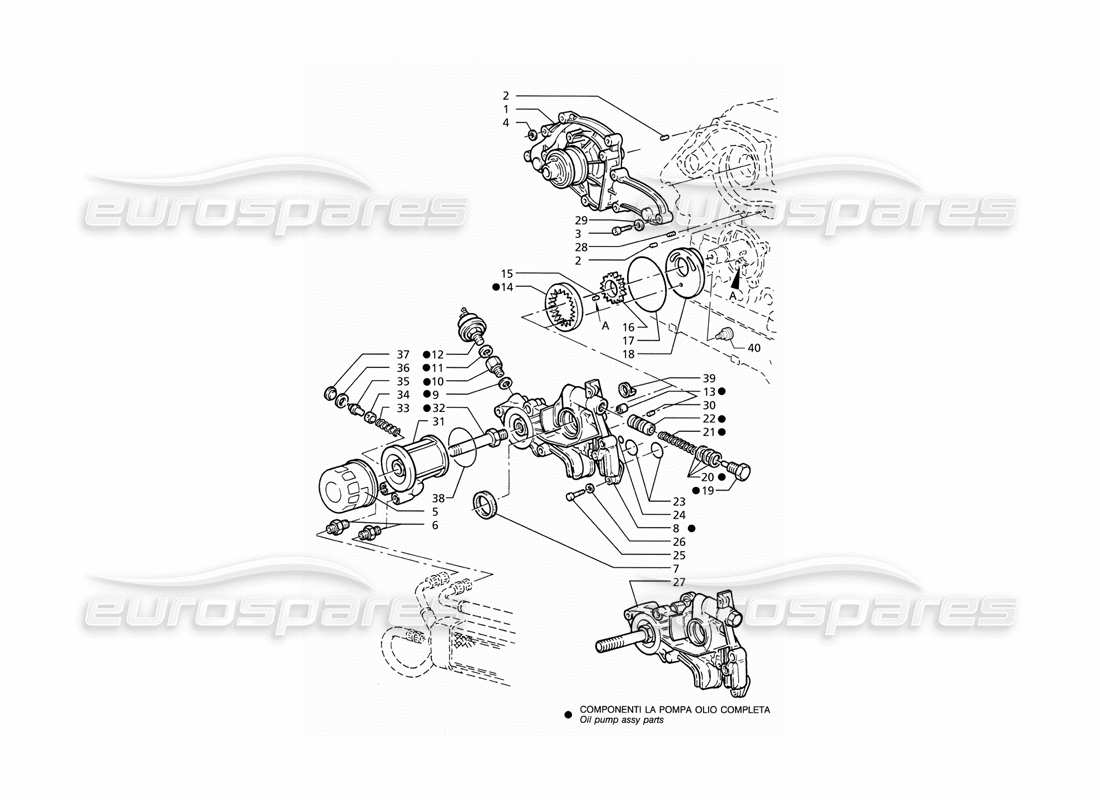

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                      #
                                                                      Part number
                                                                      Description
                                                                      Price
                                                                      # 001
                                                                      MPN: 470045900
                                                                      WATER PUMP + GASKET
                                                                      from £309.75
                                                                      from £309.75
                                                                      This part replaces part number 314020012
                                                                      # 002
                                                                      MPN: 314020329
                                                                      CENTERING ROLLER
                                                                      from £1.93
                                                                      from £1.93
                                                                      # 004
                                                                      MPN: 138410060
                                                                      RETAINING WASHER
                                                                      # 005
                                                                      MPN: 470040900
                                                                      OIL FILTER
                                                                      from £42.50
                                                                      from £42.50
                                                                      # 006
                                                                      MPN: 362802306
                                                                      NIPPLE
                                                                      from £10.97
                                                                      from £10.97
                                                                      # 007
                                                                      MPN: 311020368
                                                                      SEAL RING
                                                                      from £8.25
                                                                      from £8.25
                                                                      This part replaces part number 190400351
                                                                      # 008
                                                                      MPN: 455040101
                                                                      OIL CONTROL UNIT
                                                                      - Post modification Gear height 12 mm: - 2000 cc. engine: from no. 850028 - 2800 cc. engine: from no. 400116
                                                                      from £47.67
                                                                      from £47.67
                                                                      # 008
                                                                      MPN: 571040100
                                                                      OIL CONTROL UNIT
                                                                      - Pre modification Gear height 11 mm: - 2000 cc. engine: up to no. 850027 - 2800 cc. engine: up to no. 400115 - Not supplied
                                                                      from £174.78
                                                                      from £174.78
                                                                      This part replaces part number 311820326 - and 1 more. Click to view details
                                                                      # 009
                                                                      MPN: 311820302
                                                                      GASKET
                                                                      from £2.35
                                                                      from £2.35
                                                                      # 010
                                                                      MPN: 311820303
                                                                      ADAPTER
                                                                      from £22.49
                                                                      from £22.49
                                                                      # 011
                                                                      MPN: 311820304
                                                                      GASKET
                                                                      from £1.55
                                                                      from £1.55
                                                                      # 012
                                                                      MPN: 313650105
                                                                      OIL PRESSURE SWITCH
                                                                      USE 313620105
                                                                      # 013
                                                                      MPN: 311820309
                                                                      DOWEL (12MM DIA)
                                                                      from £16.69
                                                                      from £16.69
                                                                      # 014
                                                                      MPN: 311820324
                                                                      DRIVEN GEAR (11 MM THICK)
                                                                      - Pre modification Gear height 11 mm: - 2000 cc. engine: up to no. 850027 - 2800 cc. engine: up to no. 400115
                                                                      from £4.49
                                                                      from £4.49
                                                                      # 014
                                                                      MPN: 391850324
                                                                      DRIVEN GEAR (12 MM THICK)
                                                                      - Post modification Gear height 12 mm: - 2000 cc. engine: from no. 850028 - 2800 cc. engine: from no. 400116
                                                                      # 016
                                                                      MPN: 391850323
                                                                      DRIVING GEAR (12 MM THICK)
                                                                      - Post modification Gear height 12 mm: - 2000 cc. engine: from no. 850028 - 2800 cc. engine: from no. 400116
                                                                      # 017
                                                                      MPN: 14465881
                                                                      SEAL RING
                                                                      from £4.64
                                                                      from £4.64
                                                                      # 018
                                                                      MPN: 571982100
                                                                      OIL PUMP COVER
                                                                      from £72.63
                                                                      from £72.63
                                                                      This part replaces part number 311820321
                                                                      # 020
                                                                      MPN: 311820317
                                                                      GASKET
                                                                      from £0.70
                                                                      from £0.70
                                                                      # 022
                                                                      MPN: 311820319
                                                                      OIL PRESSURE ADJUSTING VALVE
                                                                      from £12.19
                                                                      from £12.19
                                                                      # 023
                                                                      MPN: 14454181
                                                                      SEAL RING
                                                                      from £1.16
                                                                      from £1.16
                                                                      # 024
                                                                      MPN: 14452981
                                                                      SEAL RING
                                                                      from £0.79
                                                                      from £0.79
                                                                      # 026
                                                                      MPN: 138410080
                                                                      RETAINING WASHER
                                                                      # 027
                                                                      -
                                                                      OIL PUMP, ASSY
                                                                      # 027
                                                                      MPN: 573040000
                                                                      OIL PUMP, ASSY
                                                                      - Post modification Gear height 12 mm: - 2000 cc. engine: from no. 850028 - 2800 cc. engine: from no. 400116
                                                                      from £222.60
                                                                      from £222.60
                                                                      # 030
                                                                      MPN: 311820315
                                                                      CENTERING ROLLER, OIL PUMP (L = 10 MM)
                                                                      from £1.16
                                                                      from £1.16
                                                                      # 031
                                                                      MPN: 571041200
                                                                      THERMOSTATIC VALVE BODY
                                                                      from £288.66
                                                                      from £288.66
                                                                      # 032
                                                                      MPN: 571041300
                                                                      NIPPLE
                                                                      from £34.15
                                                                      from £34.15
                                                                      # 033
                                                                      MPN: 571044600
                                                                      SPRING
                                                                      from £1.41
                                                                      from £1.41
                                                                      # 034
                                                                      MPN: 571044200
                                                                      BULB VALVE
                                                                      from £6.13
                                                                      from £6.13
                                                                      # 035
                                                                      MPN: 571044100
                                                                      BULB
                                                                      from £13.60
                                                                      from £13.60
                                                                      # 036
                                                                      MPN: 571044500
                                                                      WASHER (0.30 MM THICK)
                                                                      from £1.93
                                                                      from £1.93
                                                                      # 037
                                                                      MPN: 571044400
                                                                      PLUG
                                                                      from £8.65
                                                                      from £8.65
                                                                      # 038
                                                                      MPN: 14465881
                                                                      RUBBER GASKET
                                                                      from £4.64
                                                                      from £4.64
                                                                      # 039
                                                                      MPN: 97730
                                                                      RETAINING WASHER
                                                                      from £4.09
                                                                      from £4.09
                                                                      # 040
                                                                      MPN: 501047800
                                                                      PIN
                                                                      from £33.62
                                                                      from £33.62
