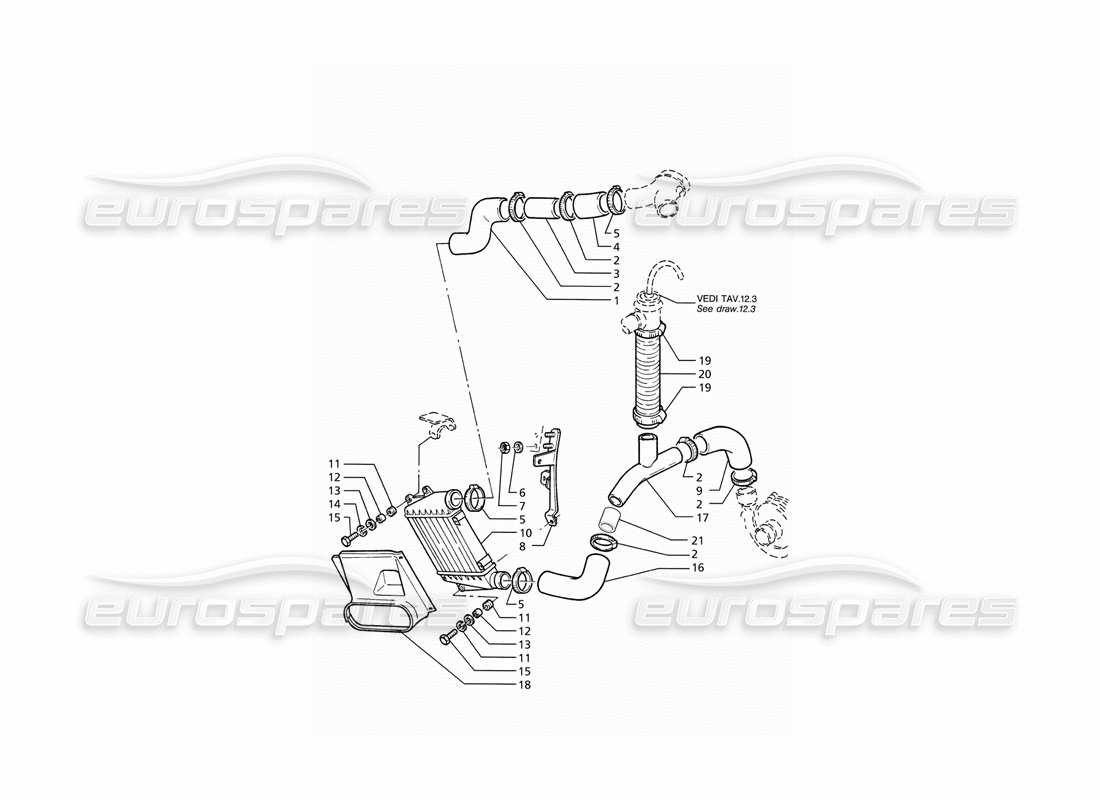

015.1 - Heat Exchanger Pipes RH Side
Maserati Ghibli 2.8 (ABS) Heat Exchanger Pipes R.H. Side Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 495361600
RH SLEEVE
from £13.46
from £13.46
# 002
MPN: 392450105
CLAMP
from £1.08
from £1.08
# 003
MPN: 362000478
RH PIPE
# 004
MPN: 495065100
SLEEVE
from £18.75
from £18.75
This part replaces part number 495064900
# 005
MPN: 392050136
CLAMP
# 006
MPN: 135900064
FLAT WASHER
from £0.47
from £0.47
# 007
MPN: 128350060
SELF LOCKING NUT
# 008
MPN: 362000270
RH BRACKET
from £12.21
from £12.21
# 009
MPN: 322460310
SLEEVE
Supersession
Supersession
This part replaces part number 312421310
# 010
MPN: 473360500
Intercooler
from £120.75
from £120.75
This part replaces part number 312020141 - and 1 more. Click to view details
# 011
MPN: 312020484
FAIRLEAD
from £0.69
from £0.69
# 012
MPN: 312020485
BUSH
# 013
MPN: 163010060
FLAT WASHER
# 014
MPN: 135300064
SPRING WASHER
# 015
MPN: 101206025
SCREW
# 016
MPN: 495363500
SLEEVE
from £46.99
from £46.99
# 016
MPN: 495363500
SLEEVE
from £46.99
from £46.99
# 017
MPN: 571362900
PIPE
from £51.01
from £51.01
# 018
MPN: 362000258
RH AIR DEFLECTOR
from £86.80
from £86.80
# 019
MPN: 186403036
CLAMP
# 020
MPN: 571363500
PIPE
from £25.51
from £25.51
# 021
MPN: 573365700
SLEEVE
from £2.97
from £2.97
