maserati ghibli 2.8 (abs) air conditioning system (lh drive) with freon r12 parts diagram

021 - Air Conditioning System (LH Drive) With Freon R12

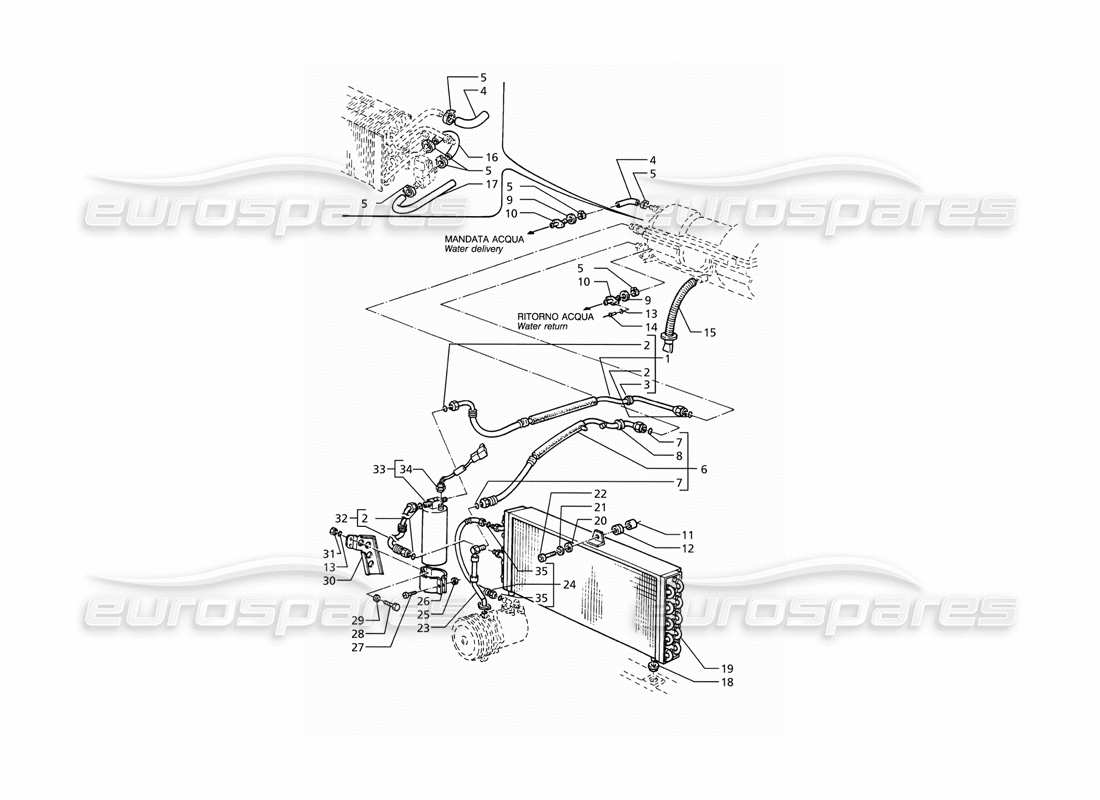

Maserati Ghibli 2.8 (ABS) Air Conditioning System (L.H.Drive) With Freon R12 Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Price
    # 001
    MPN: 395550180
    FREON DELIVERY LINE
    - Valid for 09, 10 and 02 version
    from £28.47
    from £28.47
    # 002
    MPN: 315520443
    GASKET
    - Valid for 09, 10 and 02 version
    from £1.05
    from £1.05
    # 003
    MPN: 31331303
    FAIRLEAD
    - Valid for 09, 10 and 02 version
    from £1.05
    from £1.05
    # 004
    MPN: 315520479
    TUBE
    - Valid for 09, 10 and 02 version
    from £8.17
    from £8.17
    # 005
    MPN: 186402028
    CLAMP
    - Valid for 09, 10 and 02 version
    from £1.55
    from £1.55
    # 006
    MPN: 315551173
    FREON RETURN LINE
    - Valid for 09, 10 and 02 version
    from £70.94
    from £70.94
    # 007
    -
    N/A - PLEASE CONTACT US
    # 008
    MPN: 315520371
    FAIRLEAD
    - Valid for 09, 10 and 02 version
    from £0.64
    from £0.64
    # 009
    MPN: 315520372
    GASKET
    - Valid for 09, 10 and 02 version
    from £0.70
    from £0.70
    # 010
    MPN: 315520370
    UNION
    - Valid for 09, 10 and 02 version
    from £0.71
    from £0.71
    # 011
    MPN: 315520376
    SPACER
    - Valid for 09, 10 and 02 version
    from £3.64
    from £3.64
    # 012
    MPN: 315520375
    RING
    - Valid for 09, 10 and 02 version
    Supersession
    Supersession
    # 013
    MPN: 169020005
    WASHER
    - Valid for 09, 10 and 02 version
    from £1.08
    from £1.08
    # 014
    MPN: 164323413
    RIVET
    - Valid for 09, 10 and 02 version
    # 015
    MPN: 315520017
    CONDENSATE DRAINAGE TUBE
    - Valid for 09, 10 and 02 version
    from £1.77
    from £1.77
    # 016
    MPN: 315520480
    TUBE
    - Valid for 09, 10 and 02 version
    from £2.04
    from £2.04
    # 017
    MPN: 315520481
    TUBE
    - Valid for 09, 10 and 02 version
    from £7.82
    from £7.82
    # 018
    MPN: 189453
    BUSH
    from £1.08
    from £1.08
    This part replaces part number 374030312
    # 019
    MPN: 395550220
    BIRANGO CONDENSER
    - Valid for 09, 10 and 02 version
    from £575.47
    from £575.47
    This part replaces part number 325555220 - and 1 more. Click to view details
    # 020
    MPN: 135900064
    FLAT WASHER
    - Valid for 09, 10 and 02 version
    from £0.47
    from £0.47
    # 021
    MPN: 135300064
    SPRING WASHER
    - Valid for 09, 10 and 02 version
    # 022
    MPN: 101206020
    SCREW
    - Valid for 09, 10 and 02 version
    # 023
    MPN: 365500185
    FREON RETURN LINE
    - Valid for 09, 10 and 02 version
    from £41.21
    from £41.21
    # 024
    MPN: 365500262
    FREON DELIVERY LINE
    - Valid for 09, 10 and 02 version
    from £32.06
    from £32.06
    This part replaces part number 365500179
    # 025
    MPN: 128300060
    NUT
    - Valid for 09, 10 and 02 version
    Supersession
    Supersession
    # 026
    MPN: 315520301
    CLAMP
    - Valid for 09, 10 and 02 version
    from £17.15
    from £17.15
    # 027
    MPN: 101206025
    SCREW
    - Valid for 09, 10 and 02 version
    # 028
    MPN: 108006012
    SCREW
    - Valid for 09, 10 and 02 version
    from £0.54
    from £0.54
    # 029
    MPN: 135000064
    FLAT WASHER
    - Valid for 09, 10 and 02 version
    # 030
    MPN: 365500263
    PLATE
    - Valid for 09, 10 and 02 version
    from £18.23
    from £18.23
    # 031
    MPN: 128350060
    SELF LOCKING NUT
    - Valid for 09, 10 and 02 version
    # 032
    MPN: 395550181
    FREON DELIVERY LINE
    - Valid for 09, 10 and 02 version
    from £25.16
    from £25.16
    # 033
    MPN: 365502174
    FILTER ASSY
    - Valid for 09, 10 and 02 version
    from £103.98
    from £103.98
    This part replaces part number 315520174
    # 034
    MPN: 365502175
    MAX AND MIN. CAPACITY PRESSURE SWITCH
    - Valid for 09, 10 and 02 version
    from £93.96
    from £93.96
    # 035
    MPN: 315520445
    PLATE
    - Valid for 09, 10 and 02 version
    from £0.70
    from £0.70
