012 - Steering Column and Steering Wheel

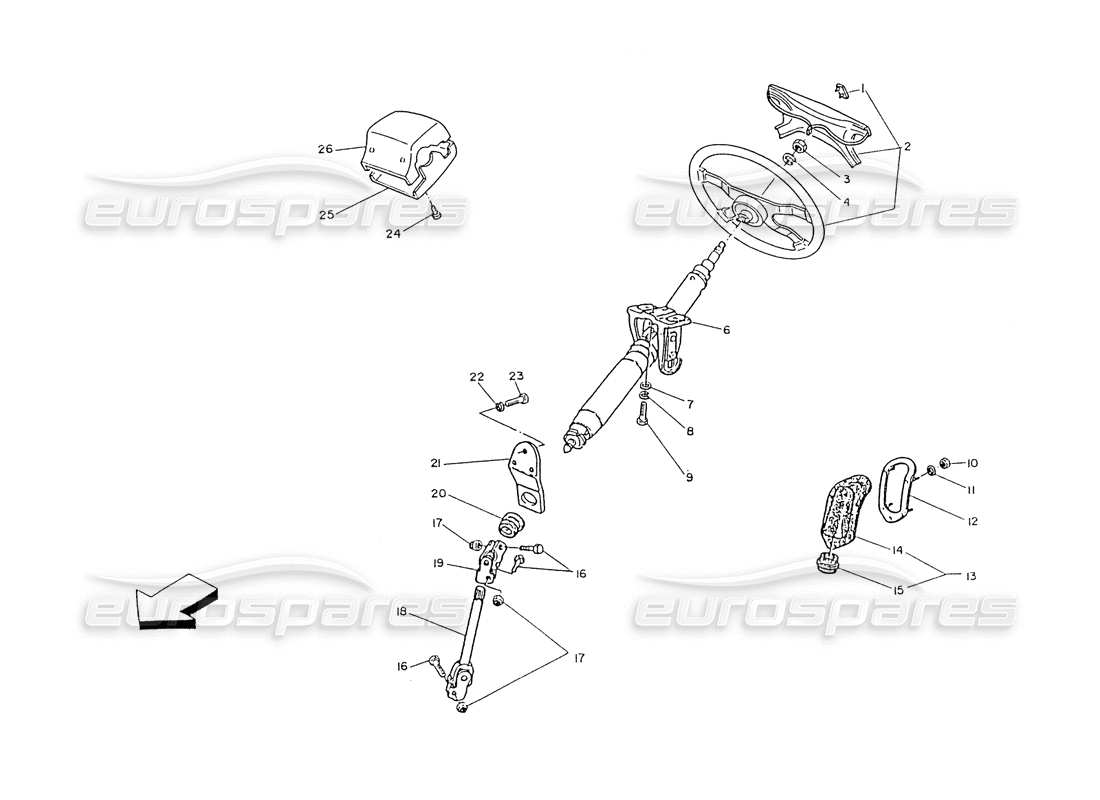

Maserati Ghibli 2.8 (Non ABS) Steering Column and Steering Wheel Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 317820300
ESCUTCHEON
from £5.71
from £5.71
# 002
MPN: 317851104
STEERING WHEEL COMPLETE ASSY (WOOD)
from £290.96
from £290.96
# 002
MPN: 397850004
STEERING WHEEL COMPLETE ASSY (LEATHER)
IN ALTERANTIVE
from £199.43
from £199.43
# 003
MPN: 125400140
NUT
# 004
MPN: 135600140
SPRING WASHER
from £1.11
from £1.11
# 006
MPN: 317820114
STEERING COLUMN COMPLETE ASSY
from £415.30
from £415.30
# 006
MPN: 317827114
STEERING COLUMN COMPLETE ASSY
from £124.34
from £124.34
# 007
MPN: 14496601
FLAT WASHER
Supersession
Supersession
# 008
MPN: 135300105
SPRING WASHER
# 009
MPN: 167131030
SCREW
from £1.90
from £1.90
# 010
MPN: 125100050
NUT
from £0.69
from £0.69
# 011
MPN: 135900053
FLAT WASHER
# 012
MPN: 317820107

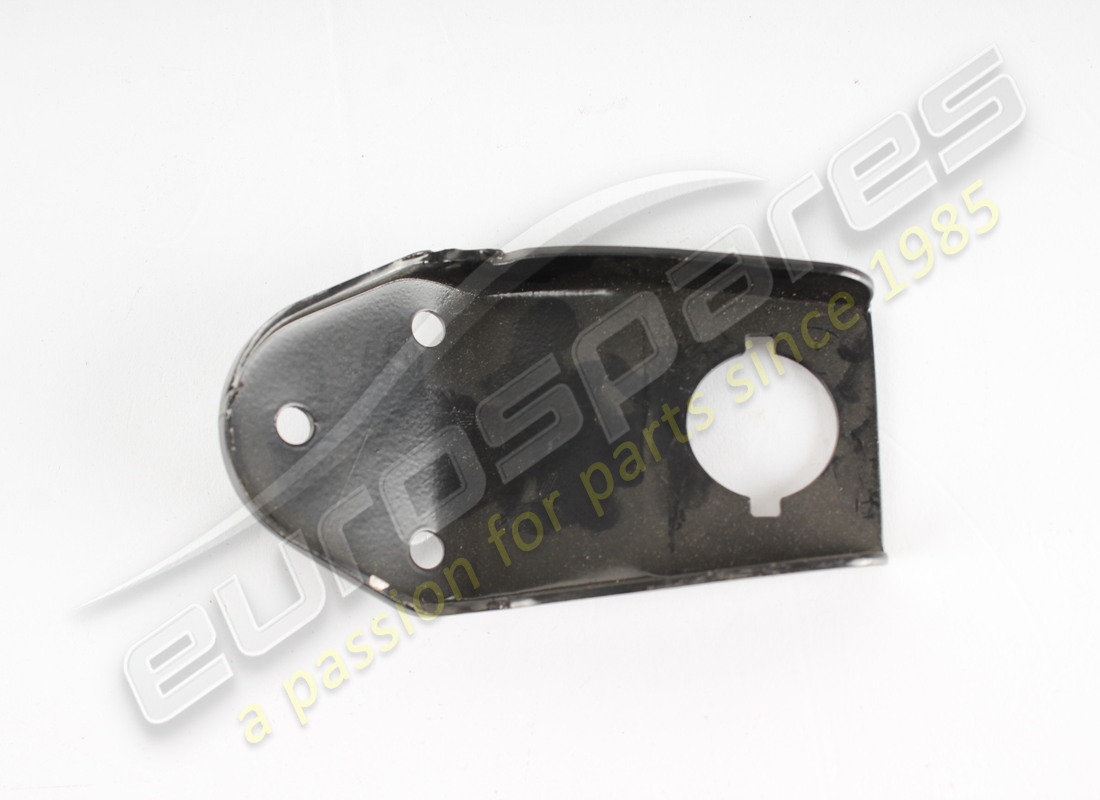

PLATE
from £4.67
from £4.67
# 012
MPN: 317827107
PLATE
from £4.04
from £4.04
# 013
MPN: 317820116
PLASTIC BELLOWS WITH BUSHING
from £11.90
from £11.90
# 014
MPN: 317820336
BELLOWS
from £4.76
from £4.76
# 015
MPN: 317820337
BUSHING
from £0.71
from £0.71
# 016
MPN: 317820382
SCREW
from £1.35
from £1.35
# 017
MPN: 128350080
SELF LOCKING NUT
Supersession
Supersession
# 018
MPN: 367801117
INTERMEDIATE SHAFT
from £175.09
from £175.09
# 019
MPN: 317820117
CARDAN JOINT
from £323.28
from £323.28
# 020
MPN: 367800321
BUSHING
from £28.26
from £28.26
This part replaces part number 317820321
# 021
MPN: 327856320
SUPPORT
from £19.59
from £19.59
This part replaces part number 9562
# 022
MPN: 138410060
SPRING WASHER
# 023
MPN: 101206012
SCREW
# 024
MPN: 119142220
SCREW
# 025
MPN: 317851110
LOWER HALF BOX
from £7.16
from £7.16
# 026
MPN: 317851109
UPPER HALF BOX
from £7.16
from £7.16
This part replaces part number 317853109 - and 1 more. Click to view details
