06.22.2 - rear chassis

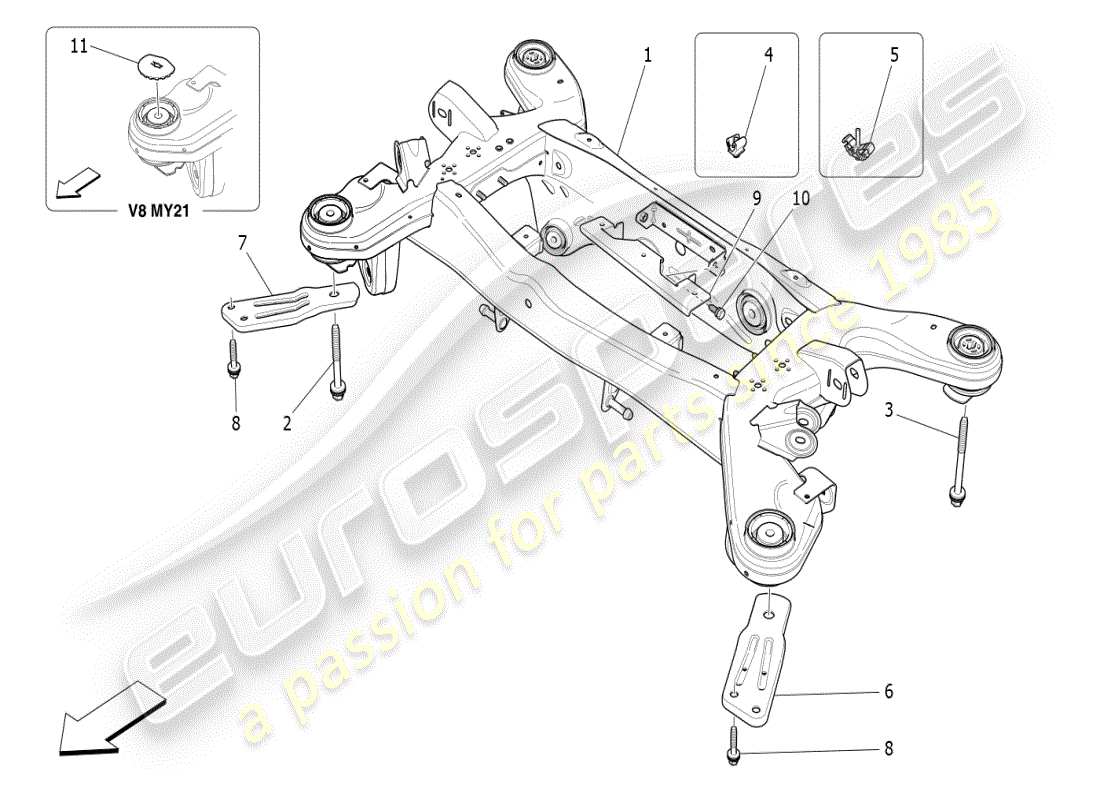

Maserati Ghibli (2019) REAR CHASSIS Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 670106291
REAR CHASSIS ASSEMBLY
Valid from assembly:5085204.Suitable for:3.0 BT SOFT V6 2WD 350 HP, 3.0 BT V6 2WD 430 HP, 3.0 BT V6 4WD 430 HP|EUROPE, UNITED ARAB EMIRATES, USA
from £1,246.71
from £1,246.71
# 001
MPN: 670106292
REAR CHASSIS ASSEMBLY
Valid from assembly:5085396.Suitable for:AUTOMATIC|3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP|EUROPE, ITALY, UK
from £1,246.71
from £1,246.71
# 002
MPN: 670002915
SCREW [M14X145]
Suitable for:EUROPE, ITALY, UK, UNITED ARAB EMIRATES, USA
from £9.58
from £9.58
# 003
MPN: 670002768
SCREW
Suitable for:EUROPE, ITALY, UK, UNITED ARAB EMIRATES, USA
from £12.70
from £12.70
# 004
MPN: 675000356
CLIP
Suitable for:EUROPE, ITALY, UK, UNITED ARAB EMIRATES, USA
from £1.14
from £1.14
# 005
MPN: 675000072
CLIP
Suitable for:EUROPE, ITALY, UK, UNITED ARAB EMIRATES, USA
from £1.56
from £1.56
# 006
MPN: 670007232
LH BRACKET
Suitable for:EUROPE, ITALY, UK, UNITED ARAB EMIRATES, USA
from £2.98
from £2.98
# 007
MPN: 670007233
RH BRACKET
Suitable for:EUROPE, ITALY, UK, UNITED ARAB EMIRATES, USA
from £2.98
from £2.98
# 008
MPN: 670039843
SCREW
Suitable for:EUROPE, ITALY, UK, UNITED ARAB EMIRATES, USA
from £1.56
from £1.56
This part replaces part number 675000343
# 009
MPN: 670039141
BRACKET
Suitable for:EUROPE, ITALY, UK, UNITED ARAB EMIRATES, USA
from £8.19
from £8.19
# 010
MPN: 675000438
SCREW [M8X22]
Suitable for:EUROPE, ITALY, UK, UNITED ARAB EMIRATES, USA
from £1.03
from £1.03
