09.13.1 - WHEELHOUSE AND LIDS

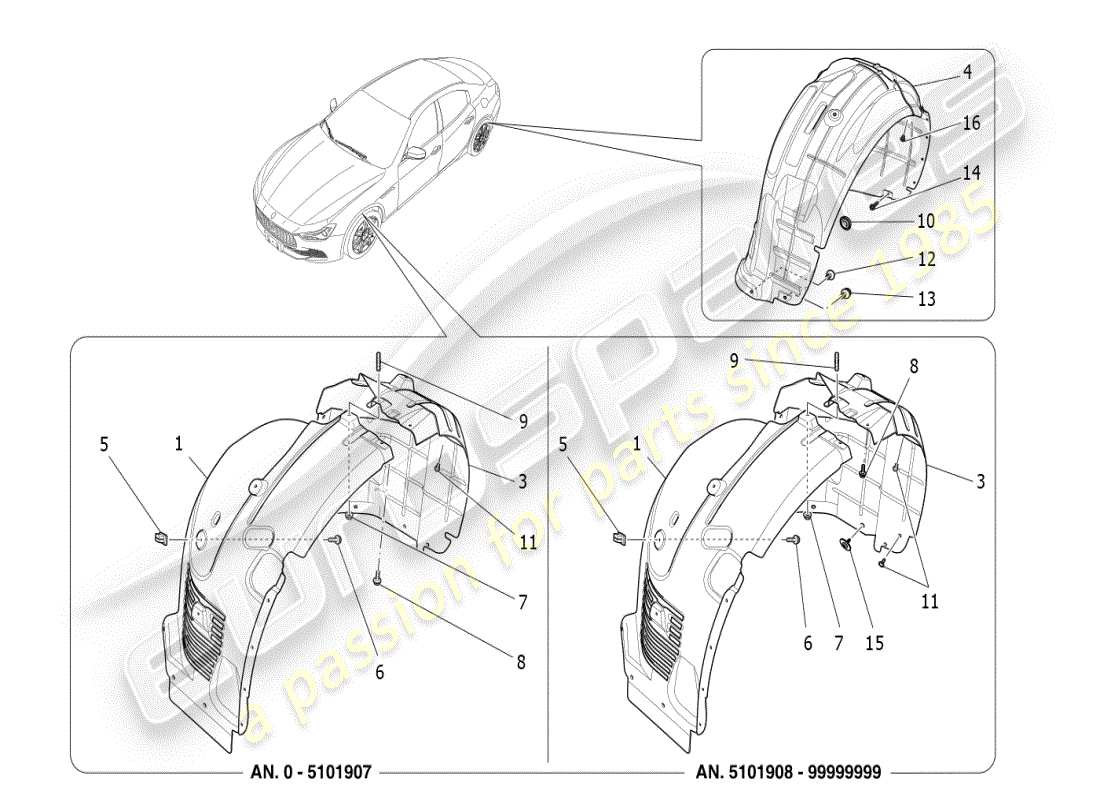

Maserati Ghibli (2019) WHEELHOUSE AND LIDS Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 670030238
RH FRONT WHEELHOUSE GUARD, FRONT SIDE
Valid from assembly:0 - 5103644.Suitable for:AUTOMATIC|3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP|EUROPE, ITALY, UK
Supersession
Supersession
This part replaces part number 670009254
# 001
MPN: 670039699
LH FRONT WHEELHOUSE GUARD, FRONT SIDE
Valid from assembly:5076306 - 5103644.Not for cars with:SPORT EQUIPMENT.Suitable for:3.0 BT SOFT V6 2WD 350 HP, 3.0 BT V6 2WD 430 HP, 3.0 BT V6 4WD 430 HP|EUROPE, UNITED ARAB EMIRATES, USA
Supersession
Supersession
This part replaces part number 670030232
# 001
MPN: 670039700
LH FRONT WHEELHOUSE GUARD, FRONT SIDE
Valid from assembly:5076306 - 5103644.Not for cars with:SPORT EQUIPMENT.Suitable for:AUTOMATIC|3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP|EUROPE, ITALY, UK
Supersession
Supersession
This part replaces part number 670030234
# 001
MPN: 670039701
RH FRONT WHEELHOUSE GUARD, FRONT SIDE
Valid from assembly:5076306 - 5103644.Not for cars with:SPORT EQUIPMENT.Suitable for:3.0 BT SOFT V6 2WD 350 HP, 3.0 BT V6 2WD 430 HP, 3.0 BT V6 4WD 430 HP|EUROPE, UNITED ARAB EMIRATES, USA
Supersession
Supersession
This part replaces part number 670030236
# 001
MPN: 670039702
RH FRONT WHEELHOUSE GUARD, FRONT SIDE
Valid from assembly:5076306 - 5103644.Not for cars with:SPORT EQUIPMENT.Suitable for:AUTOMATIC|3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP|EUROPE, ITALY, UK
Supersession
Supersession
This part replaces part number 670030238
# 001
MPN: 670105932
LH FRONT WHEELHOUSE GUARD, FRONT SIDE
Valid from assembly:0 - 5118877.Suitable for:3.0 BT SOFT V6 2WD 350 HP, 3.0 BT V6 2WD 430 HP, 3.0 BT V6 4WD 430 HP|EUROPE, UNITED ARAB EMIRATES, USA
from £64.06
from £64.06
This part replaces part number 670039699
# 001
MPN: 670105933
LH FRONT WHEELHOUSE GUARD, FRONT SIDE
Valid from assembly:0 - 5118877.Suitable for:AUTOMATIC|3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP|EUROPE, ITALY, UK
from £64.95
from £64.95
This part replaces part number 670039700
# 001
MPN: 670105934
RH FRONT WHEELHOUSE GUARD, FRONT SIDE
Valid from assembly:0 - 5118877.Suitable for:3.0 BT SOFT V6 2WD 350 HP, 3.0 BT V6 2WD 430 HP, 3.0 BT V6 4WD 430 HP|EUROPE, UNITED ARAB EMIRATES, USA
from £64.06
from £64.06
This part replaces part number 670039701
# 001
MPN: 670105935
RH FRONT WHEELHOUSE GUARD, FRONT SIDE
Valid from assembly:0 - 5118877.Suitable for:AUTOMATIC|3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP|EUROPE, ITALY, UK
from £64.95
from £64.95
This part replaces part number 670039702
# 003
MPN: 670102658
RH FRONT WHEELHOUSE GUARD, REAR SIDE
Valid from assembly:0 - 5101907.Suitable for:EUROPE, ITALY, UK, UNITED ARAB EMIRATES, USA
Supersession
Supersession
This part replaces part number 670036810
# 003
MPN: 670102659
LH FRONT WHEELHOUSE GUARD, REAR SIDE
Valid from assembly:0 - 5101907.Suitable for:EUROPE, ITALY, UK, UNITED ARAB EMIRATES, USA
from £22.42
from £22.42
This part replaces part number 670036811 - and 1 more. Click to view details
# 003
MPN: 673010772
RH FRONT WHEELHOUSE GUARD, REAR SIDE
Valid from assembly:0 - 5101907.Suitable for:EUROPE, ITALY, UK, UNITED ARAB EMIRATES, USA
from £64.06
from £64.06
This part replaces part number 670102658
# 003
MPN: 673010773
LH FRONT WHEELHOUSE GUARD, REAR SIDE
Valid from assembly:0 - 5101907.Suitable for:EUROPE, ITALY, UK, UNITED ARAB EMIRATES, USA
from £64.06
from £64.06
# 004
MPN: 670038118
LH REAR WHEELHOUSE GUARD
Suitable for:EUROPE, ITALY, UK, UNITED ARAB EMIRATES, USA
from £49.79
from £49.79
This part replaces part number 670009774
# 004
MPN: 670038155
RH REAR WHEELHOUSE GUARD
Valid from assembly:0 - 5113281.Suitable for:EUROPE, ITALY, UK, UNITED ARAB EMIRATES, USA
from £27.38
from £27.38
This part replaces part number 670009775 - and 1 more. Click to view details
# 005
MPN: 675000327
BLOCK
Suitable for:EUROPE, ITALY, UK, UNITED ARAB EMIRATES, USA
from £0.74
from £0.74
# 006
MPN: 675000326
SCREW [10X16]
Suitable for:EUROPE, ITALY, UK, UNITED ARAB EMIRATES, USA
from £1.24
from £1.24
# 007
MPN: 675000325
NUT
Suitable for:EUROPE, ITALY, UK, UNITED ARAB EMIRATES, USA
from £0.82
from £0.82
# 008
MPN: 675000326
SCREW [10X16]
Suitable for:EUROPE, ITALY, UK, UNITED ARAB EMIRATES, USA
from £1.31
from £1.31
# 009
MPN: 670009201
PIN
Suitable for:EUROPE, ITALY, UK, UNITED ARAB EMIRATES, USA
from £2.46
from £2.46
# 010
MPN: 670005230
PLUG
Valid from assembly:0 - 5119326.Suitable for:EUROPE, ITALY, UK, UNITED ARAB EMIRATES, USA
from £2.05
from £2.05
# 011
MPN: 670003320
FASTENER BUTTON
Suitable for:EUROPE, ITALY, UK, UNITED ARAB EMIRATES, USA
from £1.14
from £1.14
# 011
MPN: 670007383
FASTENER BUTTON
Valid from assembly:0 - 5101907.Suitable for:EUROPE, ITALY, UK, UNITED ARAB EMIRATES, USA
from £5.41
from £5.41
# 011
MPN: 670009112
FASTENER BUTTON
Valid from assembly:0 - 5101907.Suitable for:EUROPE, ITALY, UK, UNITED ARAB EMIRATES, USA
from £2.46
from £2.46
# 012
MPN: 670009112
FASTENER BUTTON
Suitable for:EUROPE, ITALY, UK, UNITED ARAB EMIRATES, USA
from £2.46
from £2.46
# 013
MPN: 675000294
PIN
Suitable for:EUROPE, ITALY, UK, UNITED ARAB EMIRATES, USA
from £2.12
from £2.12
# 014
MPN: 675000669
SCREW
Suitable for:EUROPE, ITALY, UK, UNITED ARAB EMIRATES, USA
Supersession
Supersession
This part replaces part number 675000773
# 015
MPN: 675000818
SPECIAL SCREW
Suitable for:EUROPE, ITALY, UK, UNITED ARAB EMIRATES, USA
from £1.34
from £1.34
# 016
MPN: 670007383
FASTENER BUTTON
Suitable for:EUROPE, ITALY, UK, UNITED ARAB EMIRATES, USA
from £5.41
from £5.41
