013 - Fuel Pumps And Connection Pipes

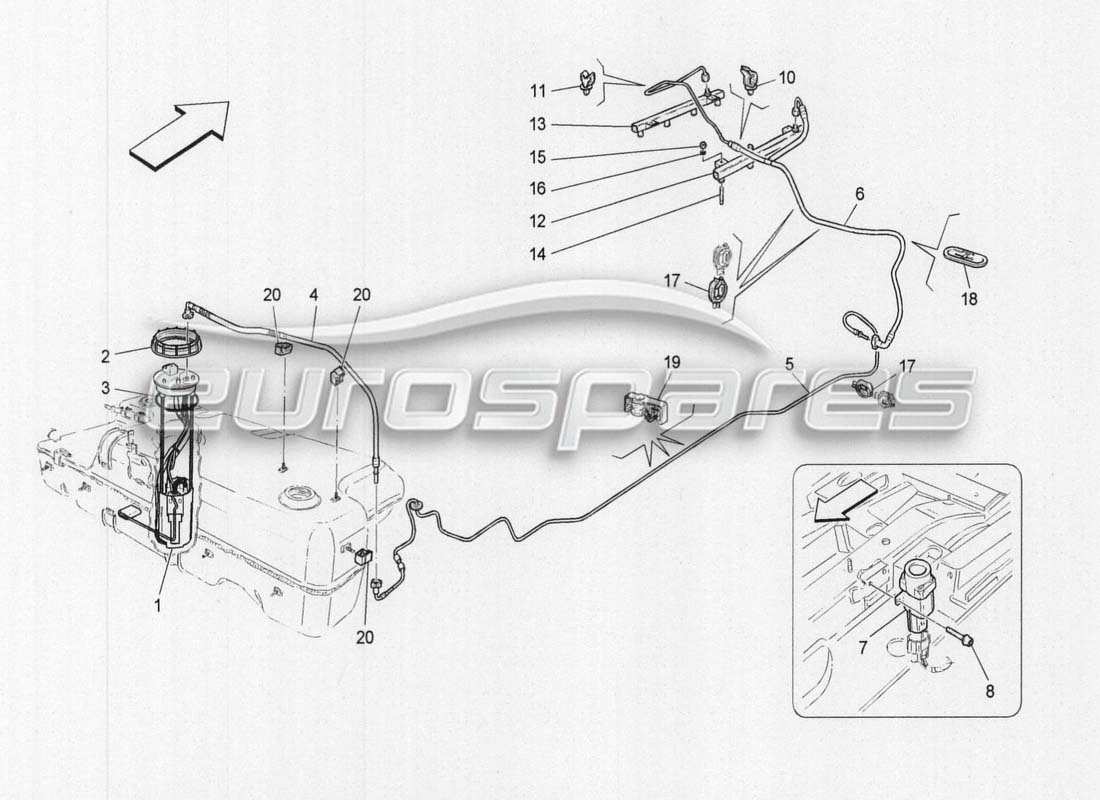

Maserati GranCabrio MC Centenario Fuel Pumps And Connection Pipes Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 248047
POMPA BENZINA
from £181.09
from £181.09
# 002
MPN: 181682
GHIERA
from £7.68
from £7.68
# 003
MPN: 181681
Guarnizione
from £11.53
from £11.53
# 004
MPN: 260584
TUBO MANDATA CARBURANTE
from £16.07
from £16.07
# 005
MPN: 260671
FEED HOSE FROM PUMP TO JOINT
from £122.26
from £122.26
# 006
MPN: 260077
FUEL DELIVERY HOSE FROM JOINT TO ENGINE
from £132.45
from £132.45
# 007
MPN: 163675

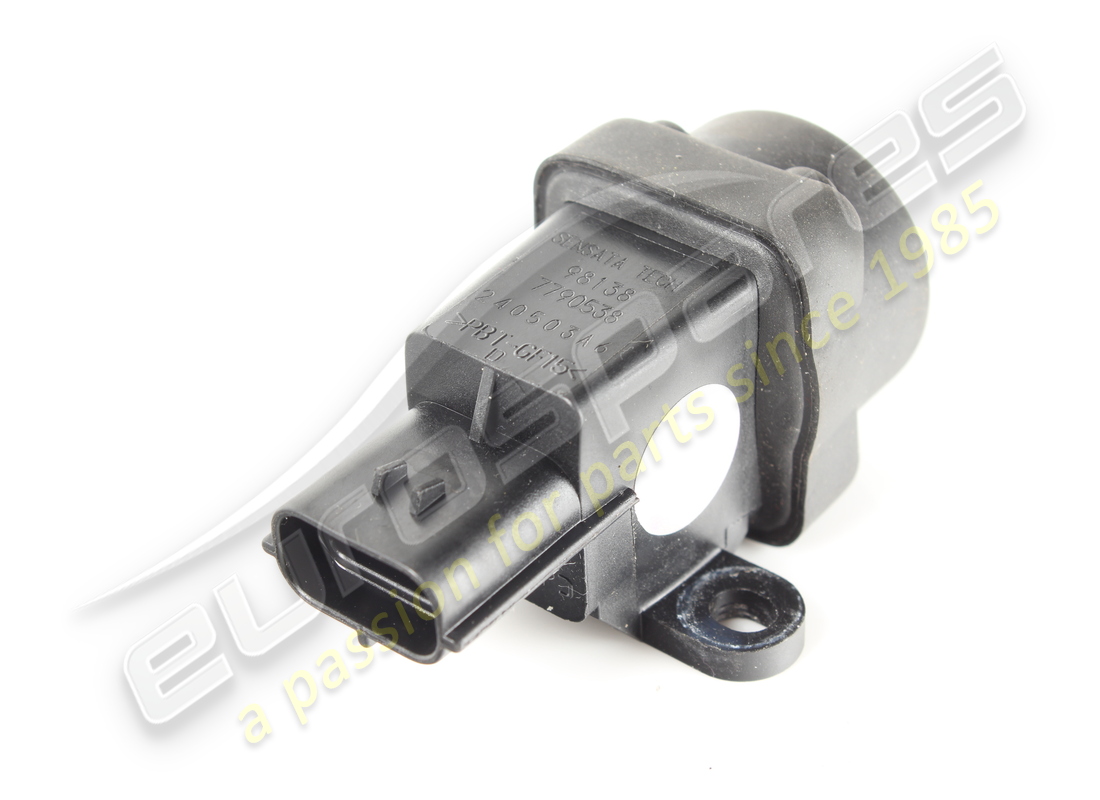

INERTIAL SWITCH
from £12.99
from £12.99
# 008
MPN: 13355424
VITE M5X18
from £17.84
from £17.84
This part replaces part number 13026121
# 010
MPN: 226603
MOLLETTA
from £0.47
from £0.47
# 011
MPN: 198271
MOLLETTA
from £0.50
from £0.50
# 012
MPN: 215338
TUBO INIETTORI DX. CPL.
from £874.40
from £874.40
# 013
MPN: 215337
TUBO INIETTORI SX. CPL.
from £440.48
from £440.48
# 014
MPN: 13516824
PRIGIONIERO
from £0.47
from £0.47
# 015
MPN: 16102314
DADO M8
from £0.47
from £0.47
# 016
MPN: 11198074
ROSETTA D.8.5-15X1.8
from £0.47
from £0.47
# 017
MPN: 191907
MOLLETTA
from £0.82
from £0.82
# 018
MPN: 221727
PASSAGE SEAL Tubi
from £4.28
from £4.28
# 019
MPN: 213603
MOLLETTA
from £1.59
from £1.59
# 020
MPN: 233484
MOLLETTA
from £6.98
from £6.98
# 020
MPN: 259827
MOLLETTA
from £0.53
from £0.53
