015 - additional air system

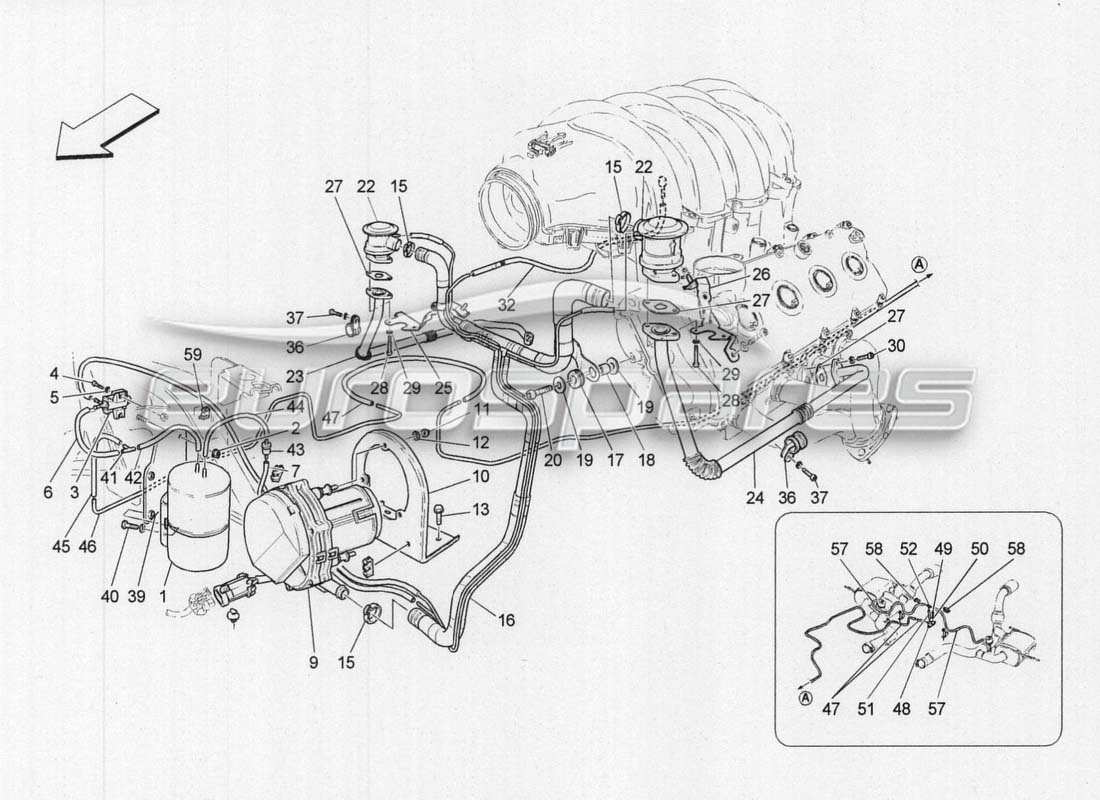

Maserati GranCabrio MC Centenario Additional Air System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 240380
VACUUM TANK
from £78.09
from £78.09
# 002
MPN: 14040614
NUT
from £0.47
from £0.47
# 003
MPN: 315769
ON/OFF SOLENOID VALVE
from £16.18
from £16.18
This part replaces part number 184363
# 004
MPN: 14304624
VITE
from £0.47
from £0.47
# 005
MPN: 12601174
ROSETTA D.5.3-11X0.S
from £0.47
from £0.47
This part replaces part number 675000100
# 006
MPN: 234410
Manicotto
from £1.23
from £1.23
# 007
MPN: 251359
Manicotto
from £2.82
from £2.82
# 009
MPN: 181197
SECONDARY AIR PUMP
from £157.99
from £157.99
# 010
MPN: 215965
SECONDARY AIR PUMP FIXING BRACKET
from £12.53
from £12.53
# 011
MPN: 102948
NUT
from £0.47
from £0.47
# 012
MPN: 12601274
ROSETTA D. 6,40-12X0,5
from £0.47
from £0.47
This part replaces part number 12601270
# 013
MPN: 16285924
VITE
from £0.47
from £0.47
# 015
MPN: 226356
FASCETTA
from £0.53
from £0.53
# 016
MPN: 241777
AIR DELIVERY PIPE TO THE CPL VALVES.
from £121.68
from £121.68
# 017
MPN: 219456
SUPPORTO ANTIVIBRANTE
from £1.45
from £1.45
This part replaces part number 315520375
# 018
MPN: 219457
DISTANZIALE
from £15.07
from £15.07
# 019
MPN: 12647727
ROSETTA
from £0.47
from £0.47
This part replaces part number 12647729
# 020
MPN: 231618
VITE M6X20
from £0.47
from £0.47
# 022
MPN: 171175
SECONDARY AIR VALVE
from £106.35
from £106.35
# 023
MPN: 233374
HOSE FOR RH SECONDARY AIR VALVE.
from £91.67
from £91.67
# 024
MPN: 226275
HOSE FOR LEFT SECONDARY AIR VALVE.
from £123.83
from £123.83
# 025
MPN: 265569
RH AIR VALVE FIXING BRACKET.
from £1,007.19
from £1,007.19
# 026
MPN: 265568
STAFFA FISSAGGIO VALVOLA ARIA SX.
from £1,007.19
from £1,007.19
# 027
MPN: 186781
Guarnizione
from £2.94
from £2.94
# 028
MPN: 231618
VITE M6X20
from £0.47
from £0.47
# 029
MPN: 127494
ROSETTA
from £0.53
from £0.53
# 030
MPN: 231616
VITE M6X14
from £0.47
from £0.47
# 032
MPN: 230835
TUBO GOMMA
from £13.37
from £13.37
# 036
MPN: 10441590
STAFFETTA CON GUAINA
from £0.47
from £0.47
# 037
MPN: 233600
VITE M6X12
from £0.47
from £0.47
# 039
MPN: 236872
STAFFA
from £27.20
from £27.20
# 040
MPN: 11730424
VITE
from £1.59
from £1.59
# 041
MPN: 257691
RACCORDO A TRE VIE
from £0.82
from £0.82
This part replaces part number 146972
# 042
MPN: 234403
Manicotto
from £3.83
from £3.83
# 043
MPN: 253896
VALVOLA DI NON RITORNO
from £24.29
from £24.29
This part replaces part number 62507200
# 044
MPN: 165608
TUBO GOMMA
from £1.48
from £1.48
This part replaces part number 235375
# 045
MPN: 234410
Manicotto
from £1.23
from £1.23
# 046
MPN: 235338
TUBO RIGIDO
from £39.05
from £39.05
# 047
MPN: 247860
TUBO DEPRESSIONE SOTTOSCOCCA
from £65.51
from £65.51
# 048
MPN: 315769
ON/OFF SOLENOID VALVE
from £16.18
from £16.18
This part replaces part number 184363
# 049
MPN: 14304624
VITE
from £0.47
from £0.47
# 050
MPN: 12601174
ROSETTA D .5.3-11X0.5
from £0.47
from £0.47
This part replaces part number 675000100
# 051
MPN: 235640
Manicotto
from £0.58
from £0.58
# 052
MPN: 257691
RACCORDO A TRE VIE
from £0.82
from £0.82
This part replaces part number 146972
# 057
MPN: 247306
TUBO GOMMA
from £34.13
from £34.13
# 058
MPN: 187713
MOLLETTA DI FISSAGGIO
from £3.25
from £3.25
This part replaces part number 98055
# 059
MPN: 209928
MOLLETTA
from £0.77
from £0.77
