023 - Precatalysts And Catalysts

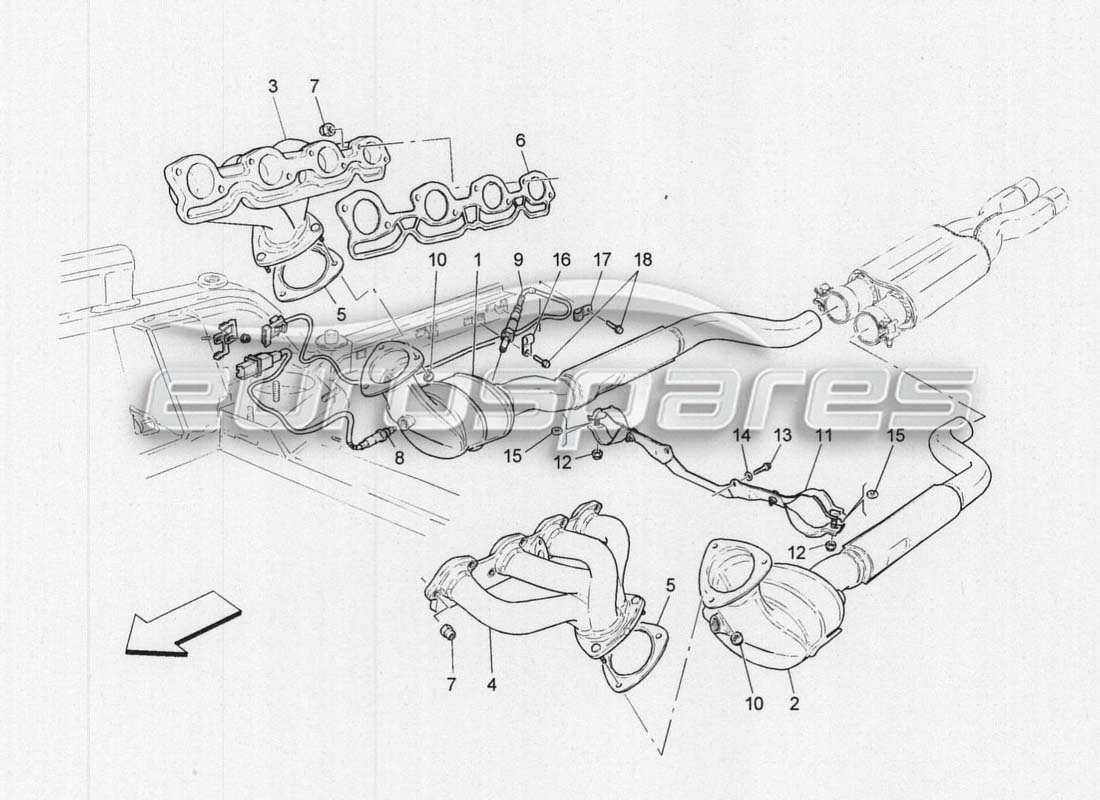

Maserati GranCabrio MC Centenario Precatalysts And Catalysts Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 241995
CATALIZZATORE DX. CPL.
from £2,081.65
from £2,081.65
# 002
MPN: 241997
CATALIZZATORE SX. CPL.
from £1,195.66
from £1,195.66
# 003
MPN: 226272
COLLETTORE DI SCARICO DX. CPL.
from £320.47
from £320.47
# 004
MPN: 226273
COLLETTORE DI SCARICO SX. CPL.
from £316.61
from £316.61
# 005
MPN: 189211
Guarnizione
from £6.32
from £6.32
# 006
MPN: 268256
Guarnizione
from £8.64
from £8.64
# 007
MPN: 138392
NUT
from £0.58
from £0.58
# 008
MPN: 217447
SONDA LAMBDA ANTERIORE
from £86.61
from £86.61
# 009
MPN: 180915
REAR LAMBDA PROBE
from £26.25
from £26.25
# 010
MPN: 138392
NUT
from £0.58
from £0.58
# 011
MPN: 225463
CATALYST SUPPORT
from £47.00
from £47.00
# 012
MPN: 14058519
NUT
from £0.47
from £0.47
This part replaces part number 312051309 which we have in stock
# 013
MPN: 16043324
VITE
from £0.47
from £0.47
# 014
MPN: 11193874
ROSETTA D.8.4-16X1.4
from £0.47
from £0.47
# 015
MPN: 234693
DISTANZIALE
from £3.41
from £3.41
# 016
MPN: 10418301
STAFFETTA CON GUAINA
from £0.47
from £0.47
# 017
MPN: 10441290
STAFFETTA CON GUAINA
from £0.47
from £0.47
# 018
MPN: 13833011
VITE
from £0.47
from £0.47
