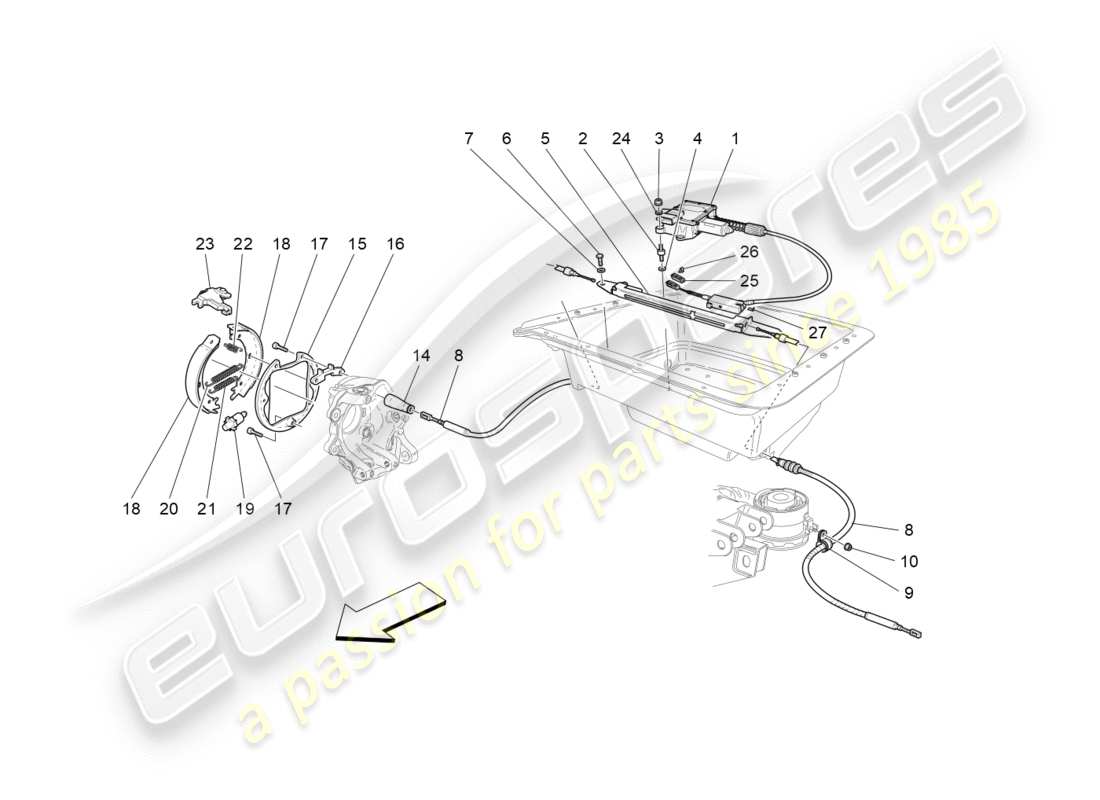

04.30.1 - PARKING BRAKE
Maserati GranTurismo (2012) PARKING BRAKE Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 281371
ELECTRONIC ACTUATOR ASSEMBLY
from £1,598.49
from £1,598.49
This part replaces part number 229384
# 002
MPN: 239829
PAD
from £6.03
from £6.03
This part replaces part number 225408
# 003
MPN: 14059214
NUT [M6]
from £0.47
from £0.47
This part replaces part number 12578121
# 004
MPN: 10523424
WASHER
from £0.47
from £0.47
# 005
MPN: 224010
BRACKET
from £55.48
from £55.48
# 006
MPN: 16043124
SCREW
from £0.26
from £0.26
# 007
MPN: 12601374
WASHER [D. 8,40-15X 0,8]
from £0.47
from £0.47
# 008
MPN: 221901
PARKING BRAKE SECONDARY CABLE
from £225.88
from £225.88
# 009
MPN: 10441290
BRACKET WITH SHEATH
from £0.47
from £0.47
# 010
MPN: 14058411
NUT [M6]
from £0.47
from £0.47
# 014
MPN: 143938
CABLE SHEATH
from £16.73
from £16.73
This part replaces part number 388000341
# 015
MPN: 186574
SHOES SUPPORT SPACER
from £43.14
from £43.14
# 016
MPN: 233371
PLATE
from £5.71
from £5.71
# 017
MPN: 190870
SCREW
from £1.15
from £1.15
This part replaces part number 193737 - and 1 more. Click to view details
# 018
MPN: 248418
HAND BRAKE SHOE #IT IS RECOMMENDED TO REPLACE ALL 4 BRAKE SHOES#
from £98.83
from £98.83
This part replaces part number 235894
# 019
MPN: 186572
REGISTER FOR HAND BRAKE
from £22.61
from £22.61
This part replaces part number 388000113
# 020
MPN: 190776
RETURN SPRING FOR BRAKE SHOES
from £9.57
from £9.57
# 021
MPN: 190779
RETURN SPRING FOR BRAKE SHOES
from £1.86
from £1.86
# 022
MPN: 190780
SPRING FOR SHOES
from £1.71
from £1.71
# 023
MPN: 253764
HAND BRAKE CONTROL LEVER
Supersession
Supersession
# 023
MPN: 253764
HAND BRAKE CONTROL LEVER
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
Supersession
Supersession
# 023
MPN: 980145862
HAND BRAKE CONTROL LEVER
(valid for: CAMBIOCORSA | 4700 cc | AUSTRALIA,CHINA,JAPAN,JAPAN (RH DRIVE),MIDDLE-EAST,SOUTH AFRICA,TAIWAN,UK)
from £104.14
from £104.14
This part replaces part number 253764
# 024
MPN: 233582
WASHER
from £0.87
from £0.87
# 025
MPN: 245964
CAGE
from £6.40
from £6.40
# 026
MPN: 245162
Retaining Clip
from £2.01
from £2.01
# 027
MPN: 239924
Retaining Clip
from £2.74
from £2.74
