033 - Lay Shaft Gears
Maserati GranTurismo Special Edition Lay Shaft Gears Parts Diagram

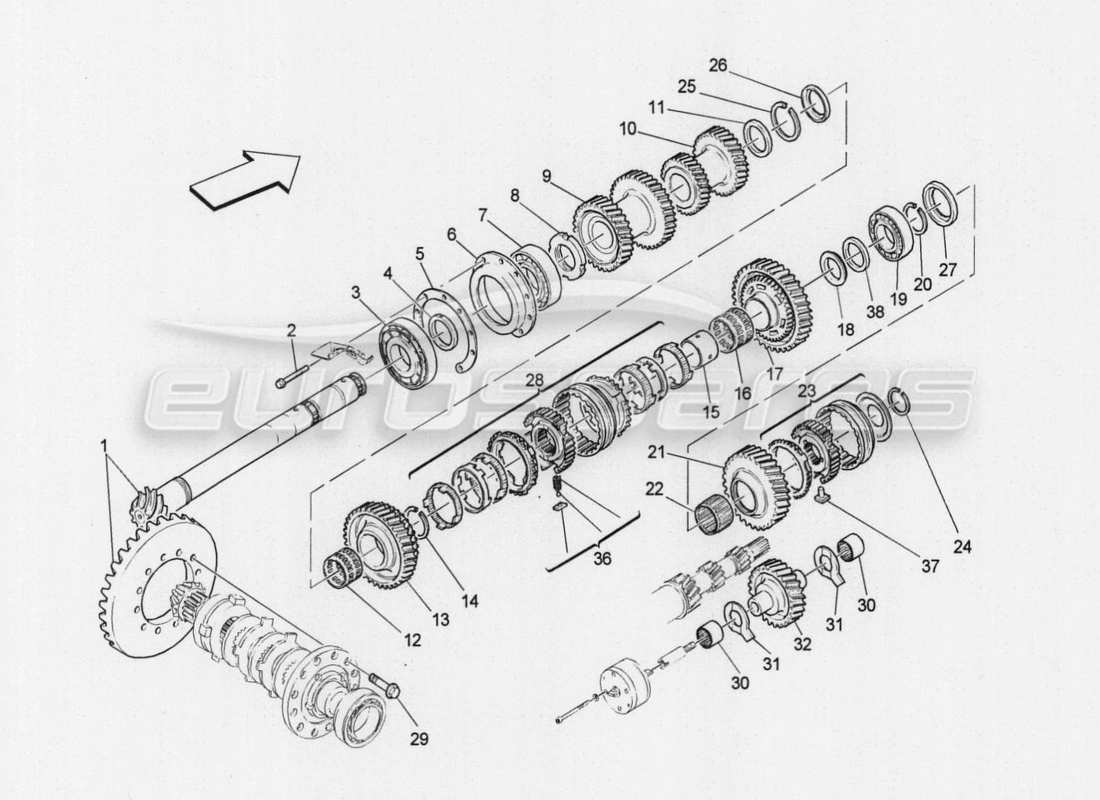

View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 219689
COMPLETE CONICAL DRIVE
from £1,275.69
from £1,275.69
# 002
MPN: 16287731
OPJ SCREW NO LONGER AVAILABLE AT LOCATION, CHECK STOCK ON SITE
from £1.11
from £1.11
# 002
MPN: 16287734
VITE
from £0.73
from £0.73
This part replaces part number 16287731 which we have in stock
# 003
MPN: 185022
CUSCINETTO A RULLI
from £85.60
from £85.60
# 004
MPN: 219717
REGISTRATION RING THICKNESS MM. 8,60
from £53.00
from £53.00
# 005
MPN: 185042
REGISTRATION RING THICKNESS MM. 2,8
from £5.66
from £5.66
# 005
MPN: 185043
REGISTRATION RING THICKNESS MM. 2.5-DI POSSIBLE ASSEMBLY
from £9.79
from £9.79
# 005
MPN: 185044
ADJUSTING RING THICKNESS MM 2.2-DI POSSIBLE ASSEMBLY
from £14.82
from £14.82
# 006
MPN: 219718
BEARING SUPPORT
from £85.25
from £85.25
# 007
MPN: 219720
CUSCINETTO A RULLI
from £60.91
from £60.91
# 008
MPN: 196667
GHIERA
from £32.68
from £32.68
# 009
MPN: 214802
DRIVEN GEAR OF 3A AND 4A VELOCITA1
from £331.83
from £331.83
# 010
MPN: 214801
INGRANAGGIO CONDOTTO DI 5A E 6A VELOCITA'
from £313.08
from £313.08
# 011
MPN: 188497
SPACER THICKNESS MM. 6.25
from £27.86
from £27.86
# 011
MPN: 212457
SPACER THICKNESS MM. 6,00 - ALTERNATIVELY
from £66.11
from £66.11
# 012
MPN: 184014
GABBIAA RULLINI
from £10.49
from £10.49
# 013
MPN: 220016
INGRANAGGIO COMPLETO DI 2A VELOCITA'
from £191.79
from £191.79
# 014
MPN: 183976
ELASTIC RING THICKNESS MM. 2.10
from £6.73
from £6.73
# 014
MPN: 185036
ELASTIC RING THICKNESS MM. 1.65-DI POSSIBLE ASSEMBLY
from £19.67
from £19.67
# 014
MPN: 185037
ANELLO ELASTICO SPESSOREMM. 1,60-DI EVENTUALE MONTAGGIO
from £23.44
from £23.44
# 015
MPN: 183971
BOCCOLA
from £43.35
from £43.35
# 016
MPN: 184016
GABBIAA RULLINI
from £12.61
from £12.61
# 017
MPN: 220015
INGRANAGGIO COMPLETO DI 1A VELOCITA'
from £191.79
from £191.79
# 018
MPN: 183972
RING THICKNESS MM. 5,10
from £42.21
from £42.21
# 018
MPN: 185040
RING THICKNESS MM. 4,85 -FOR ASSEMBLY
from £23.32
from £23.32
# 018
MPN: 185041
RING THICKNESS MM. 4,60 - FOR POSSIBLE ASSEMBLY
from £20.61
from £20.61
# 019
MPN: 184020
CUSCINETTO A RULLI
from £79.50
from £79.50
# 020
MPN: 184042
ANELLO ELASTICO
from £6.92
from £6.92
# 021
MPN: 326259
INGRANAGGIO COMPLETO DI R.M.
from £641.77
from £641.77
# 022
MPN: 184018
GABBIAA RULLINI
from £15.73
from £15.73
# 023
MPN: 326260
COMPLETE RM SYNCHRONIZER
from £1,189.53
from £1,189.53
This part replaces part number 193439
# 024
MPN: 184041
ANELLO ELASTICO
from £2.55
from £2.55
# 025
MPN: 183976
ELASTIC RING THICKNESS MM. 2.10
from £6.73
from £6.73
# 025
MPN: 185036
ELASTIC RING THICKNESS MM 1,85 - POSSIBLE ASSEMBLY
from £19.67
from £19.67
# 025
MPN: 185037
ELASTIC RING THICKNESS MM. 1.60 - FOR POSSIBLE ASSEMBLY
from £23.44
from £23.44
# 026
MPN: 203800
RALLA SPESSORE MM. 7.6
from £13.62
from £13.62
# 026
MPN: 203801
RALLA SPESSORE MM. 7.3 - IN ALTERNATIVA
from £26.21
from £26.21
# 027
MPN: 200979
DISTANZIALE
from £33.98
from £33.98
# 028
MPN: 185164
SINCRONIZZATORE COMPLETO 1A E 2A VELOCITA'
from £721.61
from £721.61
# 029
MPN: 183909
VITE
from £3.36
from £3.36
# 030
MPN: 184017
ASTUCCIO A RULLINI
from £4.88
from £4.88
# 031
MPN: 183975
ANELLO
from £14.04
from £14.04
# 032
MPN: 198612
RM IDLER GEAR
from £363.97
from £363.97
# 036
MPN: 188320
KIT SOSTITUZIONE TASSELLO SINCRO/SFERA/MOLLA
from £6.75
from £6.75
# 037
MPN: 193440
KIT SOSTITUZIONE SINCRO R.M /TASSELLI
from £2.32
from £2.32
This part replaces part number 193484
# 038
MPN: 182326
DISTANZIALE
from £38.79
from £38.79
