049 - COMPLETE PEDAL BOARD UNIT

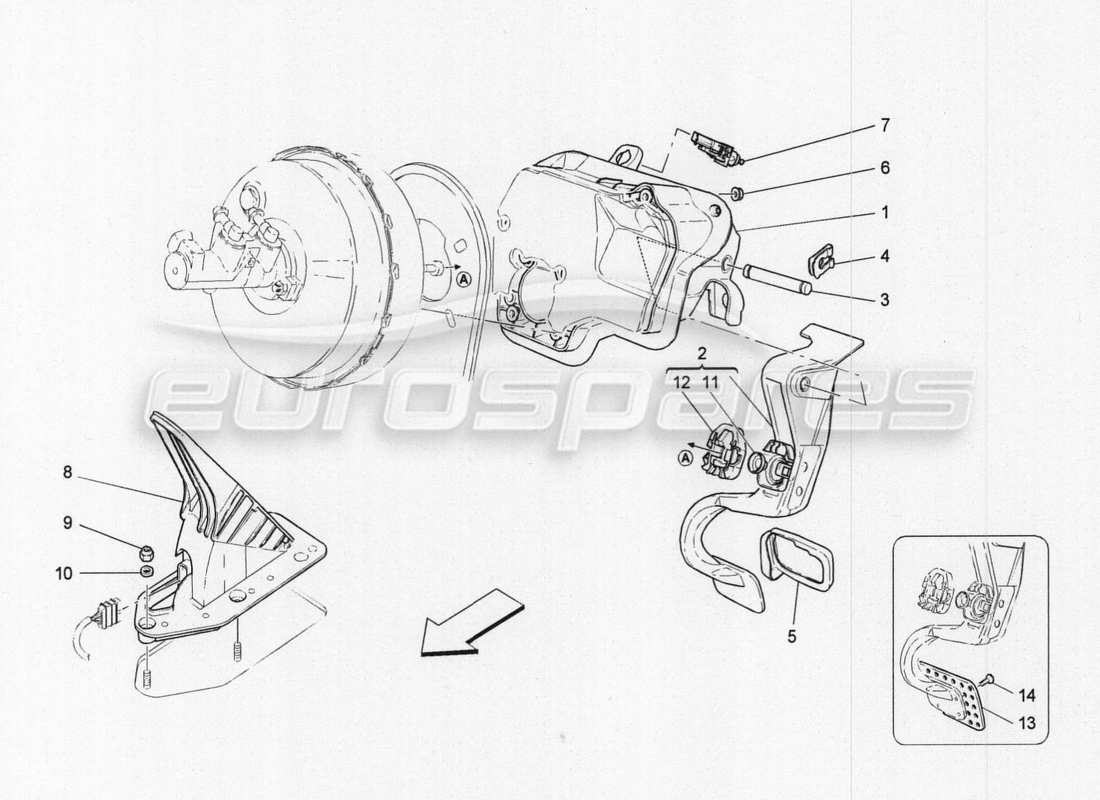

Maserati GranTurismo Special Edition Complete Pedal Board Unit Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 189858
SUPPORTO PEDALIERA
from £123.56
from £123.56
# 002
MPN: 980139784
COMPLETE BRAKE PEDAL
from £672.42
from £672.42
This part replaces part number 980139061 which we have in stock
# 003
MPN: 189870
PERNO
from £24.70
from £24.70
# 004
MPN: 11064471
FERMAGLIO
from £11.13
from £11.13
# 006
MPN: 12578211
DADO M8
from £0.47
from £0.47
# 007
MPN: 201957
INTERRUTTORE A PULSANTE
from £12.69
from £12.69
This part replaces part number 187869
# 008
MPN: 257944
PEDALE ACCELERATORE CPL.
from £663.47
from £663.47
# 009
MPN: 102741
NUT
from £0.47
from £0.47
This part replaces part number 12575421
# 010
MPN: 12601274
ROSETTA D. 6,40-12X0,5
from £0.47
from £0.47
This part replaces part number 12601270
# 011
MPN: 189864
SCODELLINO
from £21.11
from £21.11
# 012
MPN: 189863
TRATTENITORE
from £16.77
from £16.77
# 013
MPN: 257193
PEDAL PLATE
from £157.53
from £157.53
# 014
MPN: 14441324
VITE
from £0.47
from £0.47
