055 - Rear Suspension

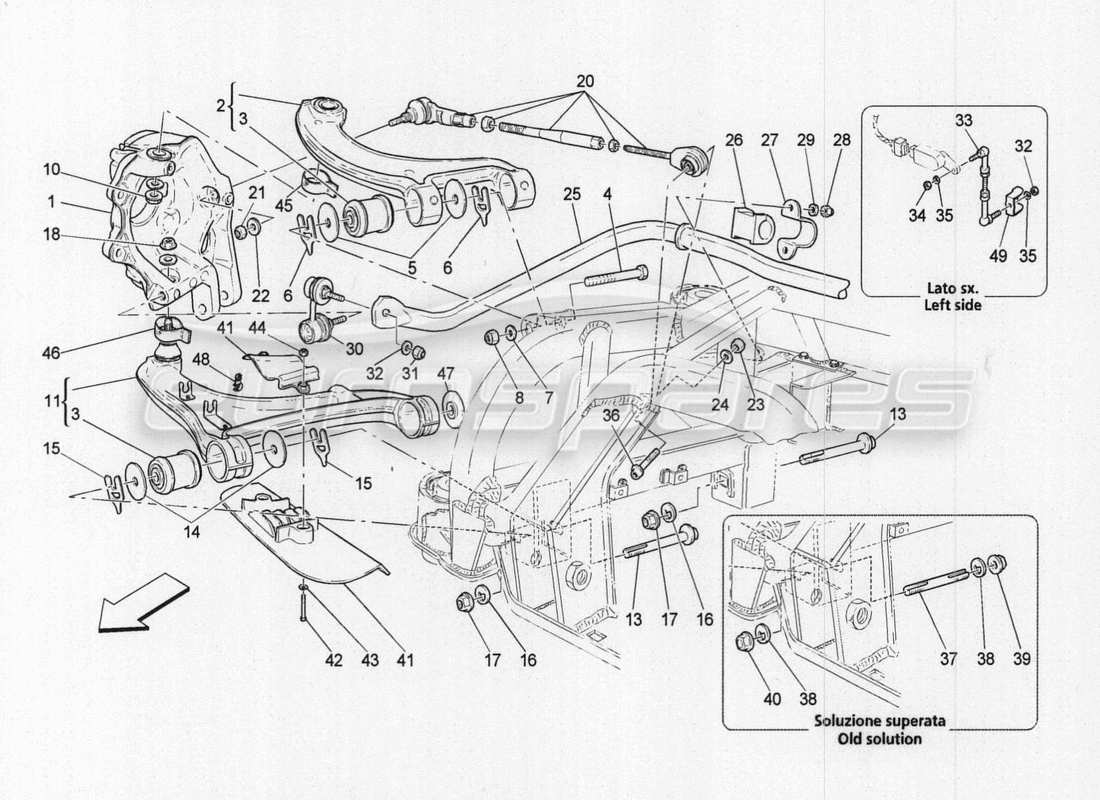

Maserati GranTurismo Special Edition Rear Suspension Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 980139918
LH REAR SUSPENSION KIT
from £126.00
from £126.00
This part replaces part number 900027752 - and 1 more. Click to view details
# 001
-
RIGHT REAR HUB CARRIER. CPL. CODE NOT AVAILABLE INDIVIDUALLY, ORDER COMPLETE SUSPENSION KIT CODE
# 001
-
PORTAMOZZO POSTERIORE SX. CPL. CODICE NON DISPONIBILE SINGOLARMENTE, ORDINARE CODICE KIT SOSPENSIONE COMPLETA
# 002
-
RIGHT UPPER REAR LEVER. CPL. CODE NOT AVAILABLE INDIVIDUALLY, ORDER COMPLETE SUSPENSION KIT CODE
# 002
-
LEFT REAR UPPER LEVER. CPL. CODE NOT AVAILABLE INDIVIDUALLY, ORDER COMPLETE SUSPENSION KIT CODE
# 003
MPN: 980139890
REAR SUSPENSION BUSH KIT
from £180.56
from £180.56
This part replaces part number 208703 - and 1 more. Click to view details
# 004
MPN: 15541334
VITE
from £3.17
from £3.17
# 005
MPN: 194444
ROSETTA
from £1.85
from £1.85
# 006
MPN: 198043
SPACER THICKNESS MM. 0,50
from £3.17
from £3.17
# 006
MPN: 198044
SPACER THICKNESS MM. 0,75
from £3.09
from £3.09
# 006
MPN: 198045
SPACER THICKNESS MM. 1,00
from £3.01
from £3.01
# 006
MPN: 198046
SPACER THICKNESS MM. 1,75
from £2.39
from £2.39
# 006
MPN: 198047
SPACER THICKNESS MM. 3,00
from £2.39
from £2.39
# 007
MPN: 14496721
ROSETTA
from £0.47
from £0.47
# 008
MPN: 102825
NUT
from £0.47
from £0.47
This part replaces part number 15506221
# 010
MPN: 245240
DADO VALE PER VETTURE CON KIT SOSPENSIONI 900027751/900027752 (POS.O)
from £4.05
from £4.05
# 011
-
RIGHT REAR LOWER LEVER. CPL. CODE NOT AVAILABLE INDIVIDUALLY, ORDER COMPLETE SUSPENSION KIT CODE
# 011
-
LEFT REAR LOWER LEVER. CPL. CODE NOT AVAILABLE INDIVIDUALLY, ORDER COMPLETE SUSPENSION KIT CODE
# 013
MPN: 260766
ECCENTRIC SCREW
from £16.10
from £16.10
# 014
MPN: 194445
ROSETTA
from £2.31
from £2.31
# 015
MPN: 198038
SPACER THICKNESS MM. 0,50
from £3.17
from £3.17
# 015
MPN: 198039
SPACER THICKNESS MM. 0,75
from £3.09
from £3.09
# 015
MPN: 198040
DISTANZIALE SPESSOREMM. 1,00
from £3.01
from £3.01
# 015
MPN: 198041
SPACER THICKNESS MM. 1,75
from £2.47
from £2.47
# 015
MPN: 198042
SPACER THICKNESS MM. 3,00
from £3.32
from £3.32
# 016
MPN: 240877
ROSETTA
from £3.86
from £3.86
# 017
MPN: 203795
NUT
from £1.24
from £1.24
This part replaces part number 183417 - and 1 more. Click to view details
# 018
MPN: 245240
DADO VAIE PER VETTURE CON KIT SOSPENSIONI 900027751/900027752 (POS.O)
from £4.05
from £4.05
# 018
MPN: 247308
DADO DI MAN OVRA UTILIZZARE SDO PER PRESERRAGGIO
from £7.49
from £7.49
# 020
MPN: 262362
COMPLETE TIE ROD FOR CONVERGENCE ADJUSTMENT NO LONGER AVAILABLE AT THE OFFICE, CHECK STOCK ON SITE
Supersession
Supersession
This part replaces part number 231402
# 020
MPN: 276636
COMPLETE TIE ROD FOR CONVERGENCE ADJUSTMENT
from £174.35
from £174.35
This part replaces part number 262362
# 021
MPN: 203657
NUT
from £1.31
from £1.31
# 022
MPN: 12626224
ROSETTA
from £0.54
from £0.54
# 023
MPN: 203657
NUT
from £1.31
from £1.31
# 024
MPN: 12626224
ROSETTA
from £0.54
from £0.54
# 025
MPN: 216713
REAR STABILIZER BAR
from £162.38
from £162.38
# 026
MPN: 200586
BAR BUFFER
from £6.03
from £6.03
# 027
MPN: 191221
BUFFER HOLDING PLATE
from £25.03
from £25.03
# 028
MPN: 104030
NUT
from £0.47
from £0.47
# 029
MPN: 14496524
ROSETTA D.8,40-17 X 1.6
from £0.47
from £0.47
# 030
MPN: 259572
TIRANTE SFERICO LATOSX
from £51.62
from £51.62
This part replaces part number 162619
# 030
MPN: 259573
TIRANTE SFERICO LATODX
from £47.42
from £47.42
This part replaces part number 162620 which we have in stock
# 031
MPN: 102742
NUT
from £0.47
from £0.47
# 032
MPN: 12601474
ROSETTA D.10,50-21X 1,0
from £0.54
from £0.54
# 033
MPN: 228958
HEADLIGHT ALIGNMENT POTENTIOMETER TIE ROD
from £34.72
from £34.72
# 034
MPN: 102741
NUT
from £0.47
from £0.47
This part replaces part number 12575421
# 035
MPN: 14498824
ROSETTA D.6.4-16.3X1
from £0.47
from £0.47
# 036
MPN: 16324034
VITE
from £3.17
from £3.17
# 037
MPN: 204008
PRIGIONIERO
from £35.85
from £35.85
# 038
MPN: 240877
ROSETTA
from £3.86
from £3.86
# 039
MPN: 203795
NUT
from £1.31
from £1.31
This part replaces part number 183417 - and 1 more. Click to view details
# 040
MPN: 204010
Dado cieco
from £4.09
from £4.09
# 045
MPN: 386600416
JOINT PROTECTION
from £3.64
from £3.64
# 046
MPN: 386600416
JOINT PROTECTION
from £3.64
from £3.64
# 047
MPN: 222203
DISTANZIALE
from £13.44
from £13.44
# 048
MPN: 150738
MOLLETTA
from £0.47
from £0.47
# 049
MPN: 231274
STAFFA
from £6.81
from £6.81
