maserati granturismo s (2017) main wiring parts diagram

08.60.3 - main wiring

Maserati GRANTURISMO S (2017) MAIN WIRING Parts Diagram

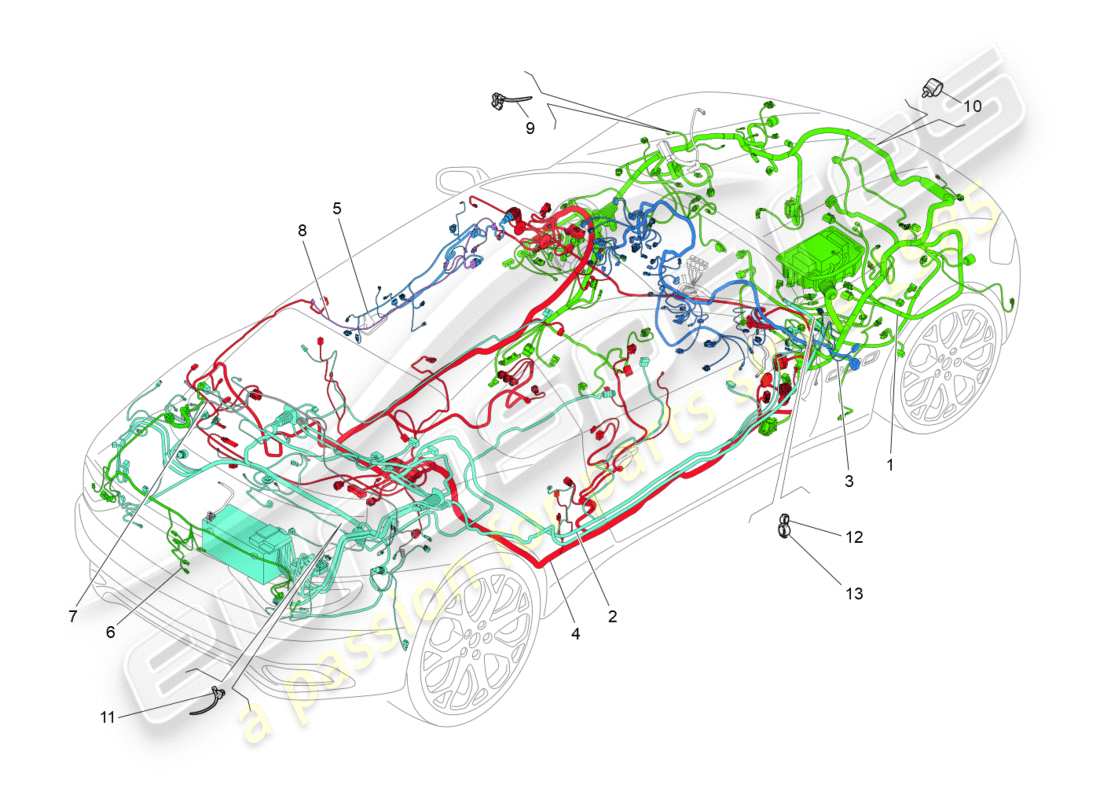

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                  #
                  Part number
                  Description
                  Key
                  Price
                  # 001
                  MPN: 305586
                  ENGINE COMPARTMENT WIRING HARNESS
                  Valid from assembly: 77967.
                  from £1,886.26
                  from £1,886.26
                  ENGINE COMPARTMENT WIRING HARNESS Genuine Maserati Part - New (to order)
                  # 002
                  MPN: 323414
                  BOOT COMPARTMENT WIRING HARNESS
                  Valid from assembly: 84933.
                  from £1,664.77
                  from £1,664.77
                  LUGGAGE COMP.CABLE,NO HIFI Genuine Maserati Part - New (to order)
                  # 002
                  MPN: 323415
                  BOOT COMPARTMENT WIRING HARNESS
                  Valid from assembly: 84933. Suitable for cars with: Cables for Full optional version.
                  from £1,985.47
                  from £1,985.47
                  LUGGAGE COMP.CABLE,HIFI Genuine Maserati Part - New (to order)
                  # 003
                  MPN: 305593
                  DASHBOARD CABLE
                  Valid from assembly: 77967.
                  from £669.76
                  from £669.76
                  DASHBOARD WIRING HARNESS (LHD), U Genuine Maserati Part - New (to order)
                  # 004
                  MPN: 305587
                  PASSENGER COMPARTMENT WIRING HARNESS
                  Valid from assembly: 77967.
                  from £1,131.01
                  from £1,131.01
                  PASSENGER COMPARTMENT WIRING HARN Genuine Maserati Part - New (to order)
                  # 005
                  MPN: 305583
                  DRIVER DOOR WIRING HARNESS
                  Valid from assembly: 77967.
                  from £157.38
                  from £157.38
                  DRIVER DOOR WIRING HARNESS Genuine Maserati Part - New (to order)
                  # 005
                  MPN: 305584
                  PASSENGER DOOR WIRING HARNESS
                  Valid from assembly: 77967.
                  from £153.56
                  from £153.56
                  PASSENGER DOOR WIRING HARNESS Genuine Maserati Part - New (to order)
                  # 006
                  MPN: 233927
                  BOOT WIRING HARNESS
                  from £94.89
                  from £94.89
                  TRUNK HOOD BONNET CABLE Genuine Maserati Part - New (to order)
                  # 007
                  MPN: 212487
                  FUEL PUMP CABLE
                  from £225.58
                  from £225.58
                  FUEL PUMP AND TANK EARTH CABLE Genuine Maserati Part - New (to order)
                  FUEL PUMP AND TANK EARTH CABLE Genuine Maserati Part - Used In stock
                  # 008
                  MPN: 231437
                  DRIVER DOOR WIRING HARNESS
                  from £92.92
                  from £92.92
                  DOOR PANEL BRIDG. CABLE HARN.-DRI Genuine Maserati Part - New (to order)
                  DOOR PANEL BRIDG. CABLE HARN.-DRI Genuine Maserati Part - Used In stock
                  # 008
                  MPN: 231438
                  PASSENGER DOOR PANEL WIRING HARNESS
                  from £30.91
                  from £30.91
                  CABLE FOR PASSENGER DOOR PANEL Genuine Maserati Part - New (to order)
                  CABLE FOR PASSENGER DOOR PANEL Genuine Maserati Part - Used In stock
                  DOOR CARD LOOM L/H RHD
                  # 009
                  MPN: 177553
                  CLAMP
                  from £0.47
                  from £0.47
                  CLIP (177553) Genuine Ferrari Part - New (to order)
                  CLAMP Genuine Maserati Part - New (to order)
                  # 010
                  MPN: 204775
                  CLIP
                  from £0.59
                  from £0.59
                  CLIP -D.=17 TO 21 - (204775) Genuine Ferrari Part - New In stock
                  CLIP Genuine Maserati Part - New (to order)
                  # 010
                  MPN: 230265
                  CLIP
                  from £5.73
                  from £5.73
                  CLIP Genuine Maserati Part - New (to order)
                  # 011
                  MPN: 236942
                  CLAMP
                  from £2.95
                  from £2.95
                  RETAINING CLAMP Genuine Maserati Part - New (to order)
                  # 012
                  MPN: 191907
                  CLIP
                  from £0.82
                  from £0.82
                  CLIP (191907) Genuine Ferrari Part - New In stock
                  CLIP Genuine Maserati Part - New (to order)
                  # 013
                  MPN: 191817
                  CLIP
                  from £2.95
                  from £2.95
                  CLIP Genuine Maserati Part - New (to order)
