08.60.5 - main wiring

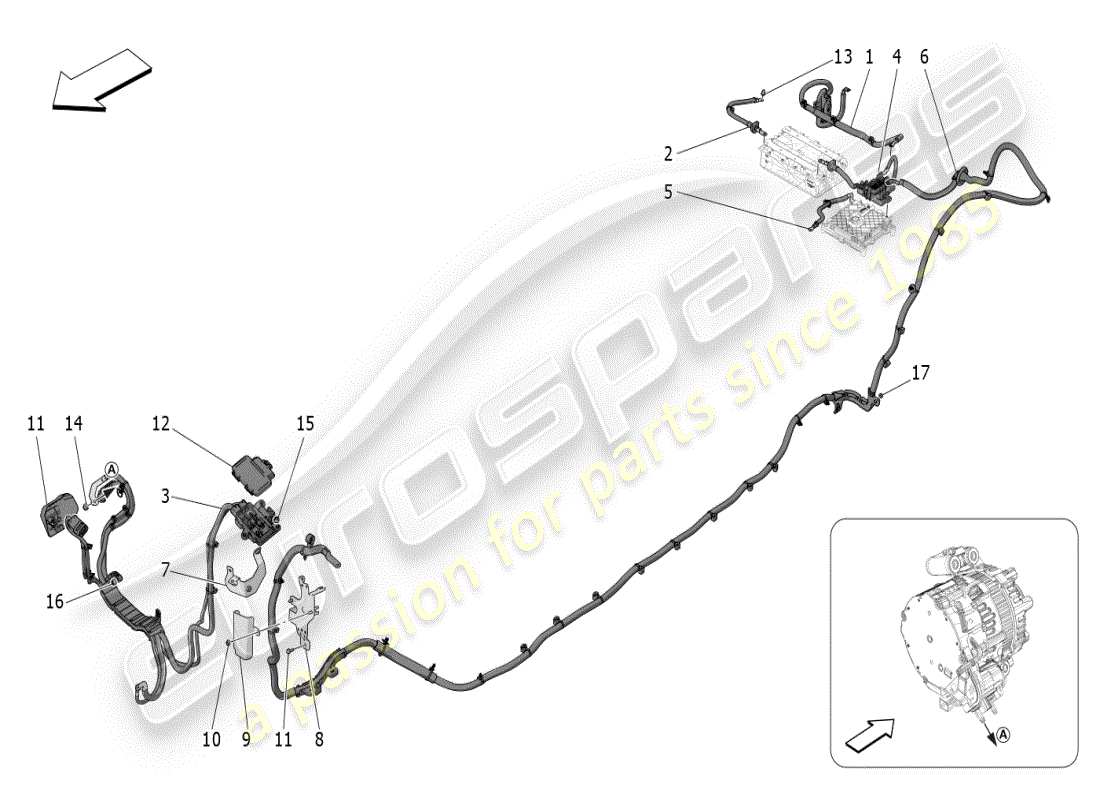

Maserati Grecale Modena (2023) MAIN WIRING Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                  #
                                  Part number
                                  Description
                                  Key
                                  Price
                                  # 001
                                  MPN: 670157675
                                  POSITIVE POLE CABLE
                                  Valid from assembly: 0 - 2032179.
                                  from £107.50
                                  from £107.50
                                  REAR BATTERY CABLE Genuine Maserati Part - New (to order)
                                  # 002
                                  MPN: 670157742
                                  NEGATIVE BATTERY WIRING
                                  from £19.76
                                  from £19.76
                                  NEGATIVE 48 VOLT SECOND BATT Genuine Maserati Part - New (to order)
                                  NEGATIVE 48 VOLT SECOND BATT Genuine Maserati Part - Used In stock
                                  # 003
                                  MPN: 670221485
                                  EBOOSTER CONNECTION CABLE
                                  from £130.63
                                  from £130.63
                                  ENGINE COMPARTMENT WIRING 48 V Genuine Maserati Part - New (to order)
                                  ENGINE COMPARTMENT WIRING 48 V Genuine Maserati Part - Used In stock
                                  # 004
                                  MPN: 670157744
                                  BATTERY-CONVERTER CONNECTION CABLE
                                  from £87.81
                                  from £87.81
                                  48 VOLT CABLE Genuine Maserati Part - New (to order)
                                  48 VOLT CABLE Genuine Maserati Part - Used In stock
                                  # 005
                                  MPN: 670177063
                                  GROUND LEAD
                                  from £13.68
                                  from £13.68
                                  GROUND CABLE Genuine Maserati Part - New (to order)
                                  GROUND CABLE Genuine Maserati Part - Used In stock
                                  # 006
                                  MPN: 670157671
                                  48 VOLT BATTERY POSITIVE POLE CABLE
                                  from £113.70
                                  from £113.70
                                  DC/DC INVERTER CHARGER WIRIN Genuine Maserati Part - New (to order)
                                  DC/DC INVERTER CHARGER WIRIN Genuine Maserati Part - Used In stock
                                  # 007
                                  MPN: 670172819
                                  BRACKET
                                  from £9.76
                                  from £9.76
                                  BRACKET Genuine Maserati Part - New (to order)
                                  # 008
                                  MPN: 670172821
                                  BRACKET
                                  from £13.88
                                  from £13.88
                                  BRACKET Genuine Maserati Part - New (to order)
                                  # 009
                                  MPN: 670172825
                                  LH FRONT BRACKET
                                  from £6.64
                                  from £6.64
                                  LH FRONT BRACKET Genuine Maserati Part - New (to order)
                                  # 010
                                  MPN: 675000181
                                  NUT
                                  Supersession
                                  Supersession
                                  Genuine Maserati Part (no longer available to order)
                                  # 011
                                  MPN: 670292863
                                  SHIELD
                                  from £5.01
                                  from £5.01
                                  SHIELD Genuine Maserati Part - New (to order)
                                  SHIELD Genuine Maserati Part - Used In stock
                                  # 012
                                  MPN: 670219002
                                  COVER
                                  from £5.49
                                  from £5.49
                                  FUSE BOX COVER Genuine Maserati Part - New (to order)
                                  # 013
                                  MPN: 675000793
                                  PIN
                                  from £5.10
                                  from £5.10
                                  PERNO FILETT.SDPR COMPLETE M6 Genuine Maserati Part - New (to order)
                                  # 014
                                  MPN: 675000450
                                  NUT
                                  from £4.25
                                  from £4.25
                                  NUT Genuine Maserati Part - New (to order)
                                  # 015
                                  MPN: 675000095
                                  NUT [M6]
                                  from £0.61
                                  from £0.61
                                  NUT Genuine Maserati Part - New (to order)
                                  # 016
                                  MPN: 675000734
                                  NUT
                                  from £0.73
                                  from £0.73
                                  NUT Genuine Maserati Part - New (to order)
                                  # 017
                                  MPN: 675000324
                                  NUT
                                  from £0.79
                                  from £0.79
                                  SPECIAL NUT Genuine Maserati Part - New In stock
