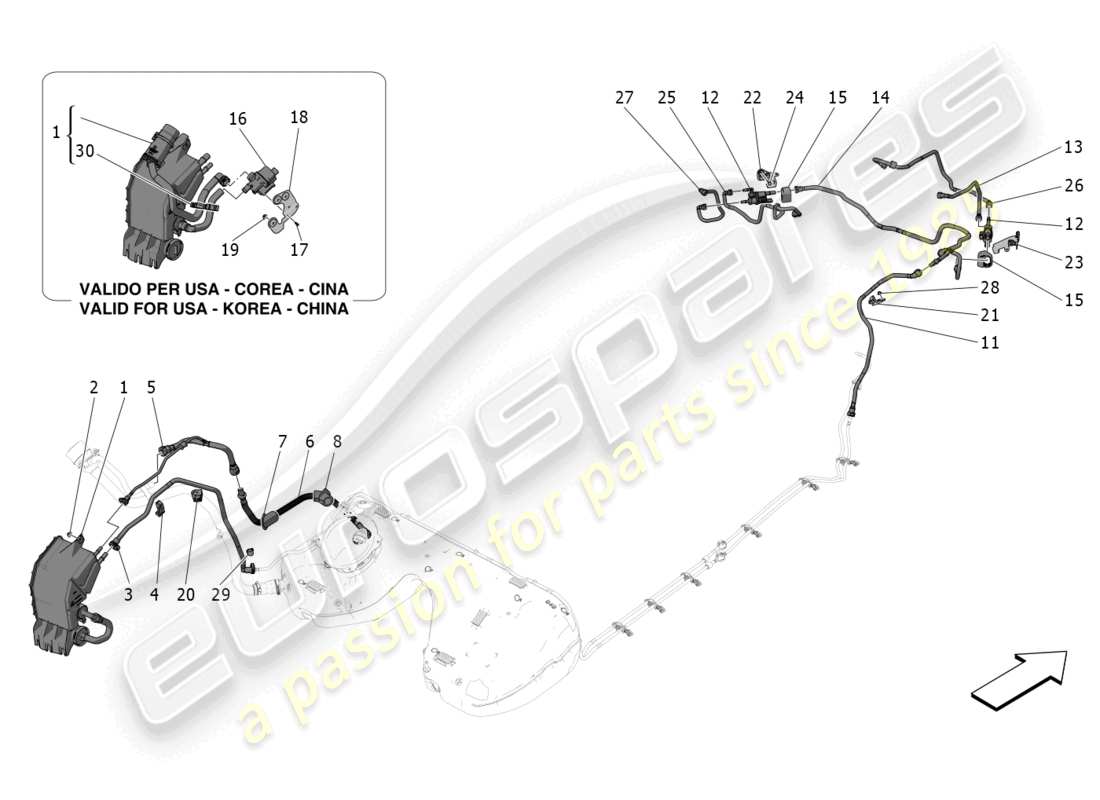

01.44.2 - fuel vapour recirculation system
Maserati Grecale Trofeo (2023) FUEL VAPOUR RECIRCULATION SYSTEM Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 675001694
FUEL VAPOUR FILTER
from £60.28
from £60.28
# 002
MPN: 675001063
NUT
from £1.01
from £1.01
# 003
MPN: 670160939
PIPE FROM FUEL VAPOUR FILTER TO UNDERFLOOR
from £13.18
from £13.18
# 004
MPN: 675001782
CLIP
from £1.73
from £1.73
# 005
MPN: 670160941
HOSE
from £21.08
from £21.08
# 006
MPN: 675001672
VENT PIPE
from £11.59
from £11.59
# 007
MPN: 675001783
RUBBER
from £7.15
from £7.15
# 008
MPN: 675001784
GASKET
from £5.55
from £5.55
# 011
MPN: 670160948
TUBE FUEL VAPOR
from £39.25
from £39.25
# 012
MPN: 670162028
SOLENOID VALVE
from £26.62
from £26.62
This part replaces part number 670106836
# 013
MPN: 675002006
RH HOSE FROM SLEEVE TO SOLENOID VALVE
from £38.61
from £38.61
# 014
MPN: 675001650
HOSE
from £168.03
from £168.03
# 015
MPN: 675001080
RUBBER
from £5.55
from £5.55
# 020
MPN: 670181757
CLIP
from £4.54
from £4.54
# 021
MPN: 675001575
FUEL HOSE BRACKET
from £2.86
from £2.86
# 022
MPN: 675002033
LH BRACKET
from £19.93
from £19.93
# 023
MPN: 675002000
RH BRACKET
from £21.87
from £21.87
# 024
MPN: 675001127
SCREW
from £0.95
from £0.95
# 025
MPN: 670156746
LH TUBE FROM SOLENOID VALVE TO PLENUM CHAMBER
from £27.57
from £27.57
# 026
MPN: 675002002
RH TUBE FROM SOLENOID VALVE TO PLENUM CHAMBER
from £49.13
from £49.13
# 027
MPN: 675002008
LH HOSE FROM SLEEVE TO SOLENOID VALVE
from £55.42
from £55.42
# 028
MPN: 675001063
NUT
from £1.01
from £1.01
# 029
MPN: 675001802
CLIP
from £1.16
from £1.16
