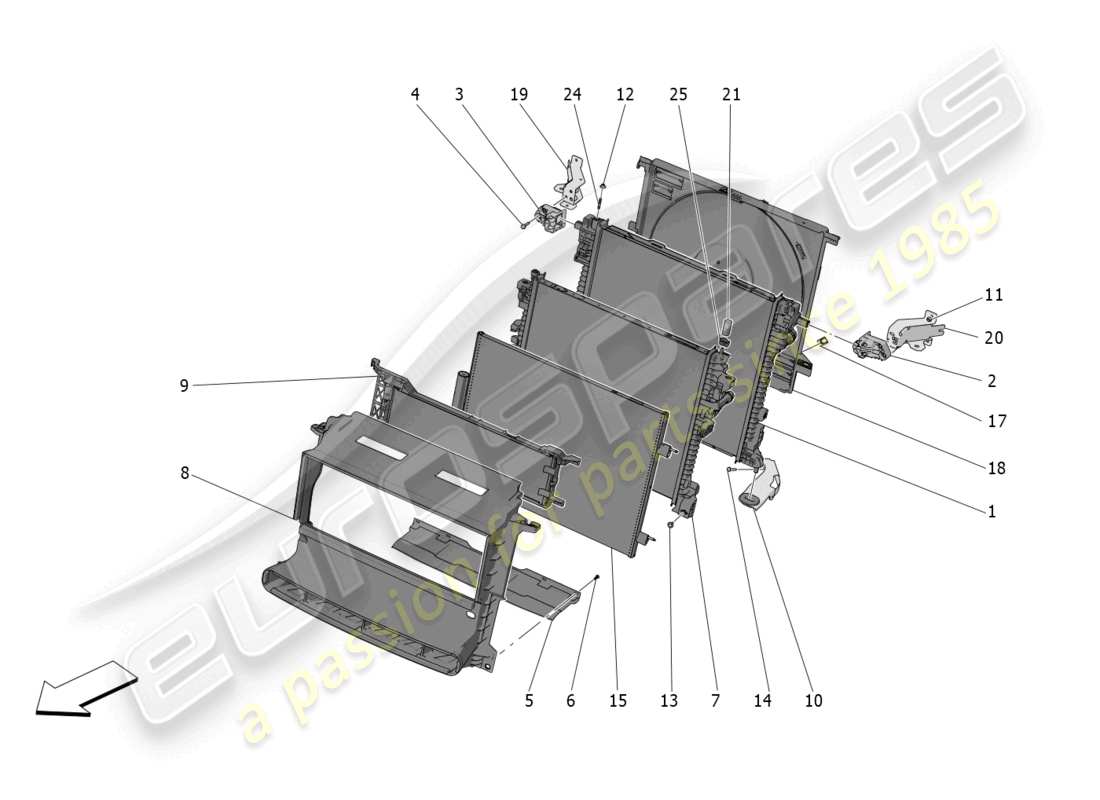

Maserati Grecale Trofeo (2023) COOLING: AIR RADIATORS AND DUCTS Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                              #
                                              Part number
                                              Description
                                              Key
                                              Price
                                              # 001
                                              MPN: 675001944
                                              WATER RADIATOR
                                              from £431.95
                                              from £431.95
                                              RADIATOR REFRIGERATION MODUL Genuine Maserati Part - New (to order)
                                              # 002
                                              MPN: 675002060
                                              LH BRACKET FOR UPPER FIXING WATER RADIATOR
                                              from £28.04
                                              from £28.04
                                              BRACKET Genuine Maserati Part - New (to order)
                                              # 003
                                              MPN: 675002059
                                              RH BRACKET FOR UPPER FIXING WATER RADIATOR
                                              from £28.04
                                              from £28.04
                                              BRACKET Genuine Maserati Part - New (to order)
                                              # 004
                                              MPN: 675001933
                                              SCREW
                                              from £1.01
                                              from £1.01
                                              SCREW Genuine Maserati Part - New (to order)
                                              # 005
                                              MPN: 675002068
                                              LOWER COVER
                                              from £34.39
                                              from £34.39
                                              LOWER COVER Genuine Maserati Part - New (to order)
                                              # 006
                                              -
                                              SCREW
                                              # 006
                                              MPN: 675002069
                                              SCREW
                                              from £0.57
                                              from £0.57
                                              SCREW Genuine Maserati Part - New (to order)
                                              # 007
                                              MPN: 675001945
                                              SECONDARY WATER RADIATOR
                                              from £303.28
                                              from £303.28
                                              RADIATOR Genuine Maserati Part - New (to order)
                                              # 008
                                              MPN: 670156442
                                              CPL AIR SHUTTER
                                              from £101.62
                                              from £101.62
                                              CONVEYOR Genuine Maserati Part - New (to order)
                                              # 009
                                              MPN: 675001981
                                              OIL RADIATOR
                                              from £215.98
                                              from £215.98
                                              OIL RADIATOR Genuine Maserati Part - New (to order)
                                              # 010
                                              MPN: 675001566
                                              RH BRACKET
                                              from £16.65
                                              from £16.65
                                              RIGHT BRACKET Genuine Maserati Part - New (to order)
                                              # 010
                                              MPN: 675001567
                                              LH BRACKET
                                              from £16.81
                                              from £16.81
                                              LEFT BRACKET Genuine Maserati Part - New (to order)
                                              # 011
                                              MPN: 675000969
                                              NUT
                                              from £0.75
                                              from £0.75
                                              NUT Genuine Maserati Part - New (to order)
                                              # 012
                                              MPN: 675001063
                                              NUT
                                              from £1.01
                                              from £1.01
                                              NUT Genuine Maserati Part - New (to order)
                                              # 013
                                              MPN: 675001053
                                              SCREW
                                              from £1.37
                                              from £1.37
                                              SCREW Genuine Maserati Part - New (to order)
                                              # 014
                                              MPN: 675001119
                                              SCREW
                                              from £0.61
                                              from £0.61
                                              SCREW Genuine Maserati Part - New (to order)
                                              # 015
                                              MPN: 675001027
                                              A.C CONDENSER
                                              from £482.38
                                              from £482.38
                                              CONDENSOR A/C Genuine Maserati Part - New (to order)
                                              # 017
                                              MPN: 675001040
                                              PLATE
                                              from £1.01
                                              from £1.01
                                              PLATE Genuine Maserati Part - New (to order)
                                              # 018
                                              MPN: 675001213
                                              FAN
                                              from £720.55
                                              from £720.55
                                              ELECTROFAN MODULE Genuine Maserati Part - New (to order)
                                              # 019
                                              MPN: 675002111
                                              RH BRACKET
                                              from £26.66
                                              from £26.66
                                              RH BRACKET Genuine Maserati Part - New (to order)
                                              # 020
                                              MPN: 675002112
                                              LH BRACKET
                                              from £29.93
                                              from £29.93
                                              LH BRACKET Genuine Maserati Part - New (to order)
                                              # 021
                                              MPN: 675001912
                                              PLUG
                                              from £2.76
                                              from £2.76
                                              CAP Genuine Maserati Part - New (to order)
                                              # 024
                                              -
                                              STUD
                                              # 024
                                              MPN: 675002067
                                              STUD
                                              from £9.26
                                              from £9.26
                                              STUD Genuine Maserati Part - New (to order)
                                              # 025
                                              MPN: 675001924
                                              COLLAR
                                              from £1.05
                                              from £1.05
                                              RIBBON COLLAR Genuine Maserati Part - New (to order)
