maserati grecale trofeo (2023) lubrication and gearbox oil cooling parts diagram

03.50.2 - lubrication and gearbox oil cooling

Maserati Grecale Trofeo (2023) LUBRICATION AND GEARBOX OIL COOLING Parts Diagram

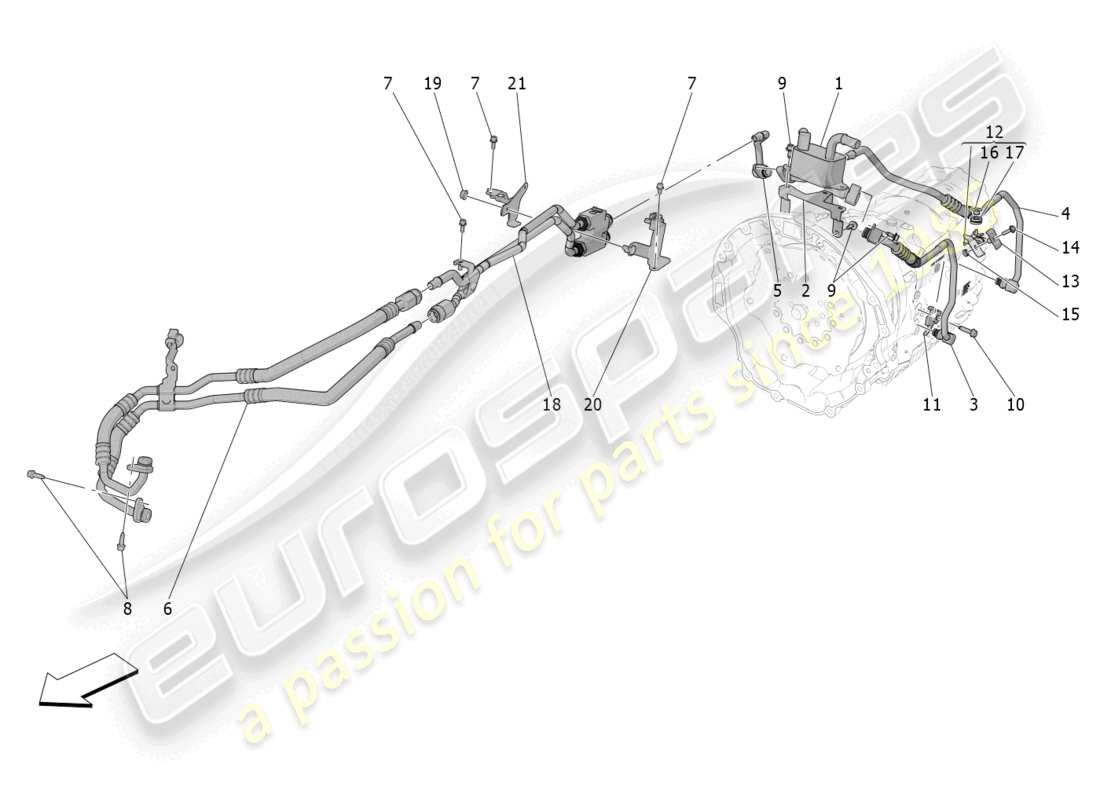

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                            #
                                            Part number
                                            Description
                                            Key
                                            Price
                                            # 001
                                            MPN: 675001863
                                            OIL HEAT EXCHANGER
                                            from £406.63
                                            from £406.63
                                            HEAT EXCHANGER Genuine Maserati Part - New (to order)
                                            # 002
                                            MPN: 675001867
                                            OIL EXCHANGER BRACKET
                                            from £10.26
                                            from £10.26
                                            BRACKET Genuine Maserati Part - New (to order)
                                            # 003
                                            MPN: 675001870
                                            GEARBOX OIL DELIVERY TUBE
                                            from £51.75
                                            from £51.75
                                            PIPE Genuine Maserati Part - New (to order)
                                            # 004
                                            MPN: 675001871
                                            GEARBOX OIL RETURN TUBE
                                            from £68.95
                                            from £68.95
                                            PIPE Genuine Maserati Part - New (to order)
                                            # 005
                                            MPN: 675001864
                                            TRANSMISSION OIL COOLING TUBE
                                            from £29.50
                                            from £29.50
                                            PIPE Genuine Maserati Part - New (to order)
                                            # 006
                                            MPN: 675002072
                                            CONDENSER OIL PIPE
                                            from £161.93
                                            from £161.93
                                            TUBE Genuine Maserati Part - New (to order)
                                            # 007
                                            MPN: 670051104
                                            SCREW
                                            from £1.51
                                            from £1.51
                                            SCREW Genuine Maserati Part - New (to order)
                                            # 008
                                            MPN: 675001055
                                            SCREW
                                            from £1.70
                                            from £1.70
                                            SCREW Genuine Maserati Part - New (to order)
                                            # 009
                                            MPN: 675000662
                                            SCREW
                                            from £1.14
                                            from £1.14
                                            SCREW Genuine Maserati Part - New (to order)
                                            # 010
                                            MPN: 675000397
                                            SCREW [TE M8]
                                            from £8.03
                                            from £8.03
                                            SCREW Genuine Maserati Part - New (to order)
                                            # 011
                                            MPN: 675001091
                                            GEARBOX PIPES FIXING BRACKET
                                            from £4.67
                                            from £4.67
                                            BRACKET Genuine Maserati Part - New (to order)
                                            # 012
                                            MPN: 675001869
                                            BRACKET
                                            from £14.14
                                            from £14.14
                                            PIPE SUPPORT BRACKET Genuine Maserati Part - New (to order)
                                            # 013
                                            MPN: 675001858
                                            BRACKET
                                            from £6.21
                                            from £6.21
                                            PIPE SUPPORT BRACKET Genuine Maserati Part - New (to order)
                                            # 014
                                            MPN: 675001132
                                            SCREW
                                            from £0.69
                                            from £0.69
                                            SCREW Genuine Maserati Part - New (to order)
                                            # 015
                                            MPN: 675001855
                                            NUT
                                            from £3.52
                                            from £3.52
                                            NUT Genuine Maserati Part - New (to order)
                                            # 016
                                            MPN: 675000288
                                            SPACER
                                            from £1.39
                                            from £1.39
                                            SPACER Genuine Maserati Part - New (to order)
                                            # 017
                                            MPN: 675000054
                                            FLEXIBLE PAD
                                            from £9.41
                                            from £9.41
                                            SMALL BLACK Genuine Maserati Part - New (to order)
                                            # 018
                                            -
                                            OIL DELIVERY AND RETURN HOSE
                                            # 018
                                            MPN: 670052354
                                            OIL DELIVERY AND RETURN HOSE
                                            from £133.68
                                            from £133.68
                                            OIL DELIVERY AND RETURN HOSE Genuine Maserati Part - New (to order)
                                            # 019
                                            MPN: 675000182
                                            NUT
                                            from £0.75
                                            from £0.75
                                            NUT Genuine Maserati Part - New (to order)
                                            # 020
                                            -
                                            BRACKET
                                            # 020
                                            MPN: 670051311
                                            BRACKET
                                            from £7.90
                                            from £7.90
                                            BRACKET Genuine Maserati Part - New (to order)
                                            # 021
                                            -
                                            BRACKET
                                            # 021
                                            MPN: 670052385
                                            BRACKET
                                            from £13.62
                                            from £13.62
                                            BRACKET Genuine Maserati Part - New (to order)
