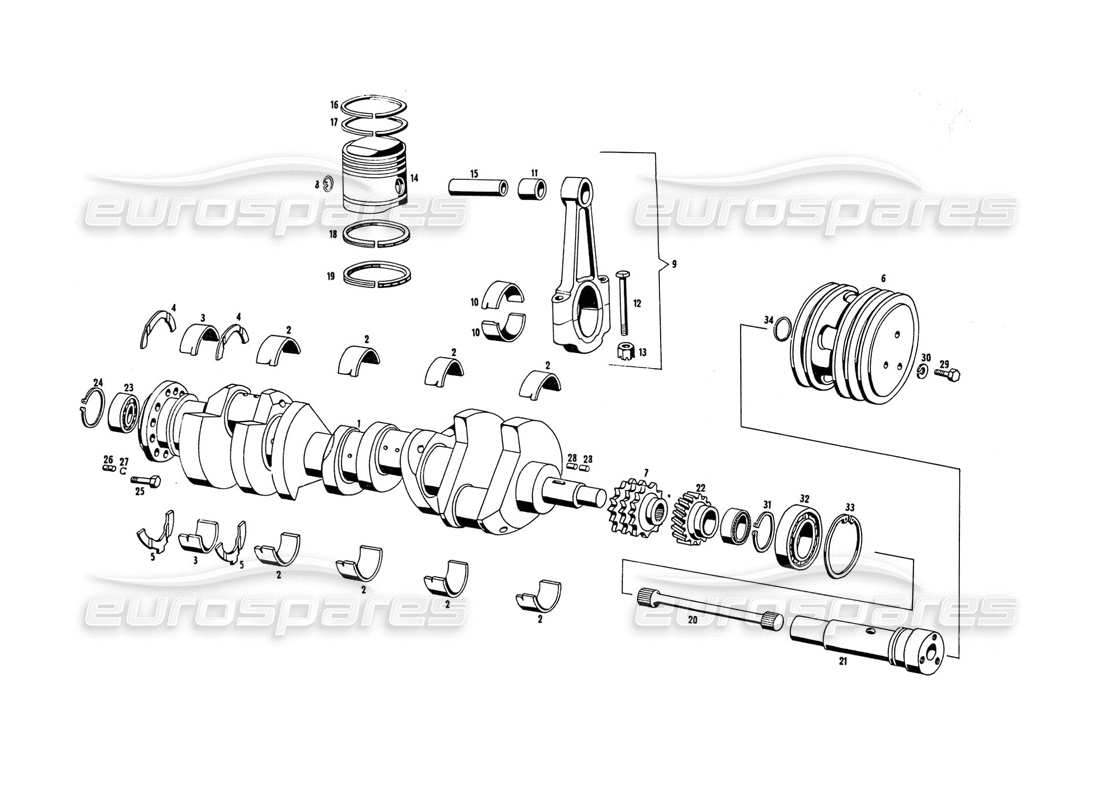

Maserati Indy 4.2 Moving parts Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
-
You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
001
MPN:
107/3 MM 67250
ALBERO MANOVELLA
#
001
MPN:
116 MM 116010
CRANKSHAFT ASSEMBLY
#
002
MPN:
103241250484
CENTRAL MAIN BEARING
#
003
MPN:
101 2422 48728
CU4CINETTO POST. CRANKSHAFT
#
004
MPN:
101243048737
WASHER
Supersession
Supersession
#
005
MPN:
101243248738
WASHER
Supersession
Supersession
#
006
MPN:
107/3 MM 67249
PULEGGIA ANT. ALBERO MOTORE
#
007
MPN:
107/3 MM 67251
TIMING CONTROL GEAR ON THE CRANKSHAFT
#
008
MPN:
107MM57318
RETAINER FOR PIN
#
009
MPN:
107 MM 54705
CONNECTING ROD AND CAP
#
009
MPN:
116 MM 116008
Connecting rod and cap complete with bolts and bushing
#
009
MPN:
116 MM 116009
CONNECTING ROD ASSEMBLY WITH PIN AND BUSHING
#
010
MPN:
107.2504.52011
BUSHING FOR CONNECTING ROD
from
£103.05
from
£103.05
#
011
MPN:
103 2520 52032
BUSH
from
£36.52
from
£36.52
#
012
MPN:
104 2530 52185
BOLT
from
£29.40
from
£29.40
#
013
MPN:
103.2532.50756
NUT
#
014
MPN:
115 0349 MM 70449
PISTONE PER CANNA Ø 93,9 - 4700 CC.
#
014
MPN:
429022100
PISTONE PER CANNA Ø 88 4200 CC.
from
£243.48
from
£243.48
#
015
MPN:
101 - 2702 46431
SPINOTTO PER PISTONE
from
£521.73
from
£521.73
#
016
MPN:
107 2754 53989
Stepped sealing segment 4200 cc.
from
£78.27
from
£78.27
#
016
MPN:
115 0349 MM 71826
Segmento di tenuta con gradino (superiore) 4700 cc.
#
017
MPN:
107 2754 53990
Conical sealing segment 4200 cc.
from
£78.27
from
£78.27
#
017
MPN:
115.0349 MM 70656
CONICAL SEAL SEGMENT (LOWER 4700 CC.
#
018
MPN:
107280453991
OIL SCRAPER 4200 CC.
from
£78.27
from
£78.27
#
019
MPN:
107/2 MM 63305
OIL SCRAPER 4200 CC.
#
019
MPN:
115.0349 MM 70657
OIL SCRAPER 4700 CC.
#
020
MPN:
107/3 MM 67252
BARRA DI TRAIN PULEGGIA ANT.
#
021
MPN:
107/3 MM 67253
MOZZO PER PULEGGIA ANT.
#
022
MPN:
107/3 MM 67254
PRIMARY GEAR FOR GENERATOR CONTROL
#
023
MPN:
GSC 46424
BEARING 17 X 47 X 14 ON THE REAR SIDE CRANKSHAFT
#
024
MPN:
ART/46284
SIEEGER 471 SULL'ALBERO MOTORE PARTE POST
#
025
MPN:
PN 65982
BOLT
#
026
MPN:
GRN44931
GRAIN 10X 15 BETWEEN FLYWHEEL AND CRANKSHAFT
#
027
MPN:
ART/49644
RING
#
028
MPN:
RUL55977
ROLLER 5 X 5 FOR DRIVING THE OIL GEAR
#
029
MPN:
BNT 47018
BOLTS Ø 8X 1,25X 16 FOR FIXING THE PULLEY TO THE HUB
#
030
MPN:
RSN 3 2 6 3 5
WASHER
#
031
MPN:
ART 49584
RING
#
032
MPN:
CSC49764
BEARING 20 X 47 X 14 ON THE BELT TENSIONER PULLEY
#
033
MPN:
ART/46284
RING
#
034
MPN:
GOM 55510
GOMMINO Ø 25,12 X 28,58 X 1,78 PER PULEGGIA ANTERIORE
